JCB JS460 T2 2001-2014 Electrical and Hydraulic Diagram PDF

Data Size: 0.71 MB
File Type: PDF
Language: English
Manufacturer: JCB
Applicable Machine: Tracked Excavator
Document: Electric Diagram, Hydraulic Diagram
Machine Model: JCB JS460 [T2] (2001-2014) Tracked Excavator

List Contents:

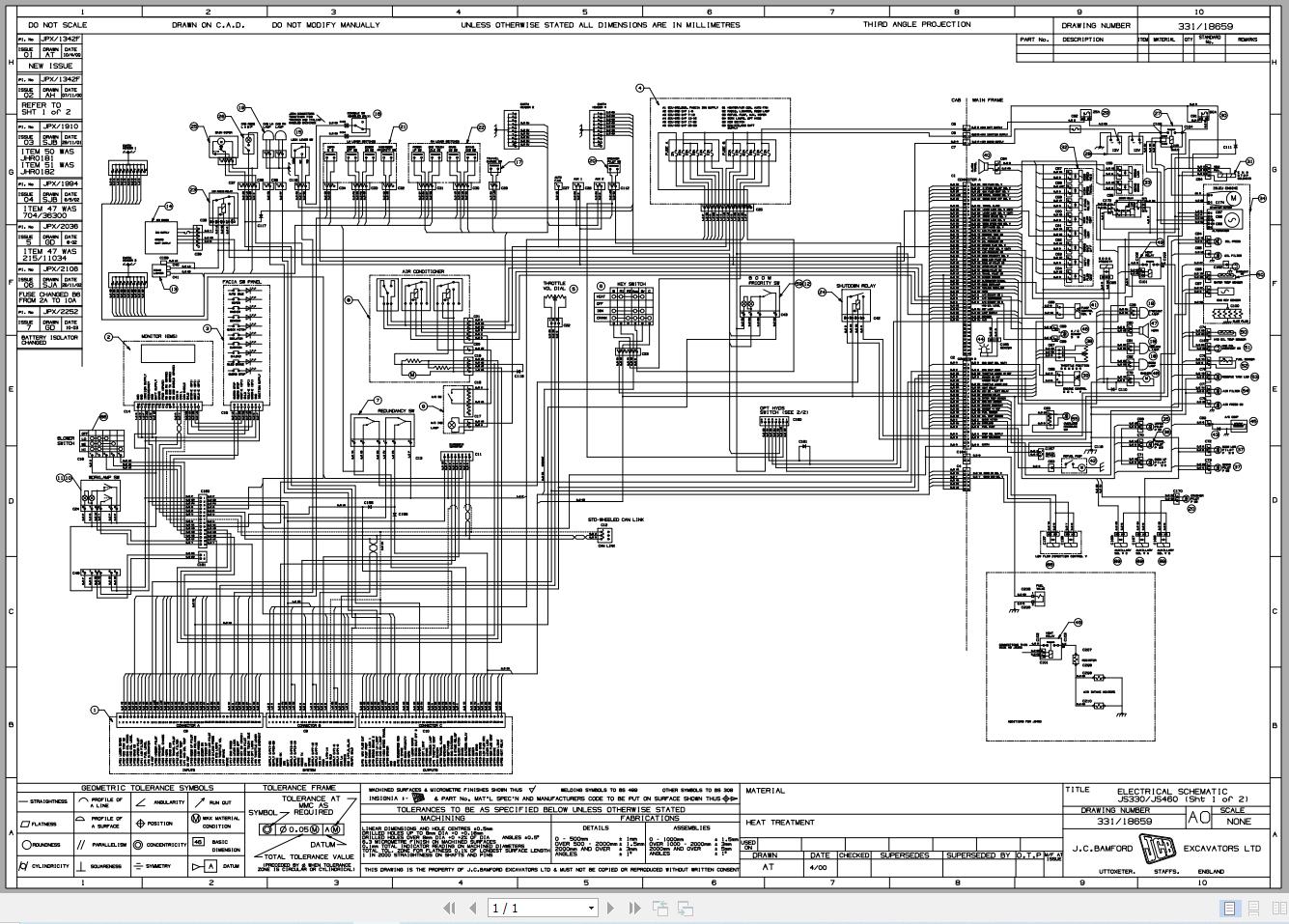

331_18659-7_ Electrical Schematic.pdf (1 Page)

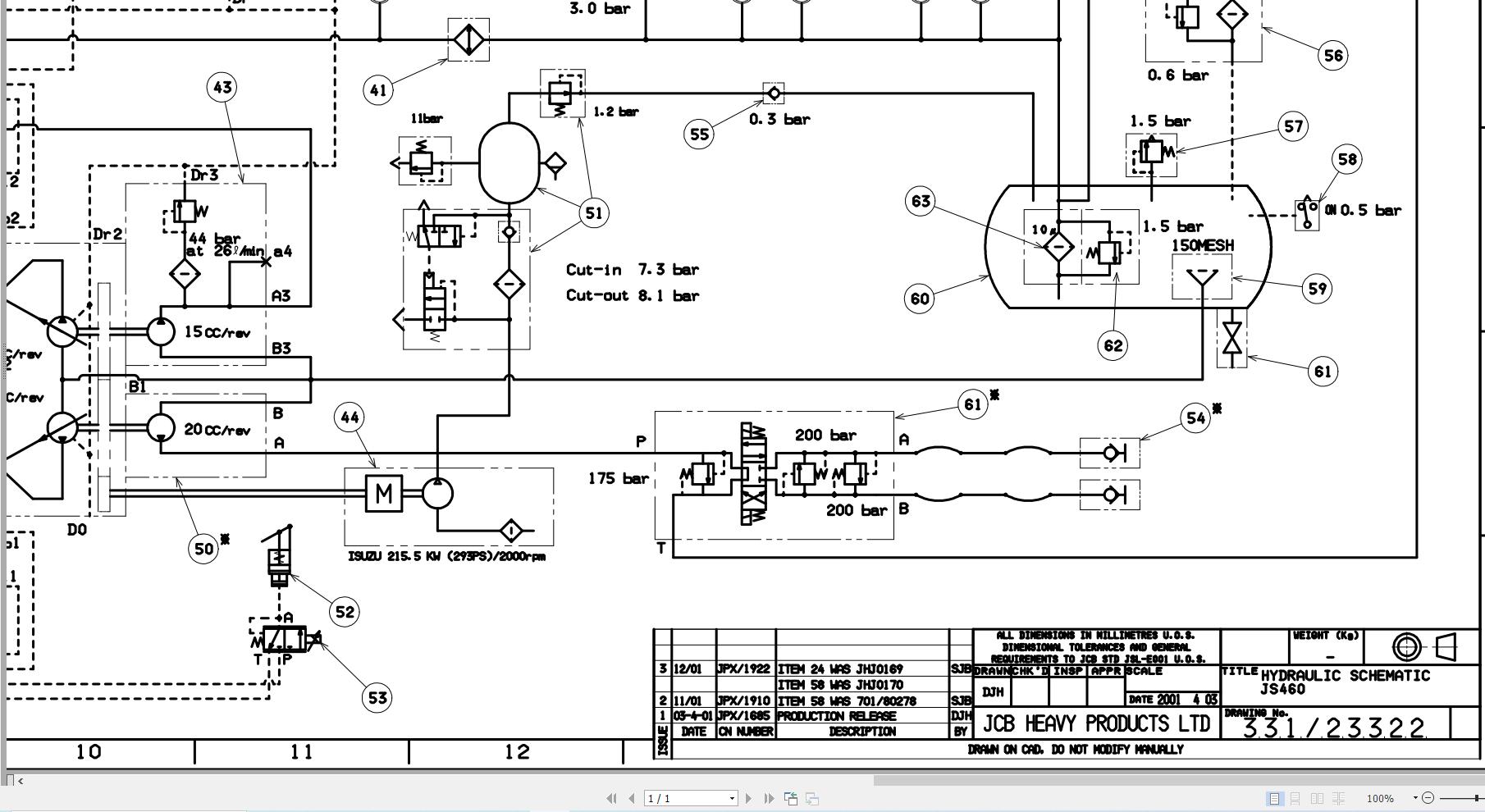

331_23322-3_ Hydraulic Schematic.pdf (1 Page)
