Ag-Chem Air Max 180 Rogator System Parts Catalog 551988D1

Data Size: 16.34 MB
File Type: PDF
Language: English
Manufacturer: Ag-Chem
Applicable Machine: Rogator System
Document: Parts Catalog
Machine Model: Ag-Chem Air Max 180 Rogator System
Serial Number: CXXX1001-LXXX9999
Book Number: 551988D1
Page: 334 Pages

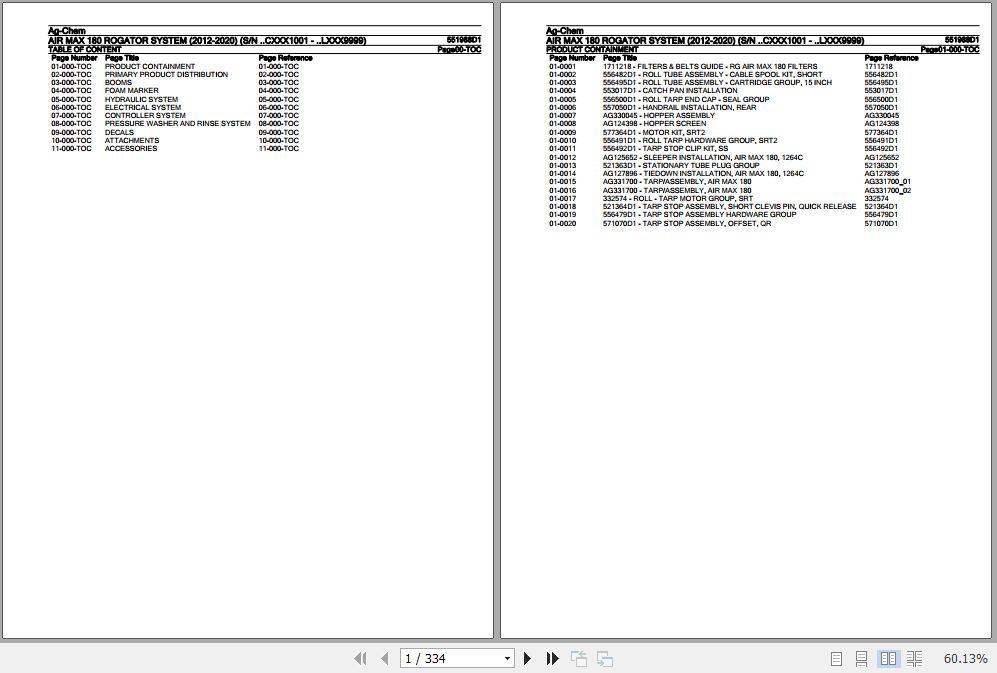

List Contents:

Product Containment
Rg Air Max 180 Filters
Cable Spool Kit, Short
Cartridge Group, 15 Inch
Catch Pan Installation
Seal Group
Handrail Installation, Rear

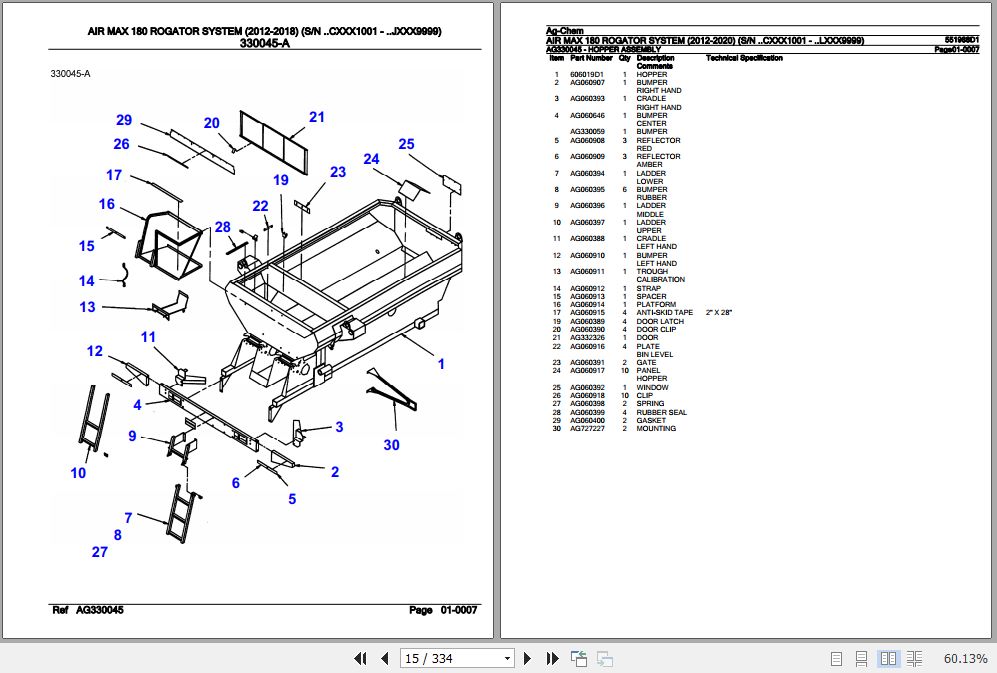

Hopper Assembly
Hopper Screen
Motor Kit, Srt2
Tarp Motor Group, Srt
Roll Tarp Hardware Group, Srt2
Tarp Stop Clip Kit, Ss
Sleeper Installation, Air Max 180, 1264c
Stationary Tube Plug Group
Tiedown Installation, Air Max 180, 1264c
Tarp Assembly, Air Max 180
Tarp Stop Assembly, Short Clevis Pin, Quick Release
Tarp Stop Assembly Hardware Group
Tarp Stop Assembly, Offset, Qr
026_Primary Product Distribution
Gearbox, Worm, Hydraulic Drive, Left Hand
Gearbox, Worm, Hydraulic Drive, Right Hand
Fan Assembly
Fertilizer Metering
Application Rate Sensor, Raven
Manifold
Metering Roller
Second Metering System
038_Booms
Boom Assembly, 30 Inch Spacing
Boom Fold Assembly
Boom Lock Installation
Boom Suspension
043_Foam Marker
Ball Valve, 2.00 Inch, Poly
Foam Marker Installation
Foam Marker Tank Assembly, Air Max 180
Solenoid Valve Rework
Solenoid Valve
Regulator Assembly Foam Marker
Solenoid Valve, 25npt, 12 Volt
Foam Marker Regulator Assembly
062_Hydraulic System
Boom Fold Hydraulics Installation
Fan Circuit Hydraulics Installation
Low Pressure Hydraulic Filter Assembly
Hydraulic Servo Valve Assembly, Fan Speed
Fan Motor Group Hydraulics Installation
Cartridge Valve, Rotary Flow Control
Fertilizer Group Hydraulics Installation
Flow Control Valve, 15gpm
Hydraulic Motor, Parker Tf 100
Hydraulic Cylinder, 1.50 X 6.00 X 1.00

2016 2017 2018 Hydraulic Bracket Installation Power Head, Raven, 15 Section Pump Bolts, Bosch Rexroth Pump Bolts, Sauer Danfoss Pump Support Pump Support Assembly Reservoir Group Hydraulics Installation 105_Electrical System Kit, Repair 2019 Taillight Assembly, Led, Speaker, Molded, Ss Sensor Installation, Lockout Electric Installation, Reverse Camera Electrical Installation, Raven, Granular, Air Max 180 No Worklight #3 License Plate Light Rotating Beacon Installation Rotating Beacon Lamp Assembly No Worklight Second Metering System Hydraulics Installation 145_Controller System 147_Pressure Washer And Rinse System Ball Valve, 0.75 Npt, Union, Poly Pressure Washer, Air Max 180 Pressure Washer Installation 153_Decals Decal Installation, Air Slow Moving Vehicle Sign Installation Speed Indicator Symbol Installation, 35 Mph Speed Indicator Symbol Installation, 55 Kph 158_Attachments Door Stop Extension Installation License Plate Bracket Installation 162_Accessories Cab Kit, 98 Air Max, New Cab Dry System Field Accessories
