AGCO EDT V1 11.2025 Electronic Diagnostic Tool – Latest Diagnostic Software for Agricultural Machines

🔧 Introduction to AGCO EDT V1 11.2025

AGCO EDT (Electronic Diagnostic Tool) V1 11.2025 is the latest professional diagnostic software for AGCO agricultural machines, including brands such as Fendt, Massey Ferguson, Challenger, Valtra, and Gleaner.
The newest version (v1.128.25258.1057 – 11.2025) offers faster processing, improved connectivity, and multilingual support for users worldwide.

📘 AGCO EDT V1 11.2025 Details

Software Name: AGCO EDT – Electronic Diagnostic Tool

Version: V1 (Updated November 2025)

Data Size: 45.34 GB

Program Type: Electronic diagnostic software

Applicable Machines: Agricultural Equipment

Update Version: v1.128.25258.1057 – 11/2025

🌍 Supported Languages

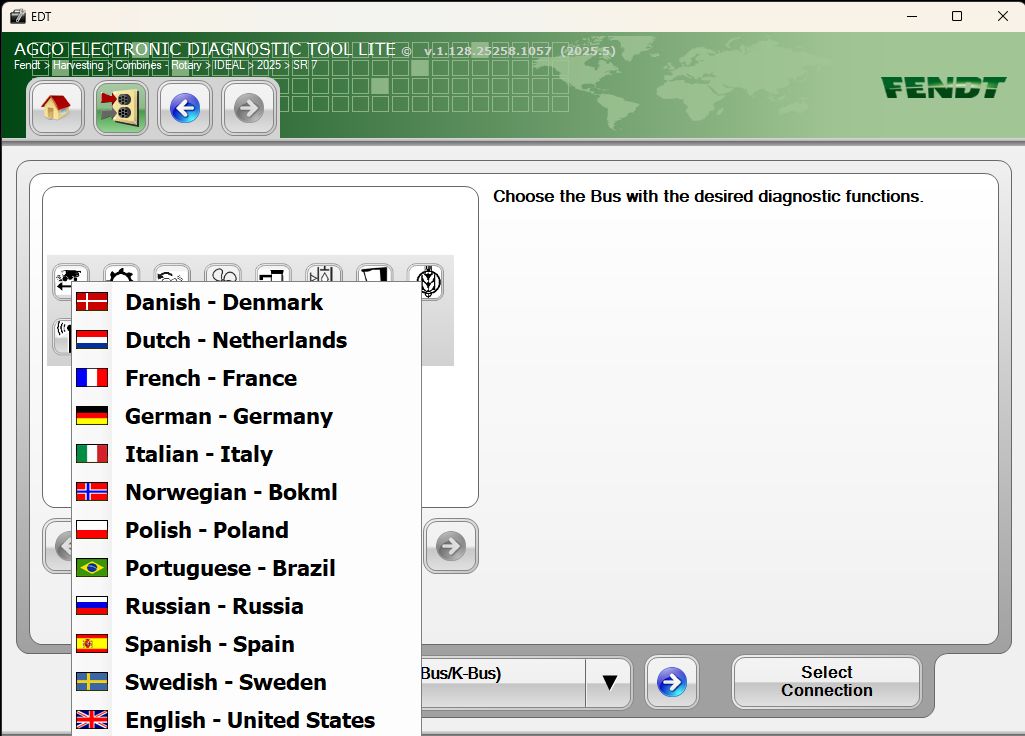

Interface Languages: English, Dutch, French, Finnish, German, Spanish, Portuguese, Danish, Russian, Polish, Italian, Turkish, Swedish, Chinese, Norwegian Bokmål

Database Language: English only

💻 System Requirements

Compatible Operating Systems: Windows 10, Windows 11 (64-bit & 86-bit)

Tested On: Windows 10 Pro 22H2 64-bit

🚜 Key Features of AGCO EDT V1 11.2025

Direct connection to AGCO machines using official diagnostic cables.

Supports diagnostics, calibration, programming, and electronic system checks.

Updated data for models released in 2024–2025.

User-friendly interface for technicians.

Multilingual interface for global usage.

📈 Benefits of Using AGCO EDT V1 11.2025

Reduces diagnostic time and improves maintenance efficiency.

Quickly and accurately identifies error codes.

Ideal for service centers, technicians, and official AGCO dealers

✅ Conclusion

AGCO EDT V1 11.2025 is a powerful, stable, and up-to-date electronic diagnostic tool specifically designed for AGCO agricultural machines.
For anyone looking to diagnose, program, and maintain AGCO equipment efficiently, this software is the top choice.

Contact Us : “CLICK HERE ”
Payment Method : “CLICK HERE ”
Shopping Guide : “CLICK HERE ”

Release Notes – 11/5/2025 – Update 2025.5

EDT NOTES:

EDT Version: 1.128.25258.1057

Enhancements:

Add double-click action for EDT selections
Minor improvements to diagnostic functionality.
Vehicles Affected:

Challenger: WR9900 Series
Massey Ferguson: WR9900 Series
Vehicle Version:

1.68
General:

This update requires that the guidance receiver is updated to the latest software version.
Specifically for units with Trimble receivers, if after the software updates the system is not recognized on the monitor or the only correction source available is Autonomous, then technicians will need to clear the BB Ram to allow the receiver to do a full reboot. To do this the technicians will need to download the Trimble Toolbox+ app onto their mobile device. From there use the following steps to navigate to the appropriate location within the app:
Turn on the receiver.
Connect the Trimble Toolbox+ app with the receiver.
Run the AgRemote utility.
Navigate to the Clear BB RAM screen.
Press double window icon until “Yes” appears.
Press enter.
Software:

NT03 v5.00.18
Fix third screen black bug
Fix incorrect convergence value when in imperial units
Fix latest worked area not saving on ignition off
Fix overlap in correction screen when using Trimble with no modem
Last selected field/wayline restores on ignition off/on
VD0x VD0X.GLB001.I.03.198.
Improved pivot recording algorithm
Vehicles Affected:

Challenger: 520C
Challenger: 540C
Challenger: 560C
Massey Ferguson: 9595S
Massey Ferguson: 9695S
Massey Ferguson: 9795S
Massey Ferguson: 9895S
Valtra: 6800
Valtra: 7800
Vehicle Version:

1.66
General:

fixed VMM version as “BB: 5.38 b63; LL: 0,66 b101”
Software:

EMU update ver. AX_S3_P2_ISO_EMU_v6.06_b167
engine update variant 84674 to sw: 837085987_5
engine update variant 84679 to sw: 837093577_1
engine update variant 98622 to sw: 837093579_1
engine update variant 98621 to sw: 837093578_1
Plug-Ins:

engine plug-in update to ver. 6.16
Release Notes – 9/8/2025 – Update 2025.4.OC2

EDT NOTES:

EDT Version: 1.128.25190.1121

Vehicles Affected:

Massey Ferguson: 2706e, 2760e
Vehicle Version:

2.9
Release Notes – 8/27/2025 – Update 2025.4

EDT NOTES:

EDT Version: 1.128.25190.1121

Bug Fixes:

Enhancements:

Updated WinSCP to version 6.5.2
Minor improvements to diagnostic functionality.
Vehicles Affected:

Challenger: WR9900 Series
Massey Ferguson: WR9900 Series
Vehicle Version:

1.67
Software:

NT03 v5.00.17
Fix header float conversion between imperial and metric
Fix USB icon stays active when USB is removed
Fix secondary monitor freeze in some circumstances
Fix primary monitor crash when shifting into rear steer
Fix guidance overlap not being maintained in both directions
Fix not applying overlap after key switch but still showing right value
Vehicles Affected:

Massey Ferguson: Square Balers: 2224, 2233, 2234, 2234XD, 2244
Fendt: Square Balers: 990, 1270, 1290, 1290XD, 12130
Vehicle Version:

1.37
Diagnostics:

Add virtual CAN-Bus to monitor availability of ECUs while connected to ISOBUS connector.
Make backup of EEPROM before upgrading software
Configuration:

Add possibility to change electronic/mechanical knotter trip without an authorization key
Software:

EXT 01.14.01
Fix sending amount of cut bales to ACM and Infotrac at startup
Fix sending cutter override alarm when override is active and not only while button is pressed
Change delay for missing machine speed to 60 seconds to give ACM time to get started
Fix having active parking brake alarms after parking brake has been turned off
Fix displaying a double indicator when both load bullets are not sending values
Improve load bullet diagnostics
Fix having infobox items available for moisture system that was previously connected
Vehicles Affected:

Challenger: 660B made in Brazil, 670B made in Brazil, 680B made in Brazil
Massey Ferguson: 9695 made in Brazil, 9795 made in Brazil, 9895 made in Brazil
Valtra: BC6800, BC7800, BC8800
Vehicle Version:

1.36
Configuration:

The “internal error” no longer occurs when opening the Combine Setup configuration page.
Vehicles Affected:

Challenger: 520C
Challenger: 540C
Challenger: 560C
Massey Ferguson: 9595S
Massey Ferguson: 9695S
Massey Ferguson: 9795S
Massey Ferguson: 9895S
Valtra: 6800
Valtra: 7800
Vehicle Version:

1.62
General:

Software update for EMU and VMM, replacement of the MVEC with HCDM
Guidance System only AGS-2
Monitor only X35
Diagnostics:

Shaft Speeds: added block with active tailboard – spinners speed
Replaced all the relays of MVECs with HCDMs
Configuration:

Added 2 more options for discharge type: Chopper -active tailboard, straw spreader – Hyd
Software:

VMM ver. BB: 5.38 b63; LL: 0.66 b101
EMU ver. 6.6
Plug-Ins:

Removed AGCOCOMMAND, AG3000
Vehicles Affected:

Massey Ferguson: 2700-4700 Series
Massey Ferguson: 6700R Series
Massey Ferguson: Global Series 4700-5700-6700
Valtra: A100
Valtra: A100Hitech Series
Valtra: A4, A4S
Valtra: A4Hitech Series
Valtra: AC52.5, AC54.5, AC56.5
