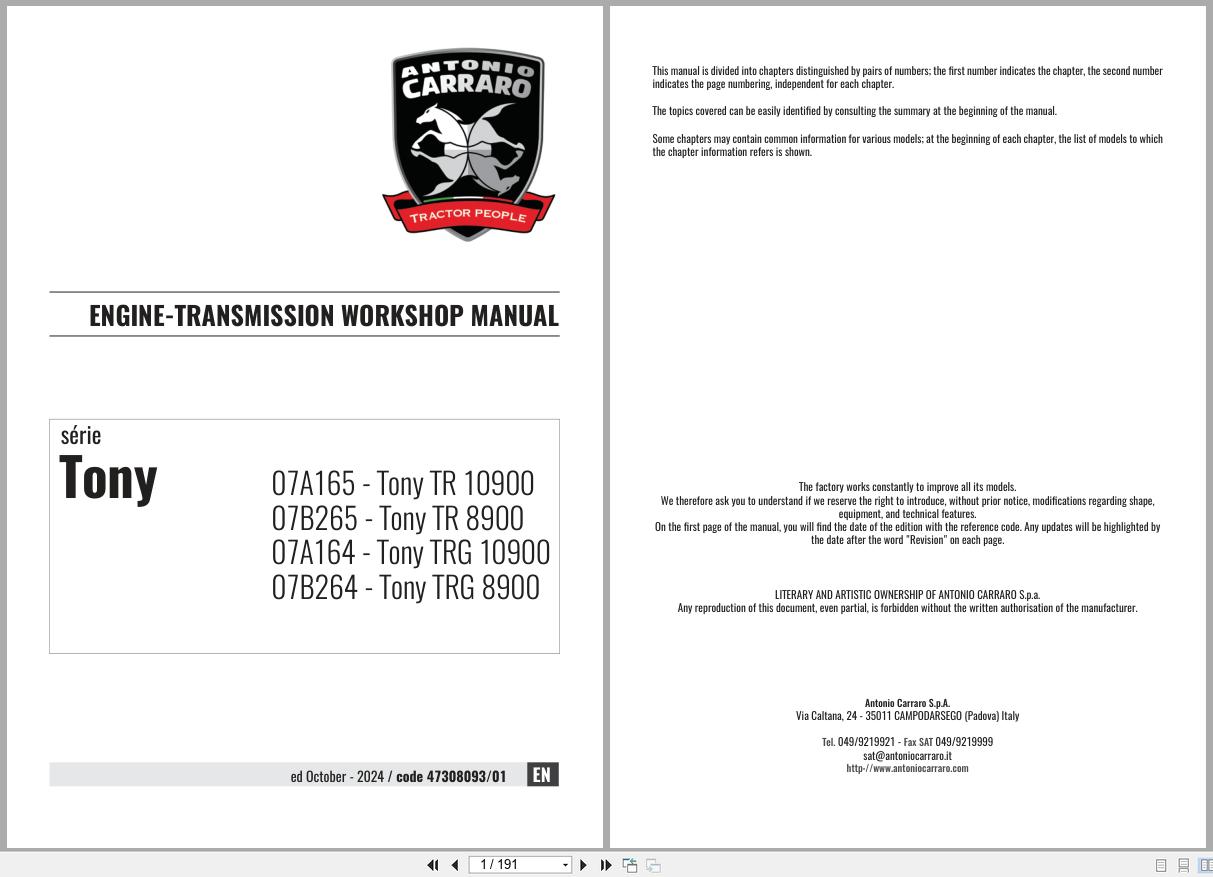

Antonio Carraro Tony TR8900 to TRG10900 Engine Transmission Workshop Manual 47308093_01 EN

Data Size: 89.84 MB
File Type: PDF
Language: English
Manufacturer: Antonio Carraro
Applicable Machine: Tractor
Document: Engine Transmission Workshop Manual
Machine Model: Antonio Carraro Series Tony 07A165 - Tony TR10900,
07B265 - Tony TR8900, 07A164 - Tony TRG10900, 07B264 - Tony TRG8900
Book Number: 47308093_01
Publication Date: 2024
Page: 191 Pages

List Contents:

01. SAFETY REGULATIONS
02. TECHNICAL INFORMATION, REFUELLING, LUBRICATION
04. Common Rail Engine
7800 - 7900 - 8900 - 9900 - 10900
05. CLUTCH
07. FRONT TRANSMISSION
08. CENTRAL TRANSMISSION
09. REAR TRANSMISSION
90. OVERALL
01.1 SYMBOLS USED
01.2 GENERAL PRECAUTIONS
01.3 PRELIMINARY MAINTENANCE OPERATIONS
01.4 REFERENCE OPERATORS
01.5 PERSONAL PROTECTIVE EQUIPMENT
02.1 Introduction to the manual
02.2 Rules of reference
02.3 Conversion tables
02.4 General warnings for replacement of components
02.5 Torque settings
02.6 Table of lubricants
02.7 table of sealants
02.8 Table of degreasers
02.9 Filling

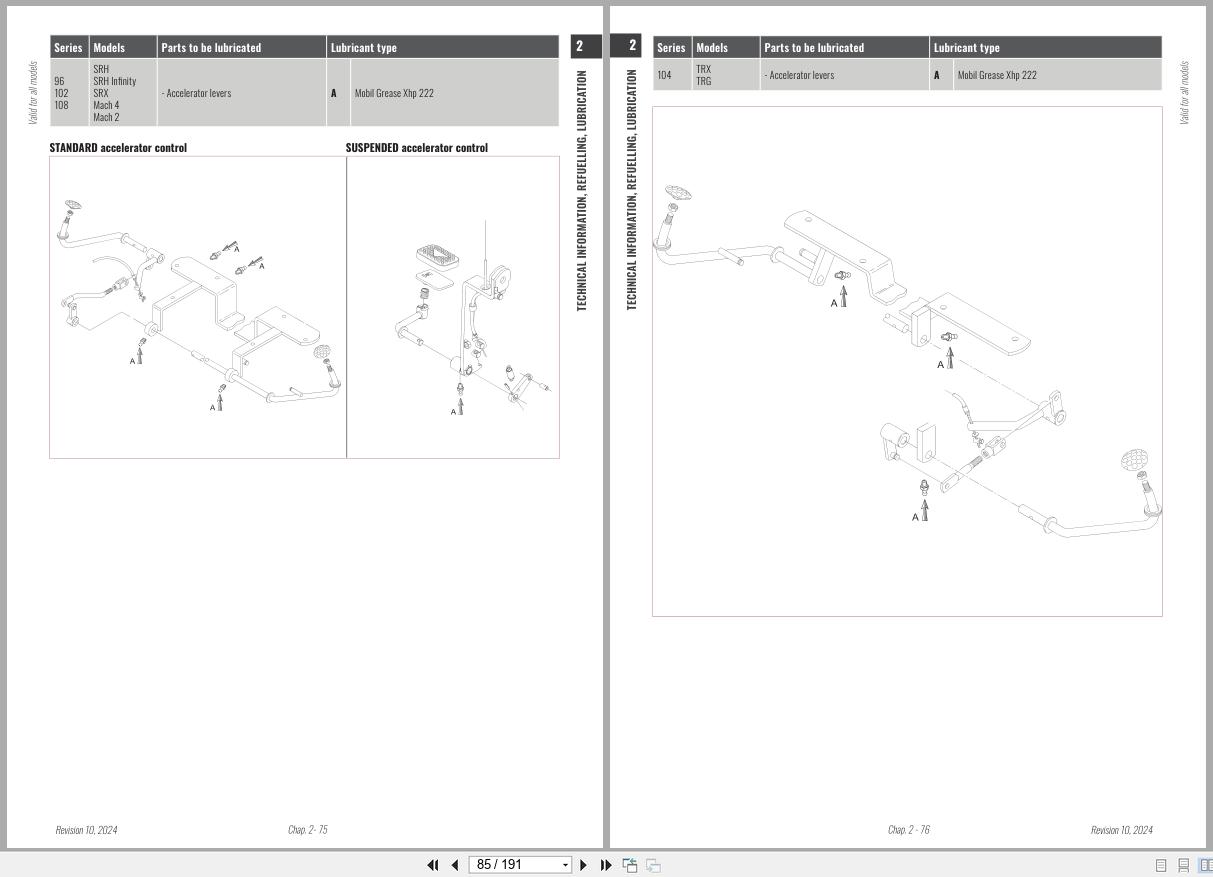

02.10 Location of greasing points
04.1 Troubleshooting
04.2 Radiator removal and reconnection
04.3 ENGINE REMOVAL AND RECONNECTION
07.1 REMOVING AND RECONNECTING THE FRONT TRANSMISSION
07.2 DISASSEMBLY AND ASSEMBLY OF THE CENTRAL TRANSMISSION
07.3 FRONT DIFFERENTIAL
08.1 Removal of solenoid valves, actuator unit, pressure relief valves
08.2 Removing and reconnecting the hydrostatic unit
09.1 REMOVING AND RECONNECTING THE REAR TRANSMISSION
09.2 DISASSEMBLY OF THE REAR TRANSMISSION
90.1 TRANSMISSION ASSEMBLIES
