BT VCE150A VCE150AC VCE125ASF VCE125ACSF C15 Service Manual 227761-040

BT VCE150A VCE150AC VCE125ASF VCE125ACSF C15 Service Manual 227761-040
Size: 29.2 MB
Machine: Forklift
Machine Model: C15 (564221-919698)
VCE150A VCE150AC VCE125ASF VCE125ACSF (919699 -)
Publication Date: 2005
Pages: 356 Pages
Order Number: 227761-040

The Bookmarks of BT VCE150A VCE150AC VCE125ASF VCE125ACSF C15 Forklift Service Manual:
1- Content
2- Presentation of the truck - M2 (t-code 712)
3- Presentation of the truck - M2 (t-code 713)
4- Introduction maintenance - P1 (t-code 712)
5- Maintenance - P1 (t-code 713)
6- Preventive maintenance - P2 (t- code 712)
7- Preventive maintenance - P2 (t-code 713)
8- Oil and grease specifications - P3 (T-code 712)
9- Oil and grease specification - P3 (t-code 713)
10- Tools - P4
11- Chassis - 0000 Truck installation
12- General tightening torque - 0400
13- Electric pump motor - 1710.1

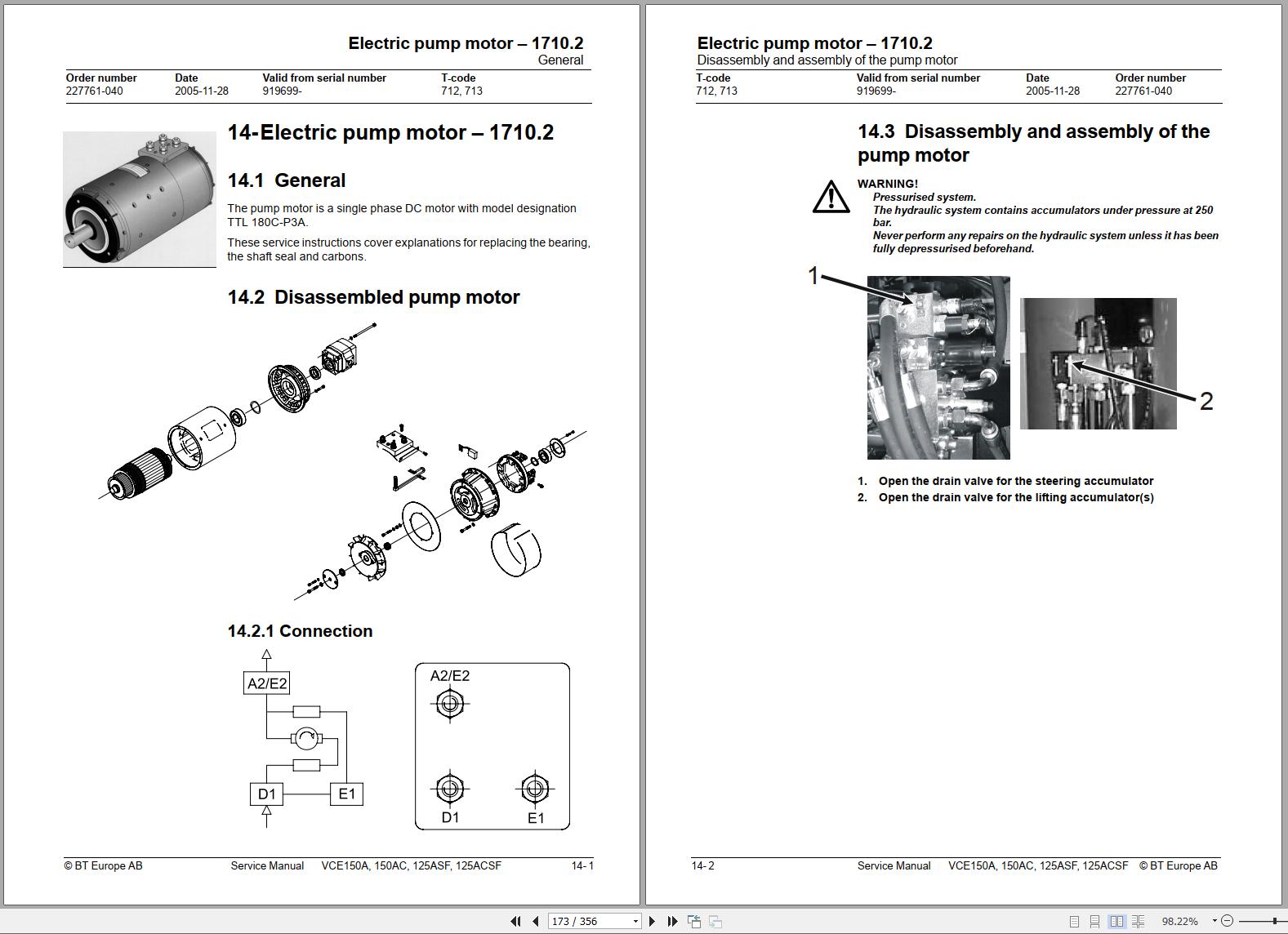

14- Electric pump motor - 1710.2
15- Electric drive motor - 1760
16- Drive unit/gear - 2550
17- Travel brake system - 3100
18- Drive wheel - 3530
19- Fork/support arm wheel - 3550
21- Hydraulic system - 6000
22- Hydraulic pump - 6140
23- Main mast and mast - 7100
24- Main lift chain system - 7120
25- Initial mast/Turret head fork unit - 7200 (t-code 712)
26- Shuttle fork unit - 7800 (t-code 713)
27- Wire guidance equipment - 8200
28- Control/computer equipment - 8700
29- Height pre-selection - 9390
