Challenger 5400 Draper Header 20-25-30-35-40 FT Part Book

Challenger 5400 Draper Header 20-25-30-35-40 FT Part Book

Size: 20.78 MB
Brand: Challenger
Machine: Draper Header, Harvesting
Document: Part Book
Machine Model: Challenger 5400 Draper Header For Harvesting
Serial Number: 20-25-30-35-40 FT
Publication Date: 2025
Page: 271 Pages

The Bookmarks:

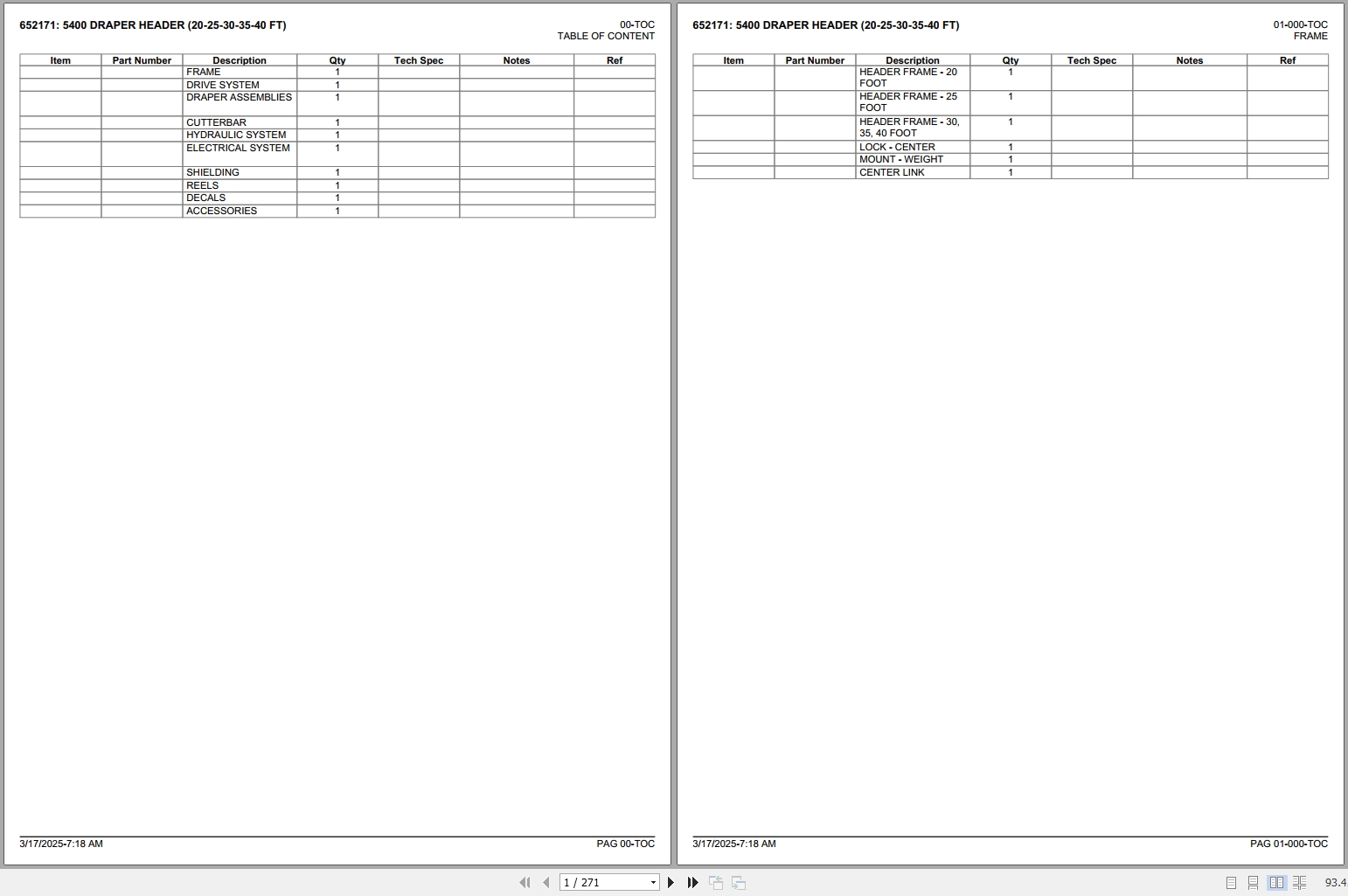

TABLE OF CONTENT PAG 00-TOC Tech Spec Notes Ref
FRAME PAG 01-000-TOC Tech Spec Notes Ref

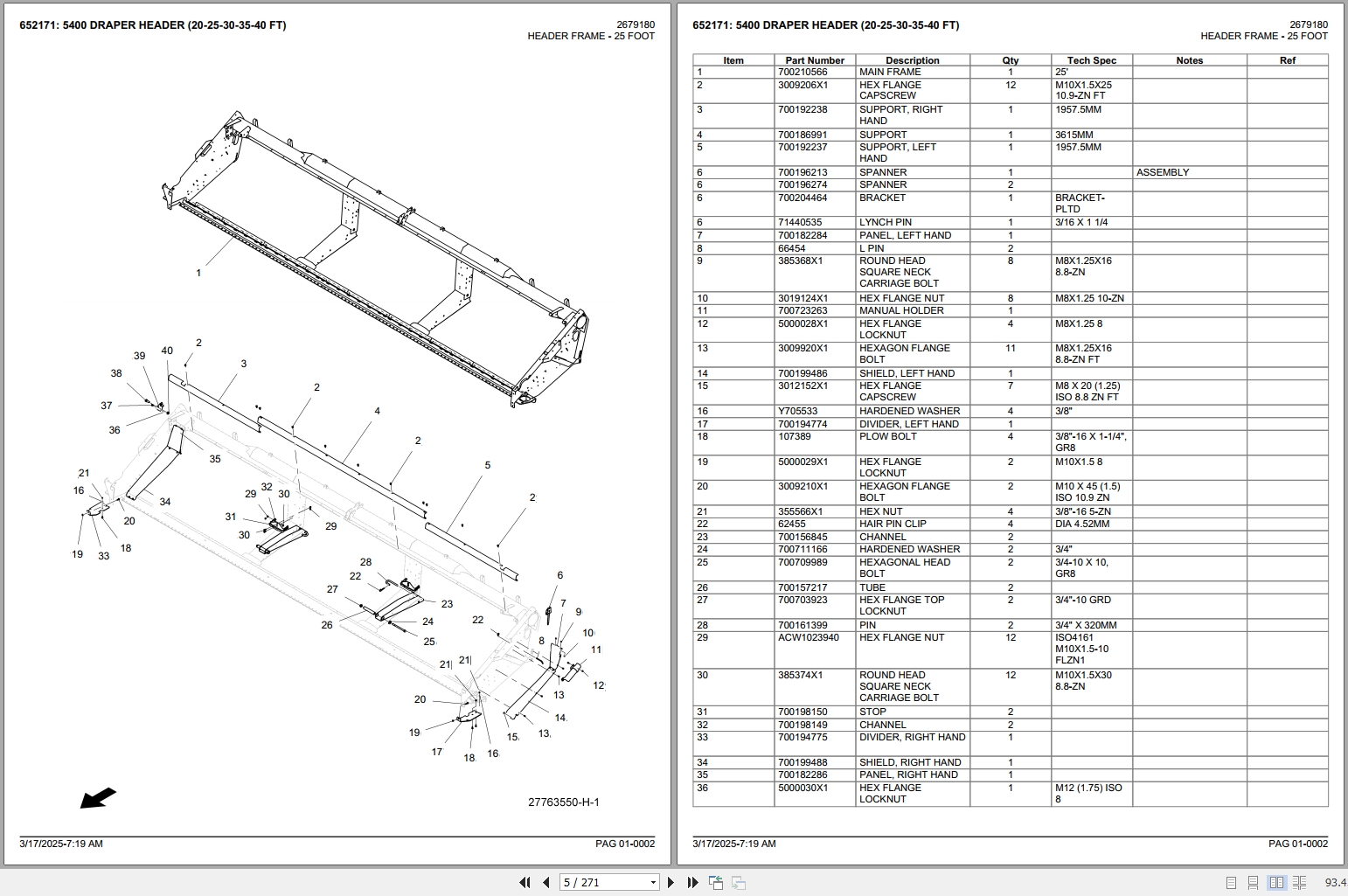

HEADER FRAME - 20 FOOT PAG 01-0001
HEADER FRAME - 25 FOOT PAG 01-0002
HEADER FRAME - 30, 35, 40 FOOT PAG 01-0003
LOCK - CENTER PAG 01-0004
MOUNT - WEIGHT PAG 01-0005
CENTER LINK PAG 01-0006
DRIVE SYSTEM PAG 02-000-TOC Tech Spec Notes Ref
SICKLE DRIVE - LEFT HAND PAG 02-0001
SICKLE DRIVE GEARBOX - LEFT HAND PAG 02-0002
SICKLE DRIVE - RIGHT HAND PAG 02-0003
SICKLE DRIVE GEARBOX - RIGHT HAND PAG 02-0004
SICKLE DRIVE - SINGLE PAG 02-0005
GEARBOX - SICKLE DRIVE PAG 02-0006
CANVAS DRIVE - 20 FOOT PAG 02-0007
CANVAS DRIVE - 25, 30, 35, 40 FOOT PAG 02-0008
DOUBLE SWATH MOUNTING PAG 02-0009
GEARCASE PAG 02-0010
HYDRAULIC MOTOR - REEL PAG 02-0011
DRAPER ASSEMBLIES PAG 03-000-TOC Tech Spec Notes Ref
FEED BELTS - 20 FOOT PAG 03-0001
FEED BELTS - 20 FOOT PAG 03-0002
FEED BELTS - 25 FOOT PAG 03-0003
FEED BELTS - 25 FOOT PAG 03-0004
FEED BELTS - 30 FOOT PAG 03-0005
FEED BELTS - 30 FOOT PAG 03-0006
FEED BELTS - 35 FOOT PAG 03-0007
FEED BELTS - 35 FOOT PAG 03-0008
FEED BELTS - 40 FOOT PAG 03-0009
FEED BELTS - 40 FOOT PAG 03-0010
ROLLERS & SUPPORTS - LEFT HAND PAG 03-0011
SPEED SENSOR AND MOUNTING - OPTIONAL PAG 03-0013
CUTTERBAR PAG 04-000-TOC Tech Spec Notes Ref
SICKLE AND GUARDS - 25 FOOT PAG 04-0001
SICKLE AND GUARDS - 30 FOOT PAG 04-0002
SICKLE AND GUARDS - 20 FOOT PAG 04-0003
SICKLE AND GUARDS - 25 FOOT PAG 04-0004
SICKLE AND GUARDS - 30 FOOT PAG 04-0005
SICKLE AND GUARDS - 35 FOOT PAG 04-0006
SICKLE AND GUARDS - 40 FOOT PAG 04-0007
SICKLE AND GUARDS - SCHUMACHER-20 FOOT PAG 04-0008
SICKLE AND GUARDS - SCHUMACHER-25 FOOT PAG 04-0009
SICKLE AND GUARDS - SCHUMACHER-25 FOOT PAG 04-0010
SICKLE AND GUARDS - SCHUMACHER-30 FOOT PAG 04-0011
SICKLE AND GUARDS - SCHUMACHER-30 FOOT PAG 04-0012
SICKLE AND GUARDS - SCHUMACHER-35 FOOT PAG 04-0013
SICKLE AND GUARDS - SCHUMACHER-40 FOOT PAG 04-0014
HYDRAULIC SYSTEM PAG 05-000-TOC Tech Spec Notes Ref
MAIN DRIVE HYDRAULICS PAG 05-0001
COUPLER PAG 05-0002
HYDRAULICS - 20 FOOT PAG 05-0003
HYDRAULICS - 25 FOOT PAG 05-0004
HYDRAULICS - 30 FOOT PAG 05-0005
HYDRAULICS - 30 FOOT PAG 05-0006
HYDRAULICS - 25 FOOT PAG 05-0007
HYDRAULICS - 25 FOOT PAG 05-0008
HYDRAULICS - 30 FOOT PAG 05-0009
HYDRAULICS - 30 FOOT PAG 05-0010
HYDRAULICS - 35 FOOT PAG 05-0011
HYDRAULICS - 35 FOOT PAG 05-0012
HYDRAULICS - 40 FOOT PAG 05-0013
HYDRAULICS - 40 FOOT PAG 05-0014
HYDRAULICS - 25 FOOT PAG 05-0015
HYDRAULICS - 30 FOOT PAG 05-0016
HYDRAULICS - 30 FOOT PAG 05-0017
HYDRAULICS - 25 FOOT PAG 05-0018
HYDRAULICS - 25 FOOT PAG 05-0019
HYDRAULICS - 30 FOOT PAG 05-0020
HYDRAULICS - 30 FOOT PAG 05-0021
HYDRAULICS - 35 FOOT PAG 05-0022
HYDRAULICS - 35 FOOT PAG 05-0023
HYDRAULICS - 40 FOOT PAG 05-0024
HYDRAULICS - 40 FOOT PAG 05-0025
REEL LIFT HYDRAULICS PAG 05-0026
HYDRAULIC VALVE (COMPONENTS) PAG 05-0027
ELECTRICAL SYSTEM PAG 06-000-TOC Tech Spec Notes Ref
LIGHTING PAG 06-0001
WIRE HARNESS PAG 06-0002
WIRE HARNESS - COMPONENTS PAG 06-0003
FORE AND AFT REEL PAG 06-0004
SHIELDING PAG 07-000-TOC Tech Spec Notes Ref
SHIELDS - 20 FOOT PAG 07-0001
SHIELDS - 25 FOOT PAG 07-0002
SHIELDS - 30 FOOT PAG 07-0003
SHIELDS - 35 FOOT PAG 07-0004
SHIELDS - 40 FOOT PAG 07-0005
END SHIELDS - LEFT HAND PAG 07-0006
END SHIELDS - RIGHT HAND PAG 07-0007
REELS PAG 08-000-TOC Tech Spec Notes Ref
LIFT LINKS - REEL PAG 08-0001
REEL - 20 FOOT PAG 08-0002
REEL - 25 FOOT PAG 08-0003
REEL - 30 FOOT PAG 08-0004
REEL - 35 FOOT PAG 08-0005
REEL - 40 FOOT PAG 08-0006
REEL CAM PAG 08-0007
DECALS PAG 09-000-TOC Tech Spec Notes Ref
DECALS - LEFT HAND PAG 09-0001
DECALS - RIGHT HAND PAG 09-0002
ACCESSORIES PAG 10-000-TOC Tech Spec Notes Ref
GAUGE WHEEL KIT - SWIVEL PAG 10-0001
GAUGE WHEEL ASSEMBLY PAG 10-0002
GAUGE WHEEL KIT PAG 10-0003
WHEEL AND SPINDLE PAG 10-0004

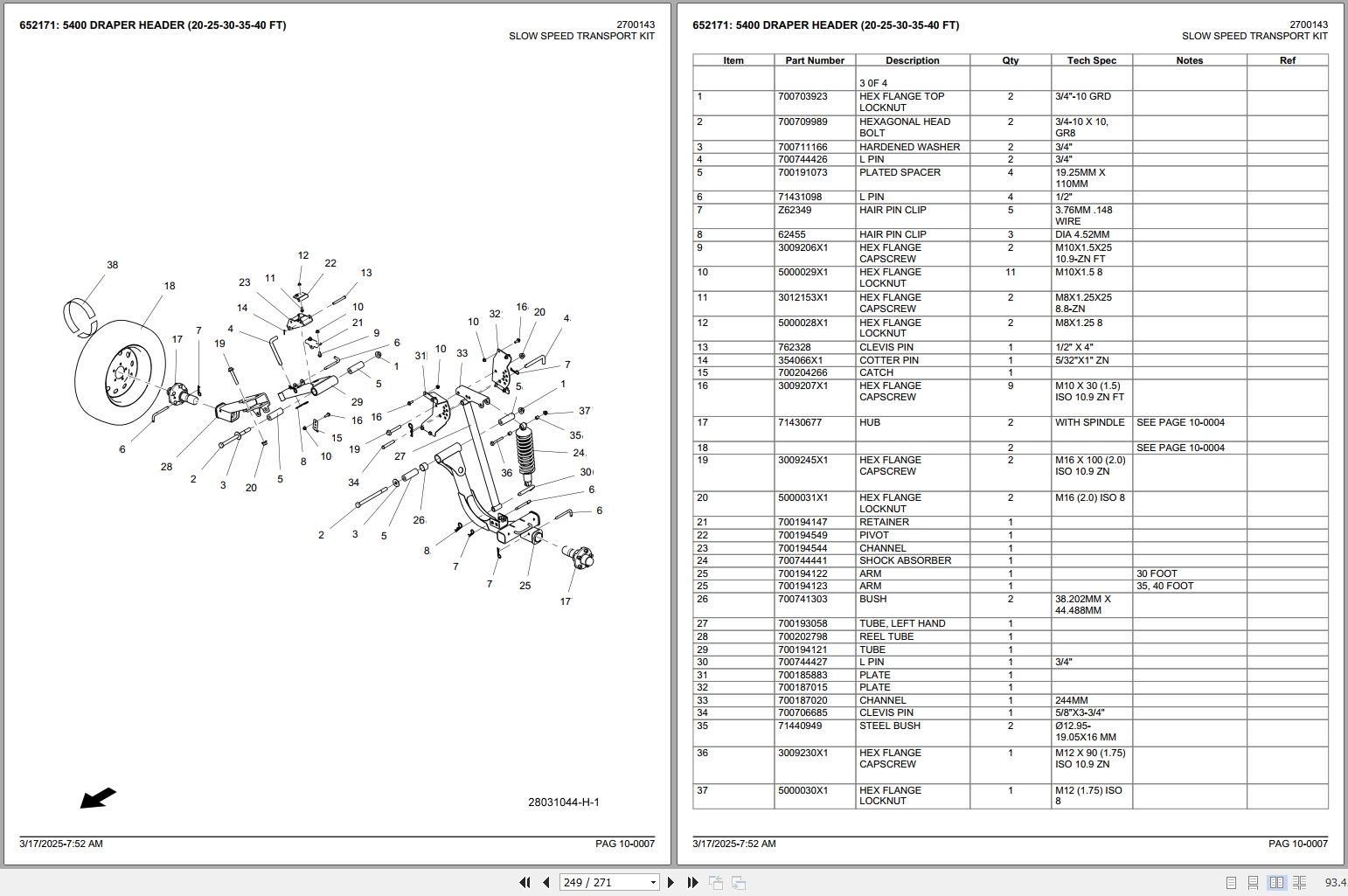

SLOW SPEED TRANSPORT KIT PAG 10-0005
SLOW SPEED TRANSPORT KIT PAG 10-0006
SLOW SPEED TRANSPORT KIT PAG 10-0007
SLOW SPEED TRANSPORT KIT PAG 10-0008
DOUBLE DRAPER DRIVE KIT PAG 10-0009
ROLLER ASSEMBLY PAG 10-0010
DRAPER BELT REPAIR KIT PAG 10-0011
NARROW OPENING KIT PAG 10-0012
STUB GUARD KIT - 5 FOOT PAG 10-0013
STUB GUARD KIT - 20 FOOT PAG 10-0014
STUB GUARD KIT - 25 FOOT PAG 10-0015
SKID SHOE PAG 10-0016
HEADER STAND KIT PAG 10-0017
