CLAAS TEMIS 650-610 XZ CT392001-CT3929999 Parts Catalog

CLAAS TEMIS 650-610 XZ CT392001-CT3929999 Parts Catalog

Data Size: 23.89 MB
File Type: PDF
Language: English
Manufacturer: CLAAS
Applicable Machine: Tractors
Document: Parts Catalog
Machine Model: CLAAS TEMIS 650-610 XZ Tractors
Serial Number: CT392001-CT3929999
Page: 1086 Pages

List Contents:

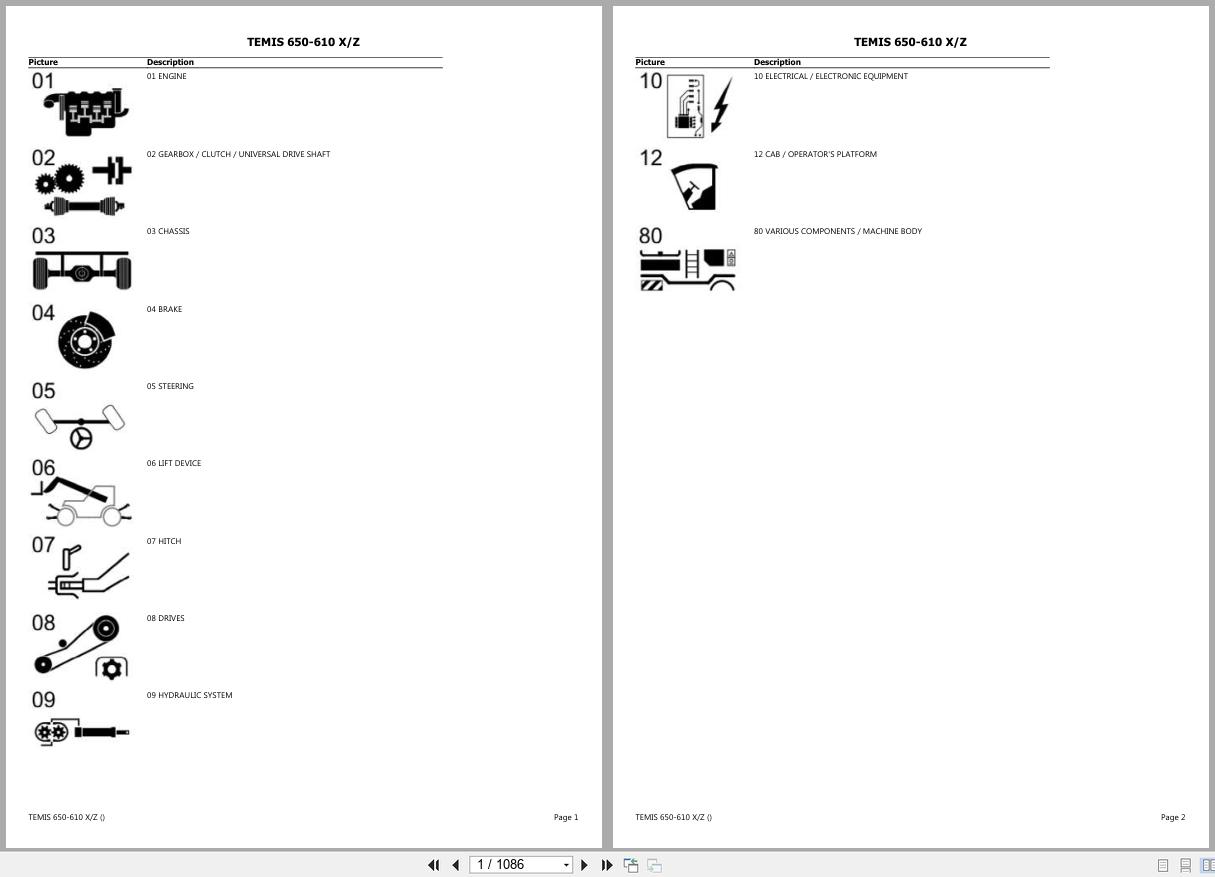

001 - TEMIS 650-610 X_Z (SPL-ID ZT580)
002 - TEMIS 650-610 X_Z (SPL-ID ZT580) (1)
003 - 01 ENGINE
004 - 02 COMPLETE COMPONENT
005 - 010 COMPLETE ENGINE
006 - 10 ENGINE HOUSING
007 - 100 CRANKCASE
008 - 120 TIMING CASE
009 - 140 FLYWHEEL HOUSING
010 - 140 FLYWHEEL HOUSING (1)
011 - 160 OIL PAN
012 - 180 PLUGS
013 - 15 ENGINE UNIT
014 - 100 CYLINDER LINER, PISTON
015 - 120 CONNECTING ROD, CONNECTING ROD BEARINGS
016 - 140 CRANKSHAFT
017 - 161 CRANKSHAFT PULLEY WHEEL
018 - 220 FLYWHEEL
019 - 20 CYLINDER HEAD VALVES IDLER GEAR
020 - 100 CYLINDER HEAD
021 - 120 CYLINDER HEAD COVER
022 - 140 VALVES
023 - 160 ROCKER ARM
024 - 180 CAMSHAFT, CAMSHAFT BEARING BUSHES
025 - 200 IDLER GEAR
026 - 201 IDLER GEAR
027 - 25 INJECTION - FUEL SYSTEM
028 - 100 FUEL TANK
029 - 100 FUEL TANK (1)
030 - 100 FUEL TANK (2)
031 - 120 FUEL DELIVERY PUMP
032 - 140 FUEL PIPES
033 - 160 FUEL FILTER
034 - 200 INJECTION PUMP HIGH PRESSURE PUMP
035 - 200 INJECTION PUMP HIGH PRESSURE PUMP (1)
036 - 220 INJECTION PIPES
037 - 240 INJECTORS
038 - 30 LUBRICATING OIL SYSTEM
039 - 100 OIL PUMP
040 - 120 OIL FILTER
041 - 160 OIL COOLER
042 - 35 COOLING SYSTEM
043 - 101 RADIATOR AIR DUCT
044 - 101 RADIATOR AIR DUCT (1)
045 - 120 FAN BELT
046 - 120 FAN BELT (1)
047 - 141 ENGINE COOLER
048 - 141 ENGINE COOLER (1)
049 - 141 ENGINE COOLER (2)
050 - 141 ENGINE COOLER (3)
051 - 180 COOLANT PUMP
052 - 200 WATER COLLECTOR
053 - 220 THERMOSTAT HOUSING
054 - 40 EXHAUST SYSTEM
055 - 101 EXHAUST TURBO CHARGER
056 - 120 EXHAUST MANIFOLD
057 - 120 EXHAUST MANIFOLD (1)
058 - 140 EXTERIOR SOUND ABSORBER
059 - 45 AIR INTAKE
060 - 120 AIR CLEANER
061 - 120 AIR CLEANER (1)
062 - 120 AIR CLEANER (2)
063 - 140 AIR INTAKE, LINES
064 - 140 AIR INTAKE, LINES (1)
065 - 140 AIR INTAKE, LINES (2)
066 - 200 INLET MANIFOLD
067 - 50 ENGINE ATTACHMENT PARTS
068 - 100 STARTER MOTOR
069 - 101 STARTER MOTOR, DETAIL
070 - 120 ALTERNATOR
071 - 122 ALTERNATOR, DETAIL
072 - 55 ENGINE CONTROL
073 - 140 ACCELARATOR PEDAL
074 - 160 HAND THROTTLE
075 - 90 ACCESSORIES
076 - 970 PROTECTION ENVIRONNEMENT
077 - 970 PROTECTION ENVIRONNEMENT (1)
078 - 02 GEARBOX CLUTCH UNIVERSAL DRIVE SHAFT
079 - 15 MECHANICAL CLUTCH
080 - 100 HOUSING RELEASE FORK
081 - 100 HOUSING RELEASE FORK (1)
082 - 120 CLUTCH, DOUBLE CLUTCH
083 - 120 CLUTCH, DOUBLE CLUTCH (1)
084 - 120 CLUTCH, DOUBLE CLUTCH (2)
085 - 120 CLUTCH, DOUBLE CLUTCH (3)
086 - 140 RELEASE BEARING GUIDE
087 - 140 RELEASE BEARING GUIDE (1)
088 - 160 CLUTCH SHAFTS
089 - 160 CLUTCH SHAFTS (1)
090 - 160 CLUTCH SHAFTS (2)
091 - 18 CLUTCH CONTROL
092 - 100 CLUTCH ACTUATION
093 - 100 CLUTCH ACTUATION (1)
094 - 122 HYDRAULIC CLUTCH GEARSHIFT, FRONT
095 - 122 HYDRAULIC CLUTCH GEARSHIFT, FRONT (1)
096 - 20 MECHANICAL REVERSER
097 - 100 REVERSING GEAR
098 - 100 REVERSING GEAR (1)
099 - 120 INTERNAL SHIFTING, SHIFTING INTO REVERSE
100 - 28 REVERSER CONTROL
101 - 100 EXTERNAL SWITCHING, SHIFTING INTO REVERSE
102 - 30 MECHANICAL GEARBOX
103 - 100 HOUSING COVER
104 - 100 HOUSING COVER (1)
105 - 120 INPUT DRIVE SHAFT
106 - 120 INPUT DRIVE SHAFT (1)
107 - 120 INPUT DRIVE SHAFT (2)
108 - 160 FRONT INTERMEDIATE SHAFT
109 - 160 FRONT INTERMEDIATE SHAFT (1)
110 - 180 REAR INTERMEDIATE SHAFT
111 - 180 REAR INTERMEDIATE SHAFT (1)
112 - 200 OUTPUT DRIVE SHAFT
113 - 200 OUTPUT DRIVE SHAFT (1)
114 - 280 REDUCTION
115 - 280 REDUCTION (1)
116 - 300 LUBRICATION
117 - 300 LUBRICATION (1)
118 - 300 LUBRICATION (2)
119 - 300 LUBRICATION (3)
120 - 34 POWERSHIFT GEARBOX
121 - 100 RANGE DOUBLER
122 - 100 RANGE DOUBLER (1)
123 - 180 INNER RANGE GEAR SHIFT MECHANISM
124 - 38 GEARBOX CONTROL
125 - 100 INNER GEARSHIFTS RANGE
126 - 100 INNER GEARSHIFTS RANGE (1)
127 - 120 OUTER GEARSHIFTS RANGE
128 - 120 OUTER GEARSHIFTS RANGE (1)
129 - 121 EXT. HYDRAULIC CONTROLS
130 - 180 EXT.LINK._SPLITTER
131 - 180 EXT.LINK._SPLITTER (1)
132 - 40 REAR AXLE HOUSING
133 - 100 CASING COVER
134 - 120 PINION BEARINGS
135 - 160 FULL-FLOATING AXLES GEAR RING
136 - 180 TRUMPET HOUSING
137 - 900 RETROFIT KIT
138 - 42 DIFFERENTIAL
139 - 100 DIFFERENTIAL
140 - 120 DIFFERENTIAL LOCK
141 - 52 ELECTRO-HYDRAULICAL FRONT AXLE DRIVE
142 - 010 TRANSMISSION CASE ASSEMBLY
143 - 100 HOUSING SEALING PLUG
144 - 120 PINIONS SHAFTS
145 - 140 INSIDE OUTSIDE CONTROLS
146 - 140 INSIDE OUTSIDE CONTROLS (1)

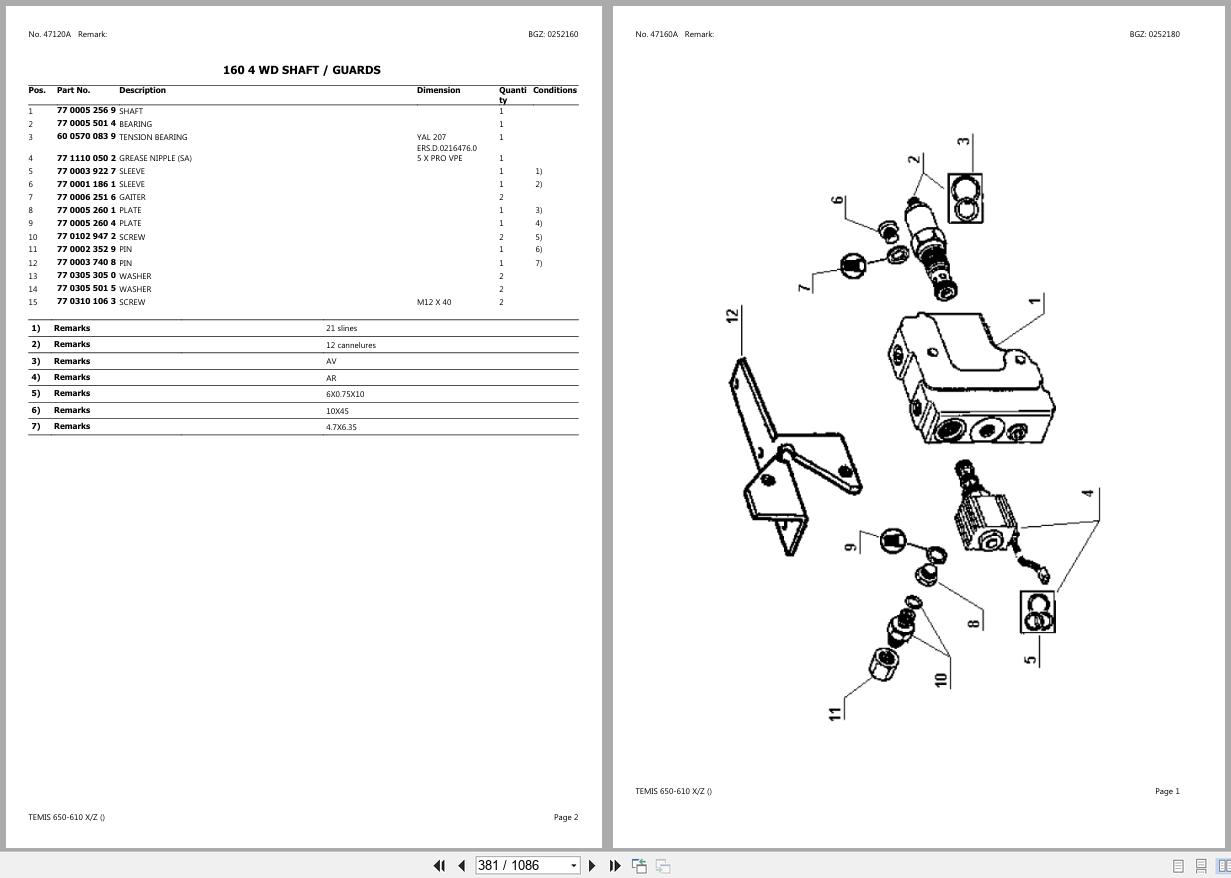

147 - 160 4 WD SHAFT GUARDS
148 - 180 INSIDE OUTSIDE CONTROLS
149 - 55 GEARBOX COOLING SYSTEM
150 - 101 GEARBOX COOLER
151 - 101 GEARBOX COOLER (1)
152 - 03 CHASSIS
153 - 25 DRIVEN STEERING AXLE, FRONT
154 - 010 FRONT STEERING DRIVE AXLE ASSEMBLY
155 - 100 CHASSIS BEARING BRACKET
156 - 120 AXLE BODY
157 - 140 STUB AXLE
158 - 160 C W + PINION SET
159 - 160 C W + PINION SET (1)
160 - 180 DIFFERENTIAL
161 - 180 DIFFERENTIAL (1)
162 - 200 INSERTABLE SHAFT
163 - 200 INSERTABLE SHAFT (1)
164 - 220 HUB REDUCTION GEARS
165 - 220 HUB REDUCTION GEARS (1)
166 - 40 FRONT WHEELS
167 - 100 TYRES, WHEEL RIMS, FRONT
168 - 100 TYRES, WHEEL RIMS, FRONT (1)
169 - 100 TYRES, WHEEL RIMS, FRONT (2)
170 - 100 TYRES, WHEEL RIMS, FRONT (3)
171 - 100 TYRES, WHEEL RIMS, FRONT (4)
172 - 100 TYRES, WHEEL RIMS, FRONT (5)
173 - 100 TYRES, WHEEL RIMS, FRONT (6)
174 - 100 TYRES, WHEEL RIMS, FRONT (7)
175 - 100 TYRES, WHEEL RIMS, FRONT (8)
176 - 45 REAR WHEELS
177 - 100 TYRES, WHEEL RIMS, REAR
178 - 100 TYRES, WHEEL RIMS, REAR (1)
179 - 100 TYRES, WHEEL RIMS, REAR (2)
180 - 100 TYRES, WHEEL RIMS, REAR (3)
181 - 100 TYRES, WHEEL RIMS, REAR (4)
182 - 04 BRAKE
183 - 05 SERVICE BRAKE
184 - 100 CASING COVER (1)
185 - 120 BRAKING MECHANISM
186 - 160 HYDR. OPERATION MASTER BRAKE CYLINDER BRAKE VALVE
187 - 180 BRAKE LINES
188 - 200 LUBRICATION
189 - 200 LUBRICATION (1)
190 - 220 BRAKE PEDAL
191 - 15 PARKING BRAKE
192 - 120 PARKING BRAKE
193 - 120 PARKING BRAKE (1)
194 - 25 TRAILER HYDRAULIC BRAKE
195 - 100 BRAKE VALVE
196 - 120 BRAKE VALVE LINES
197 - 05 STEERING
198 - 05 STEERING (1)
199 - 100 STEERING WHEEL, STEERING COLUMN
200 - 100 STEERING WHEEL, STEERING COLUMN (1)
201 - 800 STEERING LINES
202 - 801 STEERING CYLINDER LINES
203 - 830 ORBITROL
204 - 840 STEERING CYLINDER
205 - 06 LIFT DEVICE
206 - 05 REAR POWER LIFT
207 - 100 HOUSING SEALING PLUG (1)
208 - 120 CARRIER ARM BUSHING LIFTING SHAFT
209 - 141 RISING DISTRIBUTOR
210 - 141 RISING DISTRIBUTOR (1)
211 - 180 DETECTION EFFORT CONTROL
212 - 200 INNER CONTROLS
213 - 200 INNER CONTROLS (1)
214 - 220 CONTROL LEVERS
215 - 220 CONTROL LEVERS (1)
216 - 260 ADDITIONAL CYLINDER
217 - 280 LOWER LINK FOR REAR POWER LIFT
218 - 280 LOWER LINK FOR REAR POWER LIFT (1)
219 - 280 LOWER LINK FOR REAR POWER LIFT (2)
220 - 280 LOWER LINK FOR REAR POWER LIFT (3)
221 - 300 UPPER LINK FOR REAR POWER LIFT
222 - 300 UPPER LINK FOR REAR POWER LIFT (1)
223 - 300 UPPER LINK FOR REAR POWER LIFT (2)
224 - 300 UPPER LINK FOR REAR POWER LIFT (3)
225 - 340 LIFT ROD
226 - 380 TRACTOR LINKAGE DRAWBAR
227 - 400 REAR POWER LIFT SIDE STRUT
228 - 10 FRONT POWER LIFT
229 - 100 CYLINDER AND PIPES
230 - 100 CYLINDER AND PIPES (1)
231 - 120 BRACKET
232 - 120 BRACKET (1)
233 - 120 BRACKET (2)
234 - 120 BRACKET (3)
235 - 120 BRACKET (4)
236 - 900 ADD-ON KIT
237 - 900 ADD-ON KIT (1)
238 - 90 ACCESSORIES (1)
239 - 960 AFTER SALES FITTING
240 - 07 HITCH
241 - 05 COUPLING FRAME
242 - 100 HITCH BLOCK
243 - 100 HITCH BLOCK (1)
244 - 100 HITCH BLOCK (2)
245 - 100 HITCH BLOCK (3)
246 - 100 HITCH BLOCK (4)
247 - 120 TRAILER COUPLING OPERATION
248 - 120 TRAILER COUPLING OPERATION (1)
249 - 120 TRAILER COUPLING OPERATION (2)
250 - 120 TRAILER COUPLING OPERATION (3)
251 - 120 TRAILER COUPLING OPERATION (4)
252 - 120 TRAILER COUPLING OPERATION (5)
253 - 20 HITCH
254 - 100 PICK-UP HITCH
255 - 08 DRIVES
256 - 02 REAR PTO
257 - 102 REAR PTO SHAFT
258 - 140 PTO STUB SHAFT -PROTECTION
259 - 161 PTO SHAFT IN GEARBOX CONTROL
260 - 162 INT. EXT. PTO CONTROLS IN
261 - 162 INT. EXT. PTO CONTROLS IN (1)
262 - 161 PTO SHAFT IN GEARBOX CONTROL (1)
263 - 09 HYDRAULIC SYSTEM
264 - 10 PUMPS
265 - 100 HYDRAULIC PUMP
266 - 15 HYDRAULIC LINES
267 - 100 SUCTION CIRCUIT
268 - 140 HIGH PRESSURE HYDRAULIC LINE
269 - 180 AUX. DISTRIB. CIRCUIT
270 - 200 RETURN HYDRAULIC LINES
271 - 200 RETURN HYDRAULIC LINES (1)
272 - 220 COUPLING SUPPORT
273 - 240 HYDRAULIC FLUID FILTER
274 - 20 VALVES
275 - 100 DISTRIBUTOR
276 - 120 FLOW DIVIDEUR
277 - 160 AUXILIARY VALVES
278 - 35 HYDRAULIC SYSTEM CONTROL MONITORING
279 - 100 LEVERS SUPPORTS
280 - 90 ACCESSORIES (2)
281 - 900 ADD-ON KIT (2)
282 - 10 ELECTRICAL ELECTRONIC EQUIPMENT
283 - 05 POWER SUPPLY
284 - 100 BATTERY WITH ACCESSORIES
285 - 10 CENTRAL ELECTRICS
286 - 200 CENTRAL ELECTRICS
287 - 220 ELECTRICAL CONNECTIONS
288 - 240 IGNITION SWITCH
289 - 260 SWITCHES
290 - 280 VARIOUS SUPPORTS
291 - 890 SAFELY WARNING SWITCHES
292 - 892 SPEED SENSOR(S)
293 - 15 WIRING HARNESSES
294 - 300 FRONT WIRING LOOM
295 - 320 DASHBOARD WIRING LOOM
296 - 340 CAB WIRING LOOM
297 - 360 WIRING LOOM GUARD
298 - 380 POWER LIFT WIRING LOOM
299 - 20 DRIVING LIGHTS
300 - 100 DRIVING LIGHTS
301 - 140 HEADLIGHT ON WING
302 - 140 HEADLIGHT ON WING (1)
303 - 180 REAR LIGHTS ON WING
304 - 220 LICENSE PLATE LIGHT
305 - 220 LICENSE PLATE LIGHT (1)
306 - 260 REFLECTOR SUPPORT
307 - 300 WARNING BEACONS
308 - 300 WARNING BEACONS (1)
309 - 340 CAB INTERIOR LIGHT
310 - 25 WORKING LIGHTS
311 - 100 REAR WORK LIGHTS
312 - 100 REAR WORK LIGHTS (1)
313 - 30 BOARD COMPUTER INDICATORS
314 - 201 TRACTOR METERS
315 - 90 ACCESSORIES (3)
316 - 962 AFTER SALES FITTING
317 - 12 CAB OPERATOR'S PLATFORM
318 - 05 CAB SUSPENSION
319 - 100 STEPS
320 - 100 STEPS (1)
321 - 100 STEPS (2)
322 - 120 CAB SUPPORT DETAIL
323 - 120 CAB SUPPORT DETAIL (1)
324 - 120 CAB SUPPORT DETAIL (2)
325 - 140 CAB MOUNTING
326 - 10 CAB
327 - 010 COMPLETE CABIN
328 - 010 COMPLETE CABIN (1)
329 - 100 CABIN FRAME
330 - 120 EXTERIOR ROOF TRIM
331 - 120 EXTERIOR ROOF TRIM (1)
332 - 140 SUPPORT VARIOUS PANELS
333 - 180 DOORS AND SURROUNDS
334 - 220 WINDOWS WINDOW SEALS
335 - 240 REAR WINDOW FITTINGS
336 - 240 REAR WINDOW FITTINGS (1)
337 - 260 SIDE WINDOW FITTINGS
338 - 300 SOUND INSULATION
339 - 320 FLOOR MAT
340 - 320 FLOOR MAT (1)
341 - 340 LOWER TRIM
342 - 340 LOWER TRIM (1)
343 - 380 INTERIOR ROOF TRIM
344 - 402 FRONT WINDSCREEN WIPER
345 - 442 WINDSCREEN WASHER
346 - 900 ADD-ON KIT (3)
347 - 15 OPERATOR'S PLATFORM
348 - 010 OPERATOR'S PLATFORM ASSEMBLY
349 - 010 OPERATOR'S PLATFORM ASSEMBLY (1)
350 - 100 PLATFORM
351 - 120 SAFETY ARCH
352 - 140 SUPPORT VARIOUS PANELS (1)
353 - 200 INTERIOR TRIMMING
354 - 900 ADD-ON KIT (4)
355 - 901 ADD-ON KIT
356 - 25 MIRROR
357 - 100 MIRROR
358 - 30 SEAT
359 - 010 SEAT ASSEMBLY
360 - 010 SEAT ASSEMBLY (1)
361 - 100 PADDING AND REINFORCEMENT
362 - 100 PADDING AND REINFORCEMENT (1)
363 - 120 SUSPENSION
364 - 120 SUSPENSION (1)
365 - 300 PASSENGER SEAT
366 - 35 CAB HEATER
367 - 010 CAB HEATING ASSEMBLY
368 - 100 HEATING HEAT EXCHANGER FILTER
369 - 120 FAN
370 - 140 HEATING LINES
371 - 180 DEMISTING
372 - 40 AIR CONDITION
373 - 010 AIR CONDITIONING ASSEMBLY
374 - 100 AIR-CONDITIONING COMPRESSOR
375 - 120 CONDENSER
376 - 140 V-BELTS SUPPORTS
377 - 160 EVAPORATOR
378 - 180 AIR CONDITIONING LINES
379 - 200 WATER OUTLET HOSES
380 - 220 VENTILATION
381 - 240 AIR CONDITIONING OPERATION
382 - 900 ADD-ON KIT (5)
383 - 90 ACCESSORIES (4)
384 - 900 VARIOUS ACCESSORIES
385 - 80 VARIOUS COMPONENTS MACHINE BODY
386 - 25 PANELLINGS HOODS
387 - 100 BONNET
388 - 100 BONNET (1)
389 - 100 BONNET (2)
390 - 150 PANELLINGS
391 - 150 PANELLINGS (1)
392 - 200 SIDE TRIM
393 - 300 SIDE FLAPS
394 - 300 SIDE FLAPS (1)
395 - 30 MUD GUARDS
396 - 100 FRONT MUD GUARDS
397 - 150 REAR MUD GUARDS
398 - 150 REAR MUD GUARDS (1)
399 - 300 LENGTH EXTENSION WIDTH EXTENSION
400 - 901 ADD-ON KIT (1)
401 - 35 BALLAST ADDITIONAL WEIGHT
402 - 100 FRONT WEIGHTS
403 - 100 FRONT WEIGHTS (1)
404 - 150 FRONT ADDITIONAL WEIGHT
405 - 45 LEGAL EQUIPMENT
406 - 100 IDENTIFICATION PLATE
407 - 120 WARNING STICKER
408 - 200 WHEEL CHOCKS
409 - 90 ACCESSORIES INSTALATION KIT
410 - 160 TOOL BOX
