CLAAS XERION 3000-2500 033 03300011-03399999 Parts Catalog

CLAAS XERION 3000-2500 033 03300011-03399999 Parts Catalog

Data Size: 26.46 MB
File Type: PDF
Language: English
Manufacturer: CLAAS
Applicable Machine: Tractors
Document: Parts Catalog
Machine Model: CLAAS XERION 3000-2500 033 Tractors
Serial Number: 03300011-03399999
Page: 583 Pages

List Contents:

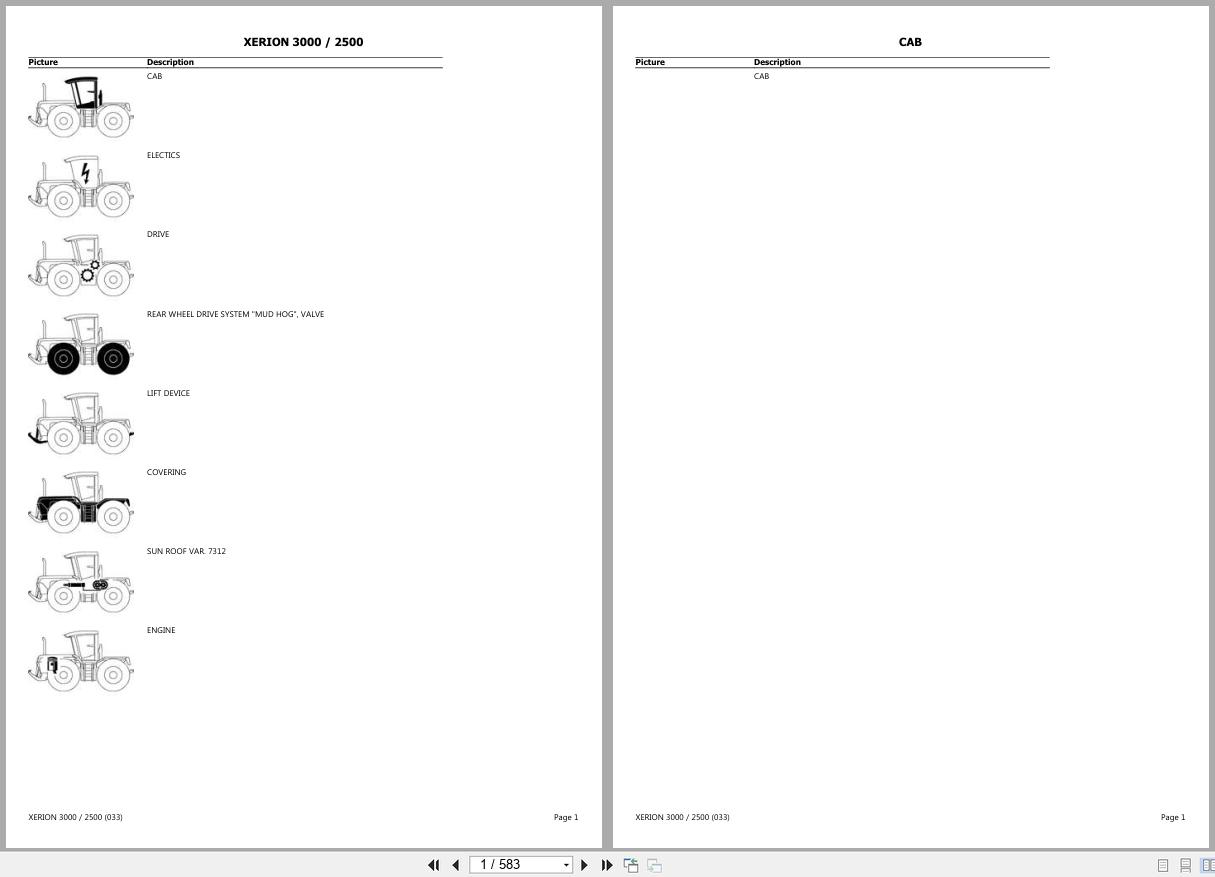

001 - XERION 3000 2500 (SPL-ID Z0330)
002 - CAB
003 - CAB (1)
004 - CAB (2)
005 - CAB, FRONT
006 - CAB, WINDSCREEN WASHER
007 - CAB, WINDSCREEN WASHER CONTAINER
008 - CAB, DOOR RIGHT HAND
009 - CAB, DOOR LEFT HAND
010 - CAB, DOOR BACKSIDE
011 - CAB, MOUNTING PARTS
012 - CAB, MOUNTING PARTS (1)
013 - CAB, MOUNTING PARTS (2)
014 - CAB, ROOF
015 - CAB, ROOF (1)
016 - SWITCHES IN CAB ROOF
017 - CAB ROOF, MOUNTING PARTS
018 - CAB ROOF, MOUNTING PARTS (1)
019 - CAB HEATER
020 - CAB HEATER (1)
021 - AIR CONDITIONER
022 - AIR CONDITIONER (1)
023 - AIR CONDITIONER (2)
024 - AIR CONDITIONER (3)
025 - AIR CONDITIONER (4)
026 - AIR CONDITIONER (5)
027 - COMPRESSOR (AIR CONDITIONER)
028 - BRACKED FOR ACT
029 - STEERING COLUMN COVERING
030 - INCH PEDAL
031 - STEERING COLUMN, BRAKE PEDAL, ACCELERATOR PEDAL
032 - BRAKE LINES, CAB
033 - BRAKE GP
034 - DRIVER''S SEAT, PNEUMATICALLY ADJUSTABLE, (ISRI)
035 - DRIVER''S SEAT, PNEUMATICALLY ADJUSTABLE, (ISRI) (1)
036 - DRIVER''S SEAT, PNEUMATICALLY ADJUSTABLE, (GRAMMER)
037 - CONTROL ARMREST, DRIVE CONTROLS
038 - CONTROL ARMREST, DRIVE CONTROLS (1)
039 - MULTIFUNCTION HANDLE, DRIVE CONTROLS
040 - CONTROL ARMREST, COVERING
041 - _XIMO_ OPERATING AND INDICATOR SYSTEM
042 - CENTRAL ELECTRICS
043 - CENTRAL ELECTRICS (1)
044 - ROLLER BLIND SUNSHADE, FRONT
045 - ROLLER BLIND SUNSHADE, REAR
046 - MARKER BOARDS
047 - MARKER BOARDS (1)
048 - REAR VIEW AND SAFE DRIVE OFF SIDE VIEW MIRRORS
049 - LOCKING AND UNLOCKING OF CAB
050 - PIVOT POST
051 - PIVOT POST (1)
052 - SUPPORT FOR HYDRAULIC FITTINGS (CAB)
053 - ELECTICS
054 - ELECTICS (1)
055 - SWITCHES ON CONTROL PANEL
056 - AUXILIARY SWITCH CONSOLE
057 - GO HOME STEERING
058 - MODULE BRACKET
059 - WIRING LOOM, CAB
060 - WIRING LOOM, STEERING COLUMN
061 - EHR
062 - WIRING LOOM, DRIVE CONTROLS
063 - LBS-ADAPTER
064 - MUDGUARD, REAR, WITH LIGHTING
065 - MUDGUARD, REAR, WITH LIGHTING (1)
066 - WIRING LOOM, REAR LIGHTING
067 - WIRING LOOM, REAR LIGHTING (1)
068 - MUDGUARD, FRONT, WITH LIGHTING
069 - WIRING LOOM, FRONT LIGHTING
070 - DRIVE LIGHTS, FRONT
071 - WARING BEACON
072 - WORK LIGHT
073 - WORK LIGHT (1)
074 - LIGHTING, ACCESS LADDER, RIGHT HAND
075 - MAIN WIRING LOOM, LIGHTING, FRONT
076 - MAIN WIRING LOOM, LIGHTING, BACK
077 - WIRING LOOM A, GEAR BOX
078 - WIRING LOOM, GEAR BOX
079 - WIRING LOOM B, HYDRAULICS
080 - WIRING LOOM, ENGINE
081 - WIRING LOOM, TRAILER SOCKET
082 - WIRING LOOM, CAB LOCKING AND UNLOCKING
083 - WIRING LOOM, MOUNTED IMPLEMENTS
084 - WIRING LOOM, MOUNTED IMPLEMENTS (1)
085 - REAR WHEEL POSITION INDICATOR
086 - RADAR SENSOR
087 - DRIVE
088 - DRIVE (1)
089 - DRIVE GP-FAN
090 - P.T.O.DRIVE, FRONT
091 - P.T.O.DRIVE, FRONT (1)
092 - TENSIONING PULLEY, FRONT P.T.O.DRIVE
093 - PRESSURE CYLINDER, FRONT P.T.O.DRIVE
094 - GUARD,FRONT P.T.O.SHAFT
095 - UNIVERSAL DRIVE SHAFT
096 - VIBRATION DAMPER
097 - P.T.O.GEARBOX WITH HEAD GEARBOX
098 - P.T.O.GEARBOX WITHOUT HEAD GEARBOX
099 - REAR WHEEL DRIVE SYSTEM _MUD HOG_, VALVE
100 - REAR WHEEL DRIVE SYSTEM _MUD HOG_, VALVE (1)
101 - DIFFERENTIAL CARRIER HOUSING, DIFFERENTIAL LOCK
102 - DIFFERENTIAL
103 - BRAKE GP (1)
104 - AXLE HOUSING
105 - DOUBLE JOINT AND AXLE SHAFT ASSY.
106 - PLANETARY GEAR
107 - WHEEL HUB
108 - BRAKE
109 - STEERING RODS
110 - STEERING RODS (1)
111 - TIRES AND WHEELS
112 - AIR BRAKE FOR TRAILER,ANTI-FREEZE PUMP,PRESS.REGU.
113 - AIR BRAKE FOR TRAILER,AIR RESERVOIR
114 - AIR BRAKE FOR TRAILER,COUPLINGS
115 - AIR BRAKE FOR TRAILER,PRESSURE GAUGE
116 - LIFT DEVICE
117 - LIFT DEVICE (1)
118 - POWER LIFT, FRONT
119 - LOWER LINKS, RIDGID WITH AUTOMATIC SNAP-ON HOOKS
120 - LOWER LINKS, FOLDING WITH AUTOMATIC SNAP-ON HOOKS
121 - ROCK SHAFT, REAR
122 - THREE-POINT HITCH LINKAGE
123 - THREE-POINT HITCH LINKAGE (1)
124 - PITON FIX HITCH ASSEMBLY
125 - COVERING
126 - COVERING (1)
127 - MAIN FRAME
128 - CAB BASE
129 - ACCESS LADDER, L_H SIDE
130 - GEARBOX COVER, CENTRE
131 - ACCESS LADDER, R_H SIDE
132 - ACCESS STEP ASSY., TOP, R_H SIDE
133 - ACCESS LADDER, R_H SIDE (1)
134 - TOOL LOCKER
135 - MUD GUARD BRACKETS
136 - FRONT GRILL
137 - ENGINE COVER
138 - SIDE PANELLING, L.H.
139 - SIDE PANELLING, R.H.
140 - ENGINE COVER (1)
141 - SUPPORT FOR VALVE BLOCK
142 - SUPPORT FOR VALVE BLOCK (1)
143 - SUN ROOF VAR. 7312
144 - SUN ROOF VAR. 7312 (1)
145 - FAN PUMP
146 - HYDRAULIC OIL TANK
147 - DIRECTIONAL CONTROL VALVE BLOCK
148 - DIRECTIONAL CONTROL VALVE BLOCK (1)
149 - MANIFOLD PORT PLATE ON CAB BASE
150 - STEERING DIRECTION CONTROL VALVE
151 - VALVE BLOCK, CAB
152 - STEERING MODE CONTROL VALVE
153 - AUTOPILOT VALVE
154 - 3_2 DIRECTIONAL CONTROL VALVE,REAR POWER LIFT
155 - PRIORITY VALVE, EMERGENCY STEERING
156 - FLOW DEVIDER
157 - PRESSURE RELIEF VALVE, 180 BAR, STEERING
158 - PRIORITY VALVE
159 - ACCUMULATOR CHARGE VALVE
160 - PRESSURE RELIEF VALVE, 30 BAR
161 - PRESSURE RELIEF VALVE, 25 BAR
162 - PRESSURE RELIEF VALVE, 6 BAR
163 - ACCUMULATOR WITH RELAY VALVE
164 - LOCK-UP VALVE FOR PIVOT POST
165 - LOCK-UP VALVE FOR RIGID AND OSCILLATING AXLE
166 - 2_2-WAY VALVE, HM8-GEARBOX
167 - SOLENOID-OPERATED VALVE BLOCK LP, HM8-GEARBOX
168 - OSCILLATING AXLE LOCK
169 - HYDRAULIC CYLINDER, PARKING BRAKE
170 - HYDRAULIC CYLINDER,LOCKING THE CAB
171 - HYDRAULIC CYLINDER,R_H SIDE,FRONT POWER LIFT
172 - HYDRAULIC CYLINDER,R_H SIDE,FRONT POWER LIFT (1)
173 - HYDRAULIC CYLINDER,L_H SIDE,FRONT POWER LIFT
174 - HYDRAULIC CYLINDER,L_H SIDE,FRONT POWER LIFT (1)
175 - HYDRAULIC CYLINDER,REAR POWER LIFT
176 - HYDRAULIC CYLINDER,OSCILLATING AXLE LOCK
177 - SUPPORT BOX FOR HYDRAULIC COUPLINGS,REAR
178 - SUPPORT PLATE FOR HYDRAULIC COUPLINGS,FRONT
179 - HYDR. LINES, VALVE BLOCK TO FRONT COUPL.SUPP.PLATE
180 - HYDR.LINES,FRONT COUPL.PLATE TO OSCILL.AXLE LOCK
181 - HYDR.LINES,VALVE BLOCK TO REAR COUPL.SUPPORT BOX
182 - HYDR.LINES,VALVE BLOCK TO REAR COUPL.SUPPORT BOX (1)
183 - HYDRAULIC LINES,VALVE BLOCK TO FRONT COUPLING BOX
184 - HYDR.LINES,VALVE BLOCK TO REAR COUPL.SUPPORT BOX (2)
185 - HYDR.LINES,VALVE BLOCK TO REAR COUPL.SUPPORT BOX (3)
186 - HYDR. LINES, VALVE BLOCK TO FRONT COUPL.SUPP.PLATE (1)
187 - HYDR.LINES,VALVE BLOCK TO REAR COUPL.SUPPORT BOX (4)
188 - HYDR.LINES,VALVE BLOCK TO FRONT COUPL.SUPP.PLATE
189 - HYDR.LINES,VALVE BLOCK TO REAR COUPL.SUPPORT BOX (5)
190 - HYDR. LINES, VALVE BLOCK TO FRONT COUPL.SUPP.PLATE (2)
191 - HYDR.LINES,VALVE BLOCK TO REAR COUPL.SUPPORT BOX (6)
192 - HYDR. LINES, VALVE BLOCK TO FRONT COUPL.SUPP.PLATE (3)
193 - HYDR.LINES,VALVE BLOCK TO REAR COUPL.SUPPORT BOX (7)
194 - HYDRAULIC LINES, VALVE BLOCK TO PRIORITY VALVE
195 - HYDRAULIC LINES,VALVE BLOCK TO REAR POWER LIFT
196 - HYDRAULIC LINES, HYDRAULIC TANK TO VALVE BLOCK
197 - HYDRAULIC LINES, OSCILLATING AXLE LOCK

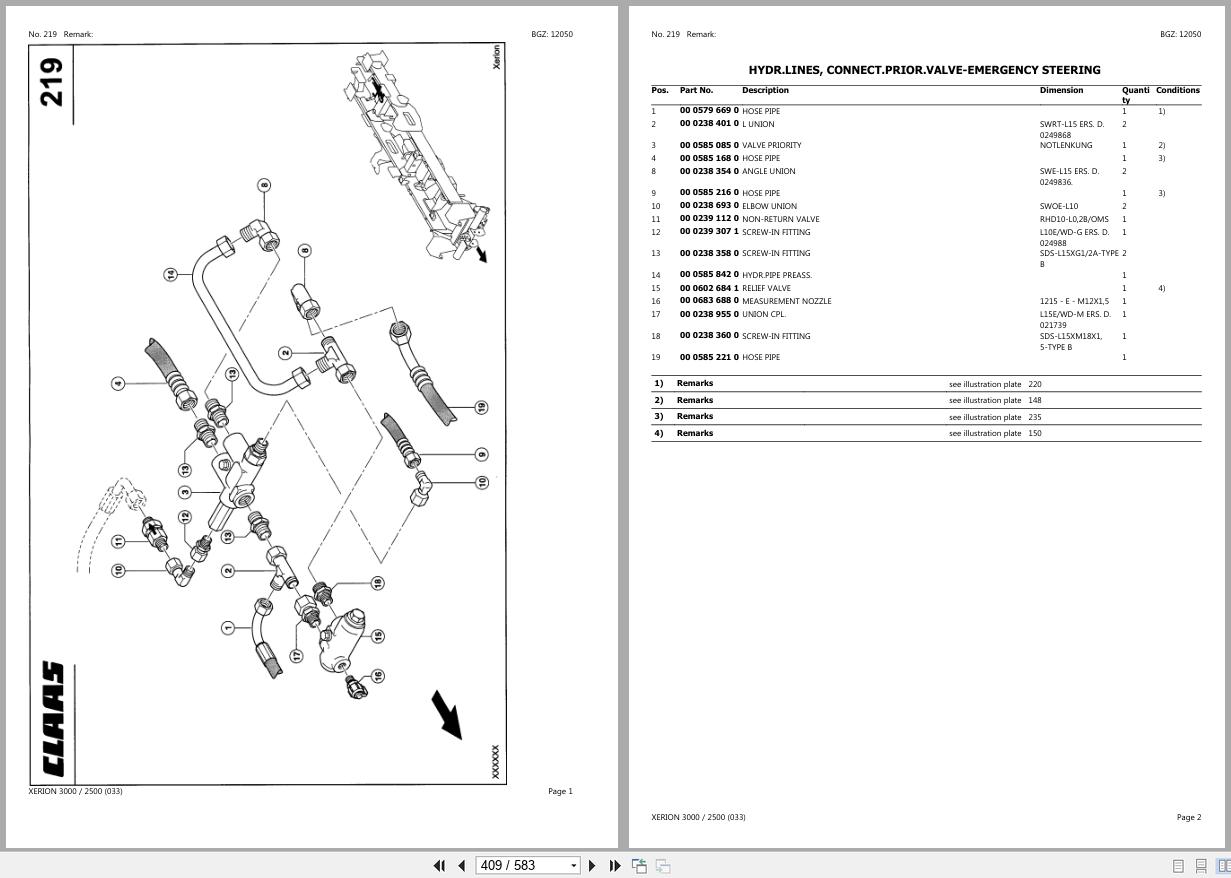

198 - HYDR.LINES, CONNECT.PRIOR.VALVE-EMERGENCY STEERING
199 - HYDR.LINES,EMERGENCY PUMP TO EMERG.STEERING VALVE
200 - HYDR.LINES,EMERGENCY PRIORITY VALVE TO HYDR.TANK
201 - HYDRAULIC LINES, ADAPTER TO CAB CONNECTIONS
202 - HYDRAULIC LINES, ADAPTER TO CAB CONNECTIONS (1)
203 - HYDRAULIC LINES, ADAPTER TO CAB CONNECTIONS (2)
204 - HYDR.LINES,STEERING DIRECT.CONTR.VALVE TO ADAPTER
205 - HYDRAULIC LINES,ADAPTER TO HYDRAULIC TANK
206 - HYDRAULIC LINES,ADAPTER TO VALVE BLOCK IN CAB
207 - HYDRAULIC LINES, ADAPTER TO BRAKE RELAY VALVE
208 - HYDRAULIC LINES,ADAPTER TO PRIORITY VALVE
209 - HYDR.LINES,ADAPTER TO HANDBRAKE AND PRIORITY VALVE
210 - HYDRAULIC LINES,PRIORITY VALVE TO RELAY VALVE
211 - HYDR.LINES,PRIOR.VALVE TO ACCUMULATOR CHARGE VALVE
212 - HYDR.LINES,PRIORITY VALVE TO REAR COUPL.SUPP.BOX
213 - HYDR.LINES,PRIORITY VALVE TO REAR COUPL.SUPP.BOX (1)
214 - HYDR.LINES,PRIORITY VALVE TO EMERGENCY STEERING
215 - HYDR.LINES,PRIORITY VALVE TO VALVE BLOCK IN CAB
216 - HYDRAULIC LINES,PRIORITY VALVE TO REAR POWER LIFT
217 - HYDR.LINES,PRIOR.VALVE TO VALVE BLOCK,CAB ACCUMUL.
218 - HYDR.LINES,HYDR.PUMP TO LOAD SENSING PUMP
219 - HYDRAULIC LINES, PARKING BRAKE
220 - HYDR.LINES,BRACKET ON CAB TO ORBITROL
221 - HYDR.LINES,OIL COOLER TO HYDRAULIC TANK
222 - HYDRAULIC LINES, AUTOPILOT TO OIL COOLER
223 - HYDR.LINES,OIL COOLER TO OIL TEMP.REGULATOR
224 - HYDR.LINES,OIL COOLER TO OIL TEMP. REGULATOR
225 - OIL TEMP. REGULATOR
226 - GEARBOX OIL FILTER
227 - HYDR.LINES,PRIORITY VALVE TO HYDRAULIC TANK
228 - HYDR. LINES, ADDITIONAL OIL FILTER
229 - HYDR.LINES,REAR POWER LIFT VALVE TO HYDRAULIC TANK
230 - HYDR.LINES,FRONT COUPLING SUPP.PLATE TO HYDR.TANK
231 - HYDR.LINES,VALVE BLOCK TO LOAD SENSING PUMP
232 - HYDR.LINES,STEERING MODE CONTR.VALVE TO AUTOPILOT
233 - HYDR.LINES,STEERING MODE CONTR.VALVE TO AUTOPILOT (1)
234 - HYDRAULIC LINES,FLOW DIVIDER TO AUTOPILOT
235 - HYDRAULIC LINES, AUTOPILOT TO OSCILLATING AXLE
236 - HYDR.LINES,STEERING MODE VALVE TO OSCILLATING AXLE
237 - HYDR.LINES.,EMERGENCY STEERING PUMP TO HYDR.TANK
238 - HYDR.LINES,RELAY VALVE TO HYDRAULIC TANK
239 - HYDRAULIC LINES,FRONT POWER LIFT LINKAGE UP
240 - HYDRAULIC LINES,FRONT POWER LIFT LINKAGE DOWN
241 - HYDRAULIC LINES,RELAY VALVE TO OSCILLATING AXLE
242 - HYDRAULIC LINES, DIFFERENTIAL LOCK CONTROL
243 - HYDRAULIC LINES,DIFFERENTIAL LOCK CONTROL
244 - HYDR.LINES,BRAKES TO RELAY VALVE,RIGID AXLE
245 - HYDRAULIC LINES, ORBITROL TO CAB CONNECTIONS
246 - HYDRAULIC LINES, CAB LOCKING
247 - HYDRAULIC LINES, ORBITROL TO CAB CONNECTIONS (1)
248 - HYDR.LINES,PIVOT POST ROTATION TO BRACKET ON CAB
249 - HYDR.LINES,PIVOT POST TO VALVE BLOCK ON CAB
250 - HYDR.LINES,LOCK-UP VALVE BLOCK,OSCILLATING AXLE
251 - HYDR.LINES,LOCK-UP VALVE BLOCK,RIGID AXLE
252 - HYDRAULIC LINES, HM8-GEARBOX
253 - HYDRAULIC LINES, HM8-GEARBOX (1)
254 - HYDRAULIC LINES, HM8-GEARBOX (2)
255 - HYDRAULIC LINES, HM8-GEARBOX (3)
256 - HYDRAULIC LINES, HM8-GEARBOX (4)
257 - HYDRAULIC LINES,FRONT P.T.O. CONTROL,TRANSMISSION
258 - HYDRAULIC LINES, HM8-GEARBOX (5)
259 - HYDRAULIC LINES, HM8-GEARBOX (6)
260 - HYDRAULIC LINES, HM8-GEARBOX (7)
261 - HYDRAULIC LINES, HM8-GEARBOX (8)
262 - HYDRAULIC LINES, HM8-GEARBOX (9)
263 - HM8-GEARBOX, COMPONENTS
264 - HM8-GEARBOX, COMPONENTS (1)
265 - HM8-GEARBOX, COMPONENTS (2)
266 - HYDROSTATIC UNIT FOR HM8-GEARBOX
267 - SUCCION FILTER FOR HM8-GEARBOX
268 - ENGINE
269 - ENGINE (1)
270 - FUEL TANK
271 - PERKINS 1306; FUEL SYSTEM
272 - PERKINS 1306; ADDITIONAL FUEL FILTER
273 - PERKINS 1306, ENGINE MOUNTING
