Dana Type 112 Axle Repair Manual 647013

Dana Type 112 Axle Repair Manual 647013

Size: 92.85 MB
Machine: Dana Axle
Machine Model: Type 112
Publication Date: 2017
Page: 214 Pages
Part Number: 647013

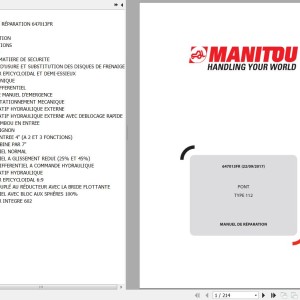

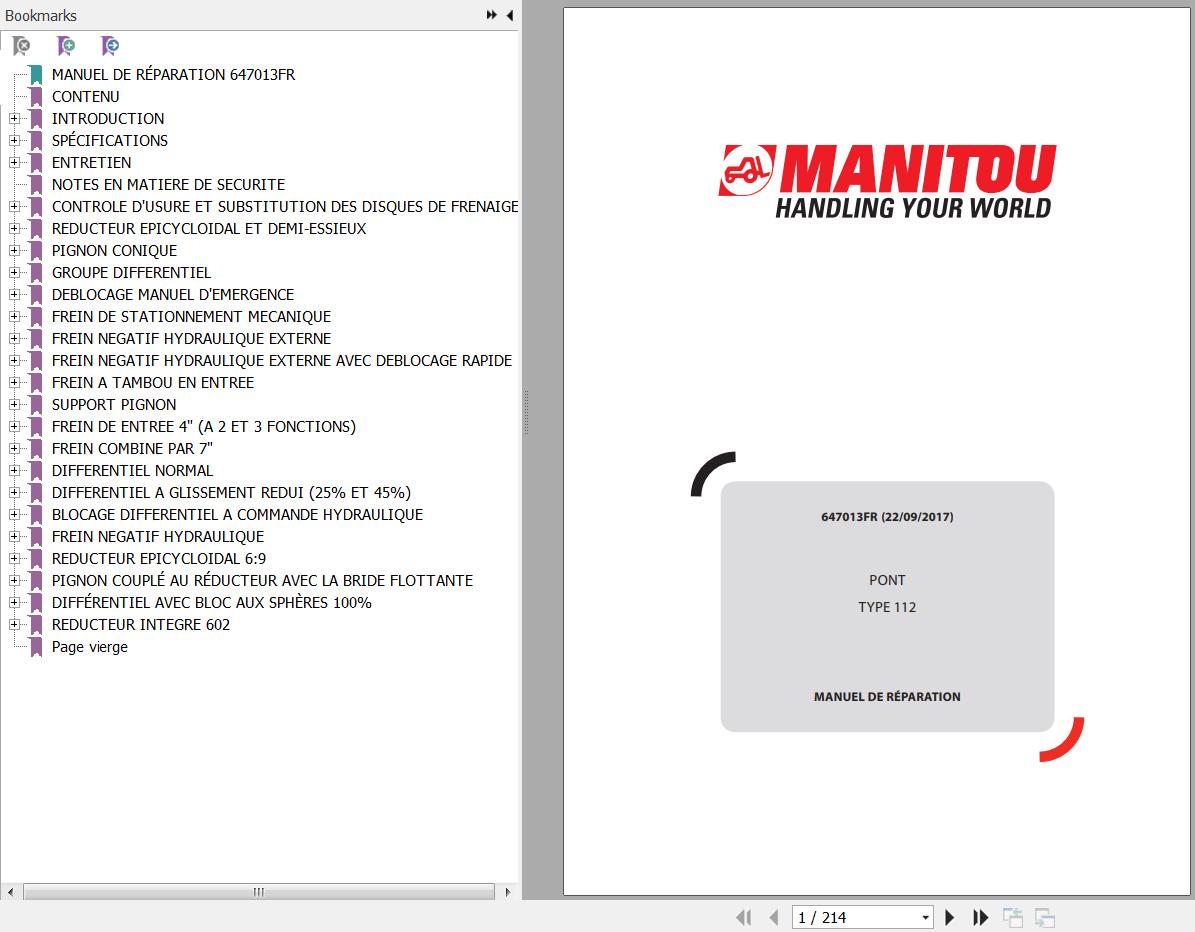

The Bookmarks Of Dana Type 112 Axle Repair Manual:
Repair Manual 647013fr
Content
Introduction
Specifications
Interview
Safety Notes
Wear Check And Replacement Of Brake Discs

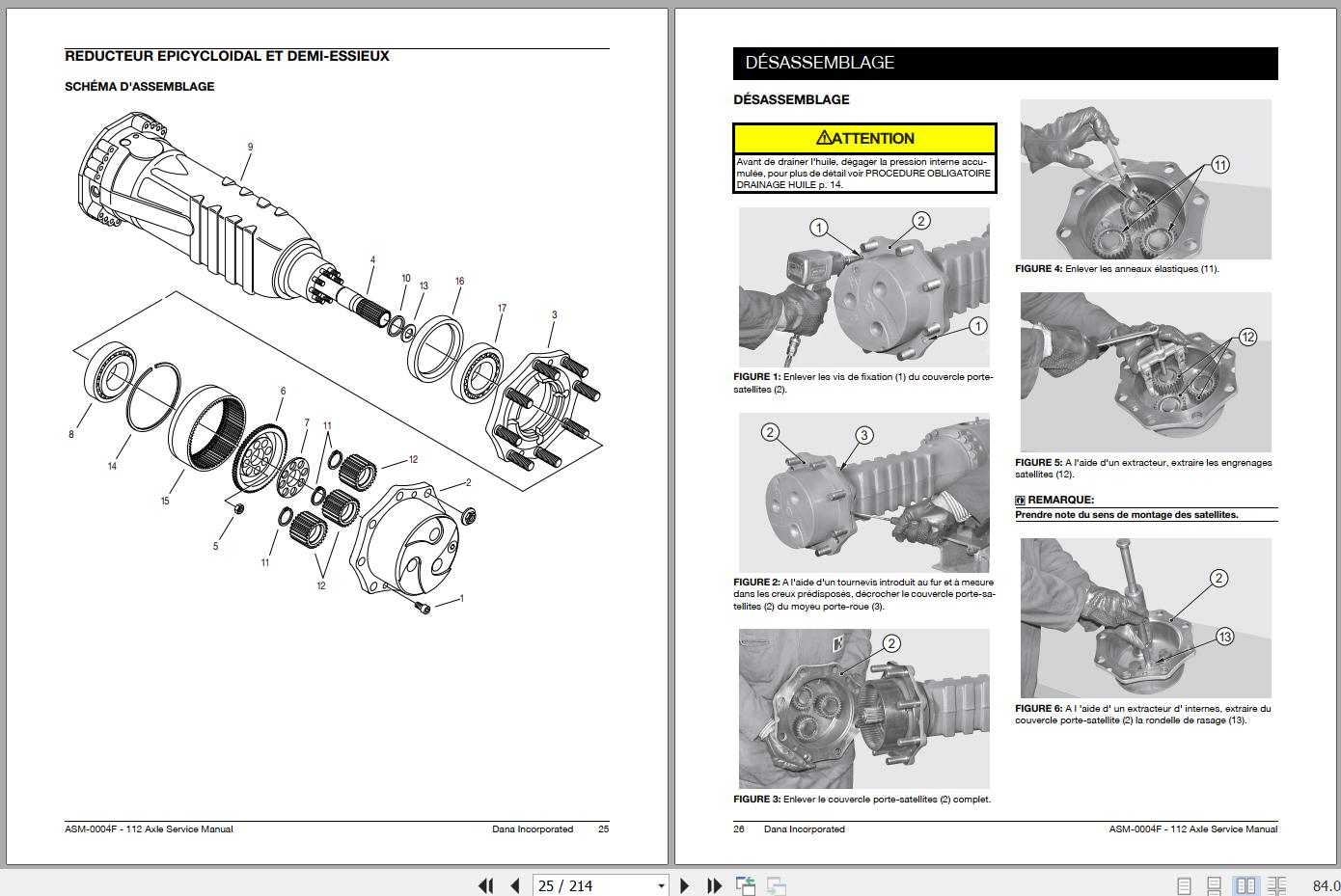

Epicycloidal Reducer And Half-Axles
Bevel Gear
Differential Group
Manual Emergency Unblock
Mechanical Parking Brake
External Hydraulic Negative Brake
External Hydraulic Negative Brake With Quick Release
Brake At Tam Bou On Input
Gear Support
4” Entrance Brake (2 And 3 Functions)
Combined Brake By 7”
Normal Differential
Reduced Slip Differential (25% And 45%)
Hydraulically Controlled Differential Lock
Hydraulic Negative Brake
Epicycloidal Reducer 6:9
Gear Coupled To Reducer With Floating Flange
Differential With 100% Sphere Block
Integrated Reducer 602
Blank Page
