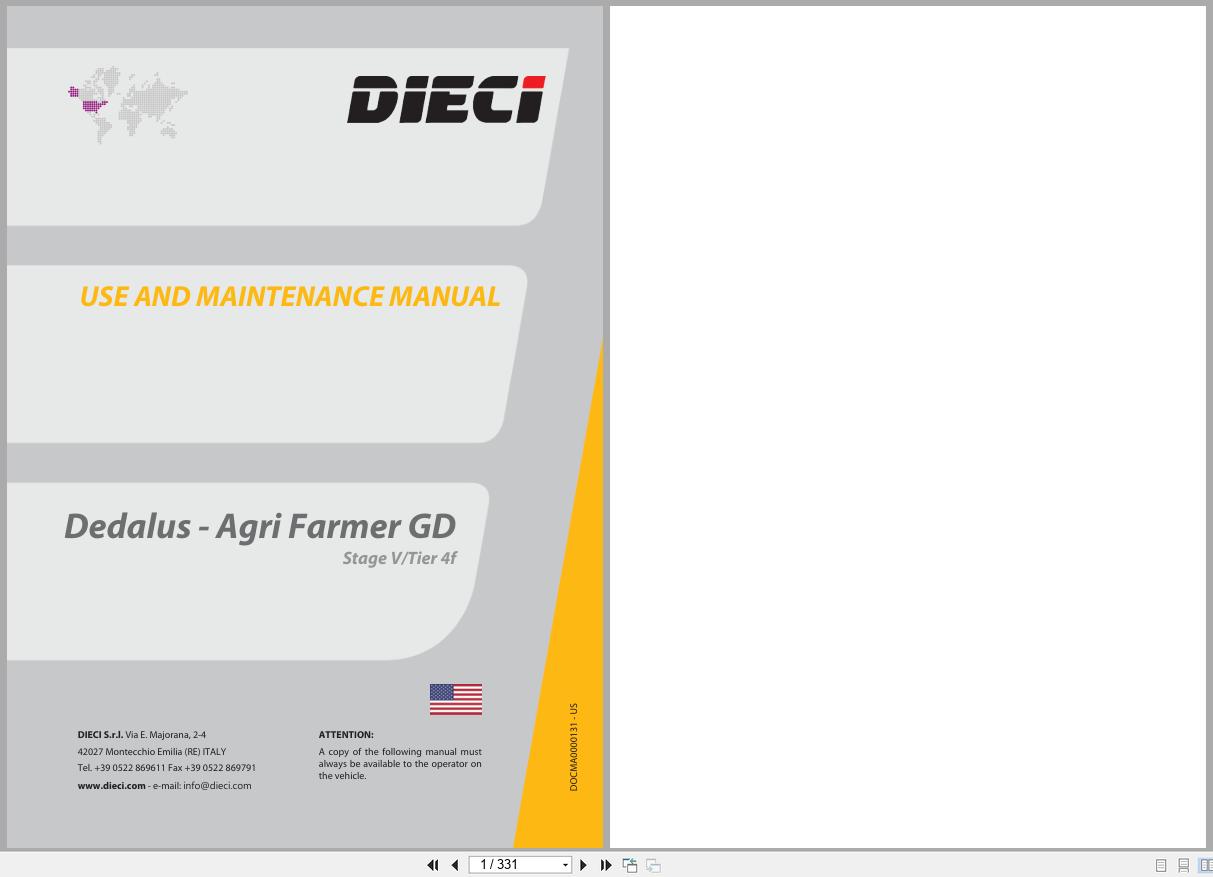

DIECI Dedalus AgriFarmer 30.7 - 32.9 GD Use Maintenance Manual DOCMA0000131

Data Size: 33.10 MB
File Type: PDF
Language: English
Manufacturer: DIECI
Applicable Machine: Telehandler
Document: Use and Maintenance Manual
Machine Model: DIECI DEDALUS 30.7 - GD, DEDALUS 30.9 - GD, DEDALUS 34.7 - GD, DEDALUS 32.9 - GD (Kubota V3307-CRTE5-HP Stage V/Tier 4f 55,4 kW (74 HP))
AGRI FARMER 30.7 - GD, AGRI FARMER 30.9 - GD, AGRI FARMER 34.7 - GD, AGRI FARMER 32.9 - GD (Kubota V3800-TIEF5B Stage V/Tier 4f 79,5 kW (107 HP))
Area: EC
Book Number: DOCMA0000131
Publication Date: 04.2022
Page: 331 Pages

List Contents:

1 Info
1.1 General information
1.2 Identification of the vehicle
Table of Contents
Definitions
2 Introduction
2.1 Manual structure
2.2 Purpose and content
2.3 Preservation
2.4 Recipients
2.5 Classification of dangers
2.6 Vehicle general warnings
2.7 Equipment general warnings
2.8 Intended use
2.9 Contraindications for use
2.10 Declaration of first test
2.11 Liability
2.12 Manufacturer
2.13 Vehicle identification label
2.14 Certification and CE marking
2.15 Units of measurement and abbreviations used
3 Warranty
3.1 Exclusions from the guarantee
3.2 Delivery and installation
3.3 Warranty: duration
3.4 Warranty: commencement
3.5 Warranty: activation
3.6 Warranty procedure
3.7 Intervention campaigns for faulty products
3.8 Warranty: intervention request
3.9 Non-activation, failure to grant, termination
3.10 Final terms
4 Safety regulations
4.1 General warnings
4.2 Safety indications
4.3 Personal protective equipment
4.4 Preparing for accidents
4.5 Preventing fires and accidents
4.6 Storing dangerous liquids
4.7 Warnings for safe working
4.8 Working in windy conditions
4.9 Assessing the consistency of the work ground
4.10 Moving safely
4.11 General warnings for moving the load
4.12 Use of cables, ropes and slings
4.13 Road travel
4.14 Momentary stop
4.15 Parking the vehicle
4.16 Starting and stopping the vehicle
5 Vehicle description
5.1 Left side components description
5.2 Right side components description
5.3 Engine components description
5.4 Cab description
6 Safety devices
6.1 List of safety devices
6.2 Safety stickers

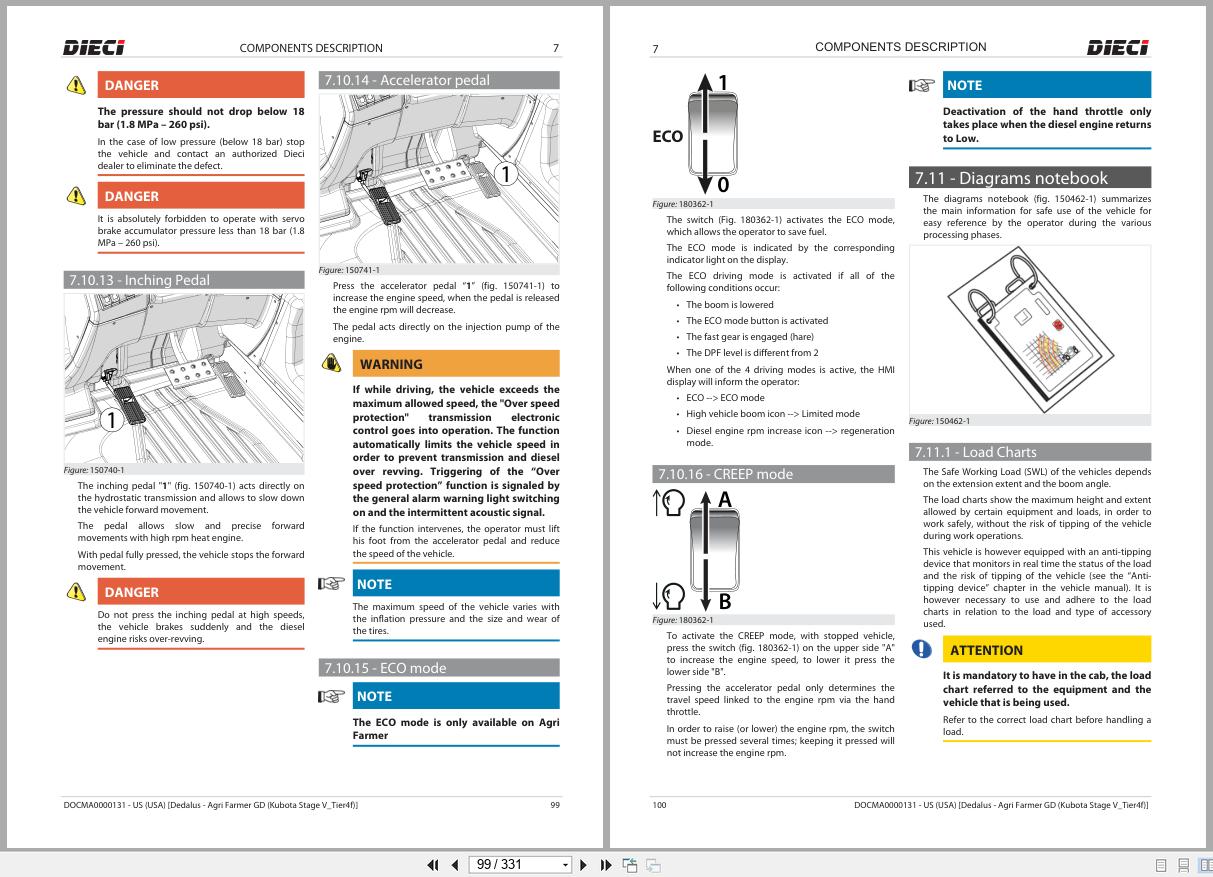

7 Components description
7.1 ROPS - FOPS Cab
7.2 Climbing in and off the vehicle
7.3 Dashboard
7.4 Lifted boom icon
7.5 Anti-tipping device
7.6 Safety
7.7 Comfort
7.8 Lighting
7.9 Windows
7.10 Guide and Transmission
7.11 Diagrams notebook
7.12 Boom control
7.13 Ventilation
7.14 Leveling
7.15 Optional attachments
7.16 Remote Control *
8 Engine
8.1 Electronic hand throttle
8.2 Kubota Engine (Stage V)
9 Equipment
10 Equipment and tools
10.1 General warnings on equipment use
10.2 Equipment installation procedure
10.3 Hydraulic connections
10.4 Electrical Connections
10.5 Equipment removal
10.6 Forks
10.7 Bucket
10.8 Equipment lifting
10.9 Equipment transport
11 Emergency procedure
11.1 Emergency procedure list
11.2 Vehicle towing
11.3 Man basket recovery in case of failure for fixed vehicles
12 Boom raise in emergency
13 Maintenance
13.1 Maintenance warnings
13.2 Summary of most frequent maintenance operations
13.3 Engine hood opening
13.4 Under chassis protection plate removal
13.5 Battery
13.6 Fuel
13.7 Safety stickers: Inspection
13.8 Lubrication
13.9 Preliminary maintenance operations
13.10 Engine maintenance
13.11 Air filter: Cartridges cleaning and replacement
13.12 Radiator maintenance
13.13 Hydraulic system maintenance
13.14 2 speed transmission maintenance
13.15 Brakes maintenance
13.16 Wheel maintenance
13.17 Lighting
13.18 Ventilation system maintenance
13.19 Boom maintenance
13.20 Cylinders block valves maintenance
13.21 Differential Axles Maintenance
13.22 Hydraulic fittings tightening torques
13.23 Torque specifications - fasteners
14 Technical assistance service
14.1 Spare parts supply
14.2 Assistance to owner / operator
14.3 Technical Assistance Service address
15 Problems diagnostics
15.1 Engine
15.2 Hydraulic transmission system
15.3 Brakes
15.4 Steering wheel
15.5 Telescopic boom
16 Cleaning
16.1 Vehicle cleaning
16.2 Glasses cleaning
16.3 Cleaning the cab
16.4 Safety stickers cleaning
17 Lifting the vehicle
18 Transporting the vehicle on a trailer
19 Storing the vehicle
19.1 Long period of inactivity
19.2 Long period of inactivity
19.3 Restarting the vehicle
20 WASTE DISPOSAL
20.1 Ecological considerations
20.2 Protect the environment
21 Demolition
22 Fuse box
23 Technical data
23.1 Dedalus Dimensions
23.2 Agri Farmer Dimensions
23.3 Dedalus Performance
23.4 Agri Farmer Performance
23.5 Engine
23.6 Weights
23.7 Electrical and hydraulic system
23.8 Transmission
23.9 Axles
23.10 Acoustic pressure
23.11 Acoustic power
23.12 Vibration
23.13 Tires data
23.14 Filling
23.15 Environmental conditions
23.16 Electromagnetic Interference
23.17 Radiations
23.18 Dedalus forks technical data
23.19 Dedalus buckets technical data
23.20 Agri Farmer forks technical data
23.21 Agri Farmer buckets technical data
23.22 Compatible equipment and tools
24 Load Charts
24.1 Diagrams Dedalus - Agri Farmer 30.7 ST.V
24.2 Diagrams Dedalus - Agri Farmer 30.9 ST.V
24.3 Diagrams Dedalus - Agri Farmer 34.7 ST.V
24.4 Diagrams Dedalus - Agri Farmer 32.9 ST.V
25 Control and maintenance logs
25.1 Type of logs
25.2 Instructions for compiling the logs
25.3 Periodic checks and recording mode (Italian only)
25.4 Obligation and how to report to I.N.A.I.L. (National institute for insurance against accidents at work) (Italy only)
25.5 Control log
25.6 Maintenance log
Notes
