Doosan BW20-MS20 Equipment Parts Catalog SB5102Y

Data Size: 22.91 MB
File Type: PDF
Language: English
Manufacturer: Doosan
Applicable Machine: Walkie Pallet Truck, Warehouse Equipment
Document: Parts Catalog
Machine Model: Doosan BW20-MS20 Walkie Pallet Truck
Book Number: SB5102Y
Page: 45 Pages

List Contents:

Section 1

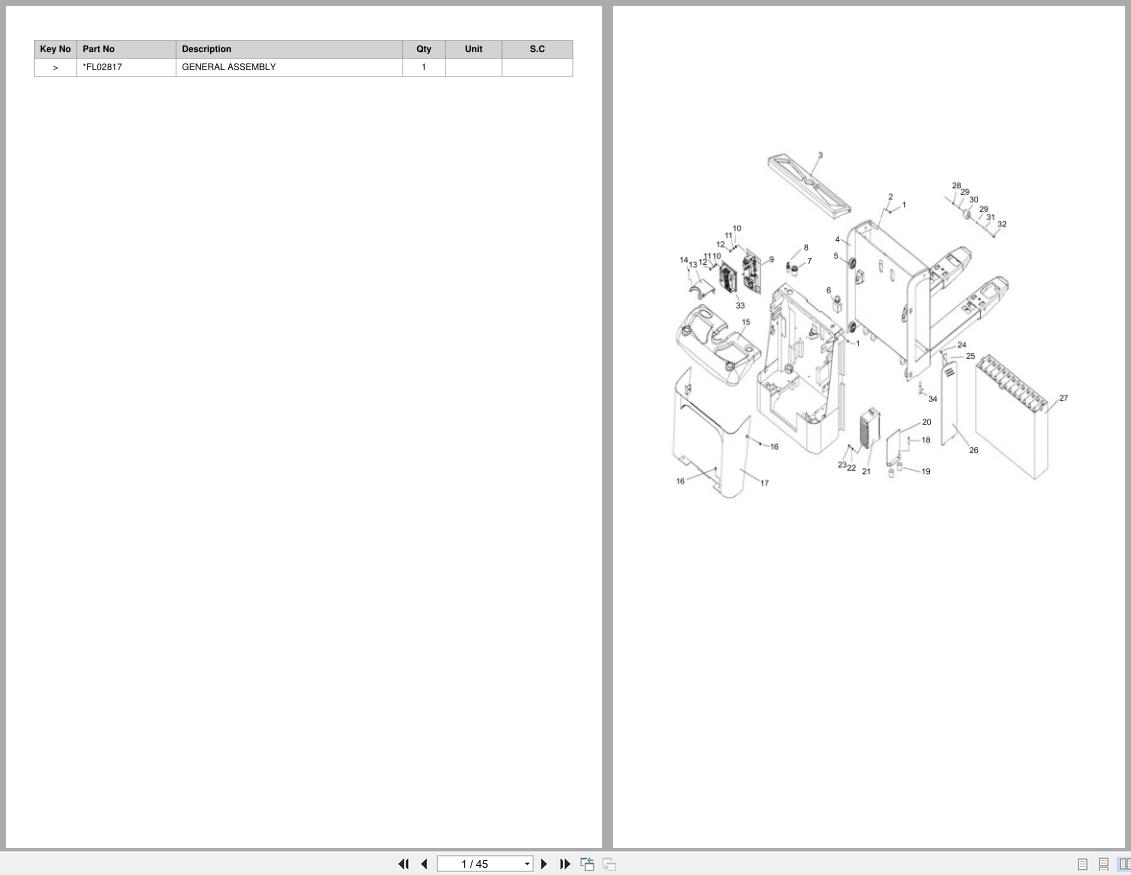

General Assembly
Section 2

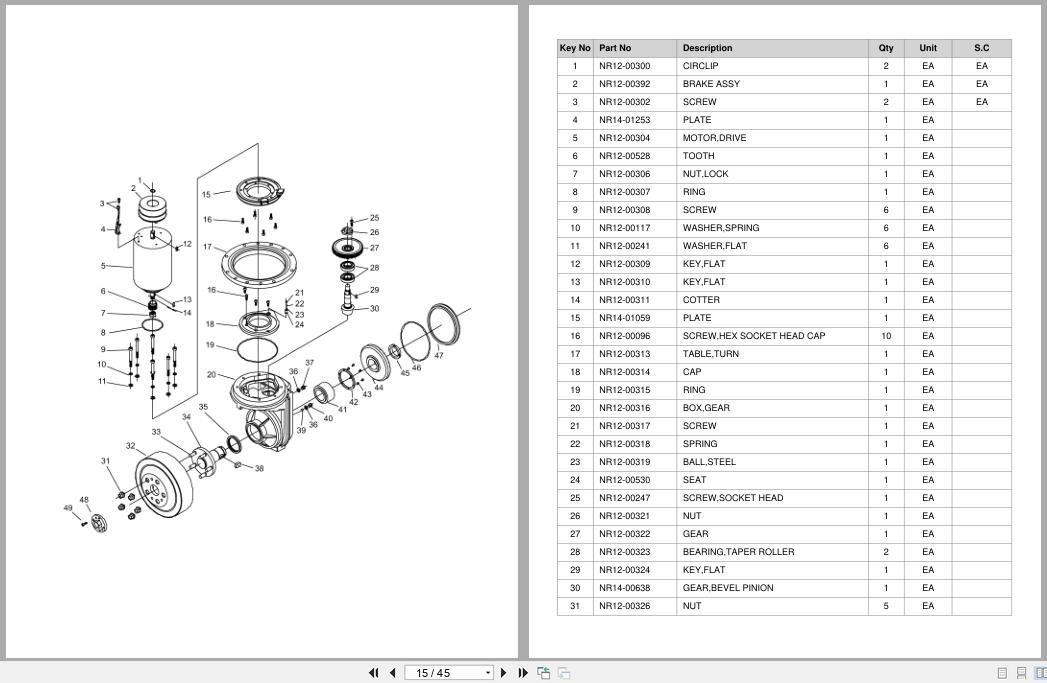

Roller Assembly
Section 3
Connecting Rod Wheel Carrie
Section 4
Steering Gear Assembly
Section 5
Vertical Driving Wheel
Section 6
Balance Wheel
Section 7
Guardrail Components
Section 8
Footstep Assembly
Section 9
Hydraulic Cylinder Assembly
Section 10
Hydraulic Plumbing System
Section 11
Hydraulic Unit Assy
Section 12
Electrical Equipment Assembly
Section 13
Relocation Mechanism
Section 14
Floating oil cylinder
