Doosan BWP20 BWP25 BWP30 Equipment Parts Catalog SB5161Y

Data Size: 28.04 MB
File Type: PDF
Language: English
Manufacturer: Doosan
Applicable Machine: Walkie Pallet Truck, Warehouse Equipment
Document: Parts Catalog
Machine Model: Doosan BWP20, BWP25, BWP30 Walkie Pallet Truck
Book Number: SB5161Y
Page: 40 Pages

List Contents:

Section 1
Chassis And Accessories
Section 2
Rocker Stick Assembly
Section 3
Platform
Section 4

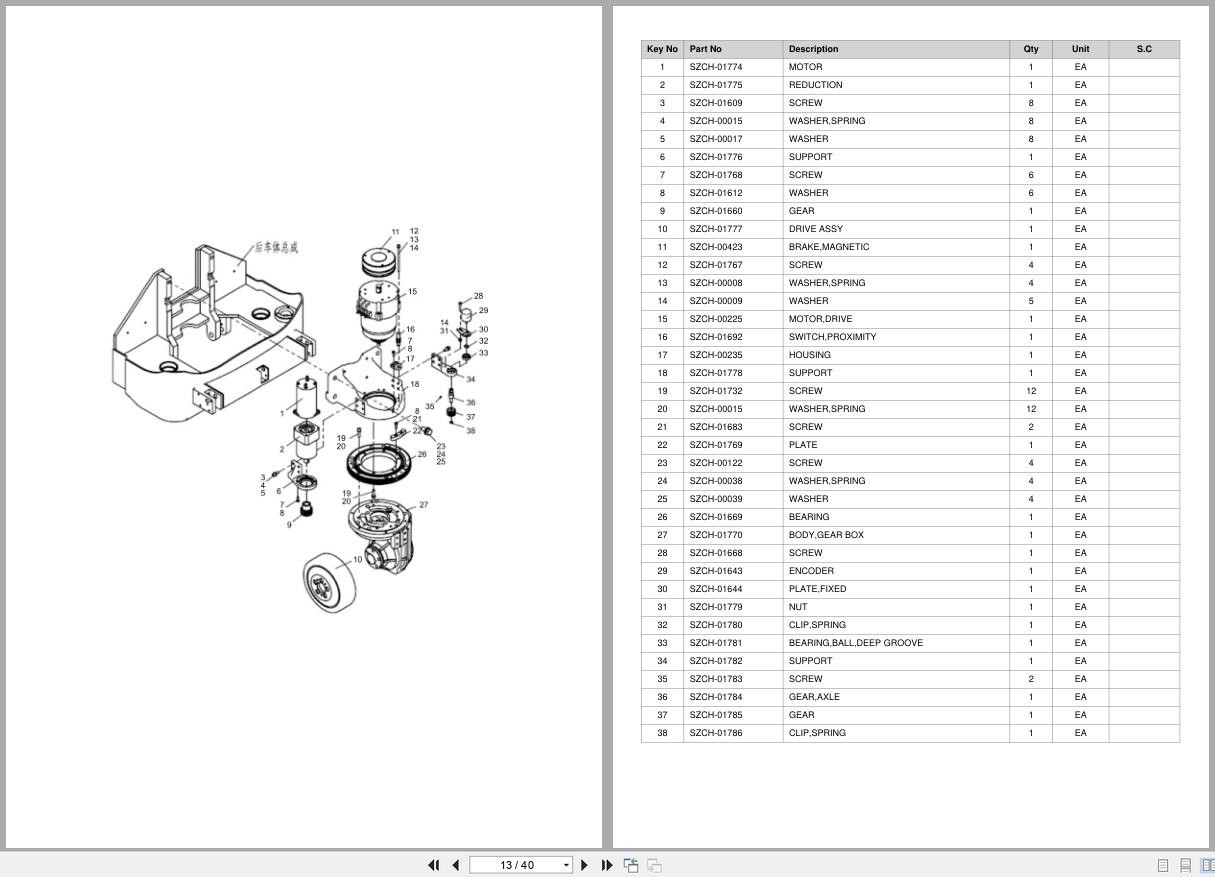

Driving Assembly
Driving Assembly-Mechanical Steering
Driving Assembly-EPS Power Assisted Steering
Section 5
Balance Wheel Assembly
Section 6
Front Wheel Assembly
Section 7
Steering System
Steering System-EPS Power Assisted Steering
Steering System-Mechanical Steering
Section 8
Electric Appliance System
Electric Appliance System-EPS Power Assisted Steering
Electric Appliance System-Mechanical Steering
Section 9
1232E Controller Assembly
Section 10
Hydraulic System
Section 11
Pump Station
