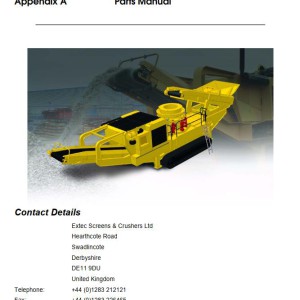

Extec X44 Parts Catalog X44-EN-10407

Extec X44 Parts Catalog X44-EN-10407

Size: 9.36 MB
Language: English
Machine: Cone Crusher
Machine Model: X44
Part Number: X44-EN-10407
Document: Parts Manual
Pages: 115 Pages

The Bookmarks of Extec X44 Parts Catalog:
Loose Items
Chassis
Trac ks
Cone Assembly
Torque Arm
Lubric ation Tank
Power Pac k

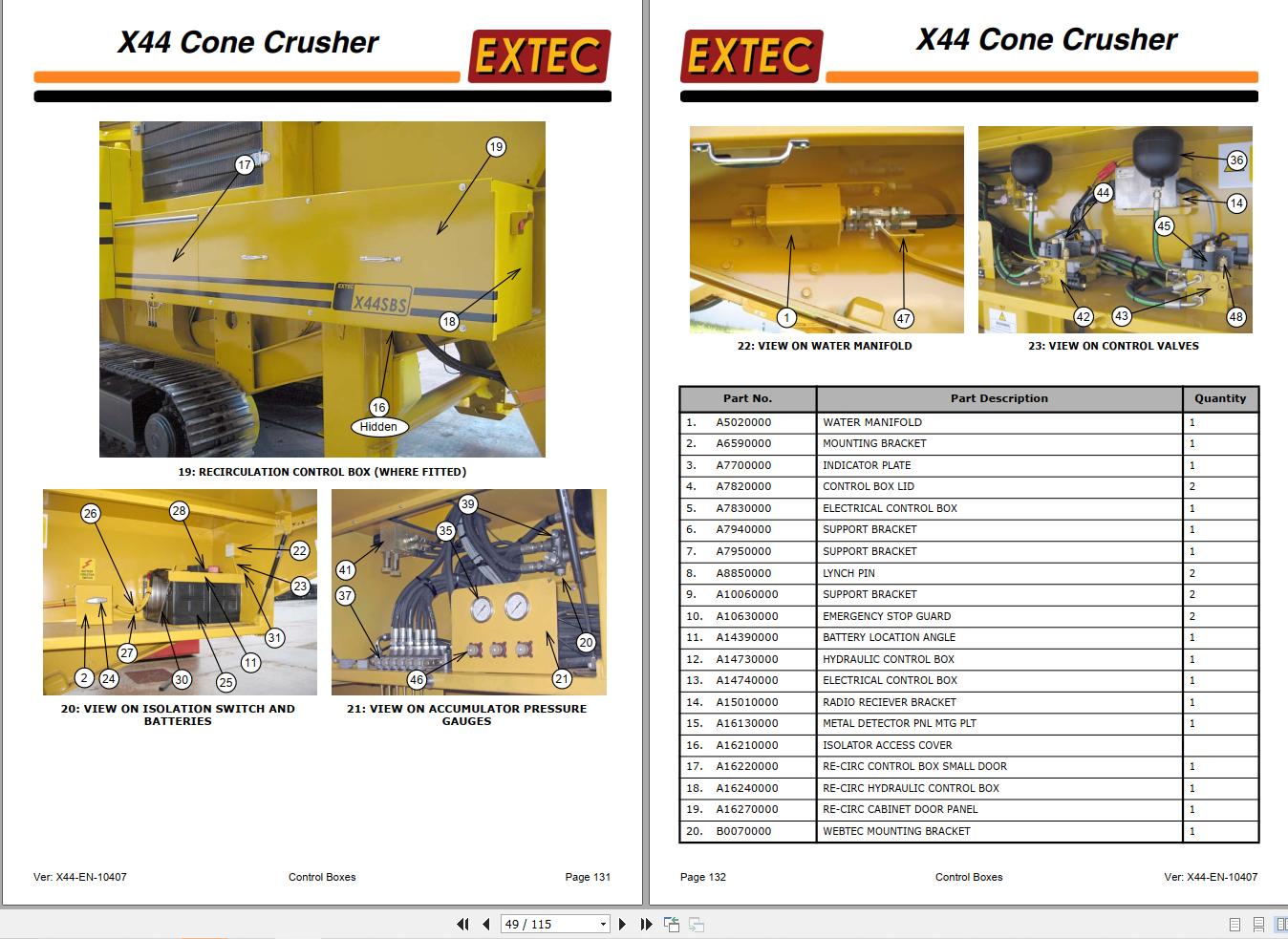

Control Boxes
Sonar Assembly (Optional)
Diesel Tank
Slew Feeder
Slew Feeder Mounting Plate
Main Conveyor
Rec irc ulation Layout
Rec irc ulation Chassis
Rec irc ulation Sc reen Sub Assembly
Rec irc ulation Conveyor
Rec irc ulation Fines Conveyor
Rec irc ulation Side Conveyor
Rec irc ulation Vibrating Grid
Light Stand - Optional
Hydraulic Hoses
Stic kers - English
