Ford Truck F450 F550 Electrical Wiring Diagrams 2003 - 2005

Ford Truck F450 F550 Electrical Wiring Diagrams 2003 - 2005

Size: 54.0 MB
Format: PDF
Language: English
Brand: Ford
Machine: Truck
Document: Electrical Wiring Diagrams
Model Machine:
Ford F450 Truck
Ford F550 Truck

Detail Content:

ADJUSTABLE PEDAL
AIR BAG SYSTEM
AIR CONDITIONING
ANTI-LOCK BRAKING
AUDIO SYSTEM
AUTOLAMPS
CAMPER & TRAILER ADAPTER
CHARGING SYSTEM
CIGAR LIGHTER
CLIMATE CONTROLLED SEATS
CLUSTER ILLUMINATION
COMMUNICATIONS NETWORK
COOLING FAN
COURTESY LAMPS
DAYTIME RUNNING LAMPS
ELECTRONIC CONTROL MODULE
ELECTRONIC DAY NIGHT MIRROR
ELECTRONIC SHIFT CONTROL
ENGINE CONTROL SYSTEM
EXTERIOR LAMPS
FOG LAMPS
FUEL TANK SELECTOR

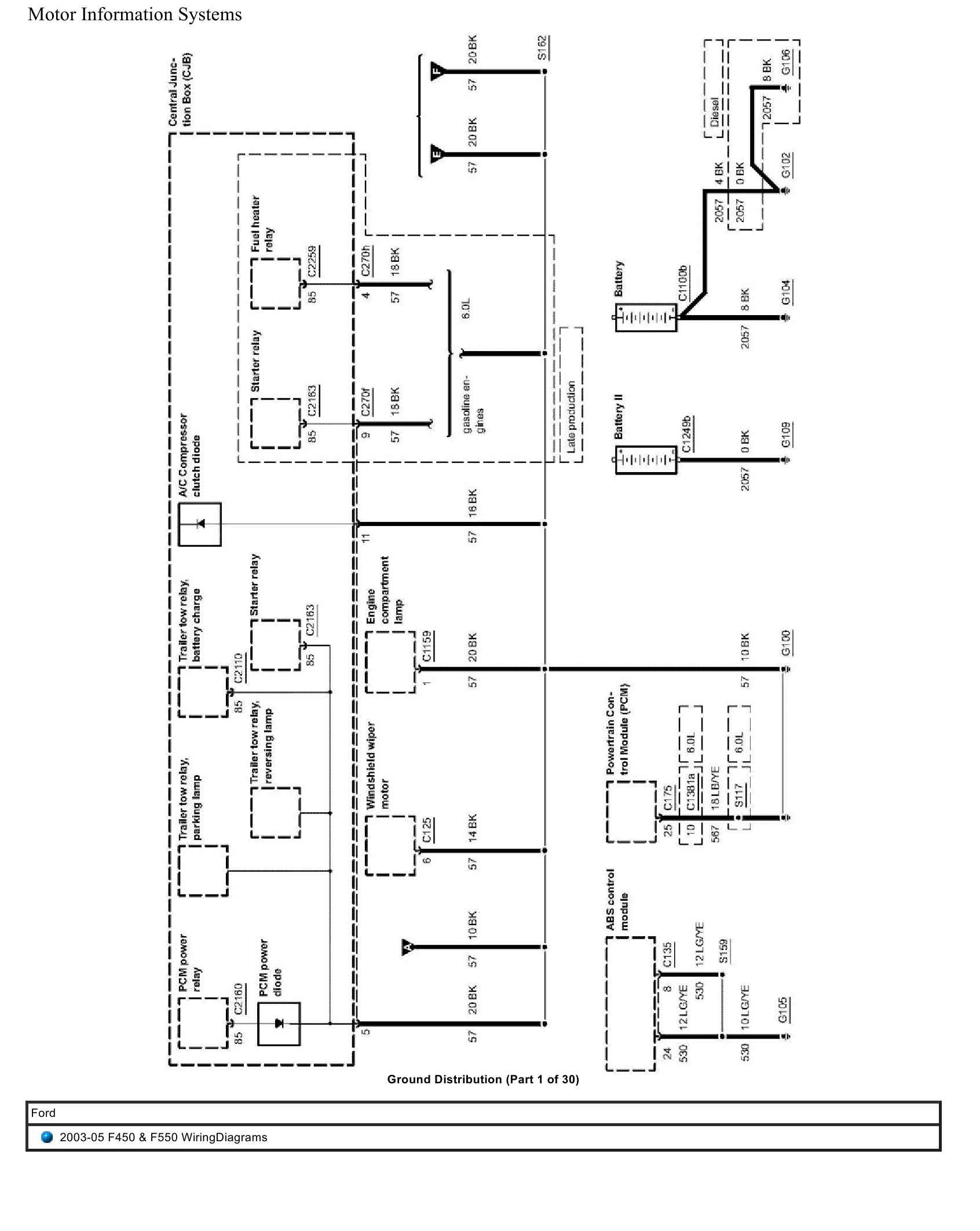

GROUND DISTRIBUTION
HAZARD LAMPS
HEADLAMPS
HEATIN
HORN
IGNITION SYSTEM
INSTRUMENT CLUSTER
OVERHEAD CONSOLE
PANEL ILLUMINATION
PARKING AID

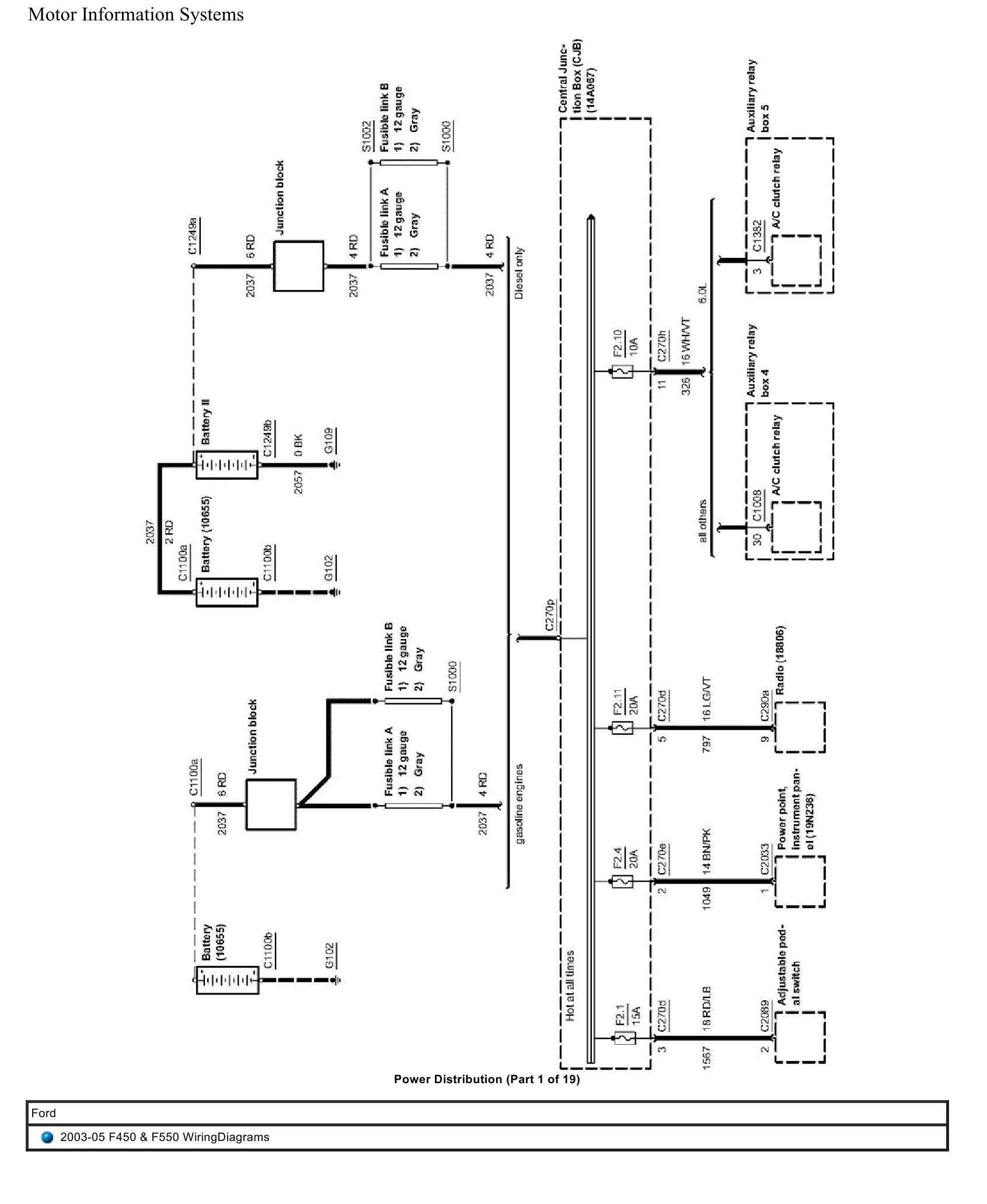

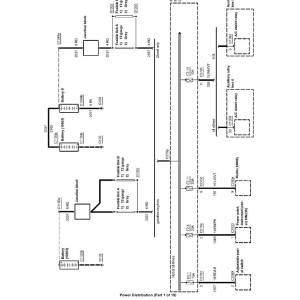

POWER DISTRIBUTION
POWER DOOR LOCKS
POWER MIRRORS
POWER SEATS
POWER WINDOWS
REMOTE CONTROL ALARM & POWER LOCKS
REVERSE LAMPS
ROOF OPENING PANEL
SHIFT INTERLOCK
SPEED CONTROL
STARTING SYSTEM
STOP LAMPS
TRANSMISSION CONTROLS
TURN SIGNAL LAMPS
WARNING DEVICE
WIPERS & WASHERS
