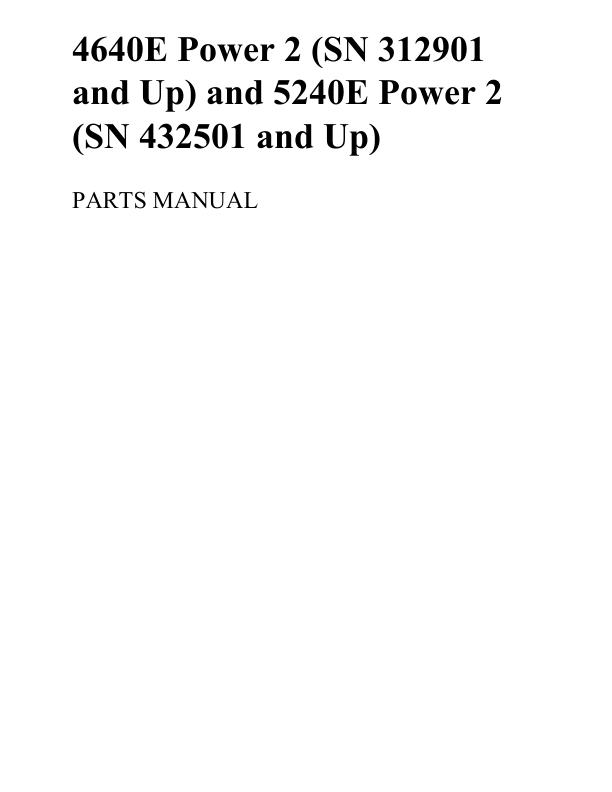

Gehl 4640E Power 2 - 312901 5240E Power 2 - 432501 Parts Manual 50950011

Gehl 4640E Power 2 - 312901 5240E Power 2 - 432501 Parts Manual 50950011

Size: 73.20 MB
Language: English
Machine: Skid Loader
Machine Model: 4640E Power 2, 5240E Power 2
Serial Number: 4640E Power 2 - 312901 and up, 5240E Power 2 - 432501 and up
Part Number: 50950011
Pages: 520 Pages

The Bookmarks of Gehl 4640E Power 2 - 312901 5240E Power 2 - 432501 Parts Manual 50950011:
INTRODUCTION
 INTRODUCTION
SECTION A: MAIN LOADER COMPONENT
 CHASSIS - 4640 Models
 CHASSIS - 5240 Models
 CHASSIS - Covers - T-Bar and Dual Hand Controls
 CHASSIS - Covers - Hand/Foot Controls
 CHASSIS - Covers - T-Bar/Joystick Controls
 CHASSIS - Covers - Dual Joystick Controls
 REAR GRILLE AND ENGINE COVER - 4640 Models
 REAR GRILLE AND ENGINE COVER - 5240 Models
 ROPS/FOPS STRUCTURE
 RESTRAINT BAR
 SEATS - STANDARD
 SEATS - SUSPENSION
 SEATS - SEAT BELT OPTION - 2" Seat Belts
 SEATS - SEAT BELT OPTION - 3" Seat Belts
 SEATS - THREE-POINT RESTRAINT SEAT BELT OPTION - 2" Seat Belts
 SEATS - THREE-POINT RESTRAINT SEAT BELT OPTION - 3" Seat Belts
 LIFT ARM - 4640 Models
 LIFT ARM - 5240 Models
 ATTACHMENT BRACKET - All-Tach® 4640E Models: SN 313600 and Up 5240E Models: SN 433432 and Up
 ATTACHMENT BRACKET - All-Tach® 4640E Models: SN 313599 and Before 5240E Models: SN 433431 and Before
 ATTACHMENT BRACKET - 5240 Models - Power-A-Tach® SN 433432 and Up
 ATTACHMENT BRACKET - 5240 Models - Power-A-Tach® SN 433431 and Before
 ATTACHMENT BRACKET - 4640 Models - Power-A-Tach® SN 313600 and Up
 ATTACHMENT BRACKET - 4640 Models - Power-A-Tach® SN 313599 and Before
 WHEEL DRIVES - 4640
 WHEEL DRIVES - 5240
 WHEEL DRIVES - Axle Assembly 194761
 ENGINE - 4640 Models
 ENGINE - 5240 Models
 AIR CLEANER AND EXHAUST
 RADIATOR/COOLER - 4640 Models
 RADIATOR/COOLER - 5240 Models
 HYDROSTATIC SYSTEM WITH DRIVE MOTORS - Single-Speed T-Bar, Hand/Foot, Dual Hand and T-Bar/Joystick Controls
 HYDROSTATIC SYSTEM WITH DRIVE MOTORS - Single-Speed Dual Joystick Controls
 HYDROSTATIC SYSTEM WITH DRIVE MOTORS - Two-Speed T-Bar, Hand/Foot, Dual Hand and T-Bar/Joystick Controls
 HYDROSTATIC SYSTEM WITH DRIVE MOTORS - Two-Speed Dual Joystick Controls
 HYDROSTATIC SYSTEM WITH DRIVE MOTORS - Brake Release Assembly Single-Speed Models
 HYDROSTATIC SYSTEM WITH DRIVE MOTORS - Brake Release Assembly Two-Speed Models
 HYDRAULICS - CHASSIS - 4640 Models
 HYDRAULICS - CHASSIS - 5240 Models
 HYDRAULICS - CHASSIS - Power-A-Tach® Hydraulics 4640 Models
 HYDRAULICS - CHASSIS - Power-A-Tach® Hydraulics 5240 Models
 HYDRAULICS - CHASSIS - Cold Weather (Option) Power-A-Tach® Hydraulics 4640 Models
 HYDRAULICS - CHASSIS - Cold Weather (Option) Power-A-Tach Hydraulics 5240 Models
 HYDRAULICS - CHASSIS - Hydraglide™ Ride Control Hydraulics 4640 Models
 HYDRAULICS - CHASSIS - Hydraglide™ Ride Control Hydraulics 5240 Models
 HYDRAULICS - AUXILIARY HYDRAULICS - T-Bar, Dual Hand and Hand/Foot Controls 4640 Models
 HYDRAULICS - AUXILIARY HYDRAULICS - T-Bar, Dual Hand and Hand/Foot Controls 5240 Models
 HYDRAULICS - AUXILIARY HYDRAULICS - T-Bar, Dual Hand and Hand/Foot Controls High-Flow Option 4640 Models
 HYDRAULICS - AUXILIARY HYDRAULICS - T-Bar, Dual Hand and Hand/Foot Controls High-Flow Option 5240 Models
 HYDRAULICS - AUXILIARY HYDRAULICS - T-Bar/Joystick Controls 4640 Models
 HYDRAULICS - AUXILIARY HYDRAULICS - T-Bar/Joystick Controls 5240 Models
 HYDRAULICS - AUXILIARY HYDRAULICS - T-Bar/Joystick Controls High-Flow Option 4640 Models
 HYDRAULICS - AUXILIARY HYDRAULICS - T-Bar/Joystick Controls High-Flow Option 5240 Models
 HYDRAULICS - AUXILIARY HYDRAULICS - Dual Joystick Controls 4640 Models
 HYDRAULICS - AUXILIARY HYDRAULICS - Dual Joystick Controls 5240 Models
 HYDRAULICS - AUXILIARY HYDRAULICS - Dual Joystick Controls High-Flow Option 4640 Models
 HYDRAULICS - AUXILIARY HYDRAULICS - Dual Joystick Controls High-Flow Option 5240 Models
 HYDRAULICS - LIFT ARM - 4640 Models
 HYDRAULICS - LIFT ARM - 5240 Models
 HYDRAULICS - LIFT ARM - High-Flow Option 4640 Models
 HYDRAULICS - LIFT ARM - High-Flow Option 5240 Models
 CONTROLS - WHEEL DRIVES - Dual Hand and Hand/Foot Controls - 4640 LAYOUT
 CONTROLS - WHEEL DRIVES - Dual Hand and Hand/Foot Controls - 5240/2056 LAYOUT
 CONTROLS - WHEEL DRIVES - T-Bar and T-Bar/Joystick Controls - 4640 LAYOUT
 CONTROLS - WHEEL DRIVES - T-Bar and T-Bar/Joystick Controls - 5240 LAYOUT
 CONTROLS - WHEEL DRIVES - Dual Joystick Controls
 CONTROLS - LIFT/TILT - Dual Hand Controls
 CONTROLS - LIFT/TILT - T-Bar Controls
 CONTROLS - LIFT/TILT - Hand/Foot Controls
 CONTROLS - LIFT/TILT - T-Bar/Joystick and Dual Joystick Controls
 CONTROLS - AUXILIARY HYDRAULICS - T-Bar and Dual Hand Controls
 CONTROLS - AUXILIARY HYDRAULICS - T-Bar and Dual Hand Controls High-Flow Option
 CONTROLS - AUXILIARY HYDRAULICS - Hand/Foot Controls
 CONTROLS - AUXILIARY HYDRAULICS - Hand/Foot Controls High-Flow Option
 CONTROLS - AUXILIARY HYDRAULICS - Dual Joystick and T-Bar/Joystick Controls High-Flow Option
 CONTROLS - ENGINE - T-Bar, Dual Hand, T-Bar/Joystick and Dual Joystick Controls
 ELECTRICAL - CHASSIS - 4640 Models
 ELECTRICAL - CHASSIS - Electrical Panels 4640 Models
 ELECTRICAL - CHASSIS - Battery Assembly 4640 Models
 ELECTRICAL - CHASSIS - Battery Assembly EU Completing 4640 Models

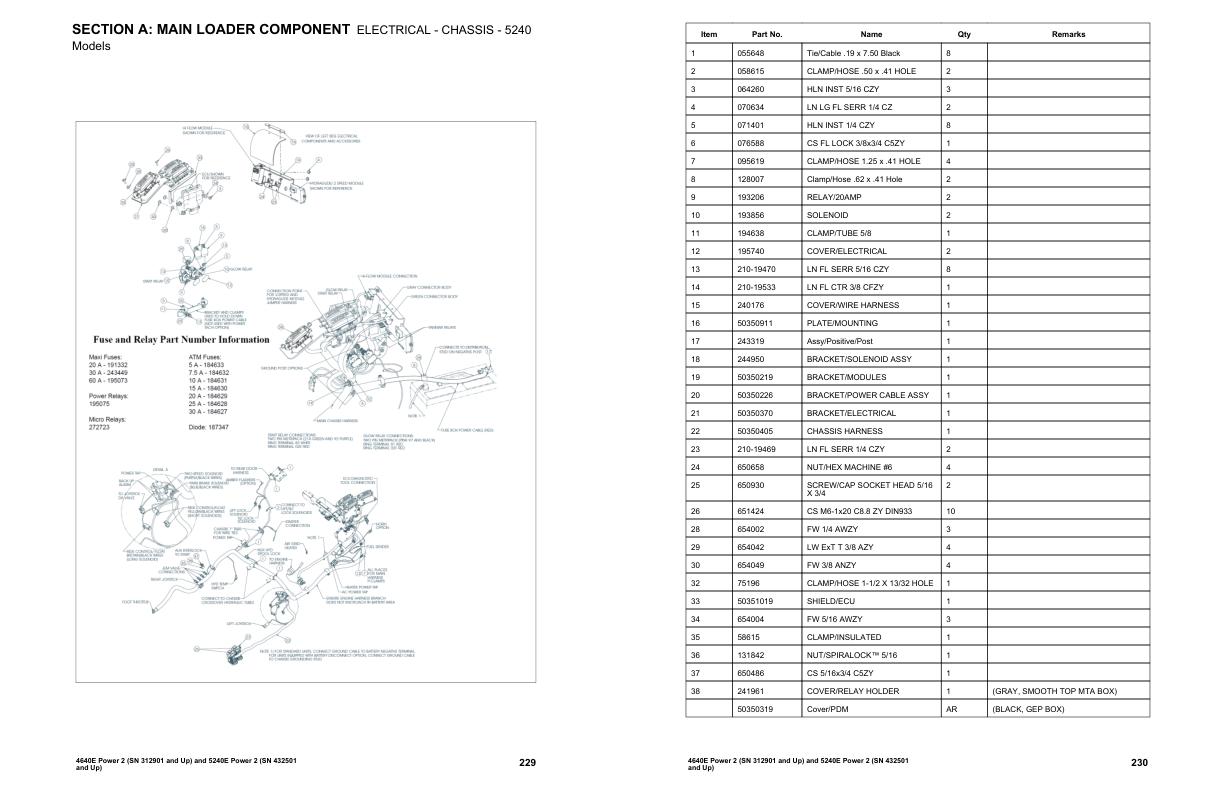

 ELECTRICAL - CHASSIS - 5240 Models
 ELECTRICAL - CHASSIS - Electrical Panels 5240 Models
 ELECTRICAL - CHASSIS - Battery Assembly 5240 Models
 ELECTRICAL - CHASSIS - Battery Assembly EU Completing 5240 Models
 ELECTRICAL - ROPS/FOPS
 ELECTRICAL - ENGINE
 ELECTRICAL - ENGINE - Remote Battery Terminal
 ELECTRICAL - LIGHTS
 ELECTRICAL - CONTROL - Two-Speed Control 4640 Models
 ELECTRICAL - CONTROL - Two-Speed Control 5240 Models
 FOUR-POINT LIFT - EU Completing
 SOUND SUPPRESSION - Standard
 SOUND SUPPRESSION - EU Completing 4640 Models
 SOUND SUPPRESSION - EU Completing 5240 Models
 TIRES
 DECALS
SECTION B: HYDRAULIC COMPONENTS
 LIFT CYLINDER
 TILT CYLINDER
 DRIVE MOTORS - Single-Speed Motor 245279 4640 Models: SN 313600 and Up 5240 Models: SN 433438 and Up (1 of 4)
 DRIVE MOTORS - Single Speed Motor 245279 4640 Models: SN 313600 and Up 5240 Models: SN 433438 and Up (2 of 4)
 DRIVE MOTORS - Single-Speed Motor 245279 4640 Models: SN 313600 and Up 5240 Models: SN 433438 and Up (3 of 4)
 DRIVE MOTORS - Single-Speed Motor 245279 4640 Models: SN 313600 and Up 5240 Models: SN 433438 and Up (4 of 4)
 DRIVE MOTORS - Single-Speed Motor 194032 4640 Models: SN 313599 and Before 5240 Models: SN 433437 and Before
 DRIVE MOTORS - Two-Speed
 TANDEM PUMP - Dual Joystick Pump 50351006
 TANDEM PUMP - Dual Joystick Pump 245149
 TANDEM PUMP - Dual Joystick Tandem Pump 50351006 / 50353716 Engine End
 TANDEM PUMP - Dual Joystick Tandem Pump 50351006 50353717 Gear Pump End
 TANDEM PUMP - Dual Joystick Tandem Pump 245149 / Engine End 198170
 TANDEM PUMP - Dual Joystick Tandem Pump 245149 / Gear Pump End 198171
 TANDEM PUMP - Tandem Pump 186913 / Gear Pump End 186912
 TANDEM PUMP - Tandem Pump 186913 / Engine End 186916
 GEAR PUMP - DOUBLE - T-Bar, Dual Hand, Hand/Foot and T-Bar/Joystick Controls - High-Flow Auxiliary
 GEAR PUMP - DOUBLE - Dual Joystick Controls - High-Flow Auxiliary
 SELF-LEVELING VALVE
 SOLENOID VALVES - LIFT, TILT AND POWER-A-TACH
 SOLENOID VALVES - Single Speed
 SOLENOID VALVES - Two Speed
 SOLENOID VALVES - BRAKE RELEASE
 MAIN CONTROL VALVE - High-Flow Control Valve 193701 - T-Bar, Dual Hand and Hand/Foot Controls
 MAIN CONTROL VALVE - Standard Control Valve 194961 - T-Bar, Dual Hand and Hand/Foot Controls
 MAIN CONTROL VALVE - Standard Control Valve 193103 - T-Bar/Joystick and Dual Joystick
 MAIN CONTROL VALVE - High-Flow Control Valve 193104 - T-Bar/Joystick and Dual Joystick Controls
 PROPORTIONAL VALVES - Proportional Valve 244510 - T-Bar, Dual Hand and Hand/Foot Controls - High-Flow Option T-Bar/Joystick and Dual Joystick Controls - Standard Option
 PROPORTIONAL VALVES - Proportional Valve 244512 - T-Bar/Joystick and Dual Joystick Controls High-Flow Option
 HYDRAGLIDE™ RIDE CONTROL MANIFOLD
 HYDRAULIC VALVES, SWITCH KITS AND CAPS - VALVE KITS - 50352234 and 50354134 Solenoid Valves
 HYDRAULIC VALVES, SWITCH KITS AND CAPS - VALVE KITS - 50354400 and 50354402 Solenoid Valves
 HYDRAULIC VALVES, SWITCH KITS AND CAPS - VALVE KITS - 50354196 and 50350197 Switch Kits
 HYDRAULIC VALVES, SWITCH KITS AND CAPS - VALVE KITS - 50350198 Switch Kit
 HYDRAULIC VALVES, SWITCH KITS AND CAPS - VALVE KITS - 50354135 and 50354136 Hydraulic Caps
 PUMP - COLD WEATHER POWER-A-TACH®
SECTION C: FILTER LISTING, KITS AND ACCESSORIES
 Filters
 Analysis Kits - Contact your Gehl Dealer
 Other Available Accessories
 KITS AND ACCESSORIES 50850096 Heater/Defroster Kit 4640 Models
 KITS AND ACCESSORIES 50850104 Heater/Defroster Kit 5240 Models
 KITS AND ACCESSORIES Horn Kit 811288 5240 Models
 KITS AND ACCESSORIES Crossmember Auxiliary Tube Kit 810469 4640 Models
 KITS AND ACCESSORIES Crossmember Auxiliary Tube Kit 811337 - 5240 Models
 KITS AND ACCESSORIES Backup Alarm Kit 810404 for T-Bar, Dual Hand and Hand/Foot Controls
 KITS AND ACCESSORIES Backup Alarm Kit 810838 for Dual Joystick Controls
 KITS AND ACCESSORIES Horn Kit 810401 4640 Models
 KITS AND ACCESSORIES Rearview Mirror Kit 806894
 KITS AND ACCESSORIES Front Door Kit 810412
 KITS AND ACCESSORIES Seat Belt Kits - 2" 810424
 KITS AND ACCESSORIES Seat Belt Kits - 3" 810425
 KITS AND ACCESSORIES Seat Kits - Suspension 810422
 KITS AND ACCESSORIES Seat Kits - Standard 810423
 KITS AND ACCESSORIES Side Window Kit 810413 PN 183276 - Assy/Right Window PN 183275 - Assy/Left Window PN 50351104 - Latch/Window
 KITS AND ACCESSORIES Pre-Cleaner Kit 50850113
 KITS AND ACCESSORIES Strobe Light Kit 805803
 KITS AND ACCESSORIES Counterweight Kit 810415
 KITS AND ACCESSORIES Dual Flasher Kit 810421
 KITS AND ACCESSORIES Impact-Resistant Front Door Kit 810561
 KITS AND ACCESSORIES Single-Point Lift Kit 810834
 KITS AND ACCESSORIES Interior Console Kit 810494
 KITS AND ACCESSORIES Radio, AM-FM-WB Kit 810897
 KITS AND ACCESSORIES Four-Point Lift Kit 810945
 KITS AND ACCESSORIES 14-Pin Connector for Auxiliary Attachments Kit 811226
 KITS AND ACCESSORIES Power-A-Tach® Kit 50850099 - 4640 Models (1 of 2)
 KITS AND ACCESSORIES Power-A-Tach® Kit 50850099 - 4640 Models (2 of 2)
 KITS AND ACCESSORIES Power-A-Tach® Kit 50850102 - 5240 Models (1 of 2)
 KITS AND ACCESSORIES Power-A-Tach® Kit 50850102 - 5240 Models (2 of 2)
 KITS AND ACCESSORIES HVAC 50850110 AC Assembly 5240 Models
 KITS AND ACCESSORIES HVAC 50850110 AC Assembly 5240 Models (Continued)
 KITS AND ACCESSORIES HVAC 50850110 5240 Models 244969 AC Main Housing Assembly
 KITS AND ACCESSORIES HVAC 50850110 5240 Models 50350284 Condensor Housing Assembly
 KITS AND ACCESSORIES Two-Speed Parking Brake Release Kit 50850107
 KITS AND ACCESSORIES Single-Speed Parking Brake Release Kit 50850106
 KITS AND ACCESSORIES Rear Wiper Kit 811655
 KITS AND ACCESSORIES Rear Wiper Kit 811655 (Motor)
 KITS AND ACCESSORIES Power-A-Tach® Kit 50850100 - Cold Weather 4640 Models
 KITS AND ACCESSORIES Power-A-Tach® Kit 50850100 - Cold Weather 4640 Lift Arm Routing
 KITS AND ACCESSORIES Power-A-Tach® Kit 50850068 Cold Weather 5240 Models
 KITS AND ACCESSORIES Power-A-Tach ® Kit 50850068 - Cold Weather 5240 Lift Arm Routing
 KITS AND ACCESSORIES 50850519 Pilot Valve Kit - Standard Flow
 KITS AND ACCESSORIES 50850521 Mechanical Valve Kit - Standard Flow
 KITS AND ACCESSORIES 50850505 Pilot Valve Kit - High-Flow
 KITS AND ACCESSORIES 50850507 Mechanical Valve Kit - High-Flow
SECTION D: SCHEMATICS
 SCHEMATICS - ELECTRICAL - ROPS/FOPS
 SCHEMATICS - ELECTRICAL - ENGINE
 SCHEMATICS - ELECTRICAL - HEATER
 SCHEMATICS - HYDROSTATIC/HYDRAULIC - DUAL JOYSTICK
 SCHEMATICS - HYDROSTATIC/HYDRAULIC - NON-DUAL JOYSTICK
 SCHEMATICS - ELECTRICAL - 14-PIN CONNECTOR AUXILIARY
 SCHEMATICS - ELECTRICAL - HVAC
 SCHEMATICS - ELECTRICAL - CAB DOOR
 SCHEMATICS - ELECTRICAL - POWER-A-TACH® COLD WEATHER
 SCHEMATICS - ELECTRICAL - CHASSIS
 O-Ring Table, Coupling & Adapter Torque Table
 Torque Specifications Table
Appendix A:Pages Index
