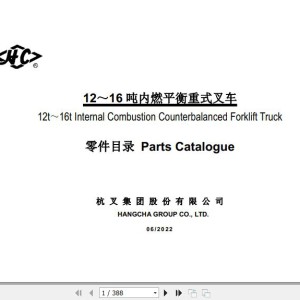

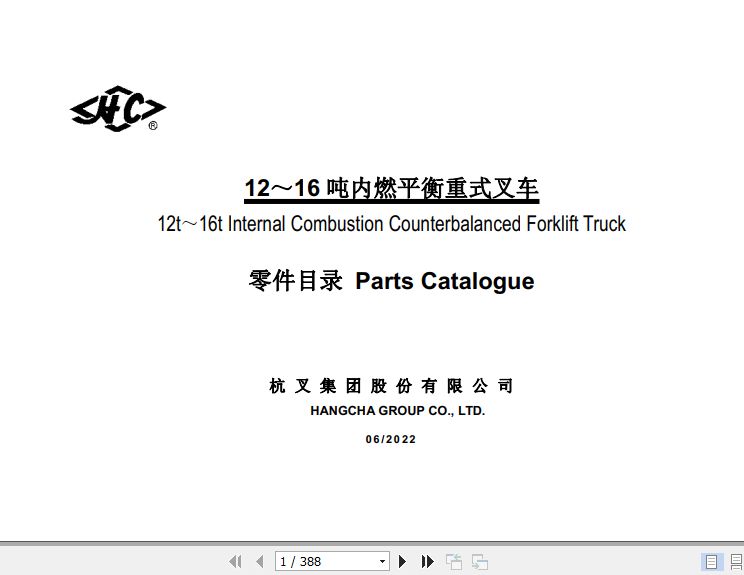

Hangcha 12t-16t CPCD120-XG35 to CPCD160-XG57B Parts Catalog

Hangcha 12t-16t CPCD120-XG35 to CPCD160-XG57B Parts Catalog

Size: 87.3 MB
Format: PDF
Language: English, Chinese
Brand: Hangcha
Machine: Forklift Truck
Document: Parts Manual
Model: Hangcha 12t-16t
CPCD120-XG35, CPCD140-XW25, CPCD160-XW40, CPCD160-XW25-H
CPCD140-XW79, CPCD140-XG35, CPCD160-XW25, CPCD120-XG57
CPCD160-XG57-H, CPCD160-XW79, CPCD160-XG35, CPCD120-XW40
CPCD140-XG57, CPCD160-XW25B, CPCD120-XW79, CPCD120-XW25
CPCD140-XW40, CPCD160-XG57, CPCD140-XW25B, CPCD160-XG57B
Date: 2022
Pages: 388 Pages

Contents:

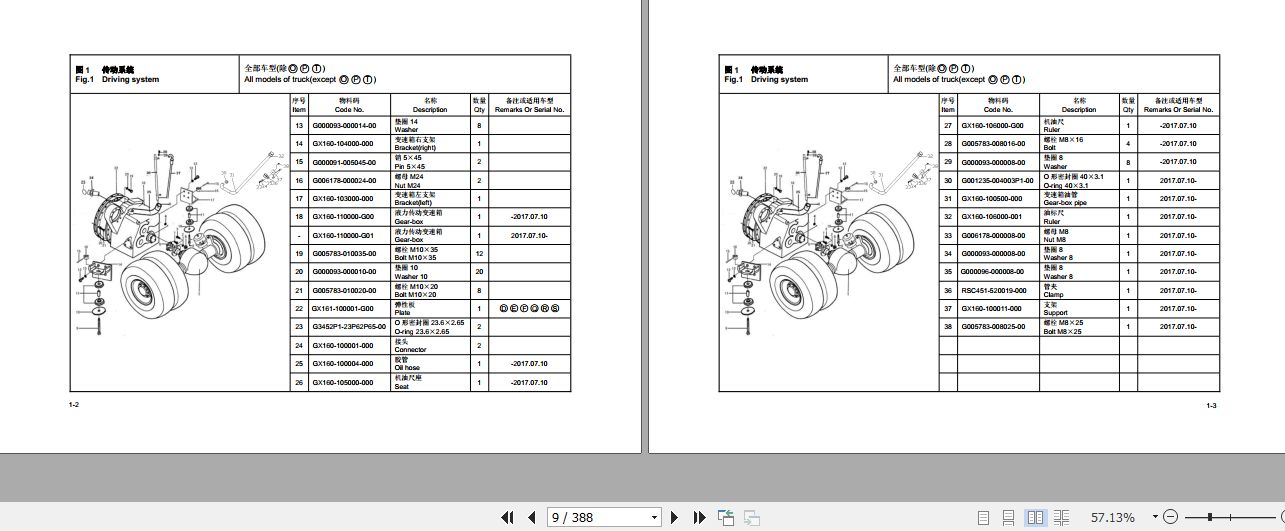

I DRIVING SYSTEM
II STERRING SYSTEM
III DYNAMIC SYSTEM
IV VEHICLE BODY SYSTEM
V CONTROL SYSTEM
VI HYDRAULIC SYSTEM
VII ELECTRICAL SYSTEM
VIII LIFTING SYSTEM
