Heli AC Tractor G Series 8-10t Parts Manual

Heli AC Tractor G Series 8-10t Parts Manual
Size: 23.1 MB
Machine: AC Tractor
Document: Parts Manual
Model Machine: Heli G Series 8-10t AC Tractor

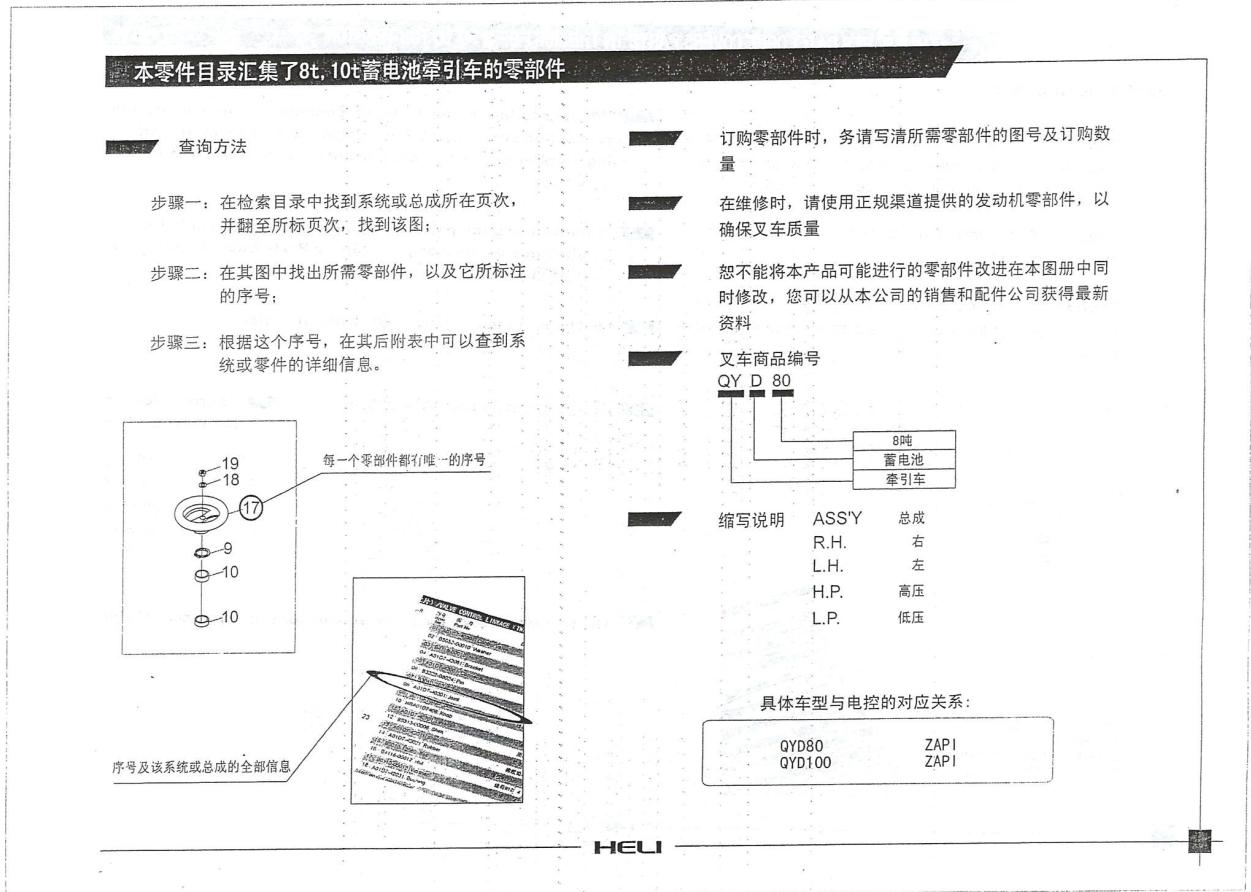

The Following Trucks Are Provided With Corresponding Control Unit:
具体车型与电控的对应关系:
QYD80  ZAPI
QYD100  ZAPI
Number Of Page: 41 Pages
Contents:

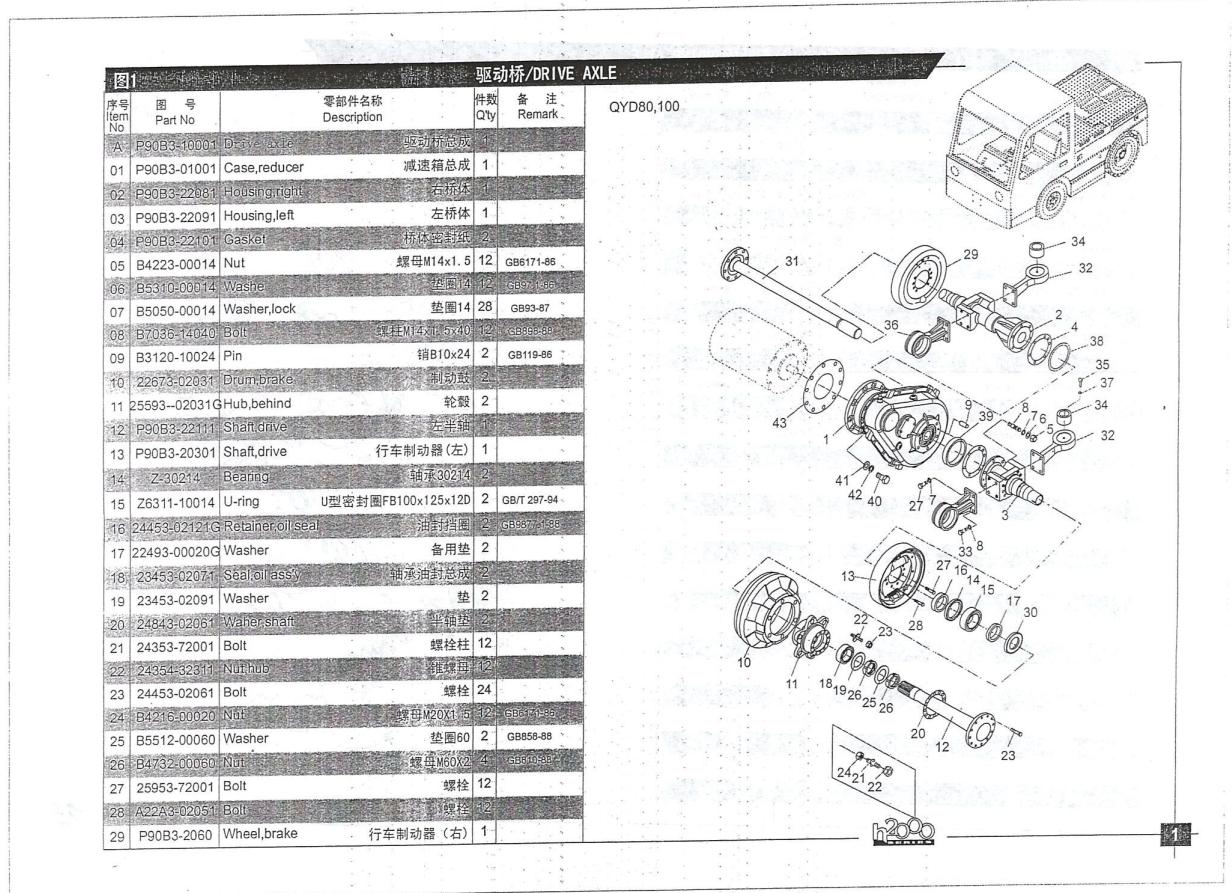

Fig.1 DRIVE AXLE
Fig.2 CASE REDUCER
Fig.3 DRIVE WHEEL
Fig.4 STEERING AXLE
Fig.5 STEERING CYLINDER
Fig.6 STEERING WHEEL
Fig.7 FRONT SUSPENSION
Fig.8 REAR SUSPENSION
Fig.9 BRAKE
Fig.1O BRAKE LEVER
Fig.11 HYDRAULIC SYSTEM
Fig.12 STEERING SYSTEM
Fig.13 ELECTRIC SYSTEM
Fig.14 PRINCIPLE DIAGRAM(ELECTRIC SYSTEM)
Fig.15 CONTROL UNIT
Fig.16 BATTERY SOCKET ASS'Y
Fig.17 CONNECTOR CABLE, PUMP MOTOR
Fig.18 CONNECTOR CABLE. BUTTON
Fig.19 COMBINATION M/T
Fig.2O CONNECTOR CABLE, PANEL
Fig.21 WIRE HARNESSIBODY
Fig.22 CONNECTOR CABLE
Fig.23 BODY SYSTEM
Fig.24 HOOD
Fig.25 LOCK MACHINE, BACK
Fig.26 BONNET ASSEMBLY,BACK
Fig.27 BONNETASSEMBLY,FRONT
Fig.28 LOCK MACHINE ,FRONT
Fig.29 CAB
Fig.30 RETRACTOR
Fig.31 DECAL
