Heli Electric Pallet Truck CBD20-150 Parts Manual

Heli Electric Pallet Truck CBD20-150 Parts Manual
Size: 4.26 MB
Machine: Electric Pallet Truck
Document: Parts Manual
Model Machine: Heli CBD20-150 Electric Pallet Truck
Book Number: LD-150-20151127
Number Of Page: 31 Pages

Contents:
Fig.1 Steering Control System
Fig.2 Handle Assembly
Fig.3 Switch Box Assembly
Fig.4 Handleassembly
Fig.5 Switch Box Assembly

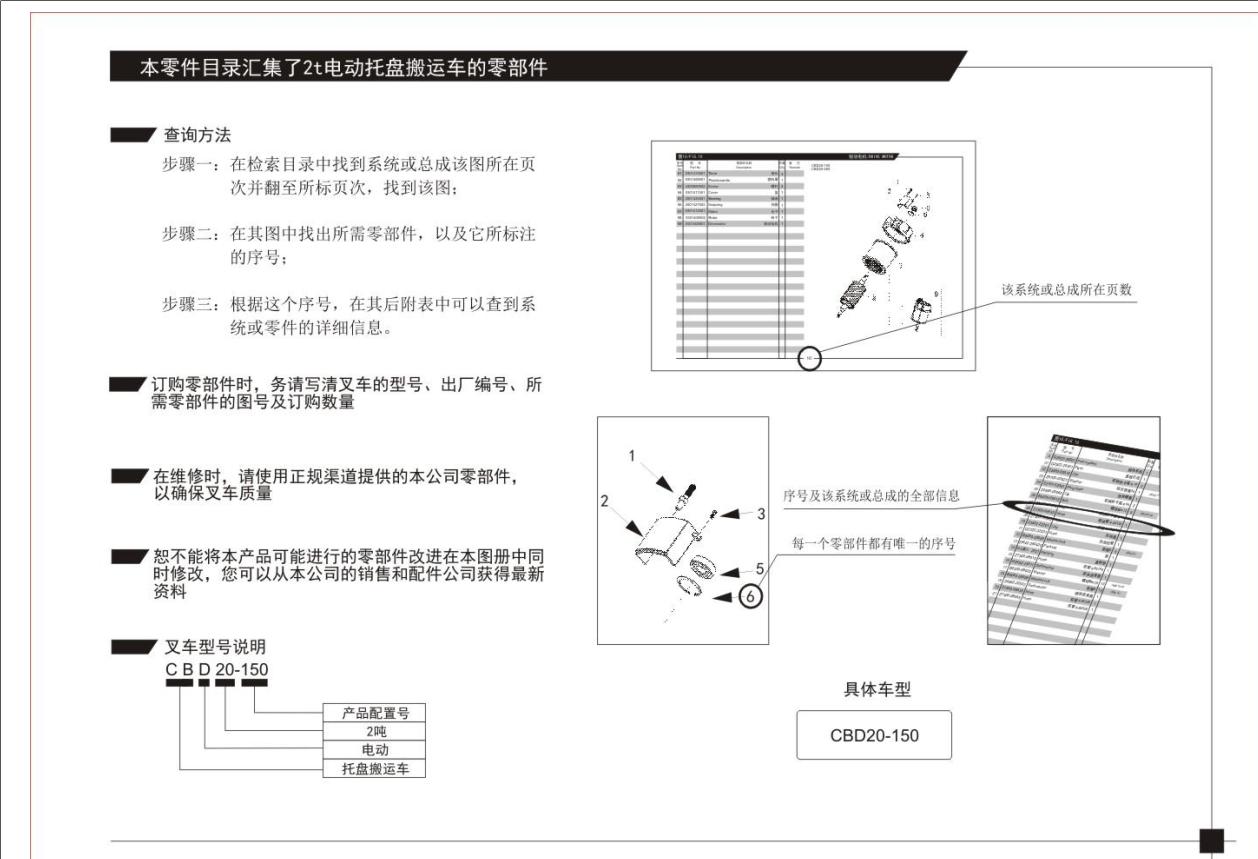

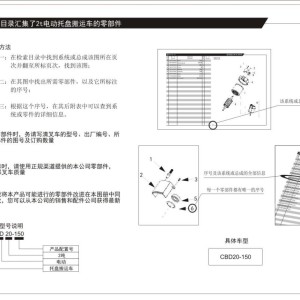

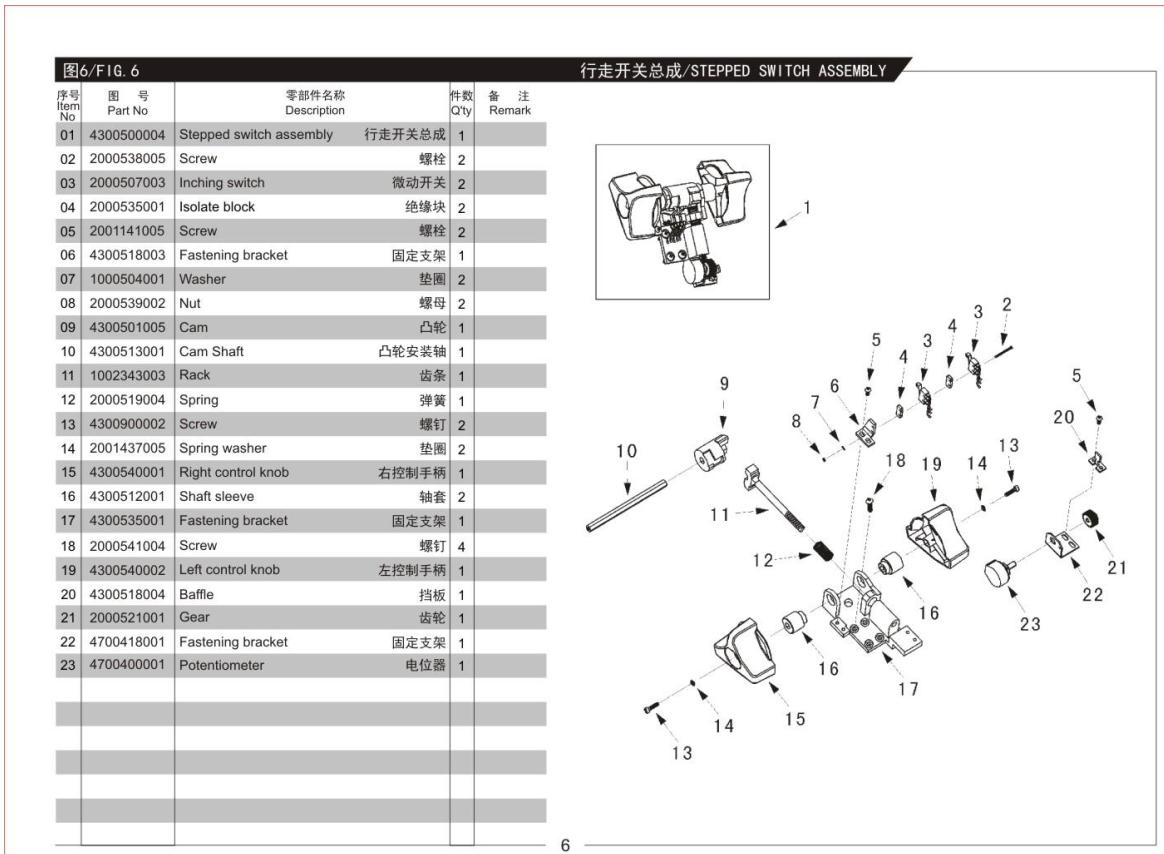

Fig.6 Stepped Switch Assembly
Fig.7 Driving System
Fig.8 Gear Box Assembly(Old)
Fig.9 Gear Box Assembly(New)
Fig.1o Driving Motor
Fig.11 Hydraulic System(Old)
Fig.12 Cylinder Assembly
Fig.13 Hydraulic Power Unit(Old)
Fig.14 Hydraulic Power Unit(New)
Fig.15 Frame(Old)
Fig.16 Frarne(New)
Fig.17 Balance Wheel Assembly
Fig.18 Electric Panel Assembly(Old)
Fig.19 Electric Panel Assembly(New)
Fig.20 Forked Frame
Fig.21 Single Wheel Assembly
Fig.22 Double Wheel Assembly
Fig.23 Forked Frame
Fig.24 Link
Fig.25 Compartment
Fig.26 Battery Assembly
Fig.27 Built-In Battery Assembly
