Heli Electric Pallet Truck CBD20-460 to CBD30-460 Parts Manual

Heli Electric Pallet Truck CBD20-460 to CBD30-460 Parts Manual
Size: 13.7 MB
Machine: Electric Pallet Truck
Document: Parts Manual
Model Machine: CBD20-460 CBD25-460 CBD28-460 CBD30-460

Detail Content:
Heli Electric Pallet Truck CBD20-460 to CBD30-460 Parts Manual LD-460-20140709 ZH EN (35 Pages)
Heli Electric Pallet Truck CBD20-460 to CBD30-460 Parts Manual LD-460-20151127 ZH EN (32 Pages)

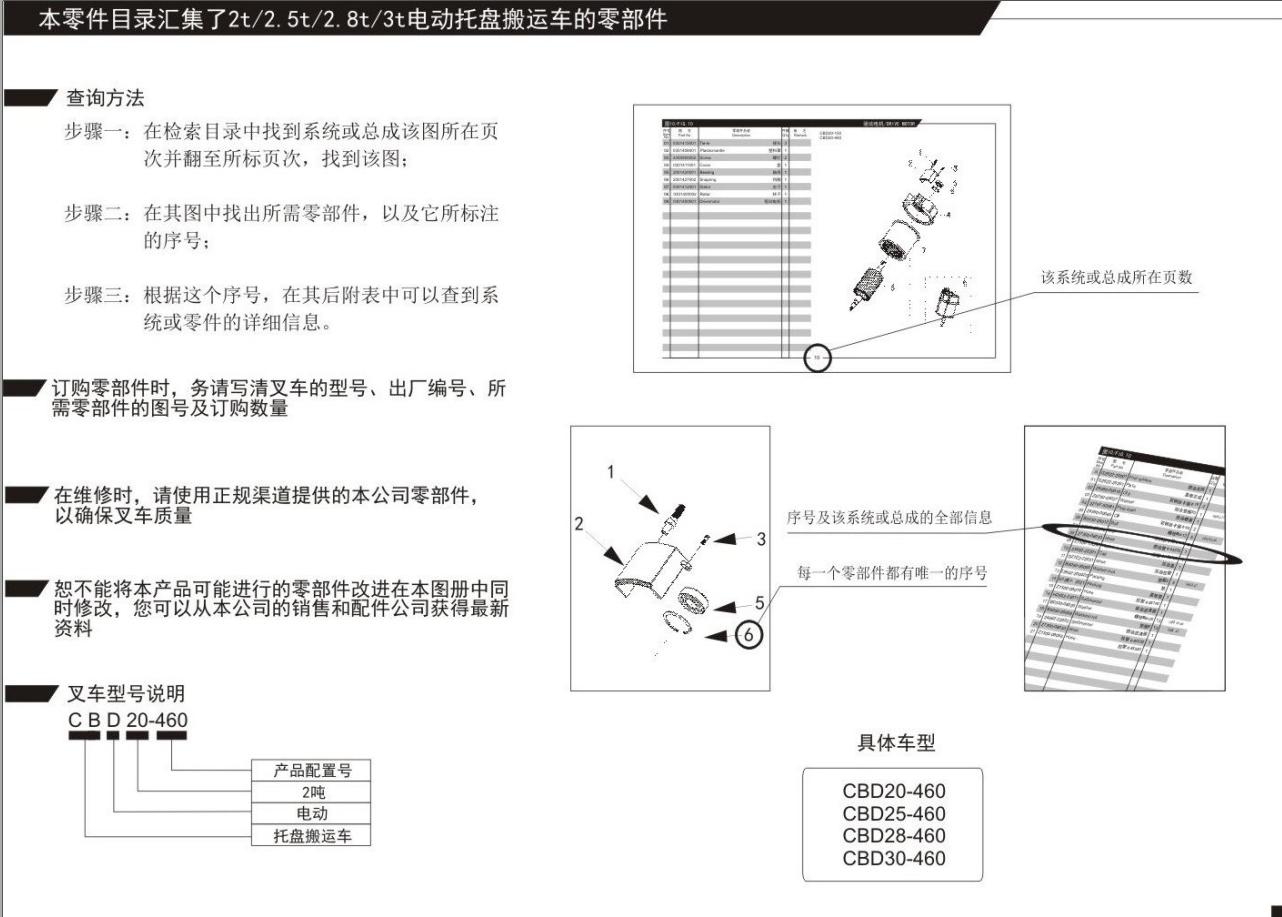

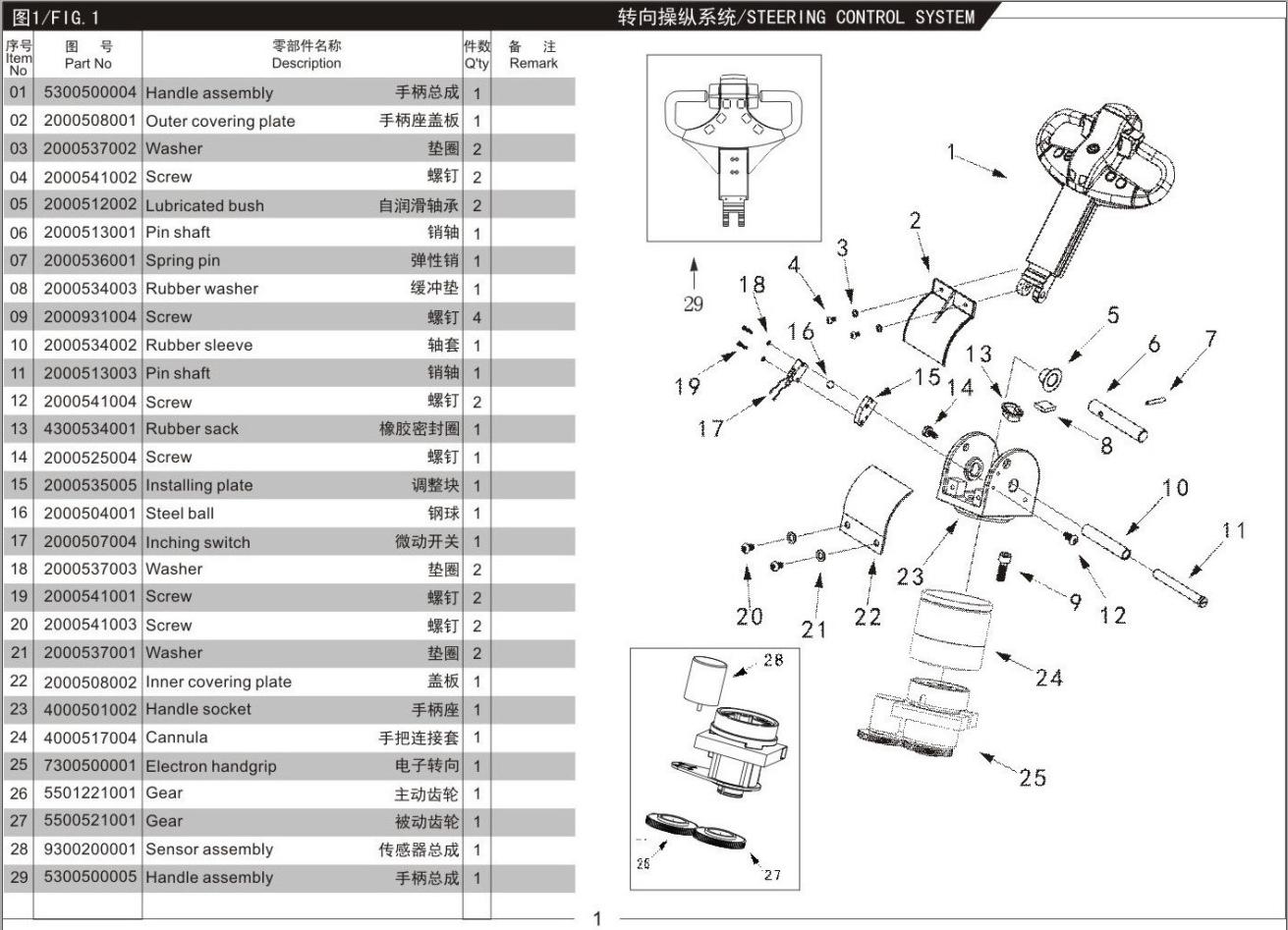

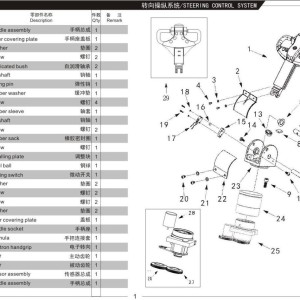

Fig.1 Steering Control System
Fig.2 Handle Assembly
Fig.3 Switch Boxassembly
Fig.4 Handle Assembly
Fig.5 Switch Box Assembly
Fig.6 Stepped Switch Assembly
Fig.7 Driving System
Fig.8 Gear Box Assembly(Old)
Fig.9 Gear Box Assembly(New)
Fig.1o Driving Motor
Fig.11 Hydraulic System
Fig.12 Power System(Old)
Fig.13 Power System(New)
Fig.14 Hydraulic Power Unit(Old)
Fig.15 Hydraulic Power Unit(New)
Fig.16 Valve Assembly(New)
Fig.17 Frarne(Old)
Fig.18 Frame(New)
Fig.19 Balance Wheel Assembly(New)
Fig.20 Electric Panel Assembly(Old)
Fig.21 Electric Panel Assembly(New)
Fig.22 Footboard Assembly
Fig.23 Forked Frame & Double Wheel
Fig.24 Forked Frame & Single Wheel
Fig.25 Forked Frame
Fig.26 Link
Fig.27 Compartment (For Footboard)(Old)
Fig.28 Compartment (For Footboard)(New)
Fig.29 Protect Arm
Fig.30 Battery Assembly
