Hidromek HMK 600MG-5 Workshop Manual R60015500 TR

Data Size: 79.25 MB
File Type: PDF
Language: Turkish
Manufacturer: Hidromek
Applicable Machine: Motor Grader
Document: Workshop Manual, Hydraulic Circuit
Machine Model: Hidromek HMK 600MG-5 Motor Grader
Book Number: R60015500
Page: 544 Pages

List Contents:

HMK 600MG-5 SERVİS EL KİTABI
00 ÖNSÖZ
01 GENEL
A MOTOR SİSTEMİ
C OPERATÖR KABİNİ
D ATAŞMAN

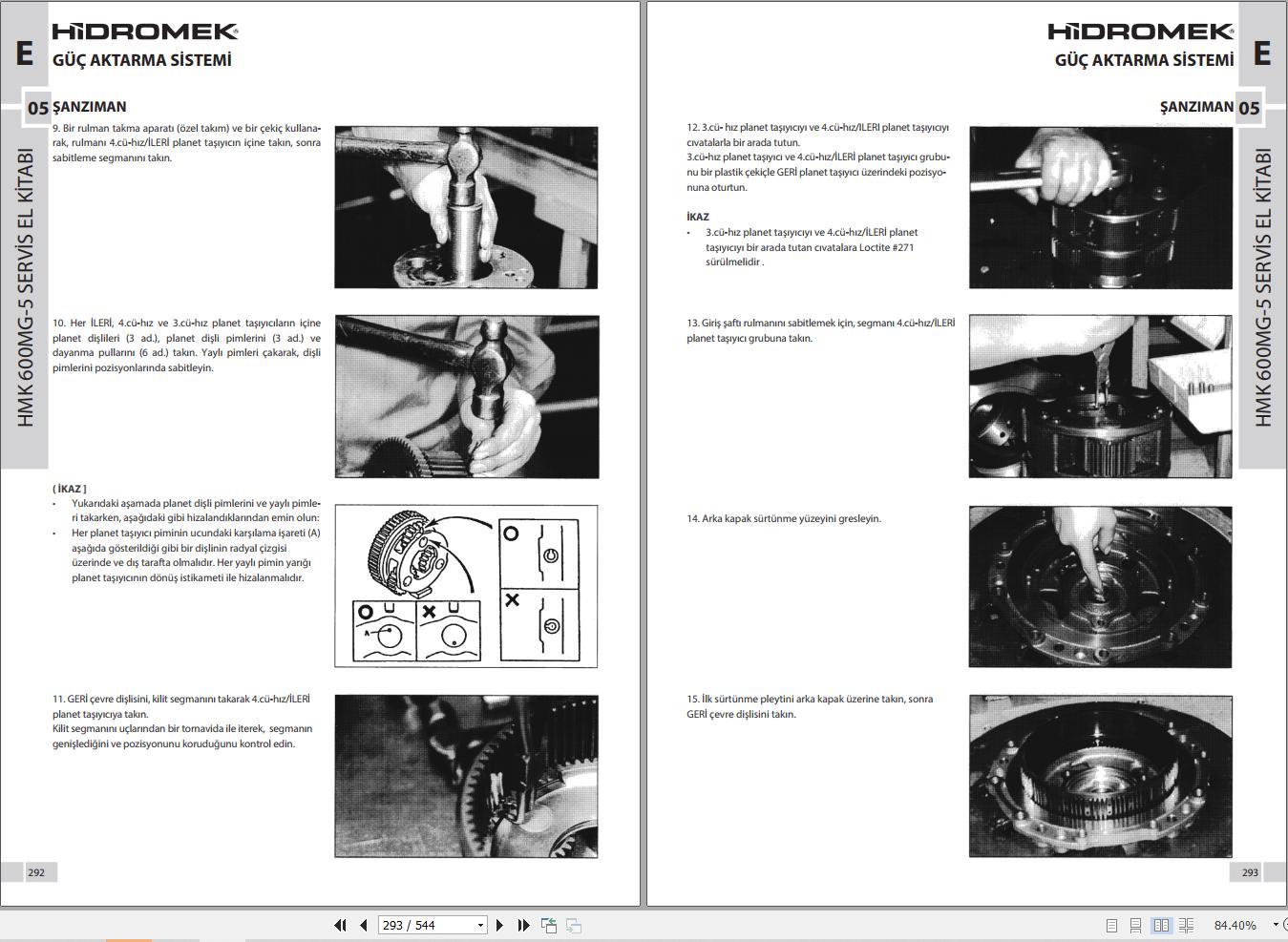

E GÜÇ AKTARMA SİSTEMİ
F HİDROLİK SİSTEM
G HİDROLİK KOMPONENTLER
H DİREKSİYON SİSTEMİ
J FREN SİSTEMİ

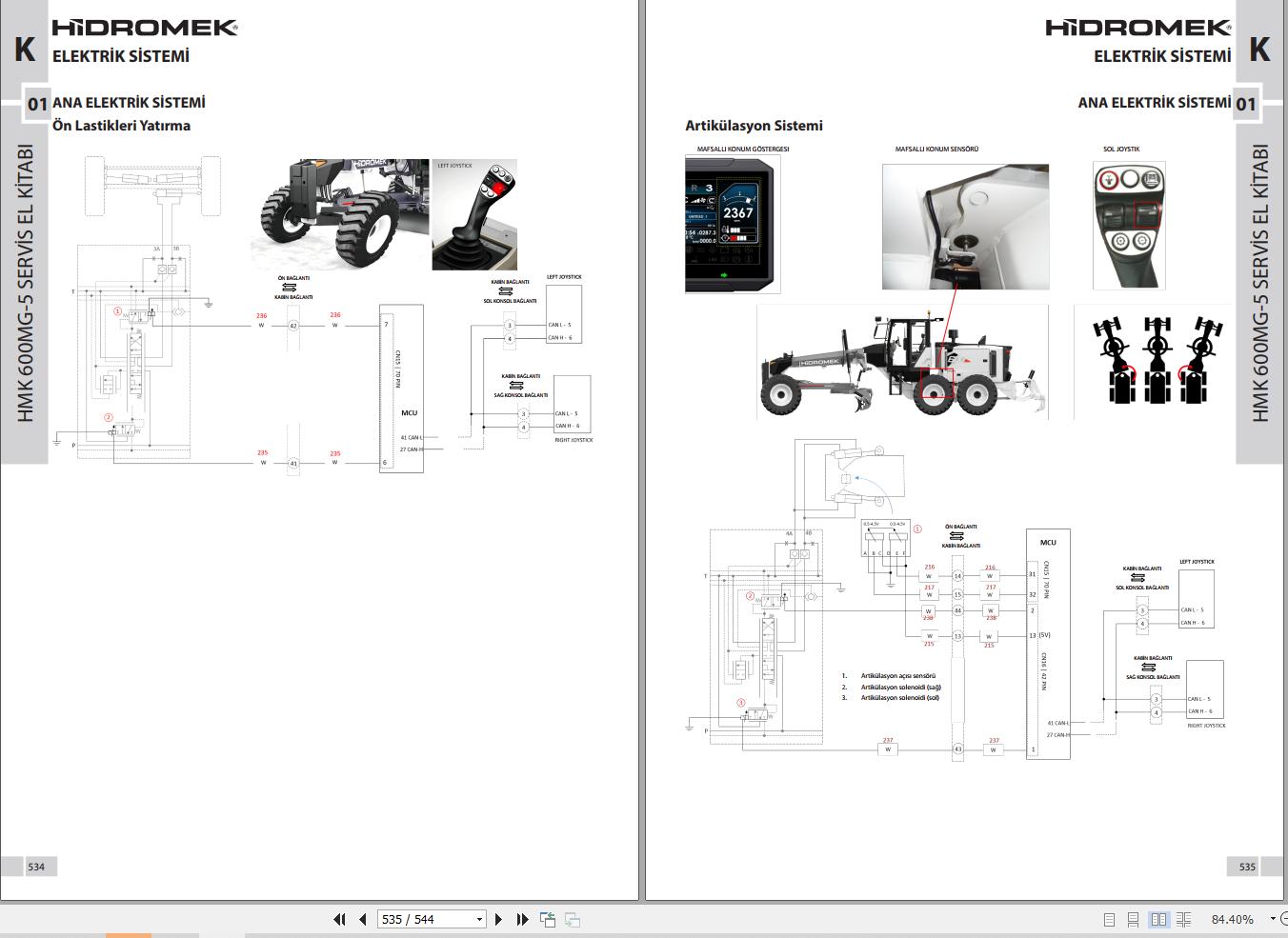

K ELEKTRİK SİSTEMİ
