Hitachi 650TLX Operator's Manual

Hitachi 650TLX Operator's Manual
Size: 39.8 MB
Machine: Hydraulic Crawler Crane
Machine Model: 650TLX
Serial Number: SC65T-8022 and up, SC65T–8045 and up

Content:
Hitachi 650TLX Operator's Manual RGA90-EN-CR-00-005 522 pages 2017

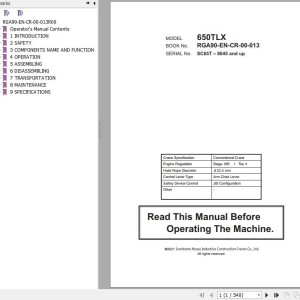

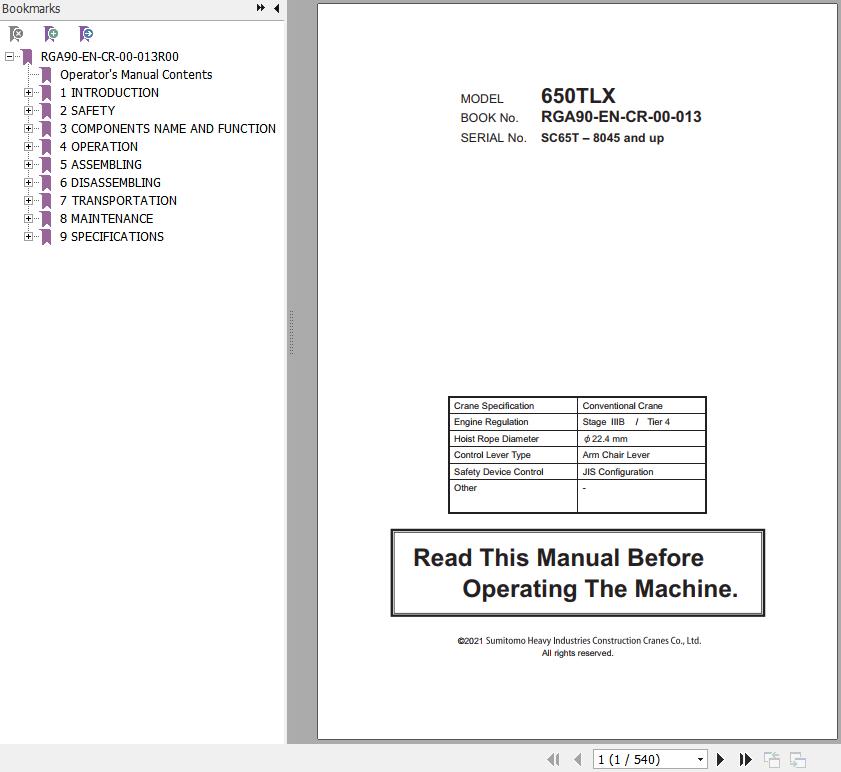

Hitachi 650TLX Operator's Manual RGA90-EN-CR-00-013 540 Pages 2021

The Bookmarks of Hitachi 650TLX Hydraulic Crawler Crane Operator's Manual: INTRODUCTION
1 Introduction
 1 Introduction
 2 Safety Signs
2 Safety
 1 Basic Precautions
 2 Preparations For Safety Operation
 3 Precautions For Operation
 4 Precautions For Preparation Of Operation And Transportation
 5 Precautions For Maintenance
3 Components Name And Function
 1 Major Component Locations
 2 Operator’S Station Layout
 3 Control Levers And Pedals
 4 Control Panels
 5 Monitor Panel
 6 Operator’S Seat
 7 Air Conditioner
 8 Radio
 9 Fuse Box
 10 Level Gauge
 11 Sound Output Unit
 12 Safety Devices
 13 Anti-Two Block
 14 Moment Umiter
 15 Display Of Error Codes
 16 Swing Alarm Ught
 17 Alarms And Advance Notice Device
 18 3 Color Percentage Indicator Light
 19 Handholds And Handrails
 20 Remote Sensing (Data Logging Device)
4 Operation
 1 Daily Machine Inspection Before Operation
 2 Starting The Engine
 3 Inspections And Operation After Starting Engine
 4 Muffler Filter
 5 Inspection, Setting, And Confirmation Of Moment Umiter
 S Engine Speed Control
 7 Operating Front And Rear Drum (Free Mode Is An Optional)
 8 Third Winch Lever Operation
 9 Drum Lock Operation (Front, Rear And Third Drums)
 10 Boom Hoisting Operation
 11 Boom Extend/Retract Operation
 12 Swing Operation (Including Operations Of The Swing Brake And Lock)
 13 Travel Operation
 14 Hydraulic Power Source (Optional)
 15 Clamshell Operation
 16 Reeving Winch Cum Hydrauuc Tagline (Optional)
 17 Vibratory Hammer Operation
5 Assembling
 1 Preparation And Precautions
 2 Assembly Procedure
 3 Unloading The Crawler From The Trailer
 4 Unloading Base Machine From Trailer
 5 Installing Crawlers
 6 Attaching The Boom
 7 Connecting The Hydraulic Hose And Electrical Wirin Of The Boom
 8 Drawing The Auxiliary Sheave
 9 Attaching The Anti-Two Block Device
 10 Install Hook And Wire Rope
 11 Unloading Base Machine From Trailer (When The Jack Are Mounted)(Optional)
 12 Attaching The Crawler (With Jacks)
 13 Install Counter Weights
 14 Attaching Self Assembly Counter Weights (Optional)
 15 Unloading Base Machine Ftom Trailer (When The Crawler Are Mounted)
 16 Extension Of Crawler
 17 Installing Catwalk
 18 Installing Reeving Winch Combined Hydraulic Tagline (Optional)
6 Disassembling
 1 Disassembly Preparation And Precautions
 2 Disassembly Procedures
 3 Removing Reeving Winch Combined Hydraulic Tagline (Optional)
 4 Removing Catwalk
 5 Remove Counter Weights
 6 Removing Self Assembly Counter Weights (Optional)
 7 Removing Anti-Two Block Device
 8 Storing The Auxilary Sheave
 9 Detaching The Boom Hydraulic Pressure Hose And Electric Wiring
 10 Removing Boom
 11 Remove Crawlers
 12 Loading Base Machine Onto Trailer
 13 Removing Crawlers (When The Jack Are Mounted)
 14 Loading Rase Machine Onto Trailer (With Jacks) (Optional)
 15 Retract Width Of Crawlers
 16 Loading Base Machine Onto Trailer (With Crawler)
 17 Maintenance After Disassembly
 18 Handling Wire Rope
 19 Wire Rope Specifications And Lengths
 20 Outline Of Wire Rope
 21 General Wire Rope Handling
7 Transportation
 1 Transportation On Public Roads
 2 Weights And Dimensions List
8 Maintenance
 1 Inspection And Maintenance
 2 Periodic Replacement Parts
 3 Inspection
 4 Upper Structure Inspection
 5 Inspection Of Swing Upper Structure Daily Or Every 8 Hours
 6 Inspections Of Swing Upper Structure Weekly Or Every Loo Hours
 7 Inspection Of Swing Upper Structure Monthly Or Every 150 Hours
 8 Inspection Of Upper Structure Every 3 Months Or Every 250 Hours
 9 Inspections Of Upper Structure Every 3 Months Or 500 Hours
 10 Inspection Of Upper Structure Every 6 Months Or 1000 Hours
 11 Inspection Of Muffler Filter Every 4500 Hours
 12 Lower Structure Inspection
 13 Inspections Of Lower Structure Daily Or Every 8 Hours
 14 Inspections Of Lower Structure Monthly Or Every 150 Hours
 15 Insoections Of Lower Structure Every 3 Months Or 500 Hours
 16 Every 6 Months Or 1000 Hour Inspections Of Lower Structure
 17 Inspection Of Front Attachment
 18 Inspection Of Front Attachment Daily Or Every 8 Hours
 19 Front Attachment Inspection Monthly Or Every 150 Hours
 20 Maintenance
 21 Lubricants, Greases, And Coolant
 22 Kinds Of Lubricants
 23 Lubrication (Coolant) Points On Swing Upper Structure
 24 Lubrication Points On Lower Structure
 25 Front Attachment Lubrication Points
 26 Grease
 27 Engine Oil
 28 Fuel
 29 Coolant
 30 Hydraulic Oil
 31 Gear Oil
 32 Cleaning And Replace Filter Elements And Strainer
 33 Check Electrical System
 34 Maintenance For Machines Operating Under Severe Environmental Conditions
 35 Storage
 36 Adjustment
 37 Adjust Front/Rear/Third Drums
 38 Adjust Control Lever Detents
 39 Adjust Shoe Sag
9 Specifications
 1 Crane Specifications
