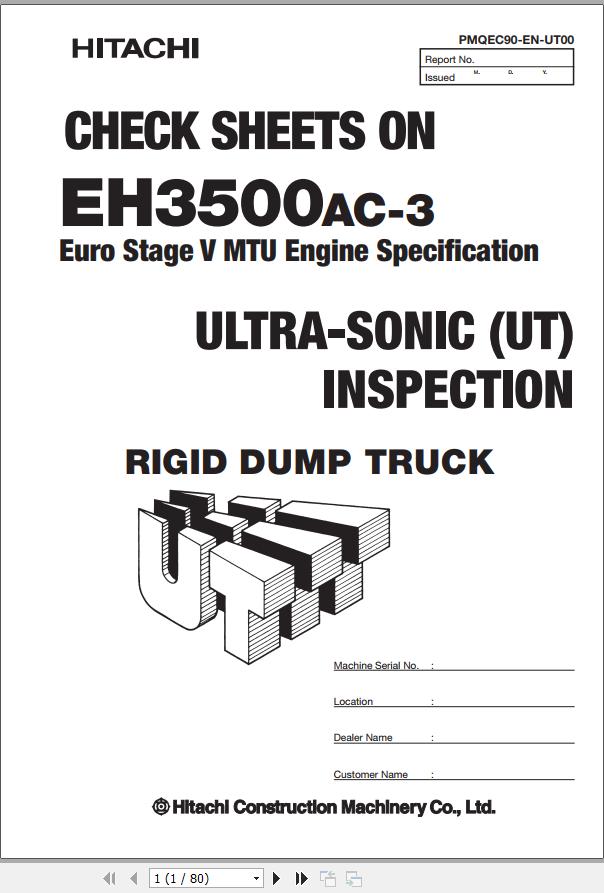

Hitachi EH3500AC-3 Ultra-Sonic (UT) Inspection Check Sheets PMQEC90-EN-UT00

Data Size: 13.32 MB
File Type: PDF
Language: English
Manufacturer: Hitachi
Applicable Machine: Rigid Dump Truck
Document: Ultra-Sonic (UT) Inspection Check Sheets
Machine Model: Hitachi EH3500AC-3 Rigid Dump Truck
Euro Stage V MTU Engine Specification
Book Number: PMQEC90-EN-UT00
Page: 80 Pages

List Contents:

INTRODUCTION
DISTRIBUTION OF THE INSPECTION SHEET
DEFINITION OF THE DEFECT LENGTH IN ULTRA-SONIC TESTING
INSPECTION PROCEDURE
EVALUATION OF DEFECT HEIGHT (H) BY DISTANCE CORRECTION TECHNIQUE AT INTERNAL BULKHEAD

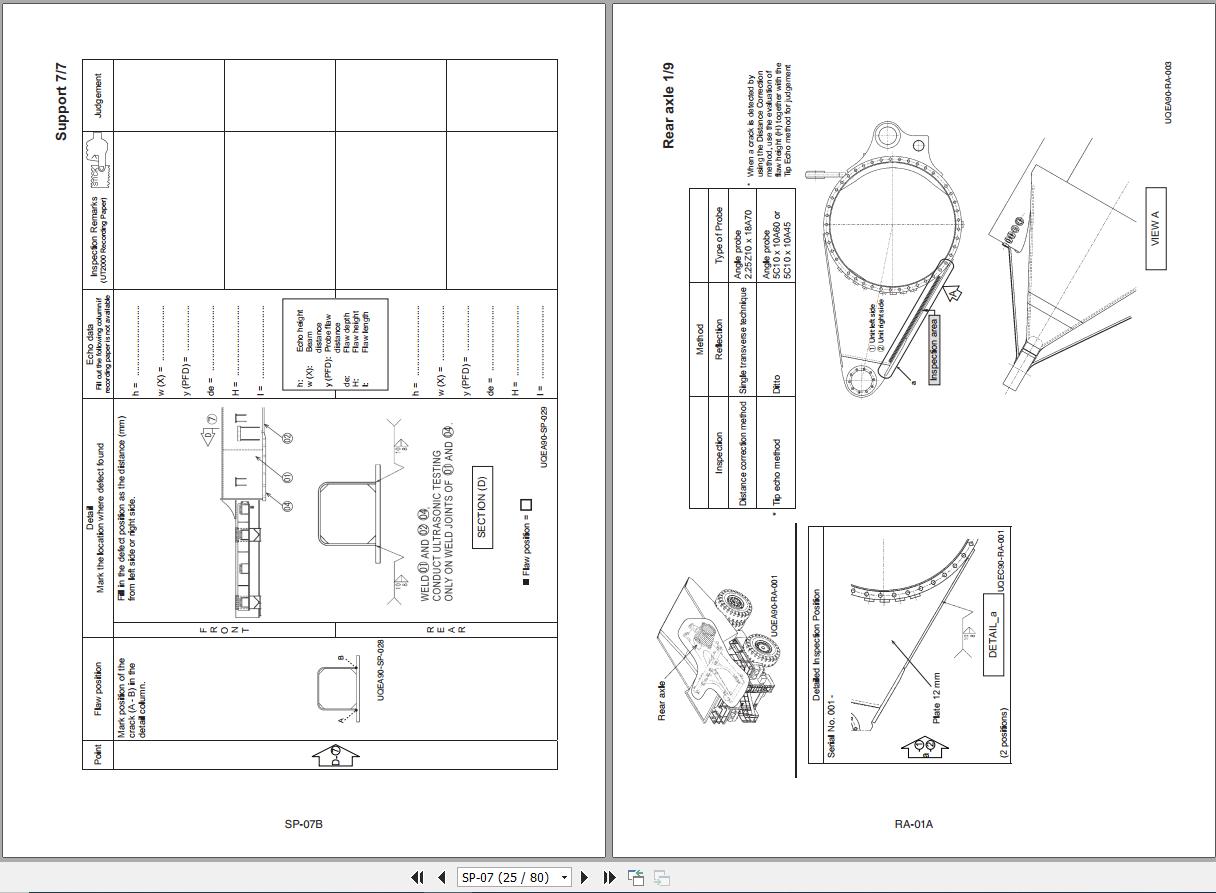

ULTRA-SONIC EXAMINATION REPORT FOR THE STRUCTURE
Support
Rear axle
Main frame
