Hitachi EX200-5 Electrical Circuit Diagram TT157E-02
Size: 4.53 MB
Machine: Hydralic Excavator
Machine Model: EX200-5
Content:
Hitachi EX200-5 A/C Harness TT157E-02 1 Page
Hitachi EX200-5 Cab Harness TT157E-02 1 Page

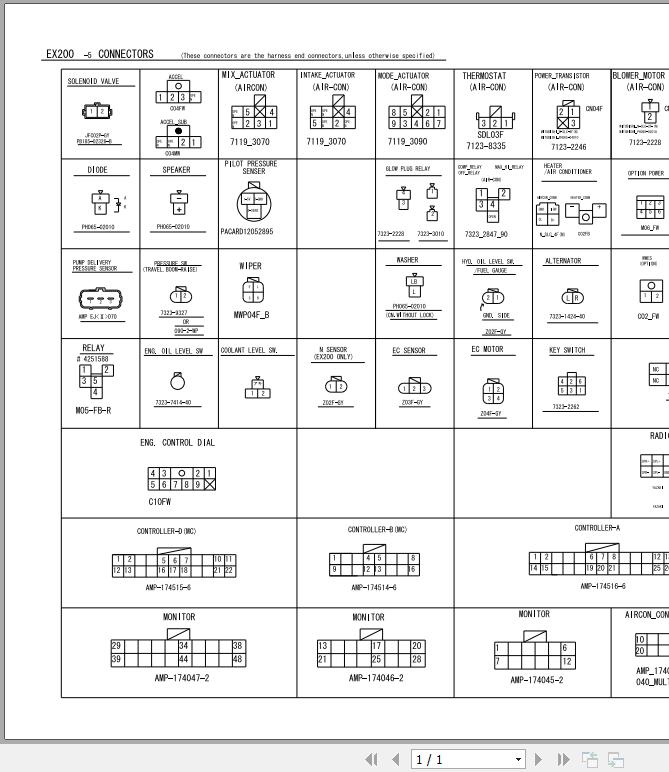

Hitachi EX200-5 Connectors TT157E-02 1 Page

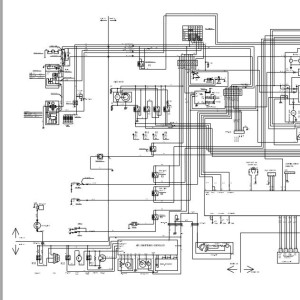

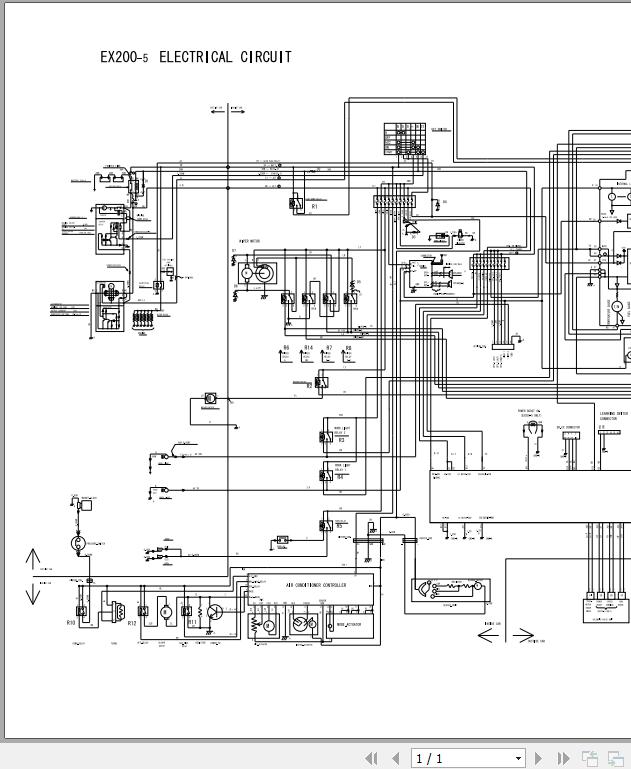

Hitachi EX200-5 Electrical Circuit TT157E-02 1 Page
Hitachi EX200-5 Engine Harness TT157E-02 1 Page
Hitachi EX200-5 Relay Harness TT157E-02 1 Page
