Hitachi EX2600E-6 Technical Manual Troubleshooting TTKBB-EN-00

Hitachi EX2600E-6 Technical Manual Troubleshooting TTKBB-EN-00
Size: 19.9 MB
Machine: Hydraulic Excavator
Machine Model: EX2600E-6
Publication Date: 2013
Part Number: TTKBB-EN-00
Volumes Number: TTKBB-EN

Content:
Hitachi EX2600E-6 Technical Manual Troubleshooting TTKBB-EN-00(20200331) 324 Pages
Hitachi EX2600E-6 Electrical & Hydraulic Circuit Diagram TTKBB-EN-00(20140411) 15 Pages

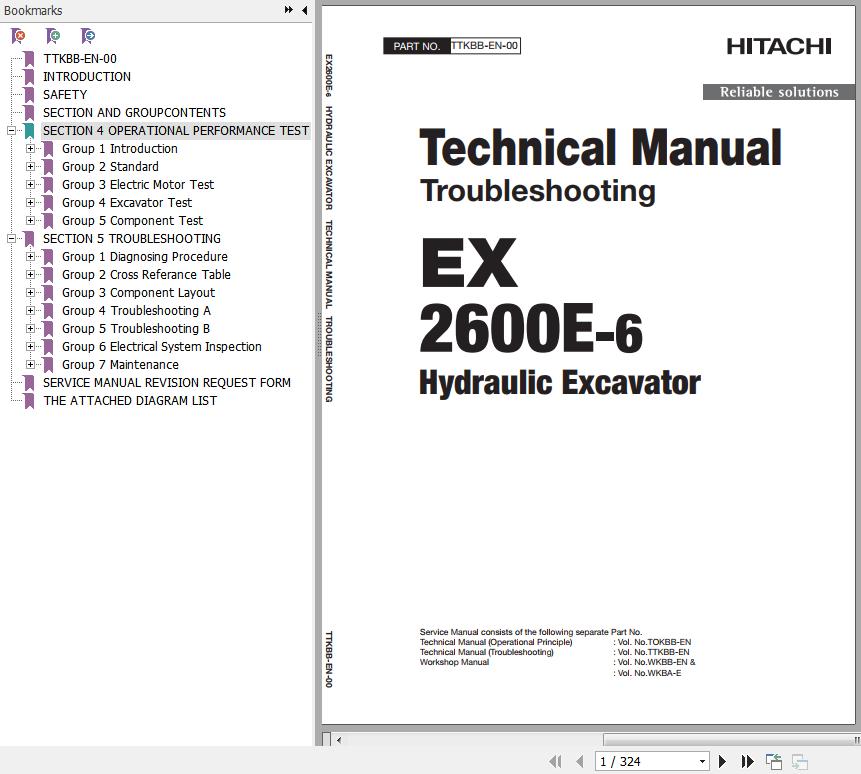

The Bookmarks of Hitachi EX2600E-6 Hydraulic Excavator Technical Manual Troubleshooting:
Introduction
Safety
Section And Groupcontents
Section 4 Operational Performance Test
 Group 1 Introduction
 Group 2 Standard
 Group 3 Electric Motor Test
 Group 4 Excavator Test
 Group 5 Component Test
Section 5 Troubleshooting
 Group 1 Diagnosing Procedure
 Group 2 Cross Referance Table
 Group 3 Component Layout
 Group 4 Troubleshooting A
 Group 5 Troubleshooting B
 Group 6 Electrical System Inspection
 Group 7 Maintenance
Service Manual Revision Request Form

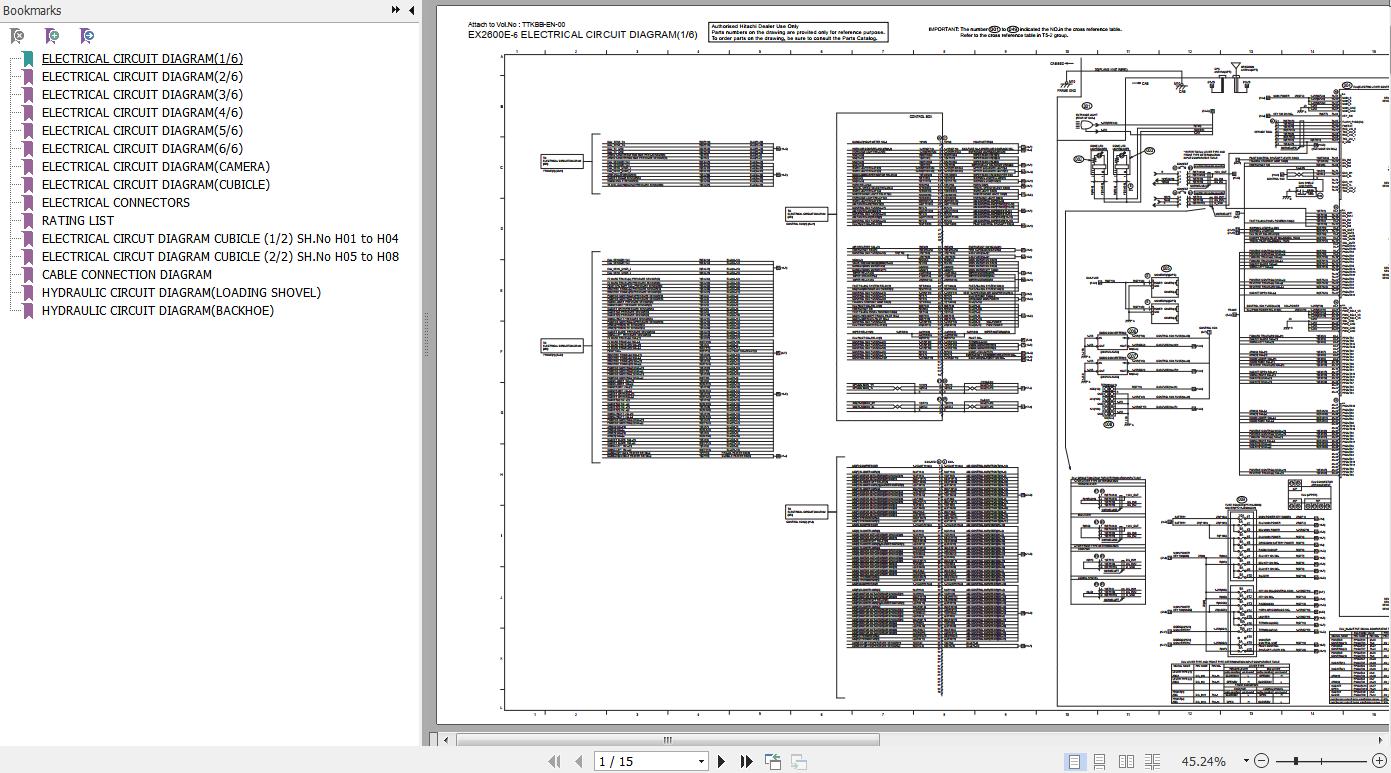

The Attached Diagram List:
Electrical Circuit Diagram(1/6)
Electrical Circuit Diagram(2/6)
Electrical Circuit Diagram(3/6)
Electrical Circuit Dlrgram(4/6)
Electrical Circuit Diagram(5/6)
Electrical Circuit Diagram(6/6)
Electrical Circuit Diagram(Camera)
Electrical Circuit Diagram(Cubicle)
Electrical Connectors
Rating Ust
Electrical Circut Diagram Cubicle (1/2) Sh.No Hol To H04
Electrical Circut Diagram Cubicle (2/2) Sh.No H05 To H08
Cable Connection Diagram
Hydrauuc Circuit Diagram(Loading Shovel)
Hydrauuc Circuit Diagram(Backhoe)
