Hitachi EX300-5 To EX370HD-5 Technical Manual Troubleshooting TT173E-01

Hitachi EX300-5 To EX370HD-5 Technical Manual Troubleshooting TT173E-01
Size: 4.71 MB
Machine: Hydraulic Excavator
Machine Model: EX300-5 EX300LC-5 EX330LC-5 EX350H-5 EX350LCH-5 EX370 EX370HD-5
Manual Number: TT173E-01

Content:
Hitachi EX300-5 To EX370HD-5 Technical Troubleshooting Manual TT173E-01 205 Pages
Hitachi EX300-5 To EX370HD-5 Electrical & Hydraulic Circuit Diagram TT173E-01(20120510) 11 Pages

The Bookmarks of Hitachi EX300-5 To EX370HD-5 Hydraulic Excavator Technical Manual Troubleshooting:
Introduction
Section 4 Operational Performance Test
 Group 1 Introducution
 Group 2 Engine Test
 Group 3 Excavator Test
 Group 4 Component Test
 Group 5 Standard
Section 5 Troubleshooting
 Group 1 Diagnosing Procedure

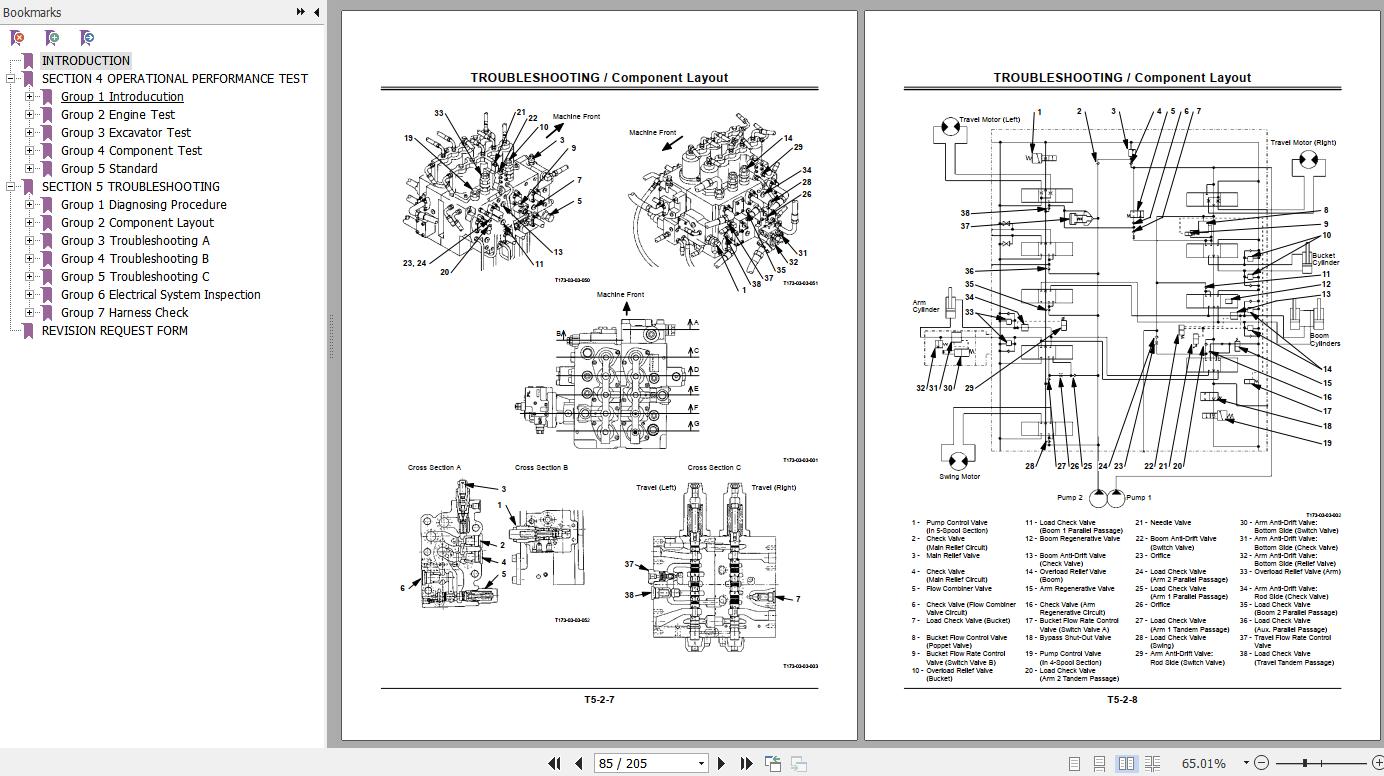

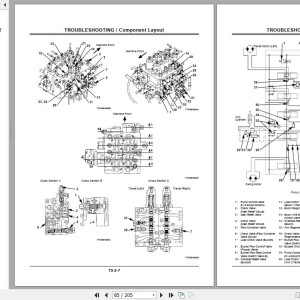

 Group 2 Component Layout
 Group 3 Troubleshooting A
 Group 4 Troubleshooting B
 Group 5 Troubleshooting C
 Group 6 Electrical System Inspection
 Group 7 Harness Check
Revision Request Form

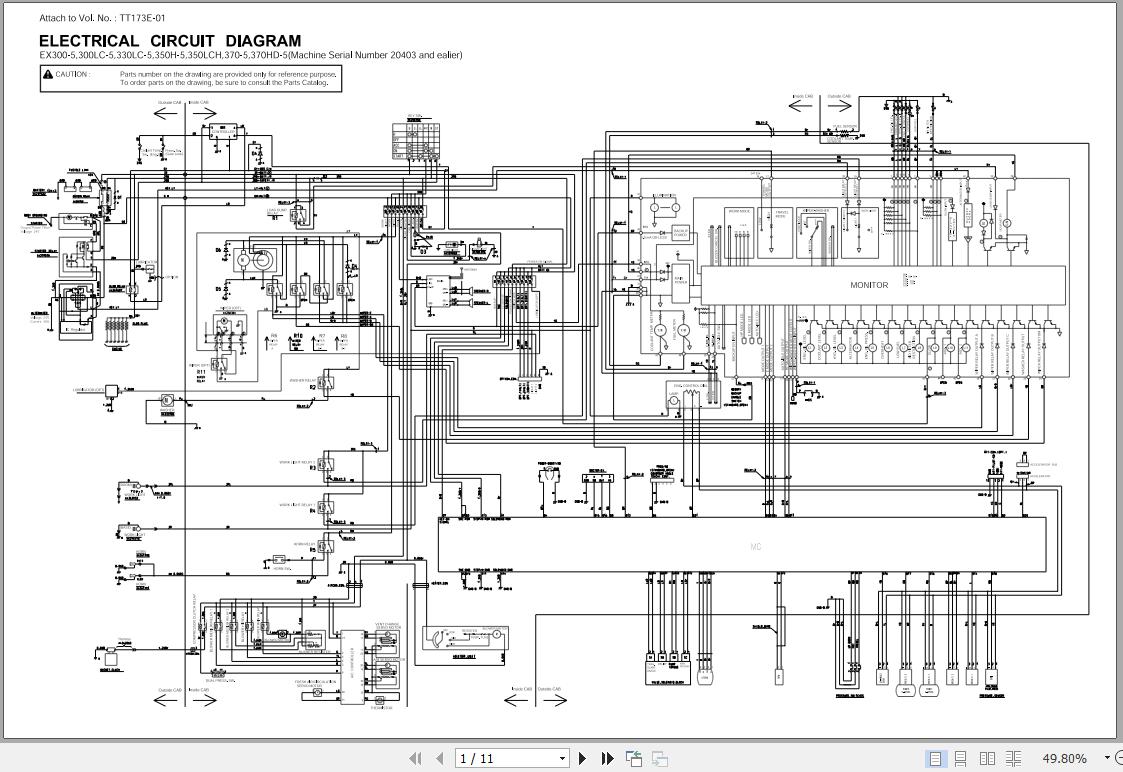

The Attached Electrical & Hydraulic Circuit Diagram TT173E-01(20120510)
