Hitachi EX300-5 To EX370HD-7 Electrical & Hydraulic Circuit Diagram TT173E-01

$25.00$25.00
In stock
Quick view
SKU:
Categories:Manual PDF
Tags:Hitachi Workshop Manual, Hitachi Service Manual, Hitachi Operator's Manual, Hitachi Parts Catalog
Shipping By Link Download
Shipping By Link Download
Secure Private Information
Secure Private Information
Guarantee Secure Payment
Guarantee Secure Payment

Support Contact:

Admin@autoepcsoft.org

Hitachi EX300-5 To EX370HD-7 Electrical & Hydraulic Circuit Diagram TT173E-01
Size: 3.48 MB
Machine: Hydraulic Excavator
Machine Model: EX300-5 EX300LC-5 EX330LC-5 EX350H-5 EX350LCH-5 EX370 EX370HD-5
Part Number: TT173E-01

Content:
Hitachi EX300-5 To EX370HD-7 Air Conditioner Harness (Machines Produced From Beginning Aug. 98) 1 Pages
Hitachi EX300-5 To EX370HD-7 Air Conditioner Harness (Machines Produced Up To End Of July. 98) 1 Pages
Hitachi EX300-5 To EX370HD-7 Cab Harness 1 Pages
Hitachi EX300-5 To EX370HD-7 Connectors 1 Pages
Hitachi EX300-5 To EX370HD-7 Electrical Circuit Diagram (Machine Serial Number 20403 And Ealier) 1 Pages

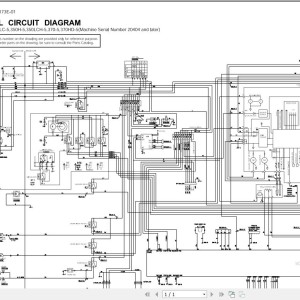

Hitachi EX300-5 To EX370HD-7 Electrical Circuit Diagram (Machine Serial Number 20404 And Later) 1 Pages
Hitachi EX300-5 To EX370HD-7 Engine Harness 1 Pages
Hitachi EX300-5 To EX370HD-7 Hydraulic Circuit Diagram TT173E-01 1 Pages
Hitachi EX300-5 To EX370HD-7 Relay Harness (Machines Produced From Beginning Aug. 98) 1 Pages
Hitachi EX300-5 To EX370HD-7 Relay Harness (Machines Produced Up To End Of July. 98) 1 Pages
