Hitachi EX3500-3 Parts Catalog P185-SL2-1

Hitachi EX3500-3 Parts Catalog P185-SL2-1
Size: 3.38 MB
Machine: Hydraulic Excavator
Machine Model: EX3500-3
Serial Number: 0314
Page: 74 Pages
Part Number: P185-SL2-1

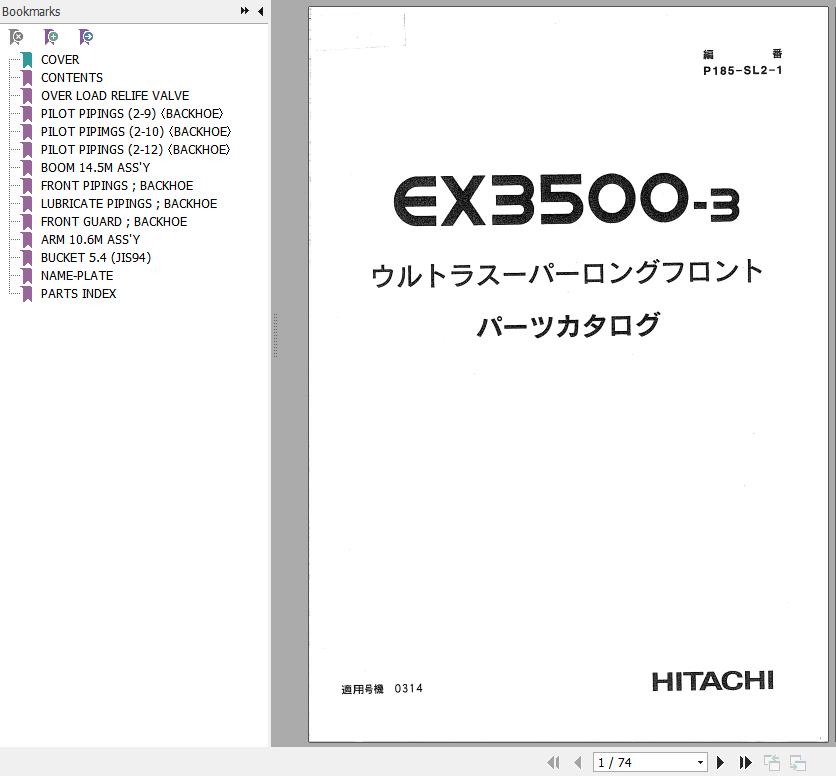

The Bookmarks of Hitachi EX3500-3 Hydraulic Excavator Parts Catalog:

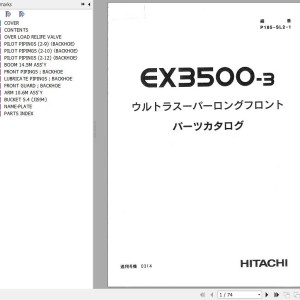

Cover
Contents
Over Load Reufe Valve
Pilot Pipings (2-9) Backhoe
Pilot Pipimgs (2-10) Backhoe
Pilot Pipings (2-12) Backhoe
Boom 14.5m Ass’Y
Front Pipings; Backhoe
Lubricate Pipings; Backhoe
Front Guard; Backhoe
Arm 10.6m Ass’Y
Bucket 5.4 (J1594)
Name-Plate
Parts Index
