Hitachi EX400-5 To EX450LC-5 Electrical & Hydraulic Circuit Diagram TT166E-01

Hitachi EX400-5 To EX450LC-5 Electrical & Hydraulic Circuit Diagram TT166E-01
Size: 2.82 MB
Machine: Hydraulic Excavator
Machine Model: EX400-5 EX400LC-5 EX450-5 EX450H-5 EX450LCH-5
Part Number: TT166E-01

Content:
Hitachi EX400-5 EX400LC-5 EX450LC-5 Cab Harness (STD) 1 TT166E-01 1 Pages
Hitachi EX400-5 EX400LC-5 EX450LC-5 Cab Harness (STD) 2 TT166E-01 1 Pages
Hitachi EX400-5 EX400LC-5 EX450LC-5 Engine Harness (STD) TT166E-01 1 Pages
Hitachi EX400-5 EX400LC-5 EX450LC-5 Relay Harness (STD) TT166E-01 1 Pages

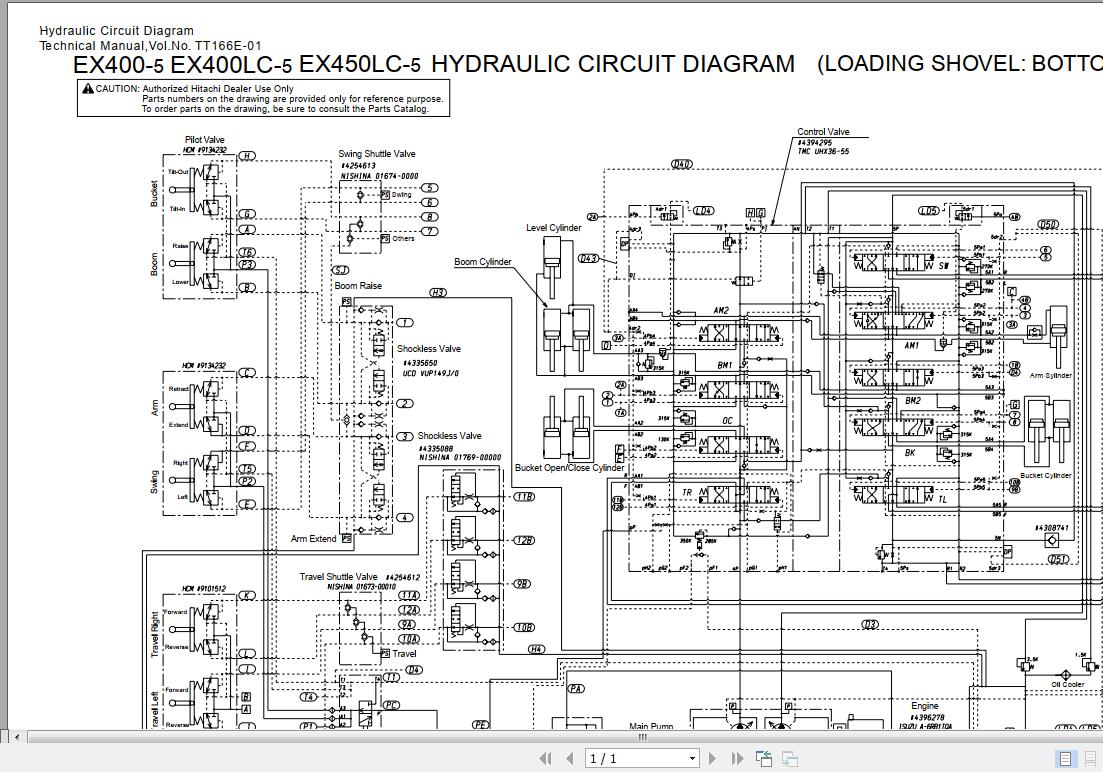

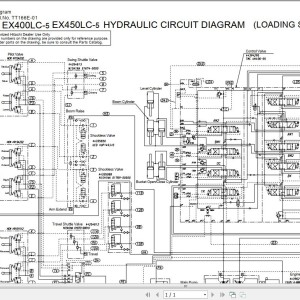

Hitachi EX400-5 To EX450LC-5 Electrical Circuit Diagram1 TT166E-01 (Serial No.From 007661 to 007703 or earlier) 1 Pages
Hitachi EX400-5 To EX450LC-5 Electrical Circuit Diagram1 TT166E-01 (Serial No.From 007662 to 007704 or after) 1 Pages
Hitachi EX400-5 To EX450LC-5 Electrical Circuit Diagram2 TT166E-01 (Serial No.From 007661 to 007703 or earlier) 1 Pages
Hitachi EX400-5 To EX450LC-5 Electrical Circuit Diagram2 TT166E-01 (Serial No.From 007662 to 007704 or after) 1 Pages
Hitachi EX400-5 To EX450LC-5 Backhoe Remove & Intall Device TT166E-01 1 Pages
Hitachi EX400-5 To EX450LC-5 Backhoe TT166E-01 1 Pages
Hitachi EX400-5 To EX450LC-5 Loading Shovel Bottom Dump TT166E-01 1 Pages
Hitachi EX400-5 To EX450LC-5 Loading Shovel Tilt Dump TT166E-01 1 Pages
