Hitachi EX5600-7 MTU FCO Workshop Manual WKGD90-EN-01

Hitachi EX5600-7 MTU FCO Workshop Manual WKGD90-EN-01
Size: 29.6 MB
Machine: Hydraulic Excavator
Machine Model: EX5600-7
Engine: MTU FCO Engine
Publication Date: 2022
Part Number: WKGD90-EN-01
Volumes Number: WKGD90-EN

Content:
Hitachi EX5600-7 MTU FCO Workshop Manual WKGD90-EN-01 1186 Pages
Hitachi EX5600-7 Pattern WKGD90-EN-01 12 Pages

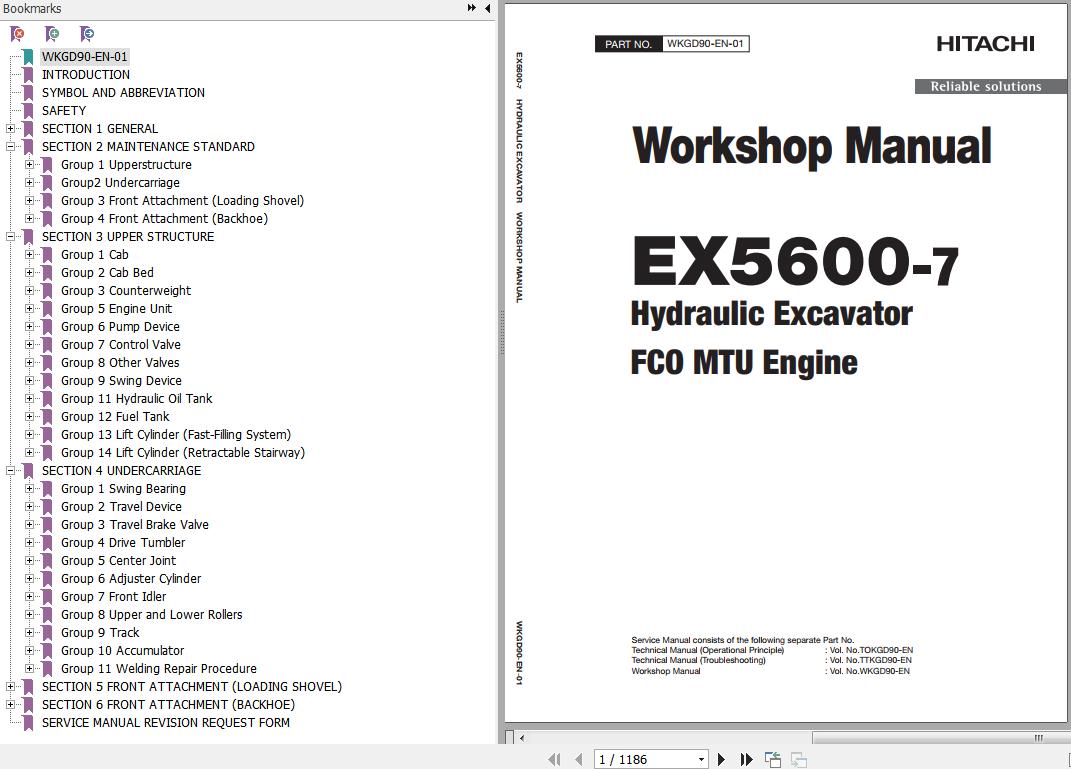

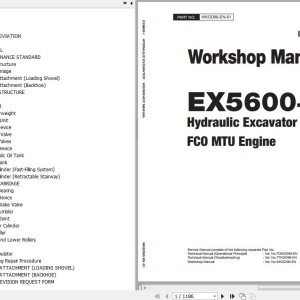

The Bookmarks of Hitachi EX5600-7 Hydraulic Excavator MTU FCO Workshop Manual:
INTRODUCTION
SYMBOL AND ABBREVIATION
SAFETY
SECTION 1 GENERAL
SECTION 2 MAINTENANCE STANDARD
SECTION 3 UPPER STRUCTURE
SECTION 4 UNDERCARRIAGE
SECTION 5 FRONT ATTACHMENT (LOADING SHOVEL)
SECTION 6 FRONT ATTACHMENT (BACKHOE)
SERVICE MANUAL REVISION REQUEST FORM
The Attached Pattern List:
01. Track Shoe Patterm (A)
02. Track Shoe Patterm (B)
03. Upper Roller Pattern
04. Lower Roller Pattern
05. Drive Tumbler Pattern
06. Ldler Pattern
07. Point (Tooth) Pattern
08. Shroud (Lip) Pattern
09. Point (Tooth) Pattern (A)
10. Point (Tooth) Pattern (B)
11. Shroud (Lip) Pattern (A)
12. Shroud (Lip) Pattern (B)
