Hitachi LX100 LX150 Service Manual KM-112-00

Hitachi LX100 LX150 Service Manual KM-112-00
Size: 119.0 MB
Machine: Wheel Loader
Machine Model: LX100 LX150
Page: 1142 Pages
Part Number: KM-112-00

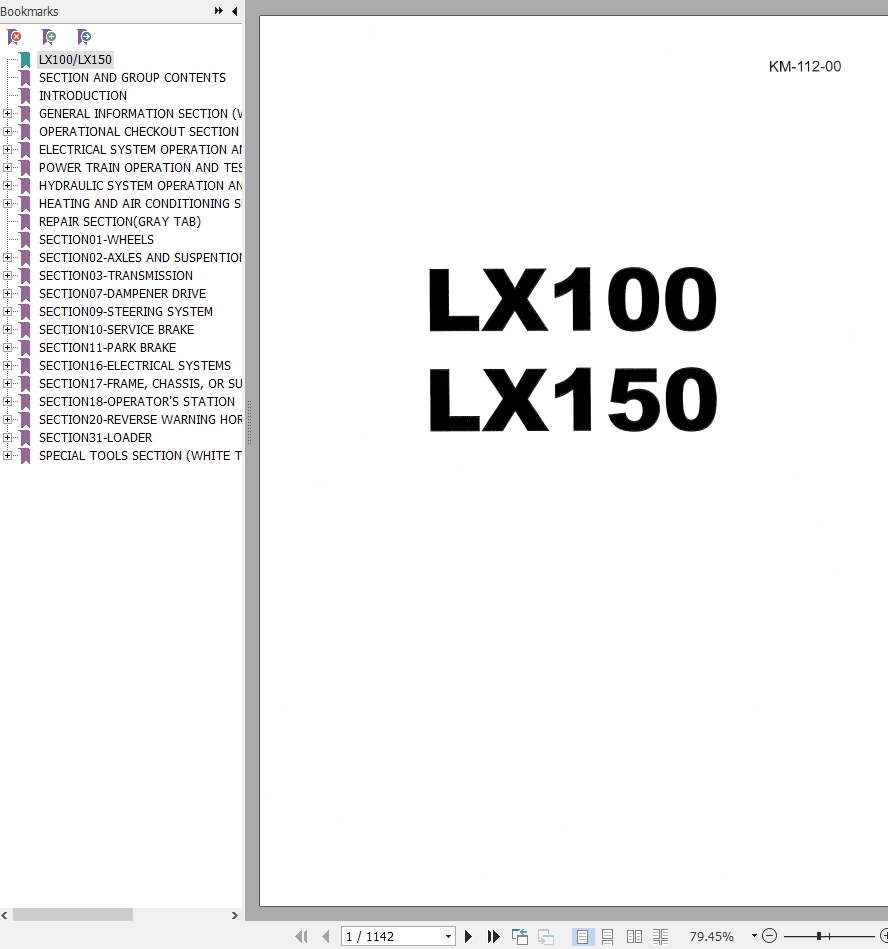

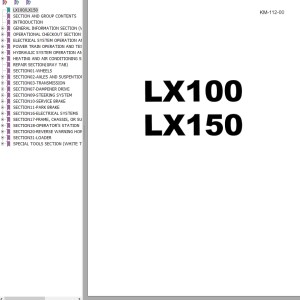

The Bookmarks of Hitachi LX100 LX150 Wheel Loader Service Manual:
General Information Section (White Tab)
Operational Checkout Section (Yellow Tab)
Electrical System Operation And Test Section (Yellow Tab)
Power Train Operation And Test Section (Yellow Tab)
Hydrauuc System Operation And Test Section (Yellow Tab)
Heating And Air Conditioning Section(Yellow Tab)
Repair Section(Gray Tab)
Sectiono1-Wheels
Sectiono2-Axles And Suspention Systems
Sectiono3-Transmission
Sectiono7-Dampener Drive
Sectiono9-Steering System
Section1o-Service Brake
Section 11-Park Brake
Section 16-Electrical Systems
Section 17-Frame, Chassis, Or Supporting Structure
Section 18-Operator’S Station
Section2o-Reverse Warning Horn
Section31-Loader
Special Tools Section (White Tab)
