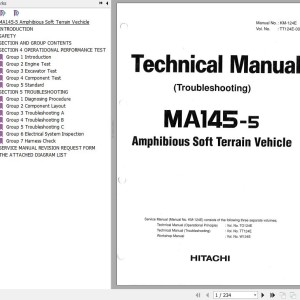

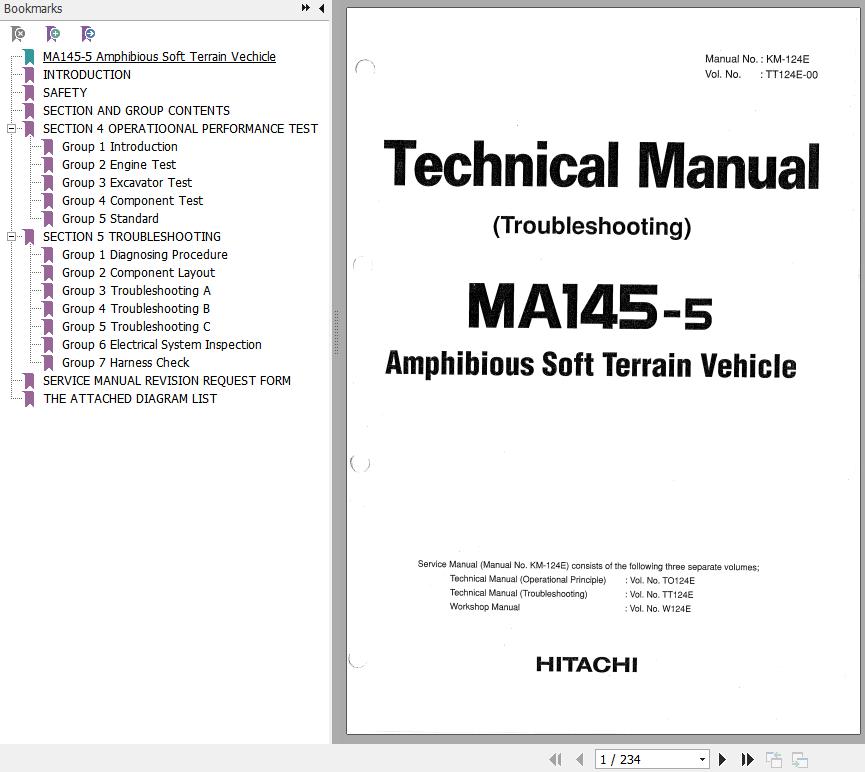

Hitachi MA145-5 Technical Manual Troubleshooting TT124E-00

Hitachi MA145-5 Technical Manual Troubleshooting TT124E-00
Size: 11.2 MB
Machine: Amphibious Soft Terrain Vehicle
Machine Model: MA145-5
Manual Number: KM-124E
Volumes Number: TT124E-00

The Bookmarks of Hitachi MA145-5 Amphibious Soft Terrain Vehicle Technical Manual Troubleshooting:
Introduction
Safety
Section And Group Contents
Section 4 Operatioonal Performance Test
 Group 1 Introduction
 Group 2 Engine Test
 Group 3 Excavator Test
 Group 4 Component Test
 Group 5 Standard
Section 5 Troubleshooting
 Group 1 Diagnosing Procedure
 Group 2 Component Layout
 Group 3 Troubleshooting A
 Group 4 Troubleshooting B
 Group 5 Troubleshooting C
 Group 6 Electrical System Inspection
 Group 7 Harness Check
Service Manual Revision Request Form
The Attached Diagram List:
1. Ma145-5 Electrical Circuit Diagram
  Ma145-5 Connectors
2. Ma145-5 Engine Harness
  Ma145-5 Cab Harness

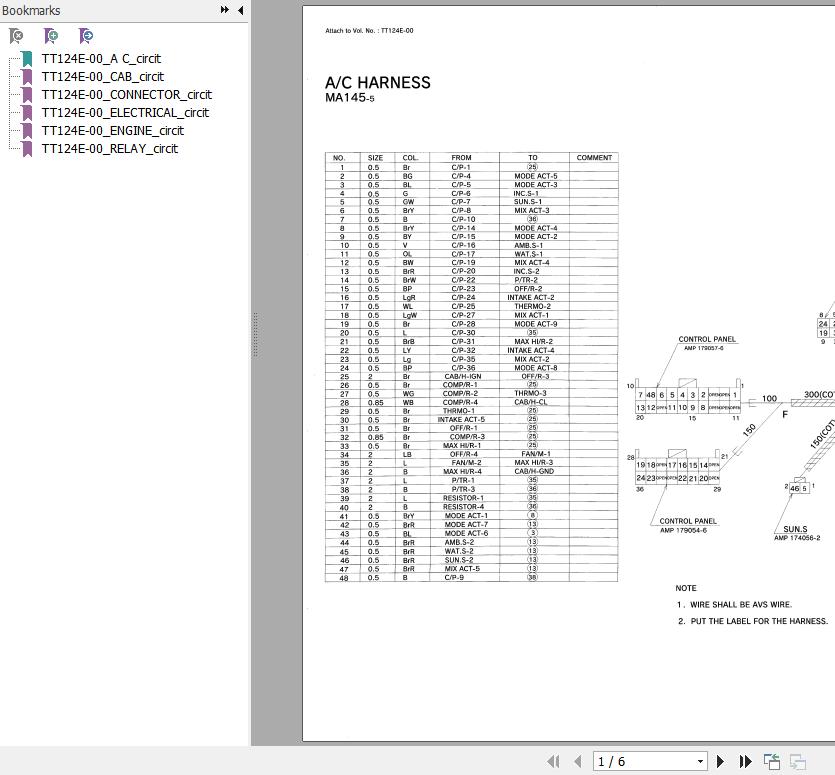

3. Ma145-5 A/C Harness
  Ma145-5 Relay Harness
