Hitachi UH063 Service Manual SP-56A

Hitachi UH063 Service Manual SP-56A
Size: 12.2 MB
Machine: Excavator
Machine Model: UH063
Page: 316 Pages
Part Number: SP-56A

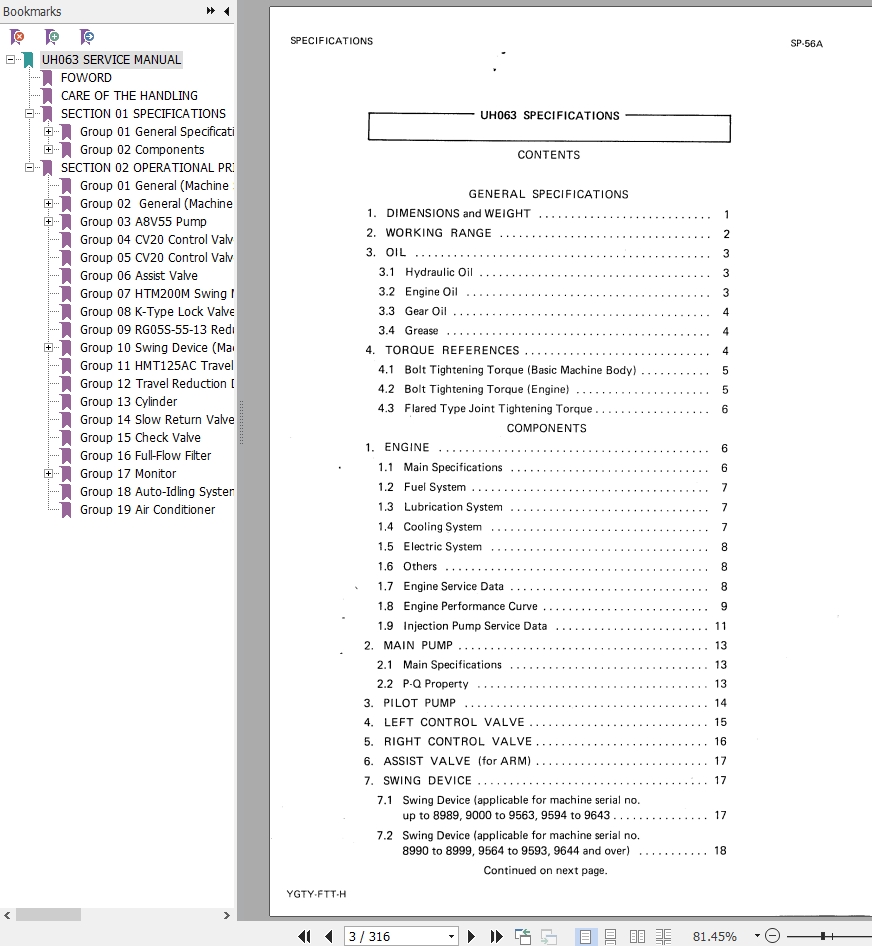

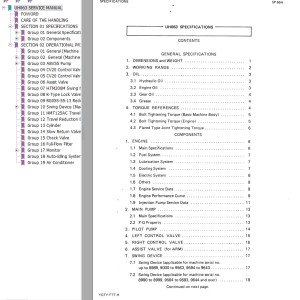

The Bookmarks of Hitachi UH063 Excavator Service Manual:
SECTION 01 SPECIFICATIONS
   Group 01 General SpecifIcations
   Group 02 Components
SECTION 02 OPERATIONAL PRINCIPLE
   Group 01 General (Machine Serial No. 6001 to 8899)
   Group 02 General (Machine Serial No. 8900 and Over)
   Group 03 A8V55 Pump
   Group 04 CV2O Control Valve (Machine Serial No. 6001 to 8899)
   Group 05 CV2O Control Valve (Machine Serial No. 8899 and Over)
   Group O6 Assist Valve
   Grouo 07 HTM200M Swing Motor (Machine Serial No. UP to 89899000 to 9593 9594 to 9643)
   Group 08 K-Type Lock VaiveGroup 04 CV2O Control Valve (Machine Serial No. UP to 8989,9000 to 9593 9594 to 9643)
   Group 09 RGO5S-55-13 Reduction Device (Machine Serial No. UP to 8989,9000 to 9593 9594 to 9643)
   Group 10 Swing Device (Machine Serial No. Up to 8990 to 8999, 9564 to 9593, 9644 and Over)
   Group 11 HMT125AC Travel Motor
   Group 12 Travel Reduction Device
   Group 13 Cylinder
   Group 14 Slow Return Valve
   Group 15 Check Valve
   Group 16 Full-Flow Filter
   Group 17 Monitor
   Group 18 Auto-Idling System
   Group 19 Air Conditioner
