Hitachi UH181 Service Manual KM059-03 Part 2

Hitachi UH181 Service Manual KM059-03 Part 2
Size: 26.0 MB
Machine: Excavator
Machine Model: UH181
Page: 324 Pages
Part Number: KM059-03

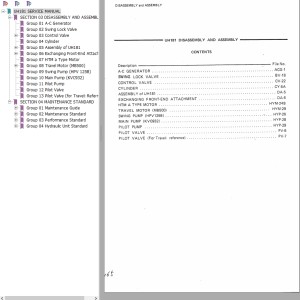

The Bookmarks of Hitachi UH181 Excavator Service Manual:
SECTION 03 DISASSEMBLY AND ASSEMBLY
   Group 01 A-C Generator
   Group 02 Swing Lock Valve
   Group 03 Control Valve
   Group 04 Cylinder
   Group 05 Assembly of UH181
   Group 06 Exchanging Front-End Attachment
   Group 07 HTM a Type Motor
   Group 08 Travel Motor (MBSOO)
   Group 09 Swing Pump (HPV 125B)
   Group 10 Main Pump (KVC932)
   Group 11 Pilot Pump
   Grouo 12 Pilot Valve
   Group 13 Pilot Valve (for Travel: Refernce)
SECTION 04 MAINTENANCE STANDARD
   Group 01 Maintenance Guide
   Group 02 Maintenance Standard
   Group 03 Performance Standard
   Group 04 Hydraulic Unit Standard
