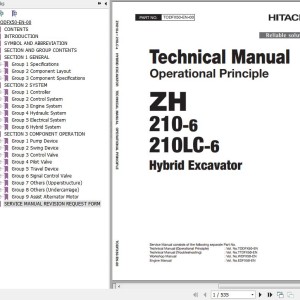

Hitachi ZH210-6 ZH210LC-6 Technical Manual Operational Principle TODFX50-EN-00

Hitachi ZH210-6 ZH210LC-6 Technical Manual Operational Principle TODFX50-EN-00
Size: 36.2 MB
Machine: Hybrid Excavator
Machine Model: ZH210-6 ZH210LC-6
Publication Date: 2017
Page: 535 Pages
Parts Number: TODFX50-EN-00

The Bookmarks of Hitachi ZH210-6 ZH210LC-6 Technical Manual Operational Principle:
Contents
Introduction
Symbol And Abbreviation
Section And Group Contents
Section 1 General
 Group 1 Spedflcations
 Group 2 Component Layout
 Group 3 Component Specifications
Section 2 System
 Group 1 Controller
 Group 2 Control System
 Group 3 Engine System
 Group 4 Hydraulic System
 Group 5 Electrical System
 Group 6 Hybrid System
Section 3 Component Operation
 Group 1 Pump Device
 Group 2 Swing Device
 Group 3 Control Valve
 Group 4 Pilot Valve
 Group 5 Travel Device
 Group 6 Signal Control Valve
 Group 7 Others (Upperstructure)
 Group 8 Others (Undercarriage)
 Group 9 Assit Alternator Motor
Service Manual Revision Request Form
