Hitachi ZV55R To ZV75LRS Vibratory Rammer Workshop Manual WTGA-EN-00

Hitachi ZV55R To ZV75LRS Vibratory Rammer Workshop Manual WTGA-EN-00
Size: 4.46 MB
Machine: Vibratory Rammer
Machine Model: ZV55R ZV65R ZV75R ZV85R ZV55RL ZV65RL ZV75RL ZV55RLS ZV65RLS ZV75RLS
Publication Date: 2014
Page: 100 Pages
Parts Number: WTGA-EN-00

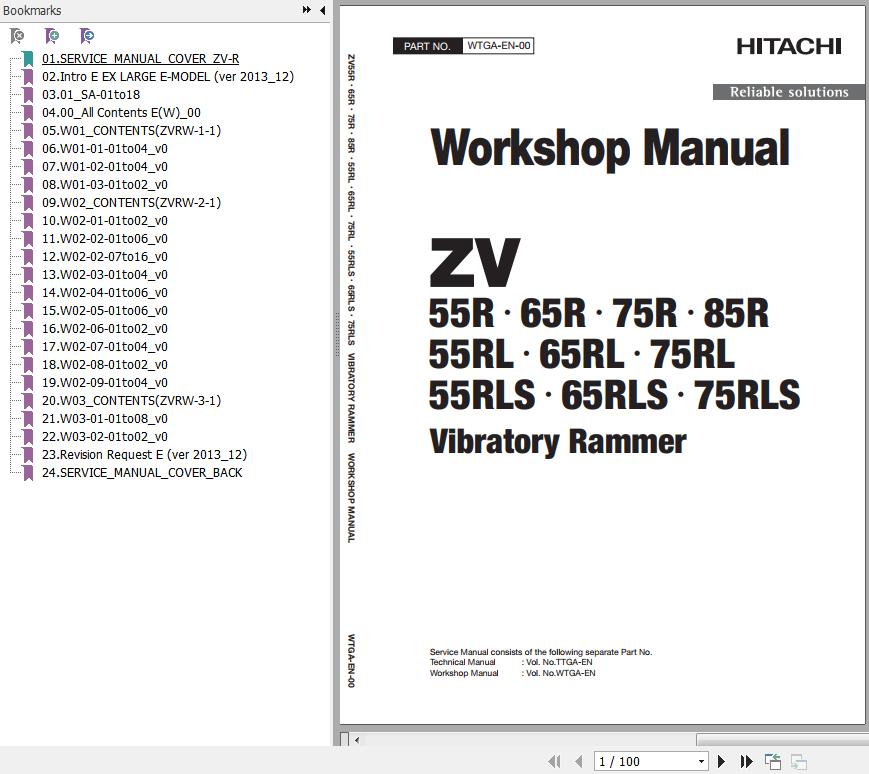

The Bookmarks of Hitachi ZV55R To ZV75LRS Vibratory Rammer Workshop Manual:
Section 1 General
 Group 1 Precautions For Disassembling And Assembling
 Group 2 Tightening
 Group 3 Painting
Section 2 Main Component
 Group 1 Air Cleaner
 Group 2 Carburetor
 Group 3 Recoil Starter
 Group 4 Centrifugal Clutch
 Group 5 Oil Seal
 Group 6 Upper Structure
 Group 7 Bellows
 Group 8 Shoe
 Group 9 Spring
Section 3 Information
 Group 1 Correction Of Carburetor Main Jet At High Altitude(Subaru)
 Group 2 Malfunction Of Engine On/Off Switch
