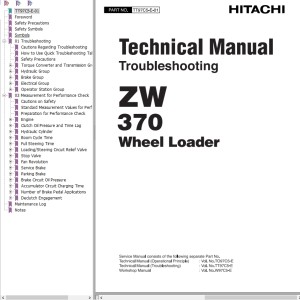

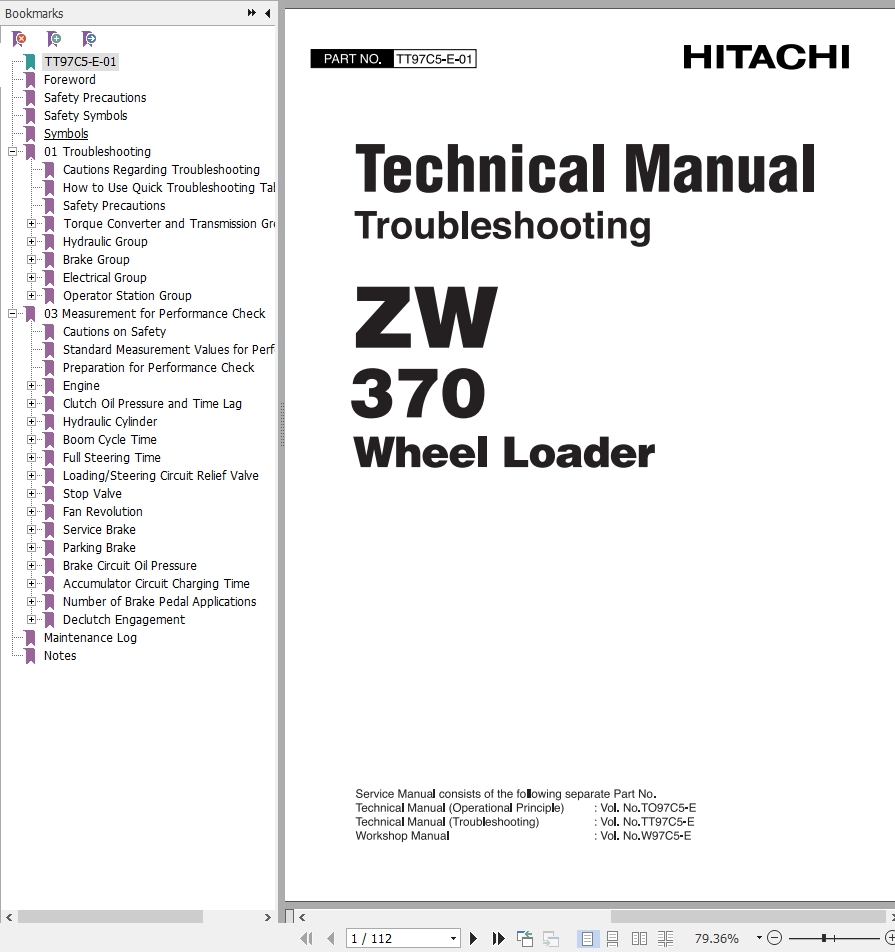

Hitachi ZW370 Technical Manual TT97C5-E-01

Hitachi ZW370 Technical Manual TT97C5-E-01
Size: 2.9 MB
Machine: Wheel Loader
Machine Model: ZW370
Publication Date: 07.2011
Page: 112 Pages
Part Number: TT97C5-E-01

The Bookmarks of Hitachi ZW370 Wheel Loader Technical Manual(Troubleshooting):
01 Troubleshooting
   Cautions Regarding Troubleshooting
   How To Use Quick Troubleshooting Table
   Safety Precautions
   Torque Converter And Transmission Group
   Hydraulic Group
   Brake Group
   Electrical Group
   Operator Station Group
03 Measurement For Performance Check
   Cautions On Safety
   Standard Measurement Values For Performance Check
   Preparation For Performance Check
   Engine
   Clutch Oil Pressure And Time Lag
   Hydraulic Cylinder
   Boom Cycle Time
   Full Steering Time
   Loading/Steering Circuit Relief Valve
   Stop Valve
   Fan Revolution
   Service Brake
   Parking Brake
   Brake Circuit Od Pressure
   Accumulator Circuit Charging Time
   Number Of Brake Pedal Applications
   Declutch Engagement
