Hitachi ZX120-7 Class ZX175W-7 Class Service Manual TDF350-EN-QC-00

Hitachi ZX120-7 Class ZX175W-7 Class Service Manual TDF350-EN-QC-00
Size: 12.1 MB
Machine: Hydraulic Excavator
Machine Model:
120-7 class
130-7 130LCN-7
135US-7 class
200-7 class
210LC-7 210LCN-7 240N-7
225US-7 class
240-7 class
250LC-7 250LCN-7
150W-7 class
300-7 class
300LC-7 300LCN-7
155W-7 class
330-7 class
350LC-7 350LCN-7
175W-7 class
Publication Date: 2021
Part Number: TDF350-EN-QC-00

TDF350-EN-QC-00(20211116) 81 Pages
TDF350-EN-QC-00_Circuit_Quick_Coupler(20211116) 9 Pages

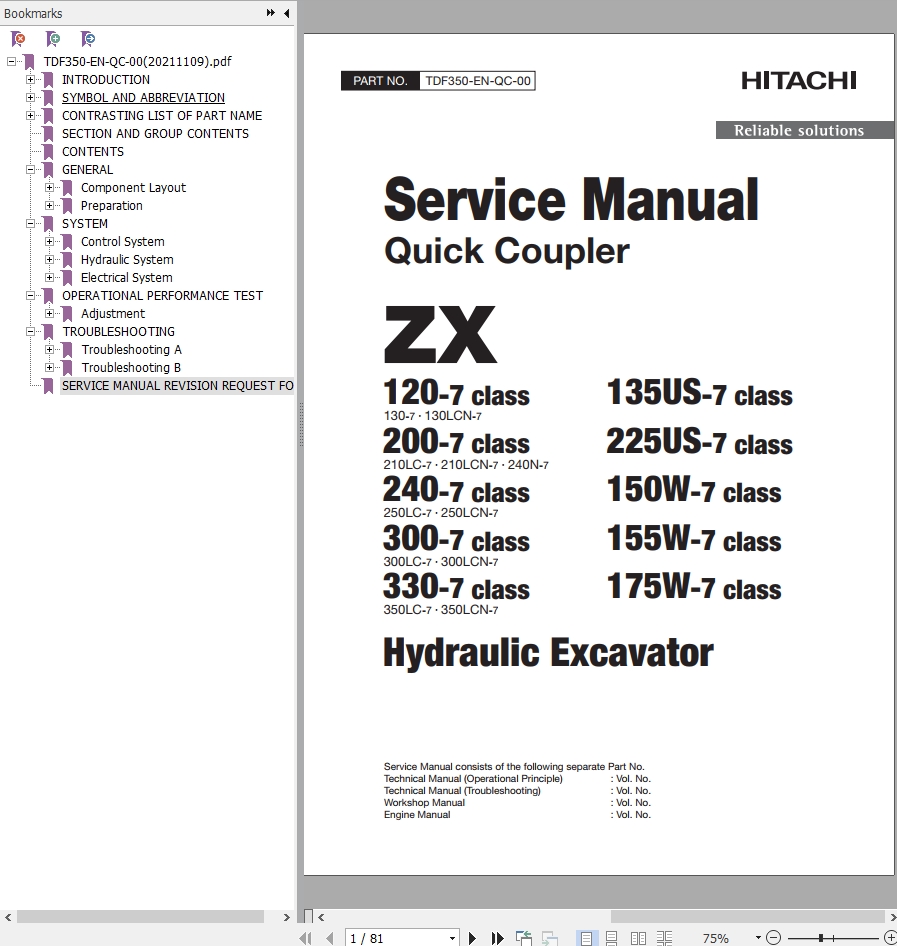

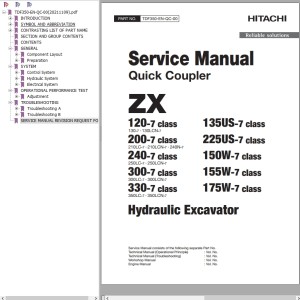

The Bookmarks of Hitachi ZX120-7 Class ZX175W-7 Class Hydraulic Excavator Service Manual:
Introduction
Symbol And Abbreviation
Contrasting List Of Part Name
Section And Group Contents
Contents
General
   Component Layout
   Preparation
System
   Control System
   Hydraulic System
   Electrical System
Operational Performance Test
   Adjustment
Troubleshooting
   Troubleshooting A
   Troubleshooting B
Service Manual Revision Request Form
