Hitachi ZX190LC-6 ZX190LCN-6 Workshop Manual WDBS50-EN-01

Hitachi ZX190LC-6 ZX190LCN-6 Workshop Manual WDBS50-EN-01
Size: 22.6 MB
Machine: Hydraulic Excavator
Machine Model: ZX190LC-6 ZX190LCN-6
Publication Date: 09.2019
Page: 695 Pages
Part Number: WDBS50-EN-01

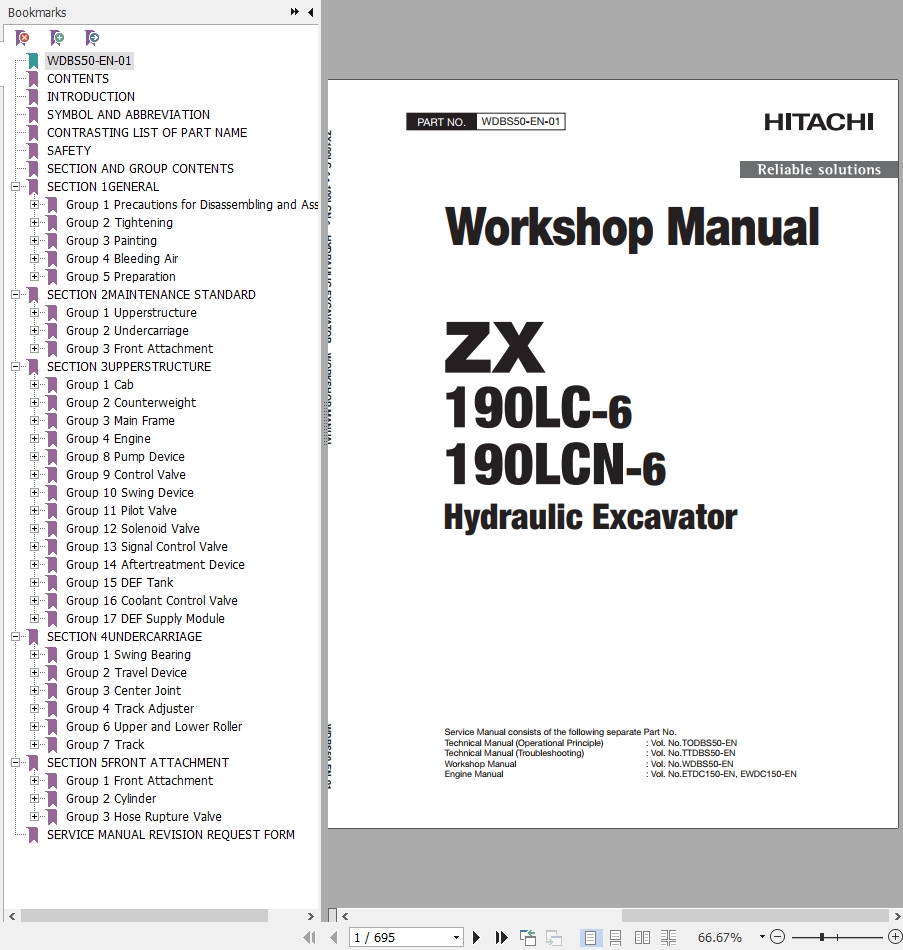

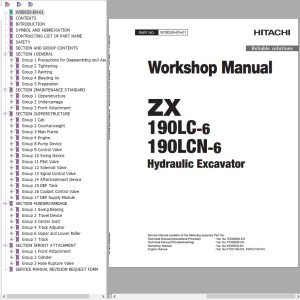

The Bookmarks of Hitachi ZX190LC-6 ZX190LCN-6 Hydraulic Excavator Workshop Manual:
Section 1general
 Group 1 Precautions For Disassembling And Assembling
 Group 2 Tightening
 Group 3 Painting
 Group 4 Bleeding Air
 Group 5 Preparation
Section 2maintenance Standard
 Group 1 Upperstructure
 Group 2 Undercarriage
 Group 3 Front Attachment
Section 3upperstructure
 Group Icab
 Group 2 Counterweight
 Group 3 Main Frame
 Group 4 Engine
 Group 8 Pump Device
 Group 9 Control Valve
 Group 10 Swing Device
 Group 11 Pilot Valve
 Group 12 Solenoid Valve
 Group 13 Signai Control Valve
 Group 14 Aftertreatment Device
 Group 15deftank
 Group 16 Coolant Control Valve
 Group 17 Def Supply Module
Section 4undercarriage
 Group 1 Swing Bearing
 Group 2 Travel Device
 Group 3 Centerjoint
 Group 4 Track Adjuster
 Group 6 Upper And Lower Roller
 Group7track
Section Sfront Attachment
 Group 1 Front Attachment
 Group 2 Cylinder
 Group 3 Hose Rupture Valve
Service Manual Revision Request Form
