Hitachi ZX200-3 ZX225US-3 ZX225USR-3 ZX240-3 ZX270-3 Class Technical Manual TO1V1-E-01

Hitachi ZX200-3 ZX225US-3 ZX225USR-3 ZX240-3 ZX270-3 Class Technical Manual TO1V1-E-01
Size: 11.7 MB
Machine: Hydraulic Excavator
Machine Model:
200-3 class
200-3•200LC-3•210H-3•210LCH-3•210K-3•210LCK-3•210-3•210LC-3•
210LCN-3•240N-3
225US-3 class
225US-3•225USLC-3
225USR-3 class
225USR-3•225USRLC-3•225USRK-3•225USRLCK-3
240-3 class
240-3•240LC-3•250H-3•250LC-3•250LCN-3•250LCH-3•250K-3•250LCK-3
270-3 class
270-3•270LC-3•280LC-3•280LCN-3
Publication Date: 2006
Page: 424 Pages
Part Number: TO1V1-E-01

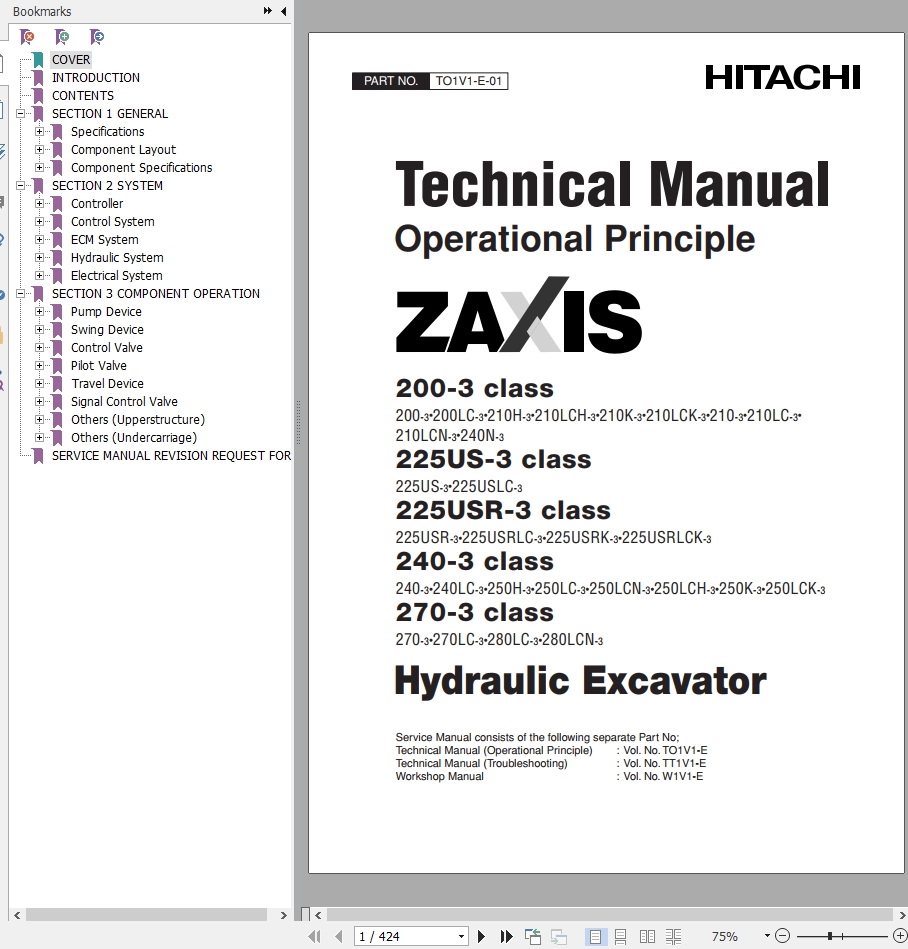

The Bookmarks of Hitachi ZX200-3 ZX225US-3 ZX225USR-3 ZX240-3 ZX270-3 Class Hydraulic Excavator Technical Manual:
Section 1 General
 Specifications
 Component Layout
 Component Specifications
Section 2 System
 Controller
 Control System
 Ecm System
 Hydraulic System
 Electrical System
Section 3 Component Operation
 Pump Device
 Swing Device
 Control Valve
 Pilot Valve
 Travel Device
 Signal Control Valve
 Others (Upperstructure)
 Others (Undercarriage)
