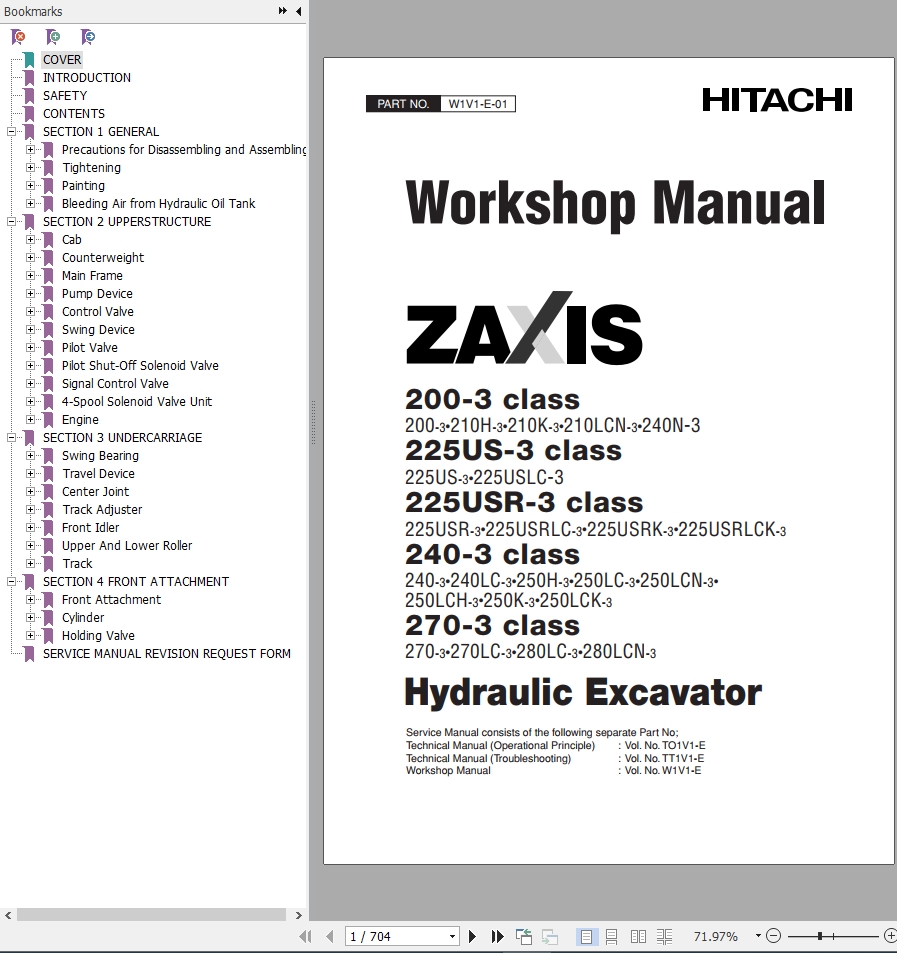

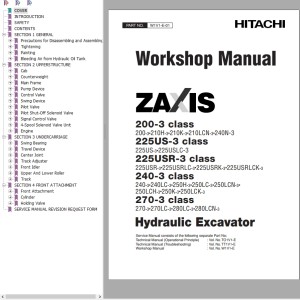

Hitachi ZX200-3 ZX225US-3 ZX225USR-3 ZX240-3 ZX270-3 Class Workshop Manual W1V1-E-01

Hitachi ZX200-3 ZX225US-3 ZX225USR-3 ZX240-3 ZX270-3 Class Workshop Manual W1V1-E-01
Size: 8.5 MB
Machine: Hydraulic Excavator
Machine Model:
200-3 class
200-3  210H-3  210K-3  210LCN-3  240N-3
225US-3 class
225US-3  225USLC-3
225USR-3 class
225USR-3  225USRLC-3  225USRK-3  225USRLCK-3
240-3 class
240-3  240LC-3  250H-3  250LC-3  250LCN-3
250LCH-3  250K-3  250LCK-3
270-3 class
270-3  270LC-3  280LC-3  280LCN-3
Publication Date: 10.12.2018
Page: 704 Pages
Part Number: W1V1-E-01

The Bookmarks of Hitachi ZX200-3 ZX225US-3 ZX225USR-3 ZX240-3 ZX270-3 Class Hydraulic Excavator Workshop Manual:
Section 1 General
 Precautions For Disassembling And Assembling
 Tightening
 Painting
 Bleeding Aw From Hydraulic Od Tank
Section 2 Upperstructure
 Cab
 Counterweight
 Main Frame
 Pump Device
 Control Valve
 Swing Device
 Pilot Valve
 Pilot Shut-Off Solenoid Valve
 Signal Control Valve
 4-Spool Solenoid Valve Unit
 Engine
Section 3 Undercarriage
 Swing Bearing
 Travel Device
 Center Joint
 Track Adjuster
 Front Idler
 Upper And Lower Roller
 Track
Section 4 Front Attachment
 Front Attachment
 Cylinder
 Holding Valve
Service Manual Revision Request Form
