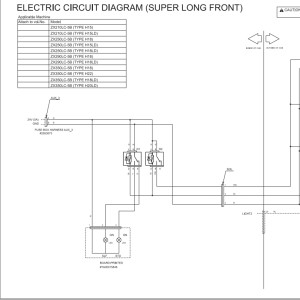

Hitachi ZX210LC-5B ZX350LC-5B Electric Circuit Diagram( Super Long Front)

Hitachi ZX210LC-5B ZX350LC-5B Electric Circuit Diagram( Super Long Front)
Size: 1.1 MB
Machine: Hydraulic Excavator
Machine Model:
ZX210LC-5B(TYPE H15)
ZX2I0LC-5B(TYPE HI5LD)
ZX250LC-5B(TYPE H18)
ZX250LC-5B(TYPE H15LD)
ZX250LC-5B(TYPE HI8LD)
ZX290LC-5B(TYPE H18)
ZX290LC-5B(TYPE HI8LD)
ZX350LC-5B(TYPE H18)
ZX350LC-5B(TYPE H22)
ZX350LC-5B(TYPE HI8LD)
ZX350LC-5B(TYPE H20LD)
Page: 1 Pages
