Hitachi ZX450-3 To ZX850-3 Electrical & Hydraulic Circuit Diagram T01JIE-0l

Hitachi ZX450-3 To ZX850-3 Electrical & Hydraulic Circuit Diagram T01JIE-0l
Size: 12 MB
Machine: Hydraulic Excavator
Machine Model: ZXS450-3 ZX500LC-3 ZX520LCH-3 ZX650LC-3 ZX850-3
Part Number: T01JIE-0l
Volumes Number: T1J1-E-00, T1J7-E-00, T1JB-E-00

Content:
Hitachi ZX450-3 To ZX520LCH-3 Auto-Lubrication Harness 1 Machine Side 1 Pages
Hitachi ZX450-3 To ZX520LCH-3 Backhoe 1 Pages
Hitachi ZX450-3 To ZX520LCH-3 Breaker Crusher Two Speed Flow Combiner 1 Pages
Hitachi ZX450-3 To ZX520LCH-3 Connector 1 Pages
Hitachi ZX450-3 To ZX520LCH-3 Control Valve Harness 1 Pages

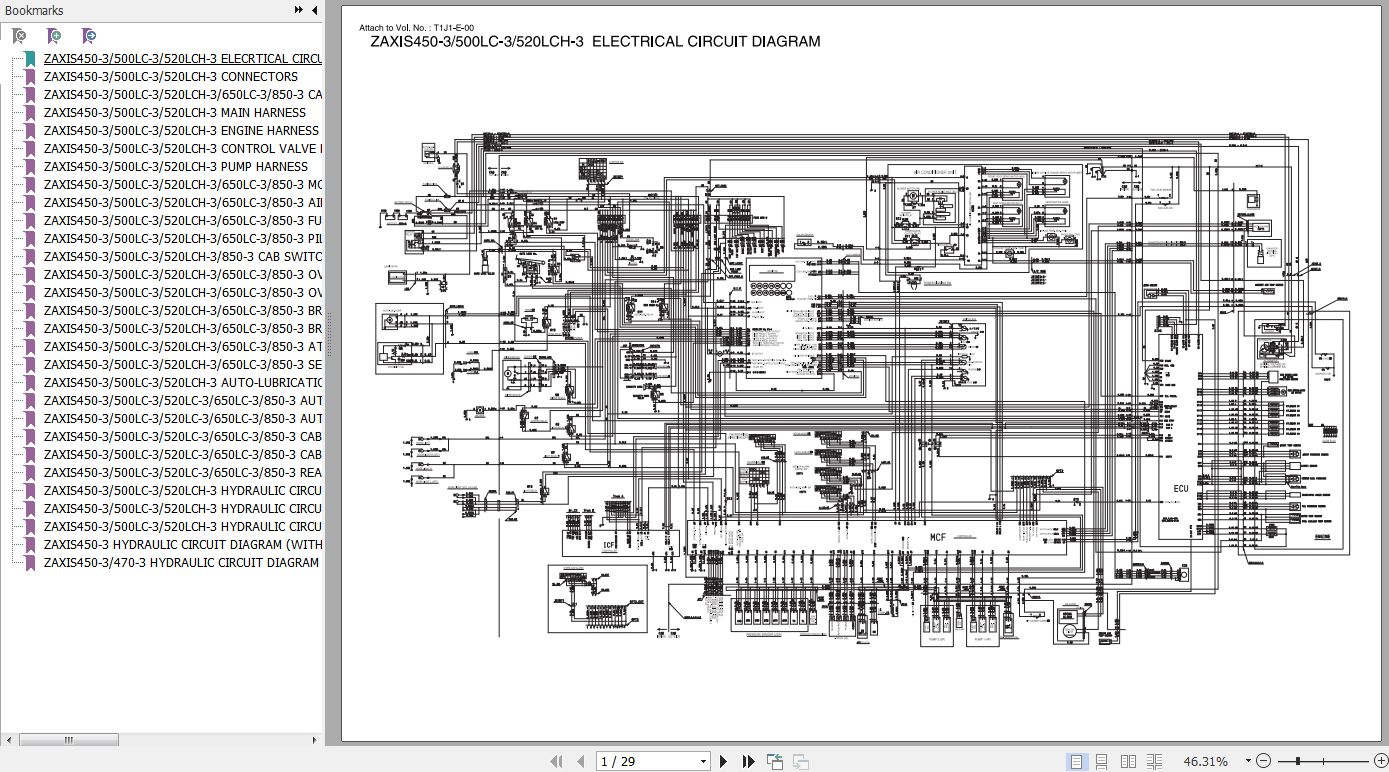

Hitachi ZX450-3 To ZX520LCH-3 Electrical & Hydraulic Circuit Diagram 26 Pages
Hitachi ZX450-3 To ZX520LCH-3 Eletrical Circuit Diagram 1 Pages
Hitachi ZX450-3 To ZX520LCH-3 Engine Harness 1 Pages
Hitachi ZX450-3 To ZX520LCH-3 Hose Rupture 1 Pages
Hitachi ZX450-3 To ZX520LCH-3 Main Harness 1 Pages
Hitachi ZX450-3 To ZX850-3 Air Conditioner Harness 1 Pages
Hitachi ZX450-3 To ZX850-3 Att Sensor Harness 1 Pages
Hitachi ZX450-3 To ZX850-3 Auto-Lubrication Harness 1 Cab Switch Harness Side 1 Pages
Hitachi ZX450-3 To ZX850-3 Boom Mode Selector Switch Level Check Switch Seat Heat Switch 1 Pages
Hitachi ZX450-3 To ZX850-3 Breaker Hour Meter Harness Cab Harness Side 1 Pages
Hitachi ZX450-3 To ZX850-3 Breaker Hour Meter Harness Console Side 1 Pages
Hitachi ZX450-3 To ZX850-3 Cab Harness 1 Pages
Hitachi ZX450-3 To ZX850-3 Fan Rotation Direction Switch 1 Pages
Hitachi ZX450-3 To ZX850-3 Fuse Box 2 Harness 1 Pages
Hitachi ZX450-3 To ZX850-3 Monitor Harness 1 Pages
Hitachi ZX450-3 To ZX850-3 Overload Alarm Harness 1 Pages
Hitachi ZX450-3 To ZX850-3 Overload Alarm Sub Harness 1 Pages
Hitachi ZX450-3 To ZX850-3 Pilot Shut-Off Solenoid Valve Harness 1 Pages
Hitachi ZX450-3 To ZX850-3 Pump Harness 1 Pages
Hitachi ZX450-3 To ZX850-3 Seat Heater Harness 1 Pages
Hitachi ZX450-3 To ZX850-3 Travel Alarm Deactivation Switch 1 Pages

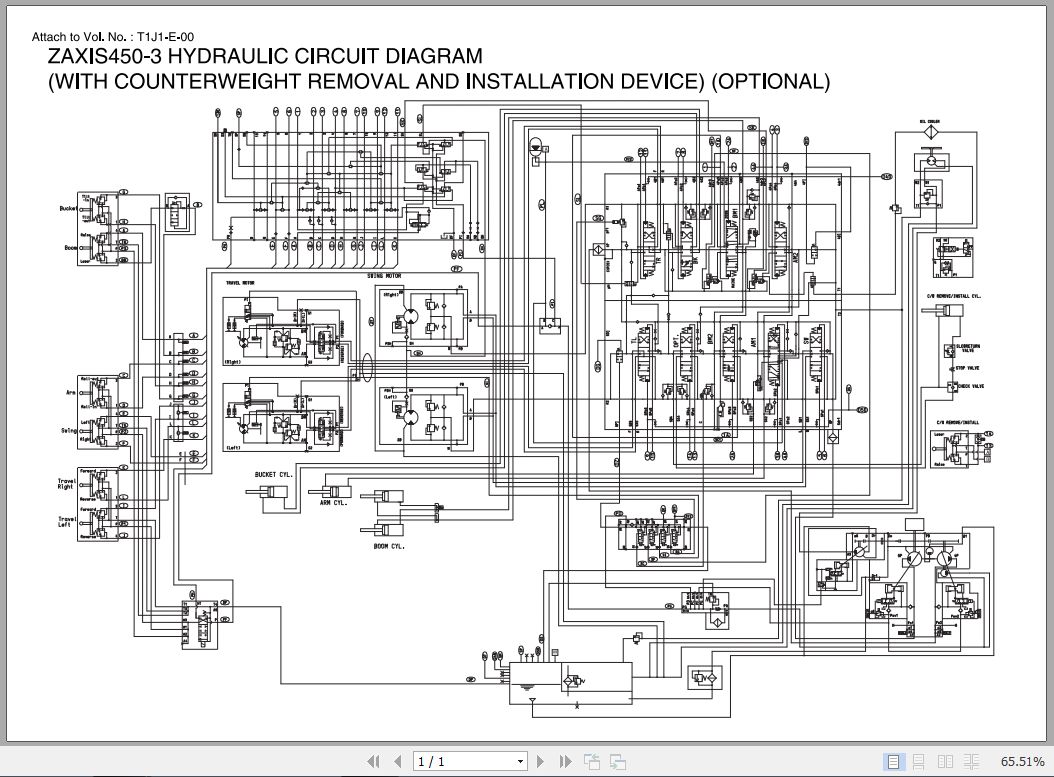

Hitachi ZX450-3 With Counterweight Removal And Installation Device 1 Pages
