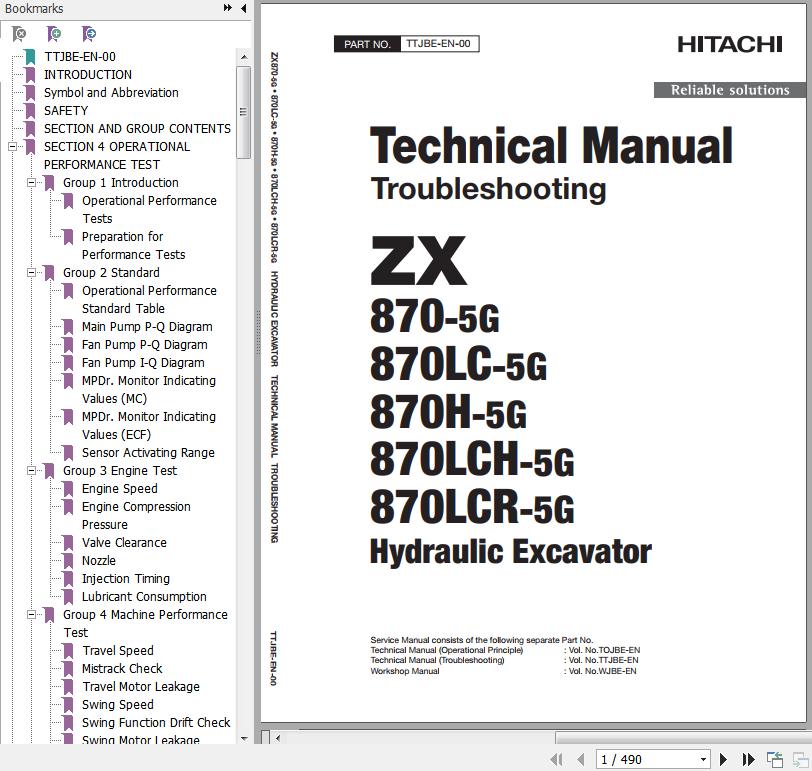

Hitachi ZX870-5G To ZX870LCR-5G Technical Manual Troubleshooting TTJBE-EN-00

Hitachi ZX870-5G To ZX870LCR-5G Technical Manual Troubleshooting TTJBE-EN-00
Size: 21 9 MB
Machine: Hydraulic Excavator
Machine Model: ZX870-5G ZX870LC-5G ZX870H-5G ZX870LCH-5G ZX870LCR-5G
Publication Date: 2011
Part Number: TTJBE-EN-00
Volumes Number: TTJBE-EN

Content:
Hitachi ZX870-5G To ZX870LCR-5G Electrical & Hydraulic Circuit Diagram TTJBE-EN-00(20160205) 12 Pages
Hitachi ZX870-5G To ZX870LCR-5G Electrical & Hydraulic Circuit Diagram TTJBE-EN-00 11 Pages
Hitachi ZX870-5G To ZX870LCR-5G Technical Manual Troubleshooting TTJBE-EN-00(20130705) 490 pages
Hitachi ZX870-5G To ZX870LCR-5G Technical Manual Troubleshooting TTJBE-EN-00(20141211) 490 pages
Hitachi ZX870-5G To ZX870LCR-5G Technical Manual Troubleshooting TTJBE-EN-00(20160205) 490 pages

The Bookmarks of Hitachi ZX870-5G To ZX870LCR-5G Technical Manual Troubleshooting:
Introduction
Symbol And Abbreviation
Safety
Section And Group Contents
Section 4 Operational Performance Test
 Group 1 Introduction
 Group 2 Standard
 Group 3 Engine Test
 Group 4 Machine Performance Test
 Group 5 Component Test
 Group G Adjustment
Section 5 Troubleshooting
 Group 1 Diagnosing Procedure
 Group 2 Monitor
 Group 3 E-Service
 Group 4 Component Layout
 Group 5 Troubleshooting A
 Group 6 Troubleshooting B
 Group 7 Air Conditioner
Service Manual Revision Request Form
The Attached Diagram List:

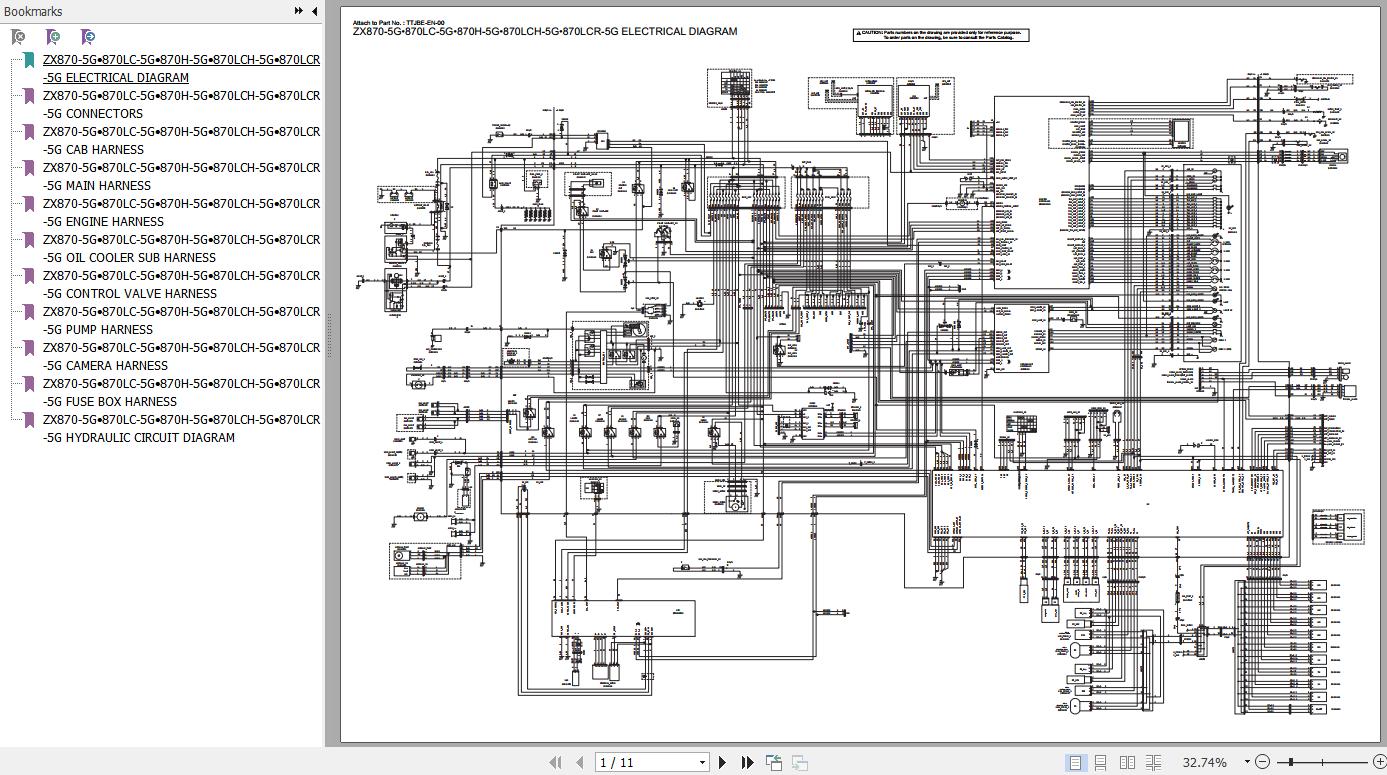

ZX870-5G 870LC-5G 870H-5G 87OLCH-5G 87OLCR-5G Electrical Diagram
ZX870-5G 870LC-5G 870H-5G 87OLCH-5G 87OLCR-5G Connectors
ZX870-5G 870LC-5G 870H-5G 87OLCH-5G S7OLCR-5G Cab Harness
ZX870-5G 870LC-5G 870H-5G 87OLCH-5G 87OLCR-5G Main Harness
ZX870-5G 870LC-5G 870H-5G 87OLCH-5G 87OLCR-5G Engine Harness
ZX870-5G 870LC-5G 870H-5G 87OLCH-5G 87OLCR-5G Oil Cooler Sub Harness
ZX870-5G 870LC-5G 870H-5G 87OLCH-5G 87OLCR-5G Control Valve Harness
ZX870-5G 870LC-5G 870H-5G 87OLCH-5G 87OLCR-5G Pump Harness
ZX870-5G 870LC-5G 870H-5G 87OLCH-5G 87OLCR-5G Camera Harness
ZX870-5G 870LC-5G 870H-5G 87OLCH-5G 87OLCR-5G Fuse Box Harness
ZX870-5G 870LC-5G 870H-5G 87OLCH-5G 87OLCR-5G Hydrauuc Circuit Diagram
Air Conditioner Circuit Diagram
