Hyundai i20 N 2022 Wiring Diagrams

Hyundai i20 N 2022 Wiring Diagrams

Size: 9.99 MB
Language: English
Machine: Automobile
Document: Wiring Diagrams
Model Machine: Hyundai i20 N (BC3N) Hatchback 1.6 T-GDI  2022 204 Hp G4FP

Contents:

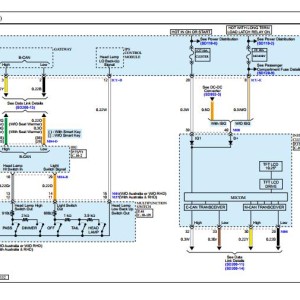

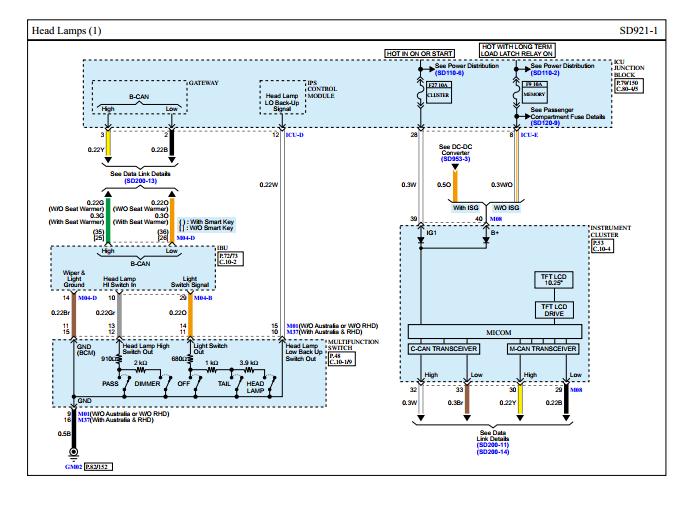

Hyundai i20 N 2022 A C Control System (Auto) Schematic Diagrams.pdf
Hyundai i20 N 2022 A C Control System (Manual) Schematic Diagrams.pdf
Hyundai i20 N 2022 A V & Navigation Schematic Diagrams.pdf
Hyundai i20 N 2022 Audio System Schematic Diagrams.pdf
Hyundai i20 N 2022 Auto Lights Schematic Diagrams.pdf
Hyundai i20 N 2022 Back-Up Lamps Schematic Diagrams.pdf
Hyundai i20 N 2022 Blind-Spot Collision Warning (BCW) System Schematic Diagrams.pdf
Hyundai i20 N 2022 Charging System Schematic Diagrams.pdf
Hyundai i20 N 2022 Components Index Schematic Diagrams.pdf
Hyundai i20 N 2022 Cooling Sysetm Schematic Diagrams.pdf
Hyundai i20 N 2022 Courtesy & Trunk Lamps Schematic Diagrams.pdf
Hyundai i20 N 2022 Data Link Details Schematic Diagrams.pdf
Hyundai i20 N 2022 Daytime Running Lights (DRL) Schematic Diagrams.pdf
Hyundai i20 N 2022 DC-DC Converter Schematic Diagrams.pdf
Hyundai i20 N 2022 Defogger System Schematic Diagrams.pdf
Hyundai i20 N 2022 Electric Sound Generator (ESG) System Schematic Diagrams.pdf
Hyundai i20 N 2022 Electro Chromic Mirror System Schematic Diagrams.pdf
Hyundai i20 N 2022 Electronic Stability Program (ESP)System Schematic Diagrams.pdf
Hyundai i20 N 2022 Emergency Call (E-Call) System Schematic.pdf
Hyundai i20 N 2022 Engine Control System Schematic Diagrams.pdf
Hyundai i20 N 2022 Fog Lamps Schematic Diagrams.pdf
Hyundai i20 N 2022 Fuse & Relay Information Schematic Diagrams.pdf
Hyundai i20 N 2022 Ground Distribution Schematic Diagrams.pdf
Hyundai i20 N 2022 Head Lamp Leveling Device (HLLD) System Schematic Diagrams.pdf
Hyundai i20 N 2022 Head Lamps Schematic Diagrams.pdf
Hyundai i20 N 2022 Horns Schematic Diagrams.pdf
Hyundai i20 N 2022 Illuminations Schematic Diagrams.pdf
Hyundai i20 N 2022 Indicator & Gauges Schematic Diagrams.pdf
Hyundai i20 N 2022 Integrated Body Control Unit (IBU) System (Body Control) Schematic Diagrams.pdf
Hyundai i20 N 2022 Integrated Body Control Unit (IBU) System (Smart Key) Schematic Diagrams.pdf
Hyundai i20 N 2022 Integrated Thermal Management Module (ITM) Schematic Diagrams (Engine Control System).pdf
Hyundai i20 N 2022 Intelligent Power Switch (IPS) System Schematic Diagrams.pdf
Hyundai i20 N 2022 Keyless Entry & Burglar Alarm System Schematic Diagrams.pdf
Hyundai i20 N 2022 Motor Driven Power Steering (MDPS) System Schematic Diagrams.pdf

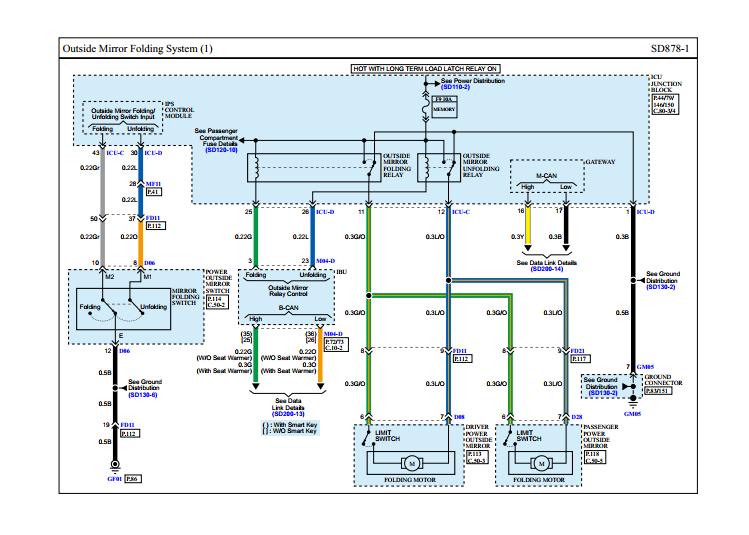

Hyundai i20 N 2022 Outside Mirror Folding System Schematic Diagrams.pdf
Hyundai i20 N 2022 Parking Assist (PA) Schematic Diagrams.pdf
Hyundai i20 N 2022 Parking Collision-Avoidance Assist (PCA) Schematic Diagrams.pdf
Hyundai i20 N 2022 Parking Distance Warning (PDW) Sensor Schematic Diagrams.pdf
Hyundai i20 N 2022 Parking Distance Warning (PDW) System Schematic Diagrams.pdf
Hyundai i20 N 2022 Passenger Compartment Fuse Details Schematic Diagrams.pdf
Hyundai i20 N 2022 Power Distribution Schematic Diagrams.pdf
Hyundai i20 N 2022 Power Door Locks Schematic Diagrams.pdf
Hyundai i20 N 2022 Power Outlet & USB Charger System Schematic Diagrams.pdf
Hyundai i20 N 2022 Power Outside Mirror System Schematic Diagrams.pdf
Hyundai i20 N 2022 Power Window System With Driver Auto Up Down & Safety.pdf
Hyundai i20 N 2022 Power Window System WO Driver Auto Up Down & Safety & Rear None Auto.pdf
Hyundai i20 N 2022 Power Window System WO Driver Auto Up Down & Safety.pdf
Hyundai i20 N 2022 Seat Warmer System Front Seat.pdf
Hyundai i20 N 2022 Seat Warmer System Rear Seat.pdf
Hyundai i20 N 2022 Starting System Schematic Diagrams.pdf
Hyundai i20 N 2022 Steering Wheel Heating System Schematic Diagrams.pdf
Hyundai i20 N 2022 Stop Lamps Schematic Diagrams.pdf
Hyundai i20 N 2022 Supplemental Restraint System(SRS) Schematic Diagrams.pdf
Hyundai i20 N 2022 Tail, Parking & License lamps Schematic Diagrams.pdf
Hyundai i20 N 2022 Tailgate Opener System Schematic Diagrams.pdf
Hyundai i20 N 2022 Turn & Hazard Lamps Schematic Diagrams.pdf
Hyundai i20 N 2022 Vehicle Speed System Schematic Diagrams.pdf
Hyundai i20 N 2022 Warning Indicator Schematic Diagrams Cruise Control (CC) Switch Schematic Diagrams Audio Remote Control Schematic Diagrams.pdf
Hyundai i20 N 2022 Wiper & Washer System Schematic Diagrams.pdf
Hyundai i20 N 2022 Wireless Power Charger System Schematic Diagrams.pdf
