International LT RH Series (S13) Interactive Schematics 00000018835 2025

Data Size: 58.27 MB
File Type: PDF
Language: English
Manufacturer: International, Navistar
Applicable Machine: Truck
Document: Interactive Schematics
Machine Model: International LT Series, RH Series (S13) Truck
Built: 9/29/2023 To 12/31/2025
Book Number: 00000018835
Publication Date: 2025
Page: 2060 Pages

List Contents:

9pin Diagnositic Connector
9pin Diagnositic Connector Design 1
LT/RH - Body Control Module (BCM)
LT/RH - Body Control Module (BCM) Design 2
LT/RH - Bendix Fusion / Wabco OnGuard Proprietary
J1939
LT/RH - Bendix Fusion / Wabco OnGuard Proprietary J1939 Design 10
LT/RH - Body Standard J1939
LT/RH - Body Standard J1939 Design 11
LT/RH - Cab Standard J1939
LT/RH - Cab Standard J1939 Design 12
LT/RH - Engine Proprietary J1939
LT/RH - Engine Proprietary J1939 Design 13
LT/RH - Low Speed Standard J1939
LT/RH - Low Speed Standard J1939 Design 14
LT/RH - Powertrain Standard J1939-
LT/RH - Powertrain Standard J1939- Design 15
LT/RH - Engine Electrical I/O (CBE1)
LT/RH - Engine Electrical I/O (CBE1) Design 16
LT/RH - Instrument Cluster (EGC)
LT/RH - Instrument Cluster (EGC) Design 17
LT/RH - Instrument Cluster - Request and Status
LT/RH - Instrument Cluster - Request and Status Design 18
LT/RH - IP Grounds
LT/RH - IP Grounds Design 19
LT/RH - IP Ground Splice Packs
LT/RH - IP Ground Splice Packs Design 20
LT/RH - IP ZVR Splice Packs - 1620
LT/RH - IP ZVR Splice Packs - 1620 Design 22
LT/RH - Center Chassis Grounds - D7007
LT/RH - Center Chassis Grounds - D7007 Design 23
LT/RH - Center Chassis Ground Splice Packs -
D7010/D7011/D7012
LT/RH - Center Chassis Ground Splice Packs - D7010/D7011/D7012 Design 24
LT/RH - Center Chassis ZVR Splice Pack
LT/RH - Center Chassis ZVR Splice Pack Design 25
LT/RH - Frame Grounds
LT/RH - Frame Grounds Design 26
LT/RH - Front Chassis Grounds
LT/RH - Front Chassis Grounds Design 27

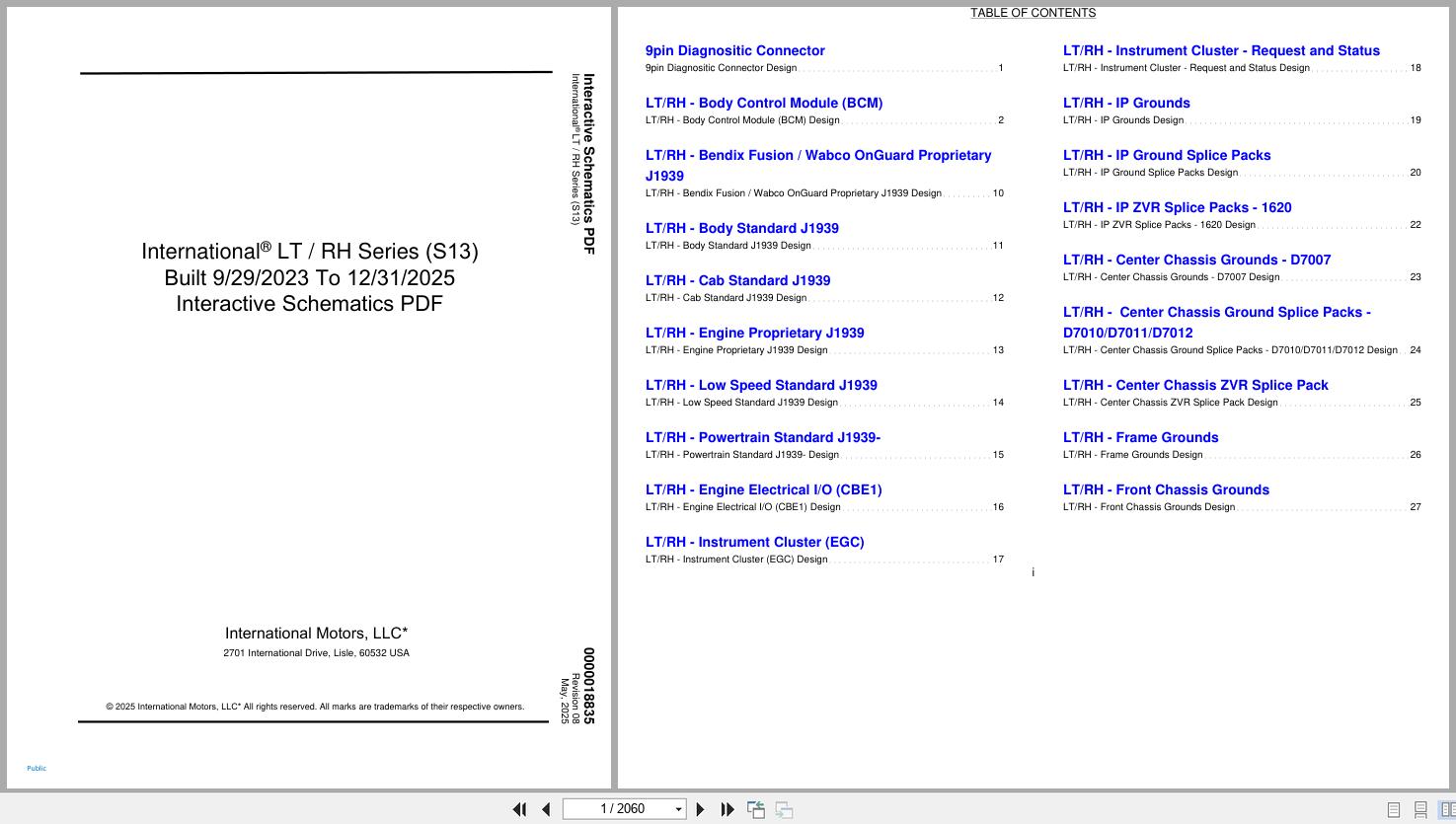

TABLE OF CONTENTS
iLT/RH - Front Chassis Ground Splice Packs
D6606/D6607
LT/RH - Front Chassis Ground Splice Packs D6606/D6607 Design 28
LT/RH - S13 Powertrain Grounds
LT/RH - S13 Powertrain Grounds Design 29
LT/RH - S13 Powertrain ZVR Splice Packs - D5032
LT/RH - S13 Powertrain ZVR Splice Packs - D5032 Design 30
LT/RH - Rear Chassis Ground Splice Packs - D9000
LT/RH - Rear Chassis Ground Splice Packs - D9000 Design 31
LT/RH - Sleeper Grounds
LT/RH - Sleeper Grounds Design 32
LT/RH - Sleeper Ground Splice Packs - 4007/4008
LT/RH - Sleeper Ground Splice Packs - 4007/4008 Design 33
LT/RH - Lighting Control Module
LT/RH - Lighting Control Module Design 34
LT/RH - Powertrain Interface Module (PIM) Electrical
I/O (PIM) W/104 Pin (D265) Connector
LT/RH - Powertrain Interface Module (PIM) Electrical I/O (PIM) W/104 Pin (D265)
Connector Design 35
LT/RH - Powertrain Interface Module (PIM) Electrical
I/O (PIM) W/ 76 Pin (D265) Connector
LT/RH - Powertrain Interface Module (PIM) Electrical I/O (PIM) W/ 76 Pin (D265)
Connector Design 36
LT/RH - Battery Grid 1 (Non-Loadshed)(Post
1/10/2023)
LT/RH - Battery Grid 1 (Non-Loadshed)(Post 1/10/2023) Design 37
LT/RH - Battery Grid 2 (Loadshed)
LT/RH - Battery Grid 2 (Loadshed) Design 39
LT/RH - Key Switch Accessory Grid 2 (Loadshed)
LT/RH - Key Switch Accessory Grid 2 (Loadshed) Design 40
LT/RH - Key Switch Ignition Grid 1 (Non-Loadshed) -
Option 1
LT/RH - Key Switch Ignition Grid 1 (Non-Loadshed) - Option 1 Design 41
LT/RH - Key Switch Ignition Grid 1 (Non-Loadshed) -
Option 2
LT/RH - Key Switch Ignition Grid 1 (Non-Loadshed) - Option 2 Design 43
LT/RH - Key Switch Ignition Grid 2 (Loadshed)
LT/RH - Key Switch Ignition Grid 2 (Loadshed) Design 45
LT/RH - 2023 and Newer Models - Interior PDM Chart
LT/RH - 2023 and Newer Models - Interior PDM Chart Design 46
LT/RH - Grid Management (CA2 W/Load Shed,
Conventional Cab)
TABLE OF CONTENTS
iiLT/RH - Grid Management (CA2 W/Load Shed, Conventional Cab) Design 47
LT/RH - Grid Management (CA2 W/Load Shed, Sleeper
Cab)
LT/RH - Grid Management (CA2 W/Load Shed, Sleeper Cab) Design 48
LT/RH - Grid Management (CA2, N/Load Shed,
Conventional Cab)(Option 1)
LT/RH - Grid Management (CA2, N/Load Shed, Conventional Cab)(Option 1)
Design 49
LT/RH - Grid Management (CA2, N/Load Shed,
Conventional Cab)(Option 2)
LT/RH - Grid Management (CA2, N/Load Shed, Conventional Cab)(Option 2)
Design 50
LT/RH - IP Marker Splice Pack - 1590
LT/RH - IP Marker Splice Pack - 1590 Design 51
LT/RH - IP Panel Dimmer Splice Packs - 1040
LT/RH - IP Panel Dimmer Splice Packs - 1040 Design 52
LT/RH - IP Turn Signal Splice Packs - 1592
LT/RH - IP Turn Signal Splice Packs - 1592 Design 53
LT/RH - N01 Lighting Splice Packs -
7145/7146/7147/7148
LT/RH - N01 Lighting Splice Packs - 7145/7146/7147/7148 Design 54
LT - Series Version 1 of Sleeper Battery Grid 3 (NonLoadshed)
LT - Series Version 1 of Sleeper Battery Grid 3 (Non-Loadshed) Design 55
LT/RH - LT Series Version 1 of Sleeper Battery Grid 4
(Loadshed)
LT/RH - LT Series Version 1 of Sleeper Battery Grid 4 (Loadshed) Design 56
LT/RH - Series Version 1 of Sleeper Convenience Grid
1 (Non-Loadshed)
LT/RH - Series Version 1 of Sleeper Convenience Grid 1 (Non-Loadshed)
Design 57
LT Series Version 1 of Special PDM
LT Series Version 1 of Special PDM Design 58
LT/RH - Pre 2023 - IP Underhood PDM W/ S13 Engine
LT/RH - Pre 2023 - IP Underhood PDM W/ S13 Engine Design 59
LT/RH - 2023 and Newer Models - IP Underhood PDM
W/ CBE1 Engine
LT/RH - 2023 and Newer Models - IP Underhood PDM W/ CBE1 Engine
Design 60
LT/RH - Air Solenoids 4-pack (1 pack/4 solenoids)
LT/RH - Air Solenoids 4-pack (1 pack/4 solenoids) Design 61
LT/RH - Air Solenoids 4-pack (2 packs/8 solenoids)
LT/RH - Air Solenoids 4-pack (2 packs/8 solenoids) Design 62
TABLE OF CONTENTS
iiiLT/RH - Radio
LT/RH - Radio Design 63
LT/RH - Radio W/ Steering Wheel Pod
LT/RH - Radio W/ Steering Wheel Pod Design 64
LT/RH - Radio W/ Steering Wheel Pod & W/ RSA
LT/RH - Radio W/ Steering Wheel Pod & W/ RSA Design 65
LT/RH - Radio W/ Bluetooth W/ Steering Wheel Pod &
W/ RSA
LT/RH - Radio W/ Bluetooth W/ Steering Wheel Pod & W/ RSA Design 66
LT/RH - Radio W/ Bluetooth & W/ Steering Wheel Pod
LT/RH - Radio W/ Bluetooth & W/ Steering Wheel Pod Design 67
Speakers W/Amp & N/QC (LS, HRZN, HX)
Speakers W/Amp & N/QC (LS, HRZN, HX) Design 68
Speakers W/Amp & N/QC (New Amp - LS, HRZN, HX)
Speakers W/Amp & N/QC (New Amp - LS, HRZN, HX) Design 70
Speakers: 4 Speakers & N/QC
Speakers:4 Speakers & N/QC Design 72
Speakers: 4 Speakers & W/QC
Speakers:4 Speakers & W/QC Design 74
LT/RH - Auxiliary Power Source (Sleeper) - 4 APO, 1
USB (Option 1)
LT/RH - Auxiliary Power Source (Sleeper) - 4 APO, 1 USB (Option 1) Design 75
LT/RH - Auxiliary Power Source (Sleeper) - 4 APO, 1
USB (Option 2)
LT/RH - Auxiliary Power Source (Sleeper) - 4 APO, 1 USB (Option 2) Design 77
LT/RH - Auxiliary Power Source (Sleeper) - 5 APO, 1
USB
LT/RH - Auxiliary Power Source (Sleeper) - 5 APO, 1 USB Design 79
LT/RH - Auxiliary Power Source - Overhead
(Daycab/low roof sleeper, in Center Overhead Panel)
LT/RH - Auxiliary Power Source - Overhead (Daycab/low roof sleeper, in Center
Overhead Panel) Design 81
LT/RH - Auxiliary Power Source - Overhead (Sleeper,
in Center Overhead Panel)
LT/RH - Auxiliary Power Source - Overhead (Sleeper, in Center Overhead Panel)
Design 82
LT/RH - Auxiliary Power Source - Overhead (Truck, in
Center Overhead Panel)
LT/RH - Auxiliary Power Source - Overhead (Truck, in Center Overhead Panel)
Design 83
LT/RH - Aux Power (Banana Plug)
LT/RH - Aux Power (Banana Plug) Design 84
TABLE OF CONTENTS
ivLT/RH - Forward Auxiliary Power Source (1 APO)
LT/RH - Forward Auxiliary Power Source (1 APO) Design 85
LT/RH - Forward Auxiliary Power Source (2 APO)
LT/RH - Forward Auxiliary Power Source (2 APO) Design 86
LT/RH - Forward Auxiliary Power Source (3 APO)
LT/RH - Forward Auxiliary Power Source (3 APO) Design 88
LT/RH - AUX Power Hardwired Switches (Four Aux
Switches)
LT/RH - AUX Power Hardwired Switches (Four Aux Switches) Design 90
LT/RH - AUX Power Hardwired Switches (Two Aux
Switches)
LT/RH - AUX Power Hardwired Switches (Two Aux Switches) Design 92
LT/RH - AUX Power Hardwired Switch (Single Aux
Switch 30A)
LT/RH - AUX Power Hardwired Switch (Single Aux Switch 30A) Design 93
LT/RH - Backup Alarm (Direct from Relay to Alarm
Connector)
LT/RH - Backup Alarm (Direct from Relay to Alarm Connector) Design 94
LT/RH - Backup Alarm (Relay to 6 Pin Tailboard.
Backup Alarm Plugs in)
LT/RH - Backup Alarm (Relay to 6 Pin Tailboard. Backup Alarm Plugs in)
Design 97
LT/RH - CB Radio Power Only
LT/RH - CB Radio Power Only Design 98
LT/RH - Door Ajar Reminder (Entry/Exit) (2 Doors)
LT/RH - Door Ajar Reminder (Entry/Exit) (2 Doors) Design 99
LT/RH - Power Door Locks (2-Door)
LT/RH - Power Door Locks (2-Door) Design 100
LT/RH - Mirrors (Heated) (Door Pod Actuated, 2 Cab
and 1 Hood Mirror Right Side Only)
LT/RH - Mirrors (Heated) (Door Pod Actuated, 2 Cab and 1 Hood Mirror Right
Side Only) Design 101
LT/RH - Mirrors (Heated) (Door Pod Actuated, 2 Cab
and 2 Hood Mirrors)
LT/RH - Mirrors (Heated) (Door Pod Actuated, 2 Cab and 2 Hood Mirrors)
Design 102
LT/RH - Mirrors (Heated) (Door Pod Actuated, 2 Cab
Mirrors)
LT/RH - Mirrors (Heated) (Door Pod Actuated, 2 Cab Mirrors) Design 103
LT/RH - Mirrors (Heated) (MUX Switch, 2 Cab and 1
Hood Mirror Right Side Only)
LT/RH - Mirrors (Heated) (MUX Switch, 2 Cab and 1 Hood Mirror Right Side Only)
Design 104
TABLE OF CONTENTS
vLT/RH - Mirrors (Heated) (MUX Switch, 2 Cab and 2
Hood Mirrors)
LT/RH - Mirrors (Heated) (MUX Switch, 2 Cab and 2 Hood Mirrors) Design 105
LT/RH - Mirrors (Heated) (MUX Switch, 2 Cab Mirrors)
LT/RH - Mirrors (Heated) (MUX Switch, 2 Cab Mirrors) Design 106
LT/RH - Mirrors (Power) (Control Switch Actuated, 1-
Door)
LT/RH - Mirrors (Power) (Control Switch Actuated, 1-Door) Design 107
LT/RH - Mirrors (Power) (1 Door Pod, Left Mirror)
LT/RH - Mirrors (Power) (1 Door Pod, Left Mirror) Design 108
LT/RH - Mirrors (Power) (2 Door Pods)
LT/RH - Mirrors (Power) (2 Door Pods) Design 109
LT/RH - Mirror Lighting (Turns without Door Pods)
LT/RH - Mirror Lighting (Turns without Door Pods) Design 110
LT/RH - Mirror Lighting (Turns with Door Pods)
LT/RH - Mirror Lighting (Turns with Door Pods) Design 111
LT/RH - Powered Mirrors (Control Switch Actuated)
LT/RH - Powered Mirrors (Control Switch Actuated) Design 112
LT/RH - Power Windows (2-Door)
LT/RH - Power Windows (2-Door) Design 113
LT/RH - City Horn
LT/RH - City Horn Design 114
LT/RH - Fan - Sleeper/Bunk
LT/RH - Fan - Sleeper/Bunk Design 115
Height Control (Hadley Smart Valve)
Height Control (Hadley Smart Valve) Design 116
LT/RH - Switch Packs
LT/RH - Switch Packs Design 117
LT/RH - Power Lift Gate (Dual Pole Terminal)
LT/RH - Power Lift Gate (Dual Pole Terminal) Design 118
LT/RH - Power Lift Gate (Single Terminal)
LT/RH - Power Lift Gate (Single Terminal) Design 119
LT/RH - Refrigerator (Power and Ground Only)
LT/RH - Refrigerator (Power and Ground Only) Design 120
LT/RH - Refrigerator (Switch Control)
LT/RH - Refrigerator (Switch Control) Design 121
LT/RH - Remote Keyless Access
LT/RH - Remote Keyless Access Design 122
LT/RH - Telematics W/Feeder Data Terminal
System(FDT)
LT/RH - Telematics W/Feeder Data Terminal System(FDT) Design 123
TABLE OF CONTENTS
viLT/RH - Telematics (Aftermarket W/ 4 TMC Connector)
LT/RH - Telematics (Aftermarket W/ 4 TMC Connector) Design 124
LT/RH - Antenna (Film Antenna, Sleeper, OTAPM,
AM/FM, XM Radio)
LT/RH - Antenna (Film Antenna, Sleeper, OTAPM, AM/FM, XM Radio) Design126
LT/RH - Antenna (Shark Fin, Day Cab, OTAPM, AM/FM,
XM Radio)
LT/RH - Antenna (Shark Fin, Day Cab, OTAPM, AM/FM, XM Radio) Design 127
LT/RH - Over The Air Electrical I/O (OnCommand Link
/ N2 Module N/ Engine Diagnostic Connector)
LT/RH - Over The Air Electrical I/O (OnCommand Link / N2 Module N/ Engine
Diagnostic Connector) Design 128
LT/RH - Over The Air Electrical I/O (OnCommand Link
/ N2 Module / S13)
LT/RH - Over The Air Electrical I/O (OnCommand Link / N2 Module / S13)
Design 130
LT/RH - Telematics Omnitracs W/Feeder Data Terminal
System(FDT) (Option 1)
LT/RH - Telematics Omnitracs W/Feeder Data Terminal System(FDT) (Option 1)
Design 132
LT/RH - Telematics Omnitracs W/Feeder Data Terminal
System(FDT) (Option 2)
LT/RH - Telematics Omnitracs W/Feeder Data Terminal System(FDT) (Option 2)
Design 133
LT/RH - Telematics Omnitracs W/Panic Button (Option
1)
LT/RH - Telematics Omnitracs W/Panic Button (Option 1) Design 134
LT/RH - Telematics Omnitracs W/Panic Button (Option
2)
LT/RH - Telematics Omnitracs W/Panic Button (Option 2) Design 135
LT/RH - Telematics Omnitracs W/Safety Direct
Disconnect (Option 1)
LT/RH - Telematics Omnitracs W/Safety Direct Disconnect (Option 1) Design 136
LT/RH - Telematics Omnitracs W/Safety Direct
Disconnect (Option 2)
LT/RH - Telematics Omnitracs W/Safety Direct Disconnect (Option 2) Design 137
LT/RH - Telematics (Omnitracs XRS/IVG) (Option 1)
LT/RH - Telematics (Omnitracs XRS/IVG) (Option 1) Design 138
LT/RH - Telematics (Omnitracs XRS/IVG) (Option 2)
LT/RH - Telematics (Omnitracs XRS/IVG) (Option 2) Design 139
LT/RH - Telematics Peoplenet N/Feeder Data Terminal
System(FDT) (Option 1)
LT/RH - Telematics Peoplenet N/Feeder Data Terminal System(FDT) (Option 1)
Design 140
TABLE OF CONTENTS
viiLT/RH - Telematics Peoplenet N/Feeder Data Terminal
System(FDT) (Option 2)
LT/RH - Telematics Peoplenet N/Feeder Data Terminal System(FDT) (Option 2)
Design 142
LT/RH - Telematics Peoplenet W/DVR
LT/RH - Telematics Peoplenet W/DVR Design 144
LT/RH - Telematics Peoplenet W/Feeder Data Terminal
System(FDT) (Option 1)
LT/RH - Telematics Peoplenet W/Feeder Data Terminal System(FDT) (Option 1)
Design 146
LT/RH - Telematics Peoplenet W/Feeder Data Terminal
System(FDT) (Option 2)
LT/RH - Telematics Peoplenet W/Feeder Data Terminal System(FDT) (Option 2)
Design 148
LT/RH - Telematics QUALCOMM W/Feeder Data
Terminal System(FDT)
LT/RH - Telematics QUALCOMM W/Feeder Data Terminal System(FDT)
Design 150
LT/RH - Telematics (QUALCOMM MCP20)
LT/RH - Telematics (QUALCOMM MCP20) Design 152
LT/RH - Telematics Zonar
LT/RH - Telematics Zonar Design 154
LT/RH - Steering Wheel Left and Right Pod N/Air Bag
LT/RH - Steering Wheel Left and Right Pod N/Air Bag Design 155
LT/RH - Steering Wheel Left Pod
LT/RH - Steering Wheel Left Pod Design 156
LT/RH - Steering Wheel Right Pod
LT/RH - Steering Wheel Right Pod Design 157
LT/RH - Tire Pressure (TPMS) (LDL 2.0 - 1
Repeater)(Option 1)
LT/RH - Tire Pressure (TPMS) (LDL 2.0 - 1 Repeater)(Option 1) Design 158
LT/RH - Tire Pressure (TPMS) (LDL 2.0 - 1
Repeater)(Option 2)
LT/RH - Tire Pressure (TPMS) (LDL 2.0 - 1 Repeater)(Option 2) Design 161
LT/RH - Aux Power (USB) - 1 USB
LT/RH - Aux Power (USB) - 1 USB Design 162
LT/RH - Aux Power (USB) - 1 USB A, 1 USB C
LT/RH - Aux Power (USB) - 1 USB A, 1 USB C Design 163
LT/RH - Aux Power (USB) - 2 USB
LT/RH - Aux Power (USB) - 2 USB Design 164
LT/RH - Aux Power (USB) - 2 USB A, 2 USB C
LT/RH - Aux Power (USB) - 2 USB A, 2 USB C Design 165
TABLE OF CONTENTS
viiiLT/RH - Aux Power (USB) - 3 USB
LT/RH - Aux Power (USB) - 3 USB Design 166
LT/RH - Aux Power (USB) - 3 USB A, 3 USB C
LT/RH - Aux Power (USB) - 3 USB A, 3 USB C Design 167
LT/RH - Selective Catalytic Reduction (SCR)
LT/RH - Selective Catalytic Reduction (SCR) Design 168
LT/RH - Airbag (Driver Seat and Passenger Seat)
LT/RH - Airbag (Driver Seat and Passenger Seat) Design 169
LT/RH - Airbag (Driver Seat Only)
LT/RH - Airbag (Driver Seat Only) Design 171
LT/RH - Airbag (Driver Seat, Passenger Seat, and
Steering Wheel)
LT/RH - Airbag (Driver Seat, Passenger Seat, and Steering Wheel) Design 172
LT/RH - Airbag (Steering Wheel and Driver Seat)
LT/RH - Airbag (Steering Wheel and Driver Seat) Design 174
LT/RH - Airbag (Steering Wheel Only)
LT/RH - Airbag (Steering Wheel Only) Design 175
LT/RH - Steering Wheel W/Air Bag
LT/RH - Steering Wheel W/Air Bag Design 176
LT/RH - Body Builder Aux Power (Blunt Cut)
LT/RH - Body Builder Aux Power (Blunt Cut) Design 177
LT/RH - Body Builder Aux Power (EOF)
LT/RH - Body Builder Aux Power (EOF) Design 178
LT/RH - Body Builder Aux Power ( In Cab)
LT/RH - Body Builder Aux Power ( In Cab) Design 180
LT/RH - Body Builder Lighting - (8HAA) (Blunt Cut)
LT/RH - Body Builder Lighting - (8HAA) (Blunt Cut) Design 181
LT/RH - Body Builder Aux Power (In Cab, BOC, or
EOF)
LT/RH - Body Builder Aux Power (In Cab, BOC, or EOF) Design 182
Transmission I/O (Allison Gen 6 3K W/ Body Builder)
Transmission I/O (Allison Gen 6 3K W/ Body Builder) Design 184
Transmission Power Take Off (Dual PTO W/ 42
Parameters & W/ Auto, AMT Trans) Option 1
Transmission Power Take Off (Dual PTO W/ 42 Parameters & W/ Auto, AMT
Trans) Option 1 Design 187
Transmission Power Take Off (Dual PTO W/ 42
Parameters & W/ Auto, AMT Trans) Option 2
Transmission Power Take Off (Dual PTO W/ 42 Parameters & W/ Auto, AMT
Trans) Option 2 Design 188
Transmission Power Take Off (Single PTO W/42
Parameters & W/ Auto, AMT Trans) Option 1
TABLE OF CONTENTS
ixTransmission Power Take Off (Single PTO W/42 Parameters & W/ Auto, AMT
Trans) Option 1 Design 189
Transmission Power Take Off (Single PTO W/42
Parameters & W/ Auto, AMT Trans) Option 2
Transmission Power Take Off (Single PTO W/42 Parameters & W/ Auto, AMT
Trans) Option 2 Design 190
LT/RH - Service Brake Switch (1 SLS/1 Transducer/ 1
RDS to PIM)(Option 1)
LT/RH - Service Brake Switch (1 SLS/1 Transducer/ 1 RDS to PIM)(Option 1)
Design 191
LT/RH - Service Brake Switch (1 SLS/1 Transducer/ 1
RDS to PIM)(Option 2)
LT/RH - Service Brake Switch (1 SLS/1 Transducer/ 1 RDS to PIM)(Option 2)
Design 192
Service Brake Switch (1 SLS/1 Transducer)
Service Brake Switch (1 SLS/1 Transducer) Design 193
LT/RH - Air Dryer (Dual)
LT/RH - Air Dryer (Dual) Design 194
LT/RH - Air Dryer (Intelligent Air Governor)
LT/RH - Air Dryer (Intelligent Air Governor) Design 195
LT/RH - Air Dryer (Single)
LT/RH - Air Dryer (Single) Design 196
LT/RH - Air Governor Control (Intelligent Air Governor,
CBE1)(Option 1)
LT/RH - Air Governor Control (Intelligent Air Governor, CBE1)(Option 1)
Design 197
LT/RH - Air Governor Control (Intelligent Air Governor,
CBE1)(Option 2)
LT/RH - Air Governor Control (Intelligent Air Governor, CBE1)(Option 2)
Design 198
LT/RH - Drain Valve One (1) Heater
LT/RH - Drain Valve One (1) Heater Design 199
LT/RH - Drain Valve W/ Three (3) Heaters
LT/RH - Drain Valve W/ Three (3) Heaters Design 200
LT/RH - Drain Valve W/ Two (2) Heaters (Option1)
LT/RH - Drain Valve W/ Two (2) Heaters (Option1) Design 202
LT/RH - Drain Valve W/ Two (2) Heaters (Option 2)
LT/RH - Drain Valve W/ Two (2) Heaters (Option 2) Design 204
LT/RH - Antilock Brake System (ABS) (BENDIX 4
Channel Implemenation - No Modulator Twist)
LT/RH - Antilock Brake System (ABS) (BENDIX 4 Channel Implemenation - No
Modulator Twist) Design 206
LT/RH - Antilock Brake System (ABS) (Bendix 6
Channel Implementation - No Modulator Twist)
TABLE OF CONTENTS
xLT/RH - Antilock Brake System (ABS) (Bendix 6 Channel Implementation - No
Modulator Twist) Design 210
LT/RH - Antilock Brake System (ABS) - Wabco 4
Channel Implementation
LT/RH - Antilock Brake System (ABS) - Wabco 4 Channel Implementation
Design 214
LT/RH - Antilock Brake System (ABS) - Wabco 6
Channel Implementation
LT/RH - Antilock Brake System (ABS) - Wabco 6 Channel Implementation
Design 218
LT/RH - Park Brake Controls (Air Chassis Park Brake)
LT/RH - Park Brake Controls (Air Chassis Park Brake) Design 222
LT/RH - Park Brake Controls (Tractor) Intellipark
LT/RH - Park Brake Controls (Tractor) Intellipark Design 223
LT/RH - Bendix; Tractor or Towing Truck; W/ Air
SUSP; J1939 Driven Lamp
LT/RH - Bendix; Tractor or Towing Truck; W/ Air SUSP; J1939 Driven Lamp
Design 225
LT/RH - Stability Controls (Wabco Air - Straight Truck)
LT/RH - Stability Controls (Wabco Air - Straight Truck) Design 227
LT/RH - Stability Control (Wabco AIR -
TRACTOR/TOW)
LT/RH - Stability Control (Wabco AIR - TRACTOR/TOW) Design 229
LT/RH - Traction Control (Bendix, ECM)
LT/RH - Traction Control (Bendix, ECM) Design 231
LT/RH - Traction Control (Wabco Air)
LT/RH - Traction Control (Wabco Air) Design 233
LT/RH - Adaptive Cruise Control (Bendix Wingman
Advanced N/ DIU)(Option 1)
LT/RH - Adaptive Cruise Control (Bendix Wingman Advanced N/ DIU)(Option 1)
Design 234
LT/RH - Adaptive Cruise Control (Bendix Wingman
Advanced N/ DIU)(Option 2)
LT/RH - Adaptive Cruise Control (Bendix Wingman Advanced N/ DIU)(Option 2)
Design 235
LT/RH - Adaptive Cruise Control (Bendix - Fusion
2.8/2.9 N/ Safety Direct Conn W/ Reg Speakers)(Option
1)
LT/RH - Adaptive Cruise Control (Bendix - Fusion 2.8/2.9 N/ Safety Direct Conn
W/ Reg Speakers)(Option 1) Design 236
LT/RH - Adaptive Cruise Control (Bendix - Fusion
2.8/2.9 N/ Safety Direct Conn W/ Reg Speakers)(Option
2)
LT/RH - Adaptive Cruise Control (Bendix - Fusion 2.8/2.9 N/ Safety Direct Conn
W/ Reg Speakers)(Option 2) Design 239
TABLE OF CONTENTS
xiLT/RH - Adaptive Cruise Control (Bendix - Fusion
2.8/2.9 N/ Safety Direct Conn W/ Tweeters)(Option 1)
LT/RH - Adaptive Cruise Control (Bendix - Fusion 2.8/2.9 N/ Safety Direct Conn
W/ Tweeters)(Option 1) Design 242
LT/RH - Adaptive Cruise Control (Bendix - Fusion
2.8/2.9 N/ Safety Direct Conn W/ Tweeters)(Option 2)
LT/RH - Adaptive Cruise Control (Bendix - Fusion 2.8/2.9 N/ Safety Direct Conn
W/ Tweeters)(Option 2) Design 244
LT/RH - Adaptive Cruise Control (Bendix - Fusion
2.8/2.9 W/N2 Conn W/ Tweeters)
LT/RH - Adaptive Cruise Control (Bendix - Fusion 2.8/2.9 W/N2 Conn W/
Tweeters) Design 246
LT/RH - Adaptive Cruise Control (Bendix - Fusion
2.8/2.9 W/ N2 Conn W/ Reg Speakers)
LT/RH - Adaptive Cruise Control (Bendix - Fusion 2.8/2.9 W/ N2 Conn W/ Reg
Speakers) Design 248
LT/RH - Adaptive Cruise Control (Bendix - Fusion
2.8/2.9 W/ Safety Direct Conn W/ Reg
Speakers)(Option 1)
LT/RH - Adaptive Cruise Control (Bendix - Fusion 2.8/2.9 W/ Safety Direct Conn
W/ Reg Speakers)(Option 1) Design 251
LT/RH - Adaptive Cruise Control (Bendix - Fusion
2.8/2.9 W/ Safety Direct Conn W/ Reg
Speakers)(Option 2)
LT/RH - Adaptive Cruise Control (Bendix - Fusion 2.8/2.9 W/ Safety Direct Conn
W/ Reg Speakers)(Option 2) Design 256
LT/RH - Adaptive Cruise Control (Bendix - Fusion
2.8/2.9 W/ Safety Direct Conn W/ Tweeters)(Option 1)
LT/RH - Adaptive Cruise Control (Bendix - Fusion 2.8/2.9 W/ Safety Direct Conn
W/ Tweeters)(Option 1) Design 260
LT/RH - Adaptive Cruise Control (Bendix - Fusion
2.8/2.9 W/ Safety Direct Conn W/ Tweeters)(Option 2)
LT/RH - Adaptive Cruise Control (Bendix - Fusion 2.8/2.9 W/ Safety Direct Conn
W/ Tweeters)(Option 2) Design 265
LT/RH - Adaptive Cruise Control (Fusion 3.0 N/ DIU
W/LDW Audio Mute)(Option 1)
LT/RH - Adaptive Cruise Control (Fusion 3.0 N/ DIU W/LDW Audio Mute)(Option
1) Design 269
LT/RH - Adaptive Cruise Control (Fusion 3.0 N/ DIU
W/LDW Audio Mute)(Option 2)
LT/RH - Adaptive Cruise Control (Fusion 3.0 N/ DIU W/LDW Audio Mute)(Option
2) Design 270
LT/RH - Adaptive Cruise Control (Fusion 3.0 N/
DIU)(Option 1)
LT/RH - Adaptive Cruise Control (Fusion 3.0 N/ DIU)(Option 1) Design 271
LT/RH - Adaptive Cruise Control (Fusion 3.0 N/
DIU)(Option 2)
TABLE OF CONTENTS
xiiLT/RH - Adaptive Cruise Control (Fusion 3.0 N/ DIU)(Option 2) Design 272
LT/RH - Adaptive Cruise Control (Wabco OnGuard N/
DIU)
LT/RH - Adaptive Cruise Control (Wabco OnGuard N/ DIU) Design 273
LT/RH - Collision Avoidance System (Warning)
(Blindspotter 2.0)
LT/RH - Collision Avoidance System (Warning) (Blindspotter 2.0) Design 274
LT/RH - Camera Event Recorder N/Safety Direct Cable
(Option 1)
LT/RH - Camera Event Recorder N/Safety Direct Cable (Option 1) Design 275
LT/RH - Camera Event Recorder N/Safety Direct Cable
(Option 2)
LT/RH - Camera Event Recorder N/Safety Direct Cable (Option 2) Design 276
LT/RH - Camera Event Recorder W/N2 Conn
LT/RH - Camera Event Recorder W/N2 Conn Design 277
LT/RH - Camera Event Recorder W/Safety Direct Cable
LT/RH - Camera Event Recorder W/Safety Direct Cable Design 279
LT/RH - CAMERA (DriveCam Switch & Power PreWire
LT/RH - CAMERA (DriveCam Switch & Power PreWire Design 282
LT/RH - Camera (LYTX Prewire) N/Event Recording
Button
LT/RH - Camera (LYTX Prewire) N/Event Recording Button Design 283
LT/RH - Camera (LYTX Prewire) W/Event Recording
Button
LT/RH - Camera (LYTX Prewire) W/Event Recording Button Design 284
LT/RH - Lane Departure Warning (Wabco OnLane2 N/
Tweeters)
LT/RH - Lane Departure Warning (Wabco OnLane2 N/ Tweeters) Design 286
LT/RH - Lane Departure Warning (Wabco OnLane2 W/
Tweeters)
LT/RH - Lane Departure Warning (Wabco OnLane2 W/ Tweeters) Design 288
LT/RH - Lane Keep Assist
LT/RH - Lane Keep Assist Design 289
Lane Keep Assist Module
Lane Keep Assist Module Design 290
ZF Steering Gear
ZF Steering Gear Design 291
LT/RH - Collision Avoidance System (Warning) (Side
Object Detection, Left & Right Side)
LT/RH - Collision Avoidance System (Warning) (Side Object Detection, Left &
Right Side) Design 293
TABLE OF CONTENTS
xiiiLT/RH - Collision Avoidance System (Warning) (Side
Object Detection, Right Side)
LT/RH - Collision Avoidance System (Warning) (Side Object Detection, Right
Side) Design 299
LT/RH - Air Filter Flow Restriction Monitoring (LED
Indicator & W/Hood switch & W/Auto Start-Stop)
LT/RH - Air Filter Flow Restriction Monitoring (LED Indicator & W/Hood switch &
W/Auto Start-Stop) Design 302
LT/RH - Air Filter Flow Restriction Monitoring (LED
Indicator & W/Hood switch)
LT/RH - Air Filter Flow Restriction Monitoring (LED Indicator & W/Hood switch)
Design 304
LT -Air Filter Flow Restriction Monitoring (LED
Indicator) Option 2
LT -Air Filter Flow Restriction Monitoring (LED Indicator) Option 2 Design 306
LT - Air Filter Flow Restriction Monitoring (Horizon)
Option 1
LT - Air Filter Flow Restriction Monitoring (Horizon) Option 1 Design 307
LT - Air Filter Flow Restriction Monitoring (Horizon)
Option 2
LT - Air Filter Flow Restriction Monitoring (Horizon) Option 2 Design 308
LT - Air Filter Flow Restriction Monitoring (LED
Indicator) Option 1
LT - Air Filter Flow Restriction Monitoring (LED Indicator) Option 1 Design 309
RH - Air Filter Flow Restriction Monitoring (Horizon)
Option 1
RH - Air Filter Flow Restriction Monitoring (Horizon) Option 1 Design 310
RH - Air Filter Flow Restriction Monitoring (Horizon)
Option 2
RH - Air Filter Flow Restriction Monitoring (Horizon) Option 2 Design 311
RH - Air Filter Flow Restriction Monitoring (LED
Indicator) Option 1
RH - Air Filter Flow Restriction Monitoring (LED Indicator) Option 1 Design 312
RH - Air Filter Flow Restriction Monitoring (LED
Indicator) Option 2
RH - Air Filter Flow Restriction Monitoring (LED Indicator) Option 2 Design 313
Coolant Level Monitoring (W/ PIM)
Coolant Level Monitoring (W/ PIM) Design 314
LT/RH - Coolant Level Monitoring (No CLA Module)
LT/RH - Coolant Level Monitoring (No CLA Module) Design 316
LT/RH - Coolant Level Monitoring (W/ PIM)
LT/RH - Coolant Level Monitoring (W/ PIM) Design 317
LT/RH - Cooling Fan Control (Fan Override, CBE1)
LT/RH - Cooling Fan Control (Fan Override, CBE1) Design 318
TABLE OF CONTENTS
xivLT/RH - Cooling Fan Control (No Fan Override, CBE1)
LT/RH - Cooling Fan Control (No Fan Override, CBE1) Design 319
LT/RH - Vehicle Acceleration (Accel Pedal wired to
PIM) Option 1
LT/RH - Vehicle Acceleration (Accel Pedal wired to PIM) Option 1 Design 320
LT/RH - Vehicle Acceleration (Accel Pedal wired to
PIM) Option 2
LT/RH - Vehicle Acceleration (Accel Pedal wired to PIM) Option 2 Design 321
LT/RH - CBE1 - Engine Electrical I/O
LT/RH - CBE1 - Engine Electrical I/O Design 322
LT/RH - Air Shield Lighting W/ One Light
LT/RH - Air Shield Lighting W/ One Light Design 323
LT/RH - Automatic Lighting W/Twilight & W/Sunload
LT/RH - Automatic Lighting W/Twilight & W/Sunload Design 325
LT/RH - Backup Lights (Reverse Lights)
(Crossmember Dual STT N/Back Up) T14 Trans
LT/RH - Backup Lights (Reverse Lights) (Crossmember Dual STT N/Back Up)
T14 Trans Design 326
LT/RH - Backup Light (Dual Reverse) T14 Trans, 6 Pin
(Option 1)
LT/RH - Backup Light (Dual Reverse) T14 Trans, 6 Pin (Option 1) Design 327
LT/RH - Backup Light (Dual Reverse) T14 Trans, 6 Pin
(Option 2)
LT/RH - Backup Light (Dual Reverse) T14 Trans, 6 Pin (Option 2) Design 328
LT/RH - Backup Light (Single Reverse Light) T14
Trans (Option 1)
LT/RH - Backup Light (Single Reverse Light) T14 Trans (Option 1) Design 329
LT/RH - Backup Light (Single Reverse Light) T14
Trans (Option 2)
LT/RH - Backup Light (Single Reverse Light) T14 Trans (Option 2) Design 330
LT/RH - Backup Light (Single Reverse Light) T14
Trans, 6 Pin (Option 1)
LT/RH - Backup Light (Single Reverse Light) T14 Trans, 6 Pin (Option 1)
Design 331
LT/RH - Backup Light (Single Reverse Light) T14
Trans, 6 Pin (Option 2)
LT/RH - Backup Light (Single Reverse Light) T14 Trans, 6 Pin (Option 2)
Design 332
LT/RH - Back Up Lights (Reverse Lights) (Tailboard
Dual STT W/Back Up) T14 Trans
LT/RH - Back Up Lights (Reverse Lights) (Tailboard Dual STT W/Back Up) T14
Trans Design 333
LT/RH - Beacon/Strobe Light (1 Blunt Cut, Horizon)
LT/RH - Beacon/Strobe Light (1 Blunt Cut, Horizon) Design 334
TABLE OF CONTENTS
xvLT/RH - Beacon/Strobe Light (2 Blunt Cuts, Horizon)
LT/RH - Beacon/Strobe Light (2 Blunt Cuts, Horizon) Design 336
LT/RH - Clearance and Identification Lights
N/SUNSHADE AMBER LENS
LT/RH - Clearance and Identification Lights N/SUNSHADE AMBER LENS
Design 338
LT/RH - Clearance and Identification Lights
W/SUNSHADE AMBER LENS
LT/RH - Clearance and Identification Lights W/SUNSHADE AMBER LENS
Design 339
LT/RH - Directional Signals (Turn) W/HEADLIGHTS
(113BBC HALOGEN)
LT/RH - Directional Signals (Turn) W/HEADLIGHTS (113BBC HALOGEN)
Design 340
LT/RH - Directional Signals (Turn) (125BBC Halogen)
LT/RH - Directional Signals (Turn) (125BBC Halogen) Design 341
LT/RH - Directional Signals (Turn) W/HEADLIGHTS
(113BBC LED)
LT/RH - Directional Signals (Turn) W/HEADLIGHTS (113BBC LED) Design 342
LT/RH - Directional Signals (Turn) W/HEATED
HEADLIGHTS (LED 125BBC)
LT/RH - Directional Signals (Turn) W/HEATED HEADLIGHTS (LED 125BBC)
Design 343
LT/RH - Directional Signals (Turn) (LED 125BBC)
LT/RH - Directional Signals (Turn) (LED 125BBC) Design 344
LT/RH - Front Fog Lamps
LT/RH - Front Fog Lamps Design 345
LT/RH - Prewire Front Fog Lights
LT/RH - Prewire Front Fog Lights Design 346
LT/RH - Hazard Warning (CA 2.0)
LT/RH - Hazard Warning (CA 2.0) Design 347
LT/RH - Headlights (Halogen 113 BBC)
LT/RH - Headlights (Halogen 113 BBC) Design 348
LT/RH - Headlights (Halogen 125BBC) W/LOWW
LT/RH - Headlights (Halogen 125BBC) W/LOWW Design 349
LT/RH - Headlights (Halogen 125BBC) W/O LOWW
LT/RH - Headlights (Halogen 125BBC) W/O LOWW Design 350
LT/RH - Headlights (LED 113 BBC)
LT/RH - Headlights (LED 113 BBC) Design 351
LT/RH - Headlights (LED 125 BBC) N/LOWW
LT/RH - Headlights (LED 125 BBC) N/LOWW Design 352
LT/RH - Headlights (LED 125 BBC) N/LOWW &
W/HEATER
LT/RH - Headlights (LED 125 BBC) N/LOWW & W/HEATER Design 353
TABLE OF CONTENTS
xviLT/RH - Headlights (LED 125 BBC) W/LOWW
LT/RH - Headlights (LED 125 BBC) W/LOWW Design 354
LT/RH - Headlights (LED 125 BBC) W/LOWW &
W/HEATER
LT/RH - Headlights (LED 125 BBC) W/LOWW & W/HEATER Design 355
LT/RH - License Plate Light (Direct To Light)
LT/RH - License Plate Light (Direct To Light) Design 356
LT/RH - License Plate Light (LED BOX LAMP Tail
Light)
LT/RH - License Plate Light (LED BOX LAMP Tail Light) Design 358
LT/RH - License Plate Light (Tail Light Single Assy.)
LT/RH - License Plate Light (Tail Light Single Assy.) Design 359
LT/RH - License Plate Light (Tail Light Single Assy.)
(HRZN)
LT/RH - License Plate Light (Tail Light Single Assy.) (HRZN) Design 360
LT/RH - Marker Lighting (Halogen 113 BBC)
LT/RH - Marker Lighting (Halogen 113 BBC) Design 361
LT/RH - Marker Lighting (Halogen 125 BBC)
LT/RH - Marker Lighting (Halogen 125 BBC) Design 362
LT/RH - Marker Lighting (LED 113 BBC)
LT/RH - Marker Lighting (LED 113 BBC) Design 363
LT/RH - Marker Lighting (LED 125BBC W/HEATER)
LT/RH - Marker Lighting (LED 125BBC W/HEATER) Design 364
LT/RH - Marker Lighting (LED 125BBC)
LT/RH - Marker Lighting (LED 125BBC) Design 365
LT/RH - Daycab Modesty Lighting W/ 2 Turn /0 Marker
DayCab (HRZN, LS)
LT/RH - Daycab Modesty Lighting W/ 2 Turn /0 Marker DayCab (HRZN, LS)
Design 366
LT/RH - Sleeper, Modesty Lighting W/ 4 Side Turns / 0
Marker (HRZN, LS) Sleeper
LT/RH - Sleeper, Modesty Lighting W/ 4 Side Turns / 0 Marker (HRZN, LS)
Sleeper Design 368
LT/RH - Panic Switch
LT/RH - Panic Switch Design 370
LT/RH - Rear Light (LED BOX LAMP Tail Light)
LT/RH - Rear Light (LED BOX LAMP Tail Light) Design 371
LT/RH - Rear Light (Tail Light)
LT/RH - Rear Light (Tail Light) Design 372
LT/RH - Rear Light (Tail Light) W/ 6 Pin Connector
LT/RH - Rear Light (Tail Light) W/ 6 Pin Connector Design 373
TABLE OF CONTENTS
xviiLT/RH - Skirt Light, Customer Supplied (Horizon)
(Option 1)
LT/RH - Skirt Light, Customer Supplied (Horizon) (Option 1) Design 374
LT/RH - Skirt Light, Customer Supplied (Horizon)
(Option 2)
LT/RH - Skirt Light, Customer Supplied (Horizon) (Option 2) Design 375
LT/RH - Rear Lights Stop - Single Assembly (HRZN)
LT/RH - Rear Lights Stop - Single Assembly (HRZN) Design 376
LT/RH - Rear Lights (Stop) (Tailboard Dual STT
W/Back Up)
LT/RH - Rear Lights (Stop) (Tailboard Dual STT W/Back Up) Design 377
LT/RH - Rear Lights (Stop) - Dual Lamp Assembly
LT/RH - Rear Lights (Stop) - Dual Lamp Assembly Design 378
LT/RH - Rear Lights (Stop) - Single Assembly
LT/RH - Rear Lights (Stop) - Single Assembly Design 379
LT/RH - Rear Lights (Tail Lights) Crossmember Dual
STT N/Back-Up
LT/RH - Rear Lights (Tail Lights) Crossmember Dual STT N/Back-Up Design 380
LT/RH - Rear Lights (Tail Lights) (Tailboard Dual STT
W/Back Up)
LT/RH - Rear Lights (Tail Lights) (Tailboard Dual STT W/Back Up) Design 381
LT/RH - Rear Light (Stop) Crossmember Dual STT
N/Back-Up
LT/RH - Rear Light (Stop) Crossmember Dual STT N/Back-Up Design 382
LT/RH - Work Lights 1 Bulb Daycab W/RKE (Option 1)
LT/RH - Work Lights 1 Bulb Daycab W/RKE (Option 1) Design 383
LT/RH - Work Lights 1 Bulb Daycab W/RKE (Option 2)
LT/RH - Work Lights 1 Bulb Daycab W/RKE (Option 2) Design 384
LT/RH - Work Lights 1 Bulb Daycab (Option 1)
LT/RH - Work Lights 1 Bulb Daycab (Option 1) Design 385
LT/RH - Work Lights 1 Bulb Daycab (Option 2)
LT/RH - Work Lights 1 Bulb Daycab (Option 2) Design 386
LT/RH - Work Lights - 1 Bulb W/ Backup W/ RKE
(Auto)
LT/RH - Work Lights - 1 Bulb W/ Backup W/ RKE (Auto) Design 387
LT/RH - Work Lights - 1 Bulb W/ Backup (Auto)
LT/RH - Work Lights - 1 Bulb W/ Backup (Auto) Design 388
LT/RH - Work Lights 2 Bulbs Sleeper W/RKE (Option
1)
LT/RH - Work Lights 2 Bulbs Sleeper W/RKE (Option 1) Design 389
LT/RH - Work Lights 2 Bulbs Sleeper W/RKE (Option
2)
TABLE OF CONTENTS
xviiiLT/RH - Work Lights 2 Bulbs Sleeper W/RKE (Option 2) Design 390
LT/RH - Work Lights 2 Bulbs Sleeper (Option 1)
LT/RH - Work Lights 2 Bulbs Sleeper (Option 1) Design 391
LT/RH - Work Lights 2 Bulbs Sleeper (Option 2)
LT/RH - Work Lights 2 Bulbs Sleeper (Option 2) Design 392
LT/RH - Work Lights - 2 Bulbs W/ Backup W/ RKE
(Auto)
LT/RH - Work Lights - 2 Bulbs W/ Backup W/ RKE (Auto) Design 393
LT/RH - Work Lights - 2 Bulbs W/ Backup (Auto)
LT/RH - Work Lights - 2 Bulbs W/ Backup (Auto) Design 394
LT/RH - Back of Cab Aux Work Light (2 blunt cuts
W/Reverse)
LT/RH - Back of Cab Aux Work Light (2 blunt cuts W/Reverse) Design 395
LT/RH - Back of Cab Aux Work Light (2 blunt cuts)
LT/RH - Back of Cab Aux Work Light (2 blunt cuts) Design 397
LT/RH - Back of Cab Aux Work Light (4 blunt cuts
W/Reverse)
LT/RH - Back of Cab Aux Work Light (4 blunt cuts W/Reverse) Design 399
LT/RH - Back of Cab Aux Work Light (4 blunt cuts)
LT/RH - Back of Cab Aux Work Light (4 blunt cuts) Design 401
LT/RH - Jaw Monitoring (Holland Elite LED Indicator)
LT/RH - Jaw Monitoring (Holland Elite LED Indicator) Design 403
LT/RH - Jaw Monitoring (Jost Sensor & In Cab
Display)
LT/RH - Jaw Monitoring (Jost Sensor & In Cab Display) Design 404
LT/RH - Fuel Delivery System (Smart Pump)(Option 1)
LT/RH - Fuel Delivery System (Smart Pump)(Option 1) Design 405
LT/RH - Fuel Delivery System (Smart Pump)(Option 2)
LT/RH - Fuel Delivery System (Smart Pump)(Option 2) Design 406
LT/RH - Fuel Heater (Vehicle Powered)(Option 1)
LT/RH - Fuel Heater (Vehicle Powered)(Option 1) Design 407
LT/RH - Fuel Heater (Vehicle Powered)(Option 2)
LT/RH - Fuel Heater (Vehicle Powered)(Option 2) Design 409
LT/RH - Fuel Level (Single Sensor)
LT/RH - Fuel Level (Single Sensor) Design 410
LT/RH - Water In Fuel (WIF) Davco N/ Heater
LT/RH - Water In Fuel (WIF) Davco N/ Heater Design 412
LT/RH - Water In Fuel (WIF) W/ Heater
LT/RH - Water In Fuel (WIF) W/ Heater Design 413
TABLE OF CONTENTS
xixLT/RH - Water In Fuel (WIF) (WIF to PIM Davco N/
Heater)(Option1)
LT/RH - Water In Fuel (WIF) (WIF to PIM Davco N/ Heater)(Option1) Design 414
LT/RH - Water In Fuel (WIF) (WIF to PIM Davco N/
Heater)(Option 2)
LT/RH - Water In Fuel (WIF) (WIF to PIM Davco N/ Heater)(Option 2) Design 415
LT/RH - Water In Fuel (WIF) (WIF to PIM Racor N/
Heater)
LT/RH - Water In Fuel (WIF) (WIF to PIM Racor N/ Heater) Design 416
LT/RH - Water In Fuel (WIF) (WIF to PIM W/
Heater)(Option 1)
LT/RH - Water In Fuel (WIF) (WIF to PIM W/ Heater)(Option 1) Design 417
LT/RH - Water In Fuel (WIF) (WIF to PIM W/
Heater)(Option 2)
LT/RH - Water In Fuel (WIF) (WIF to PIM W/ Heater)(Option 2) Design 418
LT/RH - Heating, Ventilation, & Air Conditioning
(HVAC) Manual Heater Only
LT/RH - Heating, Ventilation, & Air Conditioning (HVAC) Manual Heater Only
Design 419
LT/RH - Heating, Ventilation, & Air Conditioning
(HVAC) (Auto Control head W/PT Transducer, N/Low
Pressure SW)
LT/RH - Heating, Ventilation, & Air Conditioning (HVAC) (Auto Control head W/PT
Transducer, N/Low Pressure SW) Design 421
LT/RH - Heating, Ventilation, & Air Conditioning
(HVAC) (Manual, W/PT Transducer, N/Low Pressure
SW) - N/ M-LT-ELECTRIC & W/ 16BAM & N/ 16ATC
LT/RH - Heating, Ventilation, & Air Conditioning (HVAC) (Manual, W/PT
Transducer, N/Low Pressure SW) - N/ M-LT-ELECTRIC & W/ 16BAM & N/
16ATC Design 424
LT/RH - Heating, Ventilation, & Air Conditioning
(HVAC) (Manual, W/PT Transducer, N/Low Pressure
SW) - N/ M-RH-ELEC & W/ 16BAM & N/ 16ATC & N/FINTL-2027-S13-ENG
LT/RH - Heating, Ventilation, & Air Conditioning (HVAC) (Manual, W/PT
Transducer, N/Low Pressure SW) - N/ M-RH-ELEC & W/ 16BAM & N/ 16ATC &
N/F-INTL-2027-S13-ENG Design 426
LT/RH - Version A of No Idle Voltage Sense
LT/RH - Version A of No Idle Voltage Sense Design 428
LT/RH - Rear HVAC No Idle (HRZN, HX) W/Pre-Heat
Bergstrom Heat and Cool N/2 addl Switches
LT/RH - Rear HVAC No Idle (HRZN, HX) W/Pre-Heat Bergstrom Heat and Cool
N/2 addl Switches Design 429
LT/RH - Rear HVAC No Idle (HRZN, HX) W/Pre-Heat
Bergstrom Heat and Cool & W/Espar Air Heat
TABLE OF CONTENTS
xxLT/RH - Rear HVAC No Idle (HRZN, HX) W/Pre-Heat Bergstrom Heat and Cool &
W/Espar Air Heat Design 432
LT/RH - Rear HVAC No Idle(HRZN, HX) W/ Pre-Heat
Bergstrom Heat and Cool W/2 addl switches
LT/RH - Rear HVAC No Idle(HRZN, HX) W/ Pre-Heat Bergstrom Heat and Cool
W/2 addl switches Design 435
LT/RH - No-Idle HVAC W/Espar Airtronic &
W/Bergstrom AC (HRZN, HX)
LT/RH - No-Idle HVAC W/Espar Airtronic & W/Bergstrom AC (HRZN, HX)
Design 438
LT/RH - Rear HVAC No Idle (HRZN, HX) Heater Espar
LT/RH - Rear HVAC No Idle (HRZN, HX) Heater Espar Design 441
LT/RH - Rear No-Idle HVAC ( Espar W/ Timer)
LT/RH - Rear No-Idle HVAC ( Espar W/ Timer) Design 442
LT/RH - Rear HVAC No Idle (HRZN) Heater Webasto
Smartemp
LT/RH - Rear HVAC No Idle (HRZN) Heater Webasto Smartemp Design 443
LT/RH - Rear HVAC No Idle (HRZN) Heater Webasto
Std N/Swift
LT/RH - Rear HVAC No Idle (HRZN) Heater Webasto Std N/Swift Design 444
LT/RH - Rear HVAC No Idle (HRZN) Heater Webasto
Std W/Swift
LT/RH - Rear HVAC No Idle (HRZN) Heater Webasto Std W/Swift Design 445
LT/RH - TRI-PAC No Idle
LT/RH - TRI-PAC No Idle Design 446
LT/RH - Rear AUX Heating, Ventilation & Air
Conditioning (HVAC) (Deluxe control head) - Option 1
LT/RH - Rear AUX Heating, Ventilation & Air Conditioning (HVAC) (Deluxe control
head) - Option 1 Design 447
LT/RH - Rear AUX Heating, Ventilation & Air
Conditioning (HVAC) (Deluxe control head) - Option 2
LT/RH - Rear AUX Heating, Ventilation & Air Conditioning (HVAC) (Deluxe control
head) - Option 2 Design 449
LT/RH - Rear Heating, Ventilation & Air Conditioning
(HVAC) (Premium control head) - Option 1
LT/RH - Rear Heating, Ventilation & Air Conditioning (HVAC) (Premium control
head) - Option 1 Design 451
LT/RH - Rear Heating, Ventilation & Air Conditioning
(HVAC) (Premium control head)- Option 2
LT/RH - Rear Heating, Ventilation & Air Conditioning (HVAC) (Premium control
head)- Option 2 Design 453
LT/RH - Ambient Temperature Monitoring (W/ PIM) -
Option 1
LT/RH - Ambient Temperature Monitoring (W/ PIM) - Option 1 Design 455
TABLE OF CONTENTS
xxiLT/RH - Ambient Temperature Monitoring (W/ PIM) -
Option 2
LT/RH - Ambient Temperature Monitoring (W/ PIM) - Option 2 Design 456
LT/RH - Ambient Temperature (Horizon-Mirror Sensor)
LT/RH - Ambient Temperature (Horizon-Mirror Sensor) Design 457
LT/RH - Ambient Temperature (No Display, Mirror
Sensor)
LT/RH - Ambient Temperature (No Display, Mirror Sensor) Design 458
LT/RH - Ambient Temperature (No Display, Mirror
Sensor, W/ PIM) - Option 1
LT/RH - Ambient Temperature (No Display, Mirror Sensor, W/ PIM) - Option 1
Design 459
LT/RH - Ambient Temperature (No Display, Mirror
Sensor, W/ PIM) - Option 2
LT/RH - Ambient Temperature (No Display, Mirror Sensor, W/ PIM) - Option 2
Design 460
LT - Series Version 0 Auxiliary Gauges (Single)
LT - Series Version 0 Auxiliary Gauges (Single) Design 461
LT - Series Version 1 Auxiliary Gauges (Multiple)
LT - Series Version 1 Auxiliary Gauges (Multiple) Design 462
LT/RH - Service Brake Pressure (Auxiliary Gauge)
LT/RH - Service Brake Pressure (Auxiliary Gauge) Design 463
LT/RH - Service Brake Pressure (No Gauges)
LT/RH - Service Brake Pressure (No Gauges) Design 464
LT/RH - Service Brake Pressure (Virtual Gauge)
LT/RH - Service Brake Pressure (Virtual Gauge) Design 465
LT/RH - Compressed Air Supply (Primary & Secondary
Gauge) (Dual Air Brake System)
LT/RH - Compressed Air Supply (Primary & Secondary Gauge) (Dual Air Brake
System) Design 466
LT/RH - Intake Manifold Pressure (Horizon)
LT/RH - Intake Manifold Pressure (Horizon) Design 467
LT/RH - Lighting - Cabinet Lights (Horizon)
LT/RH - Lighting - Cabinet Lights (Horizon) Design 468
LT/RH - Courtesy Step Lighting (2 Door)
LT/RH - Courtesy Step Lighting (2 Door) Design 469
LT/RH - Cab Dome Lights (CA 2.0 Hi-Rise/ Sky-Rise
Sleeper Cab)
LT/RH - Cab Dome Lights (CA 2.0 Hi-Rise/ Sky-Rise Sleeper Cab) Design 470
LT/RH - Cab Dome Lights (CA 2.0 Standard Cab/Low
Rise Sleeper)
LT/RH - Cab Dome Lights (CA 2.0 Standard Cab/Low Rise Sleeper) Design 471
LT/RH - Lighting Sleeper Dome (Horizon)
TABLE OF CONTENTS
xxiiLT/RH - Lighting Sleeper Dome (Horizon) Design 472
LT/RH - Floor/Search Lights (DayCab) (Option 1)
LT/RH - Floor/Search Lights (DayCab) (Option 1) Design 473
LT/RH - Floor/Search Lights (DayCab) (Option 2)
LT/RH - Floor/Search Lights (DayCab) (Option 2) Design 474
LT/RH - Floor/Search Lighting (Sleeper 1 Light)
LT/RH - Floor/Search Lighting (Sleeper 1 Light) Design 475
LT/RH - Floor/Search Lighting (Sleeper 3 Lights)
(Option 1)
LT/RH - Floor/Search Lighting (Sleeper 3 Lights) (Option 1) Design 476
LT/RH - Floor/Search Lighting (Sleeper 3 Lights)
(Option 2)
LT/RH - Floor/Search Lighting (Sleeper 3 Lights) (Option 2) Design 477
LT/RH - Interior Task Lighting (Map Light) (CA 2.0 HiRise/ Sky-Rise Sleeper Cab)
LT/RH - Interior Task Lighting (Map Light) (CA 2.0 Hi-Rise/ Sky-Rise Sleeper
Cab) Design 478
LT/RH - Interior Task Lighting (Map Light) (CA 2.0
Standard Cab/Low Rise Sleeper)
LT/RH - Interior Task Lighting (Map Light) (CA 2.0 Standard Cab/Low Rise
Sleeper) Design 479
LT/RH - Luggage Compartment Lights - W/O No Idle
HVAC (Horizon, HX)
LT/RH - Luggage Compartment Lights - W/O No Idle HVAC (Horizon, HX)
Design 480
LT/RH - Luggage Compartment Lights - W/ No Idle
HVAC (Horizon, HX)
LT/RH - Luggage Compartment Lights - W/ No Idle HVAC (Horizon, HX)
Design 481
LT/RH - Rear Interior Dimming (Accent Light)
LT/RH - Rear Interior Dimming (Accent Light) Design 482
LT/RH - Rear Interior Dimming (Accent/Mood for SkyRise Sleeper)
LT/RH - Rear Interior Dimming (Accent/Mood for Sky-Rise Sleeper) Design 484
LT/RH - Rear Reading Lighting (Lower Bunk)
LT/RH - Rear Reading Lighting (Lower Bunk) Design 486
LT/RH - Rear Reading Lighting (Upper and Lower
Bunks)
LT/RH - Rear Reading Lighting (Upper and Lower Bunks) Design 487
LT/RH - Automated Suspension Transfer System
{BENDIX E-TRAC}(Option 1)
LT/RH - Automated Suspension Transfer System {BENDIX E-TRAC}(Option 1)
Design 488
TABLE OF CONTENTS
xxiiiLT/RH - Automated Suspension Transfer System
{BENDIX E-TRAC}(Option 2)
LT/RH - Automated Suspension Transfer System {BENDIX E-TRAC}(Option 2)
Design 490
LT/RH - Axle Loading (Weight) (Rear, Horizon)
LT/RH - Axle Loading (Weight) (Rear, Horizon) Design 491
LT/RH - Axle Temperature (Single w/Aux
Gauge)(Option 1)
LT/RH - Axle Temperature (Single w/Aux Gauge)(Option 1) Design 492
LT/RH - Axle Temperature (Single w/Aux
Gauge)(Option 2)
LT/RH - Axle Temperature (Single w/Aux Gauge)(Option 2) Design 494
LT/RH - Axle Temperature (Single w/Virtual
Gauge)(Option 1)
LT/RH - Axle Temperature (Single w/Virtual Gauge)(Option 1) Design 495
LT/RH - Axle Temperature (Single w/Virtual
Gauge)(Option 2)
LT/RH - Axle Temperature (Single w/Virtual Gauge)(Option 2) Design 497
LT/RH - Axle Temperature (Tandem w/Single Sensor,
Aux Gauge)(Option 1)
LT/RH - Axle Temperature (Tandem w/Single Sensor, Aux Gauge)(Option 1)
Design 498
LT/RH - Axle Temperature (Tandem w/Single Sensor,
Aux Gauge)(Option 2)
LT/RH - Axle Temperature (Tandem w/Single Sensor, Aux Gauge)(Option 2)
Design 499
LT/RH - Axle Temperature (Tandem w/Single Sensor,
Virtual Gauge)(Option 1)
LT/RH - Axle Temperature (Tandem w/Single Sensor, Virtual Gauge)(Option 1)
Design 500
LT/RH - Axle Temperature (Tandem w/Single Sensor,
Virtual Gauge)(Option 2)
LT/RH - Axle Temperature (Tandem w/Single Sensor, Virtual Gauge)(Option 2)
Design 501
LT/RH - Axle Temperature (Tandem, Aux
Gauges)(Option 1)
LT/RH - Axle Temperature (Tandem, Aux Gauges)(Option 1) Design 502
LT/RH - Axle Temperature (Tandem, Aux
Gauges)(Option 2)
LT/RH - Axle Temperature (Tandem, Aux Gauges)(Option 2) Design 504
LT/RH - Axle Temperature (Tandem, Virtual
Gauges)(Option 1)
LT/RH - Axle Temperature (Tandem, Virtual Gauges)(Option 1) Design 506
LT/RH - Axle Temperature (Tandem, Virtual
Gauges)(Option 2)
TABLE OF CONTENTS
xxivLT/RH - Axle Temperature (Tandem, Virtual Gauges)(Option 2) Design 507
LT/RH - Axle Temperature (Tandem, Virtual
Gauges)(Option 3)
LT/RH - Axle Temperature (Tandem, Virtual Gauges)(Option 3) Design 508
LT/RH - Driver Controlled Locking Differential - (Dana -
1 Control - 1 Feedback - RR)
LT/RH - Driver Controlled Locking Differential - (Dana - 1 Control - 1 Feedback -
RR) Design 510
LT/RH - Driver Controlled Locking Differential (Meritor
- 2 Control - 2 Feedback - FR&RR)
LT/RH - Driver Controlled Locking Differential (Meritor - 2 Control - 2 Feedback -
FR&RR) Design 512
LT/RH - Driver Controlled Locking Differential -
(Meritor - 1 Control - 1 Feedback - FR)
LT/RH - Driver Controlled Locking Differential - (Meritor - 1 Control - 1 Feedback -
FR) Design 514
LT/RH - Driver Controlled Locking Differential -
(Meritor - 1 Control - 1 Feedback - RR)(Option2)
LT/RH - Driver Controlled Locking Differential - (Meritor - 1 Control - 1 Feedback -
RR)(Option2) Design 515
LT/RH - Driver Controlled Locking Differential -
(Meritor - 1 Control - 1 Feedback - RR)(Option 1)
LT/RH - Driver Controlled Locking Differential - (Meritor - 1 Control - 1 Feedback -
RR)(Option 1) Design 518
LT/RH - Driver Controlled Locking Differential -
(Meritor - 1 Control - 2 Feedback - FR&RR)
LT/RH - Driver Controlled Locking Differential - (Meritor - 1 Control - 2 Feedback -
FR&RR) Design 520
LT/RH - Seats - Climate Controlled (Drivers Heated
Seat)
LT/RH - Seats - Climate Controlled (Drivers Heated Seat) Design 522
LT/RH - Seats - Climate Controlled (Driver and
Passenger Heated Seat)
LT/RH - Seats - Climate Controlled (Driver and Passenger Heated Seat)
Design 523
LT/RH - Seatbelt Reminder (Warning)(Driver only)
LT/RH - Seatbelt Reminder (Warning)(Driver only) Design 524
LT/RH - Seatbelt Reminder (Warning)(Driver &
Passenger in parallel)(Horizon)
LT/RH - Seatbelt Reminder (Warning)(Driver & Passenger in parallel)(Horizon)
Design 525
LT/RH - Auxiliary Trailer Power (BOC, ACC
Bias)(Option 1)
LT/RH - Auxiliary Trailer Power (BOC, ACC Bias)(Option 1) Design 526
TABLE OF CONTENTS
xxvLT/RH - Auxiliary Trailer Power (BOC, ACC
Bias)(Option 2)
LT/RH - Auxiliary Trailer Power (BOC, ACC Bias)(Option 2) Design 527
LT/RH - Auxiliary Trailer Power (BOC, ACC
Bias)(Option 3)
LT/RH - Auxiliary Trailer Power (BOC, ACC Bias)(Option 3) Design 528
LT/RH - Auxiliary Trailer Power (BOC, BAT
Bias)(Option 1)
LT/RH - Auxiliary Trailer Power (BOC, BATTERY Bias)(Option 1) Design 530
LT/RH - Auxiliary Trailer Power (BOC, BAT
Bias)(Option 2)
LT/RH - Auxiliary Trailer Power (BOC, BATTERY Bias)(Option 2) Design 531
LT/RH - Auxiliary Trailer Power (BOC, BAT
Bias)(Option 3)
LT/RH - Auxiliary Trailer Power (BOC, BATTERY Bias)(Option 3) Design 532
LT/RH - Auxiliary Trailer Power (BOC/ISO, ACC
Bias)(Option 1)
LT/RH - Auxiliary Trailer Power (BOC/ISO, ACC Bias)(Option 1) Design 534
LT/RH - Auxiliary Trailer Power (BOC/ISO, ACC
Bias)(Option 2)
LT/RH - Auxiliary Trailer Power (BOC/ISO, ACC Bias)(Option 2) Design 535
LT/RH - Auxiliary Trailer Power (BOC/ISO, ACC
Bias)(Option 3)
LT/RH - Auxiliary Trailer Power (BOC/ISO, ACC Bias)(Option 3) Design 536
LT/RH - Auxiliary Trailer Power (W/ Park Brake)(Option
1)
LT/RH - Auxiliary Trailer Power (W/ Park Brake)(Option 1) Design 538
LT/RH - Auxiliary Trailer Power (W/ Park Brake)(Option
2)
LT/RH - Auxiliary Trailer Power (W/ Park Brake)(Option 2) Design 540
LT/RH - Trailer Interface (ABS) (BOC and EOF TRLR
Socket)
LT/RH - Trailer Interface (ABS) (BOC and EOF TRLR Socket) Design 542
LT/RH - Trailer Interface (ABS) (BOC TRLR Socket)
LT/RH - Trailer Interface (ABS) (BOC TRLR Socket) Design 544
LT/RH - Trailer Interface (ABS) (EOF TRLR Socket)
LT/RH - Trailer Interface (ABS) (EOF TRLR Socket) Design 546
LT/RH - Trailer Interface (ABS) (ISO TRLR Socket)
LT/RH - Trailer Interface (ABS) (ISO TRLR Socket) Design 547
LT/RH - Trailer Interface (Lighting) - Separate Turns -
EOF (RING GND)
LT/RH - Trailer Interface (Lighting) - Separate Turns - EOF (RING GND)
Design 549
TABLE OF CONTENTS
xxviLT/RH - Trailer Interface (Lighting) – BOC & EOF_NA
LT/RH - Trailer Interface (Lighting) – BOC & EOF_NA Design 550
LT/RH - Trailer Interface (Lighting) – Separate Turns -
BOC
LT/RH - Trailer Interface (Lighting) – Separate Turns - BOC Design 552
LT/RH - Trailer Interface (Lighting) – Separate Turns -
BOC & EOF (Ring Ground)
LT/RH - Trailer Interface (Lighting) – Separate Turns - BOC & EOF (Ring Ground)
Design 554
Auto Neutral (Allison W/ Multiplex Switch &
Confirmation Telltale)
Auto Neutral (Allison W/ Multiplex Switch & Confirmation Telltale) Design 556
LT/RH - Transmission (Allison 3K/4K, 12-Volt)
LT/RH - Transmission (Allison 3K/4K, 12-Volt) Design 557
Transmission (Allison 3K/4K, 24-Volt)
Transmission (Allison 3K/4K, 24-Volt) Design 558
LT/RH - Transmission Electrical I/O(GW TRANS W/
12V TCM)
LT/RH - Transmission Electrical I/O(GW TRANS W/ 12V TCM) Design 559
LT/RH - Transmission Electrical I/O(GW TRANS) -
(February 2023 and Newer Models)
LT/RH - Transmission Electrical I/O(GW TRANS) - (February 2023 and Newer
Models) Design 560
LT/RH - Transmission Electrical I/O(GW TRANS) -
(Prior to February 2023)
LT/RH - Transmission Electrical I/O(GW TRANS) - (Prior to February 2023)
Design 561
LT/RH - Hill Start Aid (HSA) (Bendix CA 2.0)(Option1)
LT/RH - Hill Start Aid (HSA) (Bendix CA 2.0)(Option1) Design 562
LT/RH - Hill Start Aid (HSA) (Bendix CA 2.0)(Option 2)
LT/RH - Hill Start Aid (HSA) (Bendix CA 2.0)(Option 2) Design 565
LT/RH - Transmission Shifter (INTL Transmission)
LT/RH - Transmission Shifter (INTL Transmission) Design 566
Transmission Shifter (Universal Stalk Shifter - Allison
3K/4K)
Transmission Shifter (Universal Stalk Shifter - Allison 3K/4K) Design 567
LT/RH - Heated Windshield (W/ DS Heating Grid)
LT/RH - Heated Windshield (W/ DS Heating Grid) Design 568
LT/RH - Windshield Washer Pump W/O Low Fluid
Sensor
LT/RH - Windshield Washer Pump W/O Low Fluid Sensor Design 569
TABLE OF CONTENTS
xxviiLT/RH - Windshield Washer Pump & Low Fluid Sensor
(LT, RH, LS, HV, HX)
LT/RH - Windshield Washer Pump & Low Fluid Sensor (LT, RH, LS, HV, HX)
Design 570
LT/RH - Windshield Wipers
LT/RH - Windshield Wipers Design 571
LT/RH - Auto Start Stop and Sleeper Auto Climate,
Cab Temp, Oil Mapping, Manual Trans
LT/RH - Auto Start Stop and Sleeper Auto Climate, Cab Temp, Oil Mapping,
Manual Trans Design 572
LT/RH - Auto Start Stop with Sleeper Auto Climate,
Cab Temp, Oil Mapping, Auto Trans
LT/RH - Auto Start Stop with Sleeper Auto Climate, Cab Temp, Oil Mapping, Auto
Trans Design 573
LT/RH - Auto Start Stop (Horizon) Battery & Oil Temp
Mapping, Auto Trans
LT/RH - Auto Start Stop (Horizon) Battery & Oil Temp Mapping, Auto Trans
Design 574
LT/RH - Auto Start Stop (Horizon) Battery, Oil Temp
Mapping, Manual Trans
LT/RH - Auto Start Stop (Horizon) Battery, Oil Temp Mapping, Manual Trans
Design 575
LT/RH - Battery Disconnect (Switch Only)
LT/RH - Battery Disconnect (Switch Only) Design 576
LT/RH - Charging System (Delco Remy 36SI Alternator
W/ Remote Sense)
LT/RH - Charging System (Delco Remy 36SI Alternator W/ Remote Sense)
Design 577
LT/RH - Charging System (Delco Remy 40SI/38SI
Alternator W/ Remote Sense)
LT/RH - Charging System (Delco Remy 40SI/38SI Alternator W/ Remote Sense)
Design 578
LT/RH - Charging System (Delco Remy & Mitsubishi
Alternator W/ Remote Sense)
LT/RH - Charging System (Delco Remy & Mitsubishi Alternator W/ Remote
Sense) Design 579
LT/RH - Charging System (Leece-Neville AVI160-
190A/210A/240A Alternator W/ Remote Sense)
LT/RH - Charging System (Leece-Neville AVI160-190A/210A/240A Alternator W/
Remote Sense) Design 580
LT/RH - Charging System (Leece-Neville - LN 325A
Alternator W/ Remote Sense)
LT/RH - Charging System (Leece-Neville - LN 325A Alternator W/ Remote Sense)
Design 581
LT/RH - Cranking (Starter) (BCM Controlled & N/ Wired
Thermal Overcrank, Skelstart)
TABLE OF CONTENTS
xxviiiLT/RH - Cranking (Starter) (BCM Controlled & N/ Wired Thermal Overcrank,
Skelstart) Design 582
LT/RH - Cranking (Starter) (BCM Controlled & N/ Wired
Thermal Overcrank, W/ Disconnect)
LT/RH - Cranking (Starter) (BCM Controlled & N/ Wired Thermal Overcrank, W/
Disconnect) Design 583
LT/RH - DC/AC Inverter (Horizon)
LT/RH - DC/AC Inverter (Horizon) Design 584
LT/RH - DC/AC Inverter (with switch control)
LT/RH - DC/AC Inverter (with switch control) Design 585
LT/RH - Jump Start Stud (Dual)
LT/RH - Jump Start Stud (Dual) Design 586
LT/RH - Jump Start Stud (Single)
LT/RH - Jump Start Stud (Single) Design 587
LT/RH - Key Switch (Operator Input)
LT/RH - Key Switch (Operator Input) Design 588
LT/RH - Key Switch (Operator Input) (W/ Starter
Interrupt)
LT/RH - Key Switch (Operator Input) (W/ Starter Interrupt) Design 589
LT/RH - Crank Inhibit (W/ Hood Switch)
LT/RH - Crank Inhibit (W/ Hood Switch) Design 590
LT/RH - Hood Switch (Option 1)
LT/RH - Hood Switch (Option 1) Design 591
LT/RH - Hood Switch (Option 2)
LT/RH - Hood Switch (Option 2) Design 592
LT/RH - Hood Switch (W/ Underhood Work Light)
LT/RH - Hood Switch (W/ Underhood Work Light) Design 593
LT/RH - Battery International (3 12V Battery)
LT/RH - Battery International (3 12V Battery) Design 594
LT/RH - Battery International (4 12V Battery)
LT/RH - Battery International (4 12V Battery) Design 595
LT/RH - Battery International (8 12V Battery)
LT/RH - Battery International (8 12V Battery) Design 596
Connectors 597
Index 2009
