JCB JS160W T3 2007-2025 Electrical and Hydraulic Diagram PDF

Data Size: 10.79 MB
File Type: PDF
Language: English
Manufacturer: JCB
Applicable Machine: Wheel Excavator
Document: Electric Diagram, Hydraulic Diagram
Machine Model: JCB JS160W [T3] (2007-2025) Wheel Excavator

List Contents:

320_E9527-2_ Electrical Schematic (Engine) - JCB 4 Cyl Elec Engine T3.pdf (2 Pages)
332_J2193-1_ Electrical Schematic.pdf (3 Pages)
333_J7497-6_ Hydraulic Schematic.pdf (1 Page)
333_J7673-1_ Electrical Schematic.pdf (1 Page)

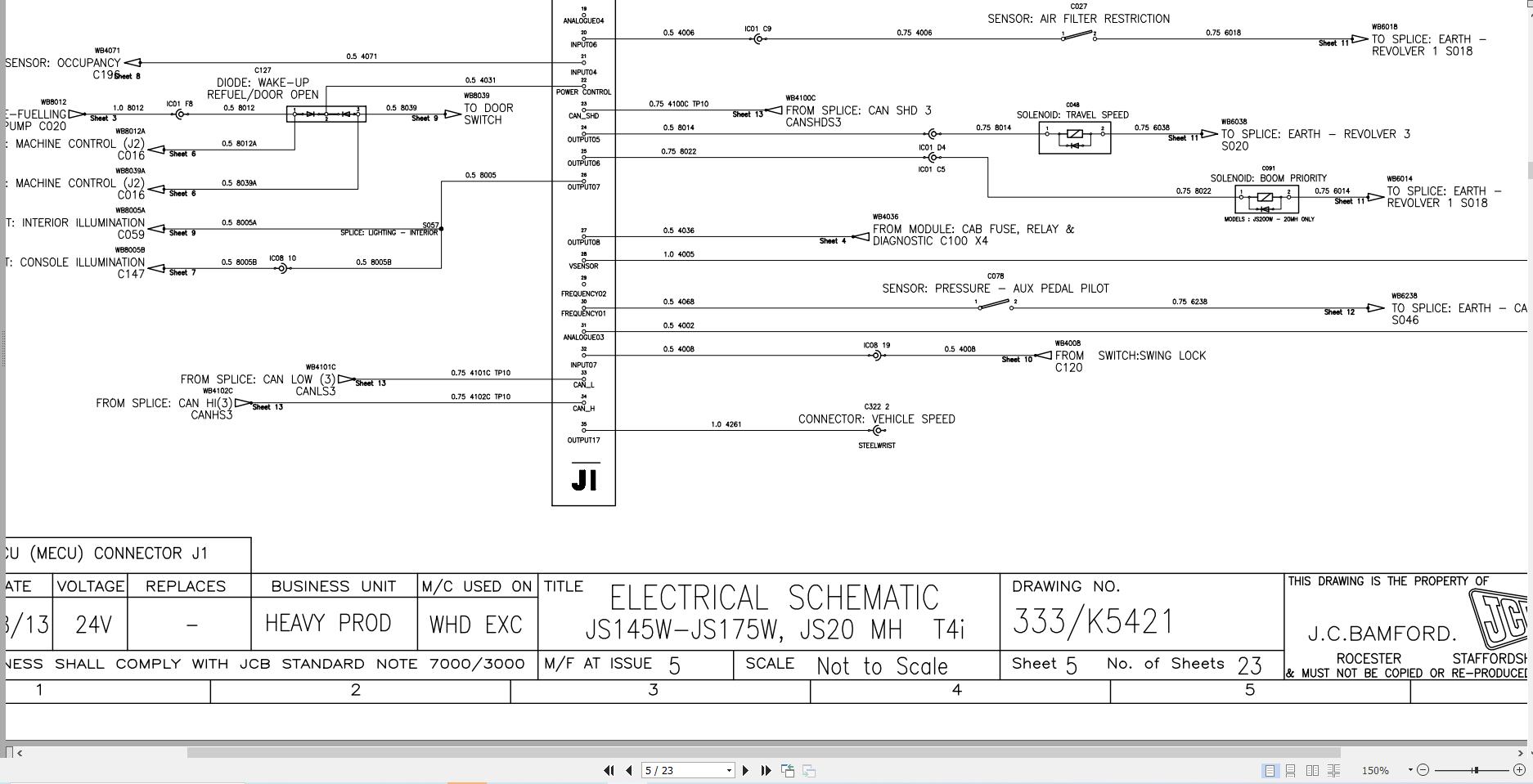

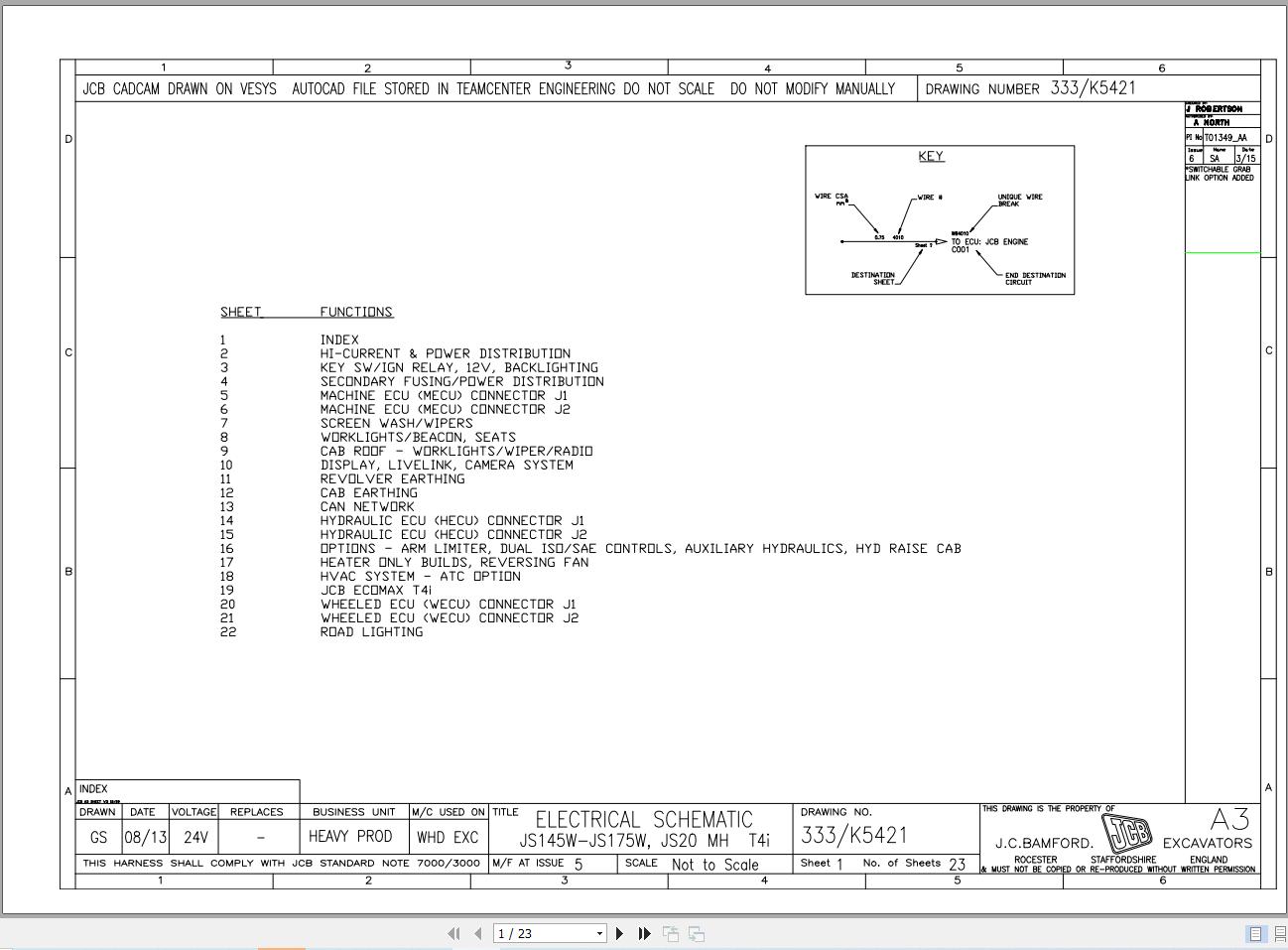

333_K5421-6_ Electrical Schematic.pdf (23 Pages)
333_K9810-4_ Hydraulic Schematic.pdf (4 Pages)
