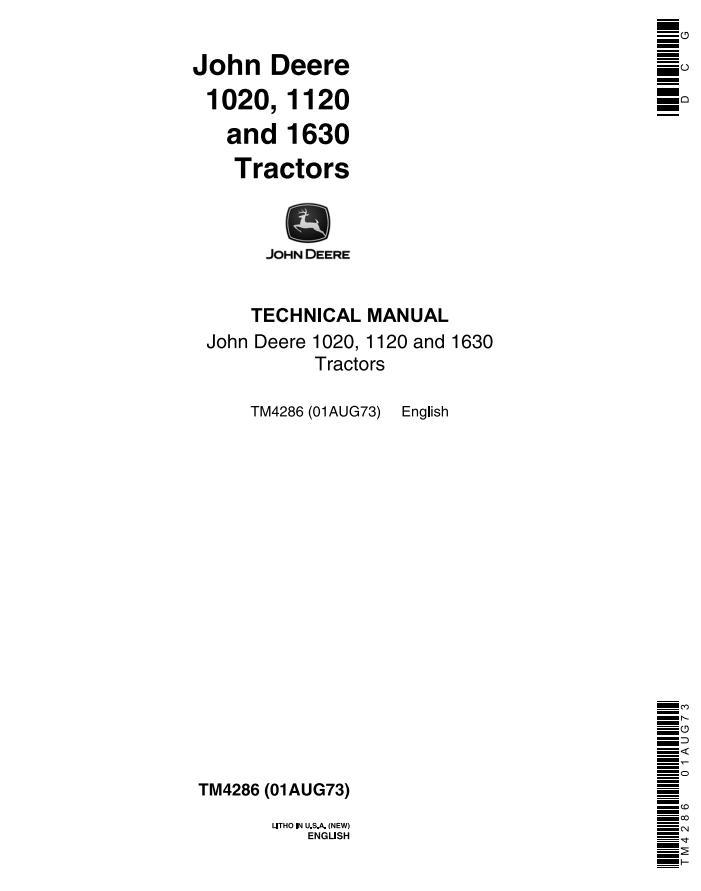

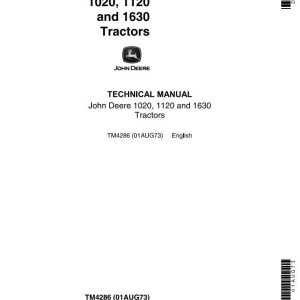

John Deere 1020 1120 1630 Tractor Technical Manual TM4286

John Deere 1020 1120 1630 Tractor Technical Manual TM4286
Language: English
Format: PDF
Document: Technical Manual
Machine: Tractor
Machine Model: 1020, 1120, 1630
Pages: 368 Pages
Part Number: TM4286

Contents:
   SECTION 10- GENERAL
       Group 5 - Specifications
       Group 10 - Pre-delivery, delivery and after-sales inspections
       Group 15 - Lubrication and periodic service
       Group 20 - Engine and tractor tune-up
       Group 25 - Tractor separation
   SECTION 20- ENGINE
       Group 5 - General information, diagnosing malfunctions
       Group 10 - Cylinder head and camshaft
       Group 15 - Cylinder block, liners, pistons and connecting rods
       Group 20 - Crankshaft, main bearings and flywheel
       Group 25 - Timing gear train
       Group 30 - Oil pump, oil pressure regulating valve, oil cooler and oil filter
       Group 35 - Engine cooling system
       Group 40 - Speed control linkage
   SECTION 30- FUEL SYSTEM
       Group 5 - Diagnosing malfunctions
       Group 10 - Fuel tank, water trap, transfer pump and fuel filter

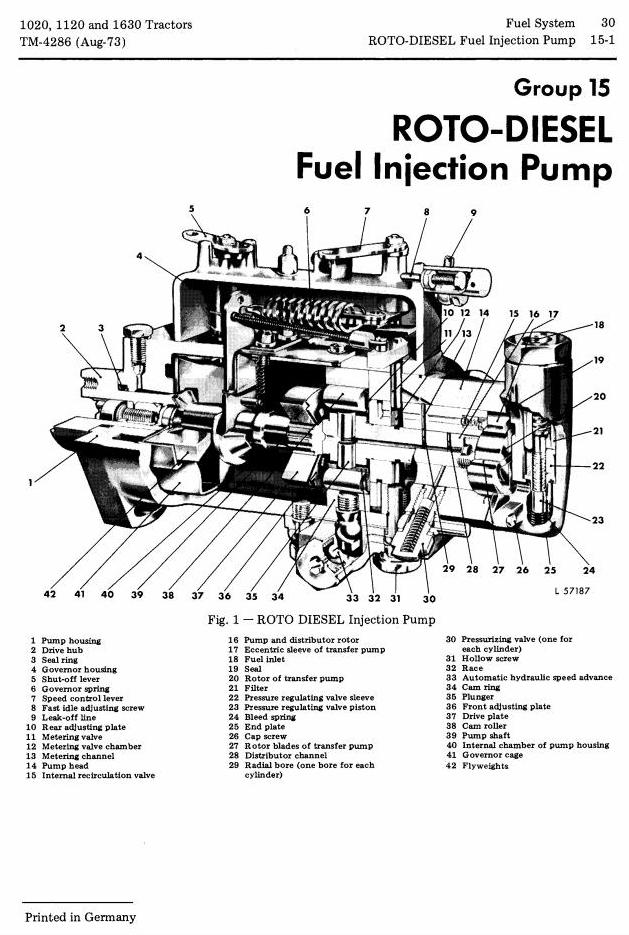

       Group 15 - ROTO DIESEL fuel injection pump
       Group 20 - Fuel injection nozzles
       Group 25 - Cold weather starting aids
   SECTION 40 - ELECTRICAL SYSTEM
       Group 5 - Diagnosing malfunctions
       Group 10 - ''Bilux'' lightingsystem
       Group 15 - Sealed-beam lighting system (on earlier tractor Machine Models)
       Group 16 - Sealed-beam lighting system (on later tractor Machine Models)

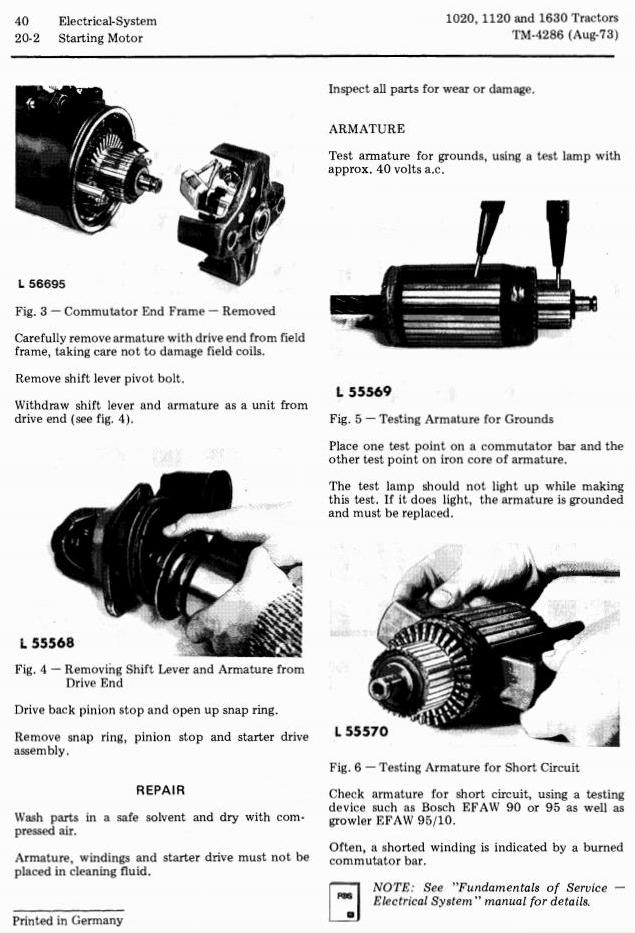

       Group 20 - Starting motor
       Group 25 - Alternator and regulator
   SECTION 50- POWER TRAIN
       Group 5 - Engine clutches and clutch linkage
       Group 10 - HIGH-LOW shift unit
       Group 15 - Collar-shift transmission
       Group 20 - Differential
       Group 25 - Final drives
       Group 30 - Independent PTO
       Group 35 - Continuous-running PTO
   SECTION 60- FRONT AXLE, STEERING SYSTEM AND BRAKES
       Group 5 - Front axle
       Group 10 - Steering system
       Group 15 - Hydraulic brakes
   SECTION 70- HYDRAULIC SYSTEM

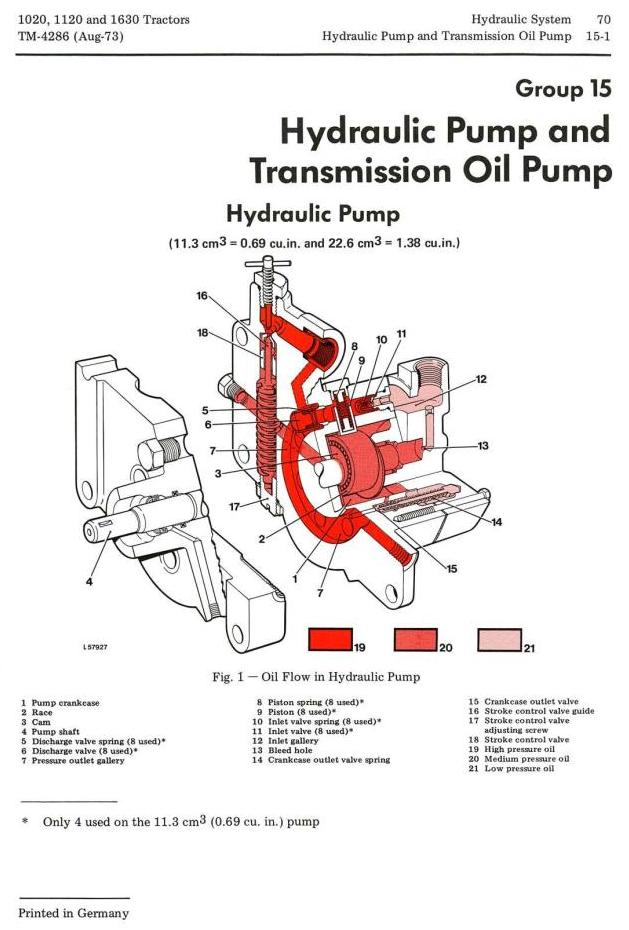

       Group 5 - General information, diagnosing malfunctions, and pressure tests
       Group 10 - Oil reservoir, filter, valves and oil cooler
       Group 15 - Hydraulic pump and transmission oil pump
       Group 20 - Rockshaft
       Group 25 - Selective control valves
       Group 30 - Remote cylinder
   SECTION 80- MISCELLANEOUS
       Group 5 - Belt pulley
       Group 10 - Seats
       Group 15 - Front and rear wheels
       Group 20 - Roll guard
