John Deere 1350 1550 1750 1850 1850N 1950 1950N Tractor Technical Manual TM4437

John Deere 1350 1550 1750 1850 1850N 1950 1950N Tractor Technical Manual TM4437
Language: English
Format: PDF
Document: Technical Manual
Machine: Tractor
Machine Model: 1350, 1550, 1850, 1950, 1750, 1850N, 1950N
Pages: 666 Pages
Part Number: TM4437

Contents:
   10-GENERAL
       05- Specifications
       10- Predelivery, delivery and after-sales inspections
       15-Lubrication and service
       20 -Tune-up

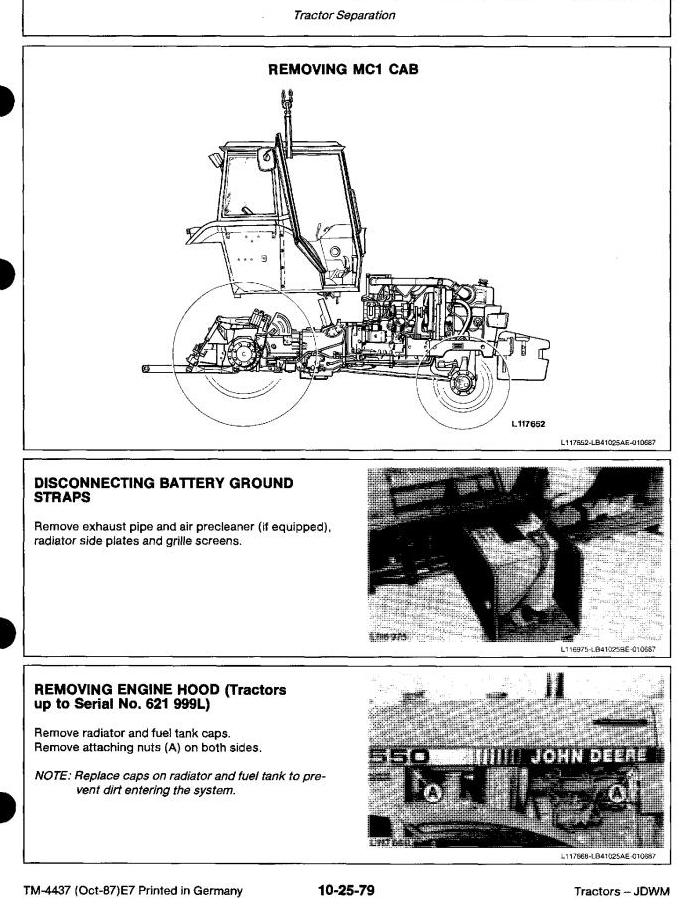

       25-Tractor separation
   20 -ENGINE
       05- Radiator, ''Visko'' fan drive and fan
   30- FUEL AND AIR INTAKE SYSTEM
       05- Fueltank and water trap
       10- Cold weather starting aids
       15-Speed control linkage
       20- Air cleaner
   40- ELECTRICAL SYSTEM
       05- Wiring harnesses
       10- Controls and instruments (without cab)
       15- Controls and instruments (with MC1 cab)
       20- Lighting system
       25-Starting motor
       30-Alternator
   50 -POWER TRAIN
       05- Clutch operating system
       10-Single-stage engine clutch

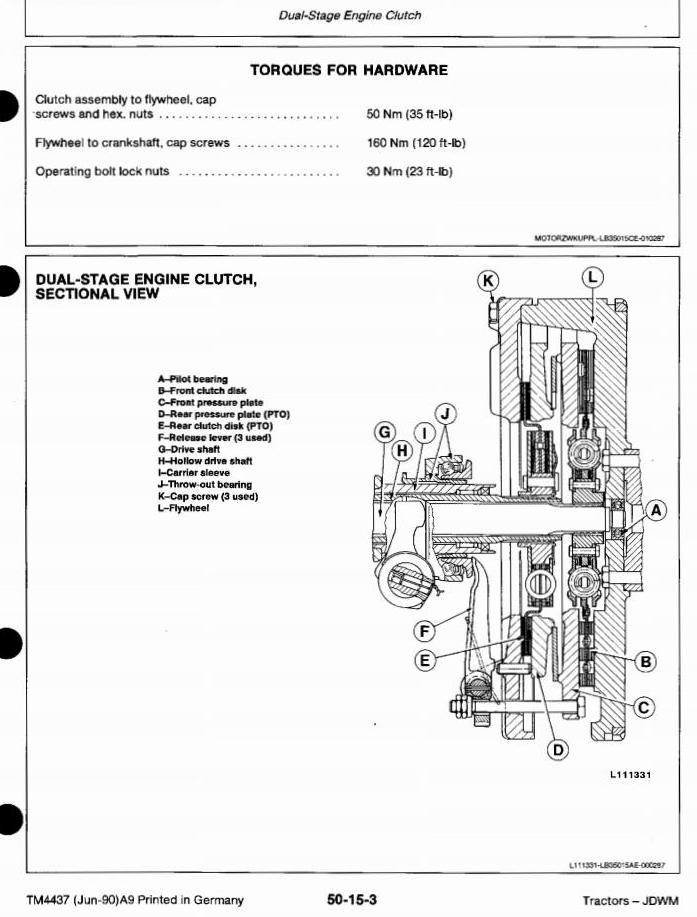

       15- Dual-stage engine clutch
       20-Hi-Lo shift unit
       25- Creeper transmission
       30-Transmission-center shift
       35- Synchronized transmission and transmission oil pump
       40- Collar shift transmission and transmission oil pump
       45- Differential
       50- Final drives
       55- Independent PTO shafts
       60- Continuous running PTO
       65- Front PTO
       70- Front wheel drive u.j. drive shaft and disk clutch
   60-STEERING SYSTEM AND BRAKES
       05- Power steering
       10-Manual steering
       15- Hydraulic brakes
       20- Handbrake
       25- Hydraulic trailer brake
   70- HYDRAULIC SYSTEM
       05-Valves
       10- Hydraulic pumps
       15-Rockshaft
       20-Selective control valves (spool type)
       25 -Selective control valves (poppet valve type)
   70- HYDRAULIC SYSTEM (CONTD.)
       30- ISO breakaway couplers
       35- ISO quick couplers
       40- Remote cylinder
   80- MISCELLANEOUS

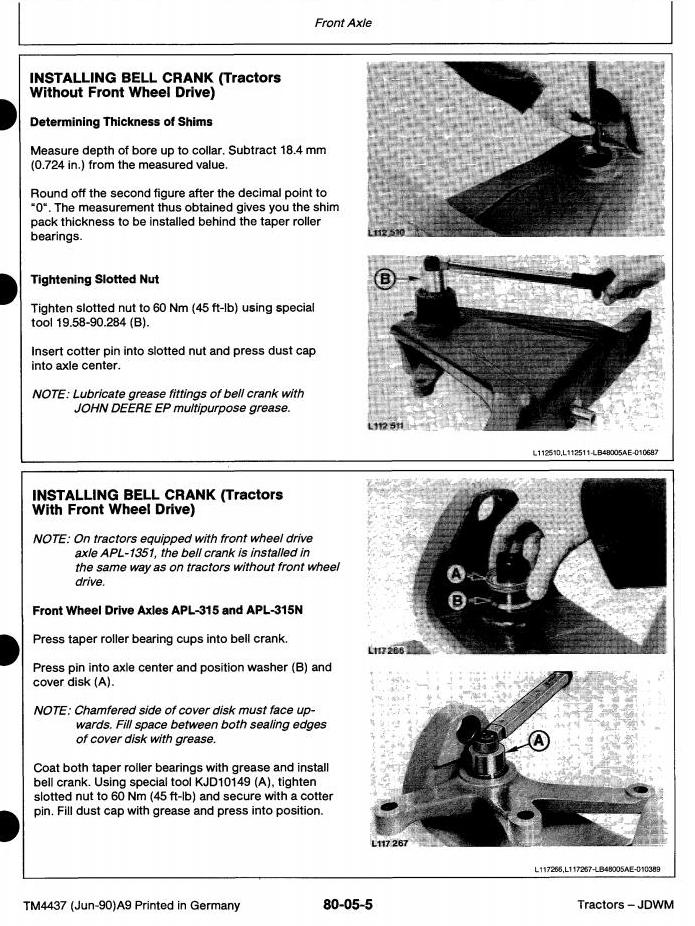

       05- Front axle
       10- Front and rear wheels
       15-AXLA trailer hitch
   90- OPERATOR S CAB
       05- Cab ventilation and heating (With MC1cab)
       10-Operator's seats
       15-MC1 cab
       20- 2-post roll guard
       25- 4-post roll guard
