John Deere 1640 1840 2040 2040S Tractor Technical Manual TM4363

John Deere 1640 1840 2040 2040S Tractor Technical Manual TM4363
Language: English
Format: PDF
Document: Technical Manual
Machine: Tractor
Machine Model: 1640, 1840, 2040, 2040S
Pages: 1256 Pages
Part Number: TM4363

Contents:
 SECTION 10 - GENERAL
     Group 00 - Specifications and special tools
     Group 05 - Pre-delivery, delivery and after-sales inspections
     Group 10- Lubrication and periodic service
     Group 15 - Engine and tractor tune-up
     Group 20 - Tractor separation (tractors without increased lifting capacity)

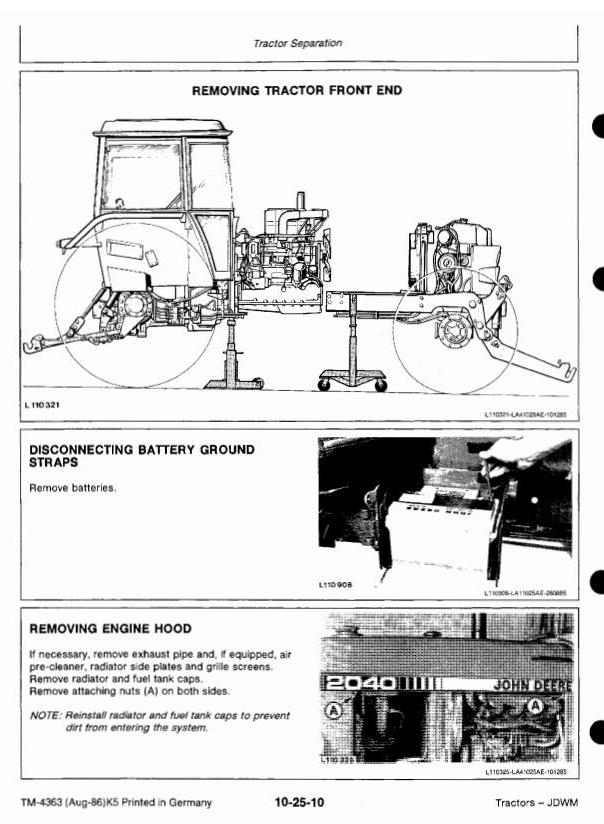

     Group 25 - Tractor separation (tractors with increased lifting capacity)
 SECTION 20 - ENGINE
     Group 00 - Specifications
     Group 05 - Radiator
 SECTION 30 - FUEL AND AIR INTAKE SYSTEM
     Group 00 - Specifications and special tools
     Group 05 - Diagnosing malfunctions
     Group 10 - Fuel tank and water trap
     Group 15 - Cold weather starting aids
     Group 20 - Speed control linkage
     Group 25 - Air cleaner
 SECTION 40 - ELECTRICAL SYSTEM
     Group 00 - Specifications and special tools
     Group 05 - Description, diagnosing malfunctions and tests
     Group 10- Wiring harnesses
     Group 15 - Controls and instruments
     Group 20 - Lighting system
     Group 25 - Wiring diagrams
     Group 30 - Starting motor
     Group 35 - Alternator
 SECTION 50 - POWER TRAIN
     Group 00 - Specifications and specialtools
     Group 05 - Description, operation and lubricating system
     Group 10 - Clutch operating linkages
     Group 15- Engine clutches
     Group 20 - Hi-Lo shift unit
     Group 25 - Creeper transmission
     Group 30 - Transmission shift linkage
     Group 35 - Synchronized transmission and transmission oil pump
     Group 40 - Collar shift transmission and transmission oil pump
     Group 45 - Differential
     Group 50- Final drives
     Group 55 - Independent PTO
     Group 60 - Continuous-running PTO

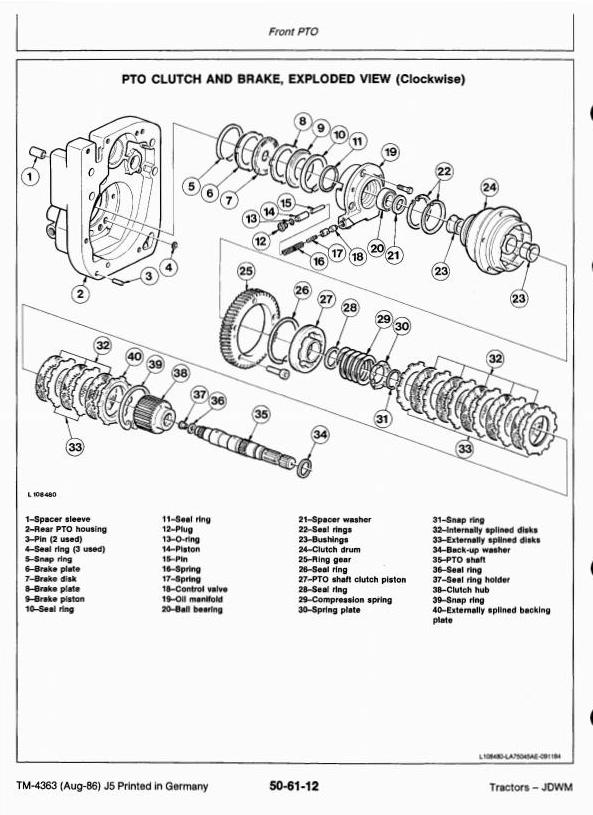

     Group 61 - Front PTO
     Group 65 - Mechanical front wheel drive
 SECTION 60 - STEERING SYSTEM AND BRAKES
     Group 00 - Specifications and special tools
     Group 05 - Hydrostatic steering (operating pressure: 12000 kPa; 120 bar; 1740 psi)
     Group 06 - Hydrostatic steering (operating pressure: 15000 kPa; 150 bar; 2180 psi)
     Group 10 - Power steering
     Group 15 - Manual steering
     Group 20 - Brakes
 SECTION 70 - HYDRAULIC SYSTEM
     Group 00 - Specifications and special tools
     Group 05 - Description, diagnosing malfunctions and pressure tests
     Group 10 - Oil reservoir, filter, valves and oil cooler
     Group 15 - Hydraulic pumps
     Group 20 - Rockshaft
     Group 21 - Front hitch
     Group 25 - Selective control valves (spool type)
     Group 30 - Selective control valves (poppet valve type)

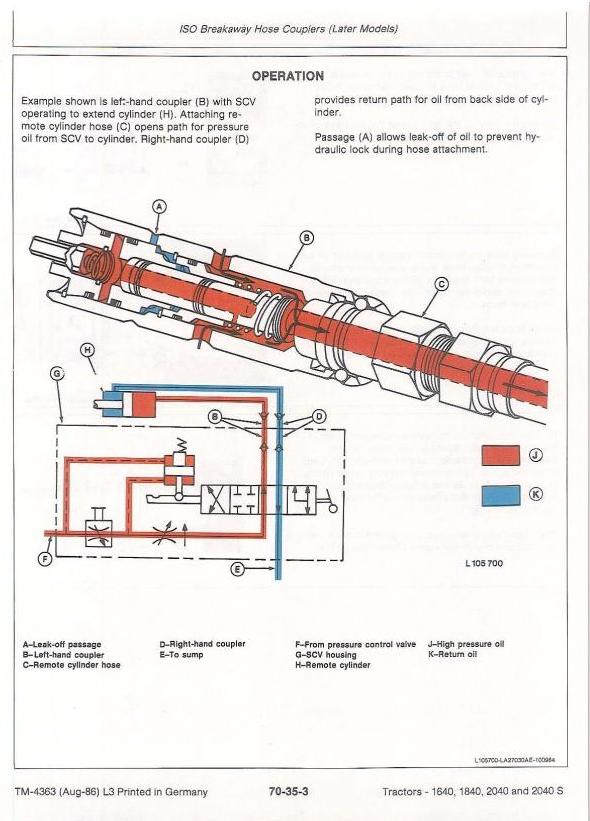

     Group 35 - Hose couplers
     Group 40 - Remote cylinder
     Group 45 - Selective control valves (for tractors manufactured in Spain)
 SECTION 80 - MISCELLANEOUS
     Group 00 - Specifications and special tools
     Group 05 - Front axle
     Group 10 - Belt pulley
     Group 15 - Front and rear wheels
     Group 20 - Axla trailer hitch
 SECTION 90 - OPERATOR'S CAB
     Group 00 - Specifications and special tools
     Group 05 - Air conditioning system
     Group 10 - Cab ventilation and heating
     Group 15 - Operator's seats
     Group 20 - OPU cab
     Group 25 - SG2 cab
     Group 30 - Roll guard
