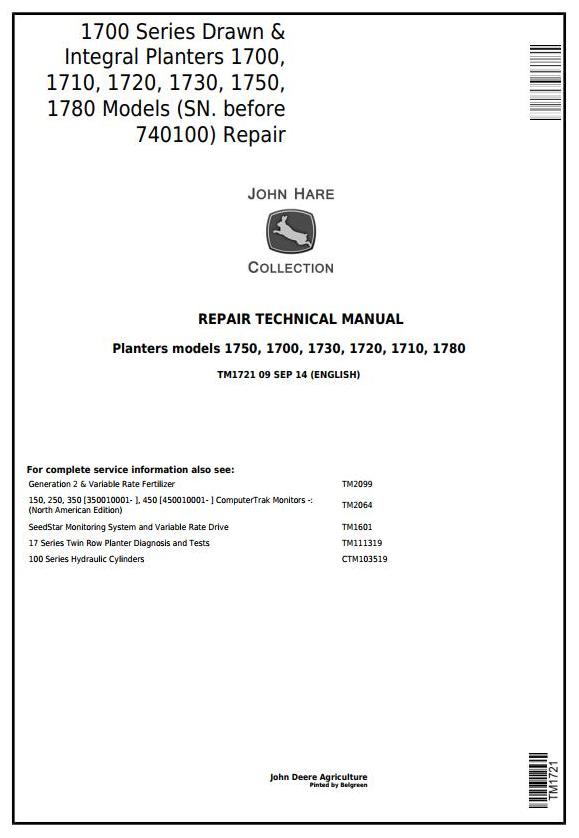

John Deere 1700 1710 1720 1730 1750 1780 Planter Repair Technical Manual TM1721

John Deere 1700 1710 1720 1730 1750 1780 Planter Repair Technical Manual TM1721
Language: English
Format: PDF
Document: Repair Technical Manual
Machine: Planter
Machine Model: 1700, 1710, 1720, 1730, 1750, 1780 (SN. before 740100)
Pages: 841 Pages
Part Number: TM1721

Contents:
  Foreword
  General
     Safety
     Lubricants
     General Information
  Vacuum System

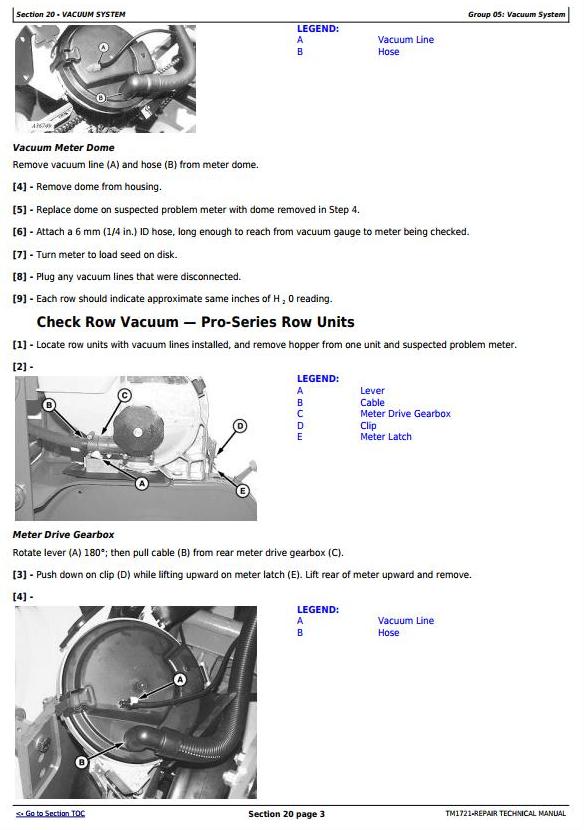

     Vacuum System
  Central Commodity System
     Seed Tanks and Manifolds
     Seed Delivery Hose
     Central Commodity System Fan
  Planting Units

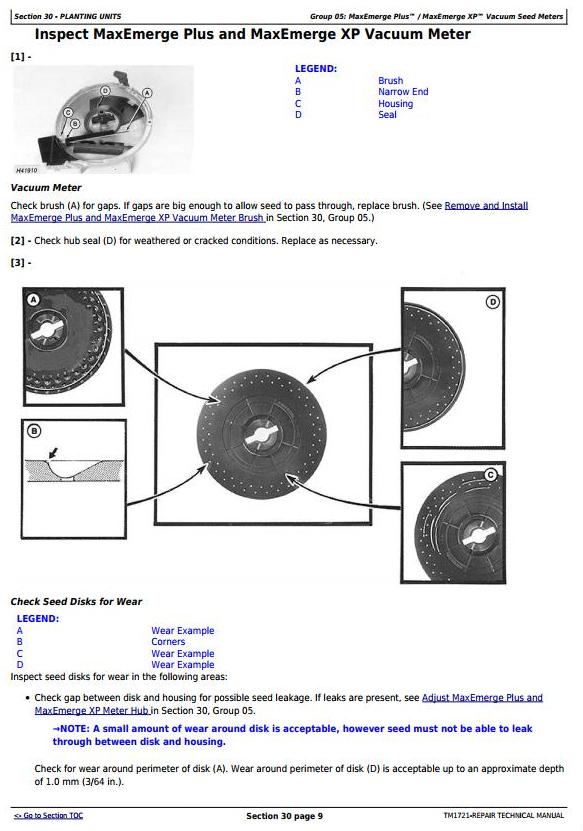

     MaxEmerge Plus™ / MaxEmerge XP™ Vacuum Seed Meters
     MaxEmerge Plus™ / MaxEmerge XP™ Plateless Seed Meters
     MaxEmerge XP Twin Row™ Vacuum Seed Meters
     PRO-SERIES™ / Pro-Series XP™ / Pro-Series XP™ Twin Row Vacuum Seed Meters
     PRO-SERIES™ / Pro-Series XP™ Plateless Seed Meters
     Seed Openers
     Closing Wheels
     Row Tillage
     Insecticide/Herbicide Meter
     Mechanical Row Unit Down Force
     Pneumatic Row Unit Down Force
  Electrical
     Connector Repair
     Sensors and Switches
     Lighting repair
  Drives
     Specifications
     Seed Drive Transmission
     Clutch
     Countershaft, Drillshaft and Jackshaft
     Fertilizer Drive
     Dry Fertilizer
     Liquid Fertilizer
     Variable Rate Drive
  Frame
     Repair and Welding
     Wheel Module Repair
     Lift Assist
     Row Marker
  Hydraulics
     General Information
     Motors
     Master Cylinder
     Wheel Cylinders
     Marker Cylinders
     1710 Vertical Fold Cylinders
     1720, 1720 CCS, and 1720 CCS Twin Row Fold and Wing Lift Cylinders

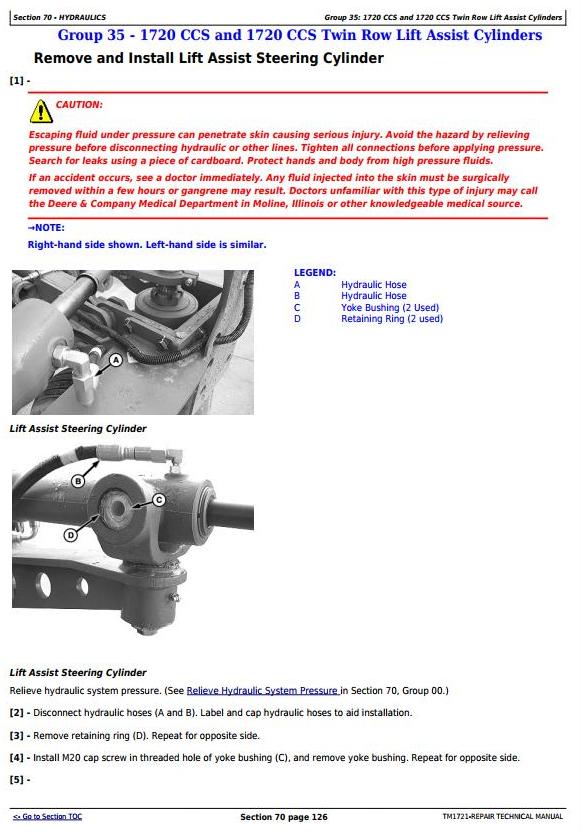

     1720 CCS and 1720 CCS Twin Row Lift Assist Cylinders
     Valves
     PTO Pump
     Quik-FillQuik-Fil™Hydraulic System-Dry Fertilizer
  Miscellaneous
     Polyethylene Tank Repair
  Dealer Fabricated Tools
     Master Cylinder Assembly
